The 7” Touchscreen Monitor for Raspberry Pi gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects. The 800 x 480 display connects via an adapter board which handles power and signal conversion. Only two connections to the Pi are required; power from the Pi’s GPIO port and a ribbon cable that connects to the DSI port present on all Raspberry Pi’s. Touchscreen drivers with support for 10-finger touch and an on-screen keyboard will be integrated into the latest Raspbian OS for full functionality without a physical keyboard or mouse.
- Turn your Raspberry Pi into a touch screen tablet, infotainment system, or standalone device.
- Truly Interactive - the latest software drivers will support a virtual ‘on screen’ keyboard, so there is no need to plug in a keyboard and mouse.
- Make your own ‘Internet of Things’ (IoT) devices including a visual display. Simply connect your Raspberry Pi, develop a Python script to interact with the display, and you’re ready to create your own home automation devices with touch screen capability.
- A range of educational software and programs available on the Raspberry Pi will be touch enabled, making learning and programming easier on the Raspberry Pi.

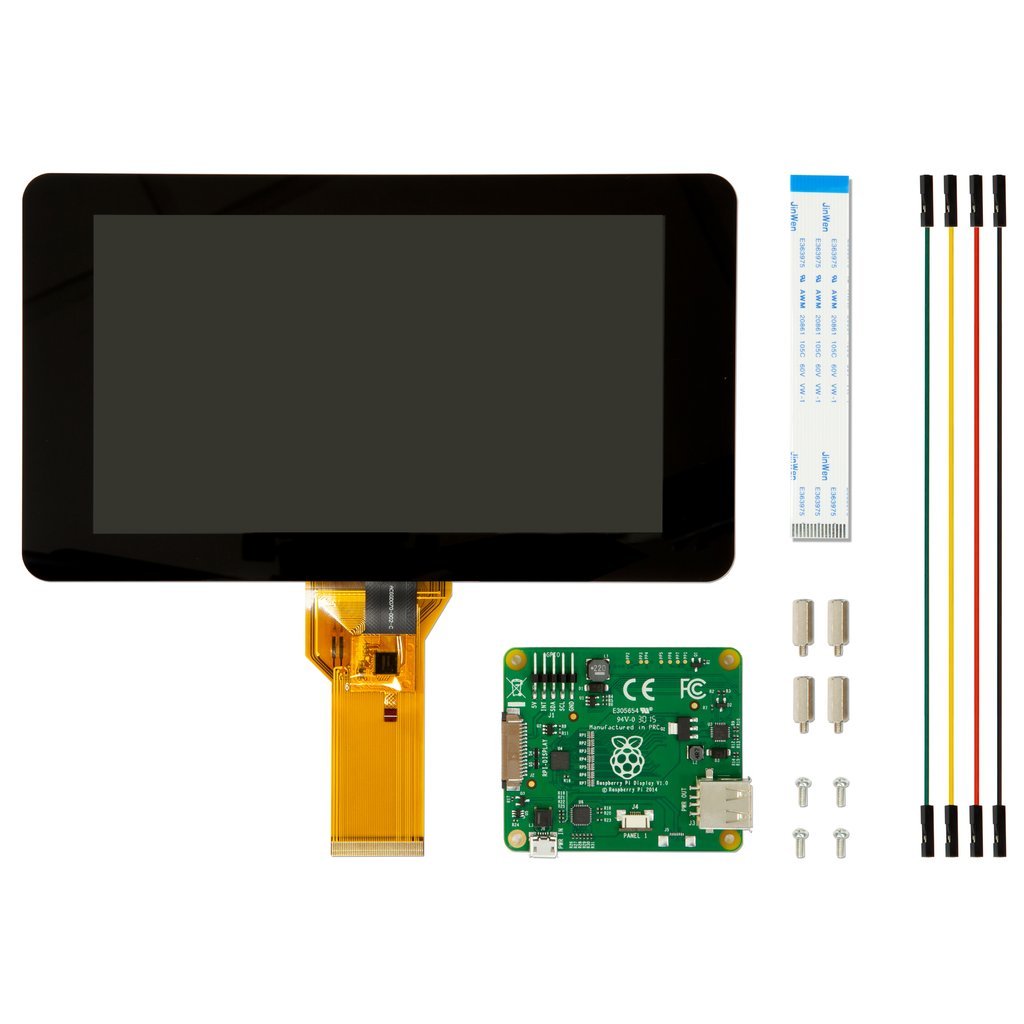

- 7” Touchscreen Display
- Adapter Board
- DSI Ribbon cable
- 4 x stand-offs and screws (used to mount the adapter board and Raspberry Pi board to the back of the display
- 4 x jumper wires (used to connect the power from the Adapter Board and the GPIO pins on the Pi so the 2Amp power is shared across both units)
- Perspex layer frame in your choice of colour!
Just a heads up: The Raspberry Pi Board and Power Supply are not included in this kit, and are sold separately
- Raspberry Pi 4 Model B+
- Raspberry Pi 3 Model A+
- Raspberry Pi 3 Model B+
- Raspberry Pi 2 Model B
- Raspberry Pi Model B+
- Raspberry PI Model A+
The display will technically work with the Model A and Model B boards (connecting it to the DSI port on the Pi board), however the mounting holes on the back of the display will only line up with the newer board design (A+, B+ and Pi2)
- 7” Touchscreen Display.
- Screen Dimensions: 194mm x 110mm x 20mm (including standoffs)
- Viewable screen size: 155mm x 86mm
- Screen Resolution 800 x 480 pixels
- 10 finger capacitive touch.
- Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port.
- Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi.
Note. Will require the latest version of Raspbian OS to operate correctly. You can download this with the Raspberry Pi Noobs SD Card.
Raspberry Pi 7" Touchscreen Display (Official)
We have 1 units in our Sydney Warehouse available for immediate dispatch.
We can get a further 1000 units in Australia from Raspberry Pi. If you order today, we can dispatch this stock between Aug 17, 2020 - Aug 19, 2020.
|Raspberry Pi Model Compatibility|
|RP4||Works with Raspberry Pi 4 Model B|
|RP3A+||Works with Raspberry Pi 3 Model A+|
|RP3B+||Works with Raspberry Pi 3 Model B+|
|RP3B||Works with Raspberry Pi 3 Model B|
|RP2B||Works with Raspberry Pi 2 Model B|
|RP1B+||Doesn't with Raspberry Pi 1 Model B+|
|RP1A+||Doesn't with Raspberry Pi 1 Model A+|
|RP0W||Doesn't with Raspberry Pi Zero W|
|RP0||Doesn't with Raspberry Pi Zero|
|RPCM3+||Doesn't with Raspberry Pi Compute Module 3+|
