The Raspberry Pi M.2 HAT+ enables the connection of M.2 peripherals, such as NVMe drives and AI accelerators, to the Raspberry Pi 5 via its PCIe 2.0 interface, providing fast data transfers up to 500 MB/s.

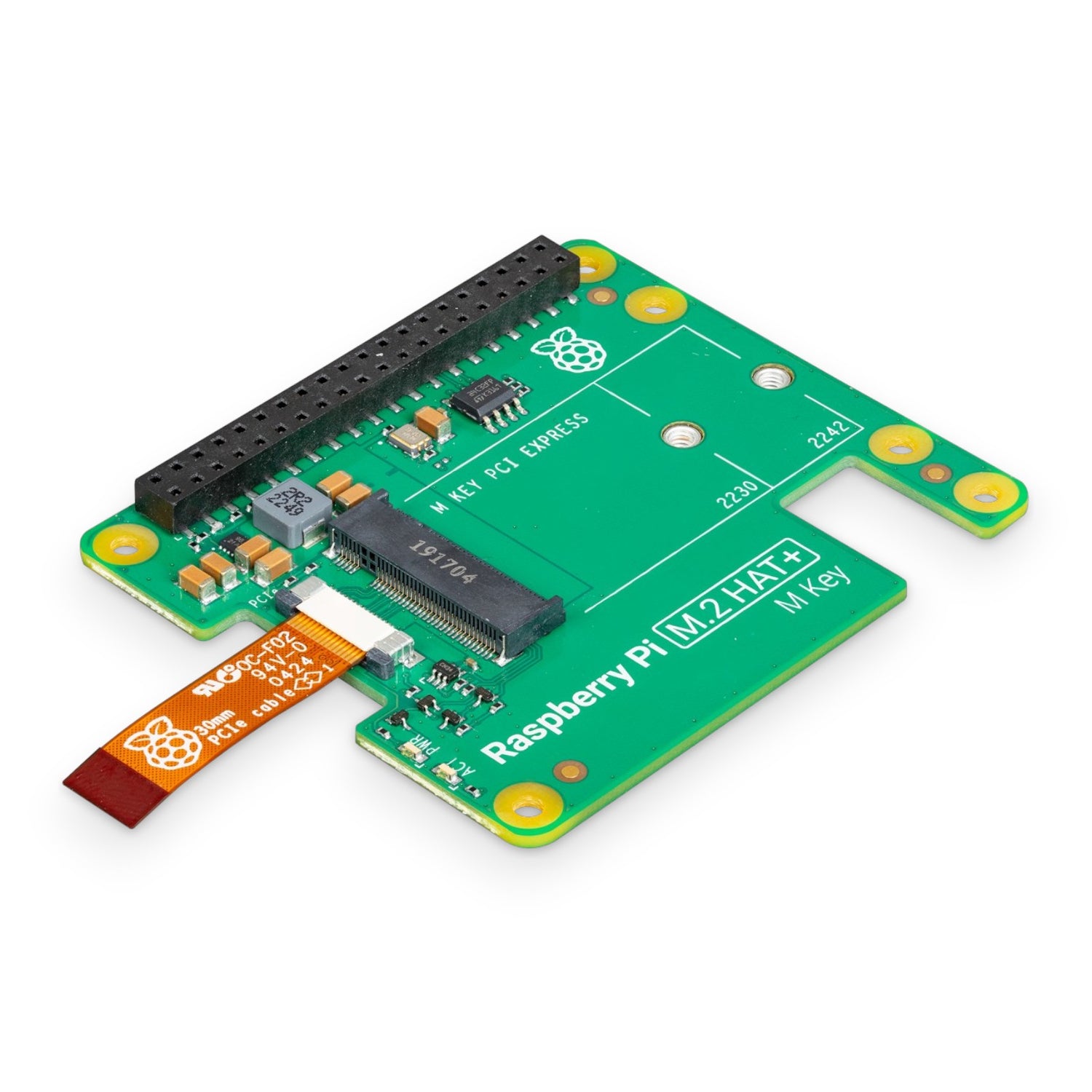

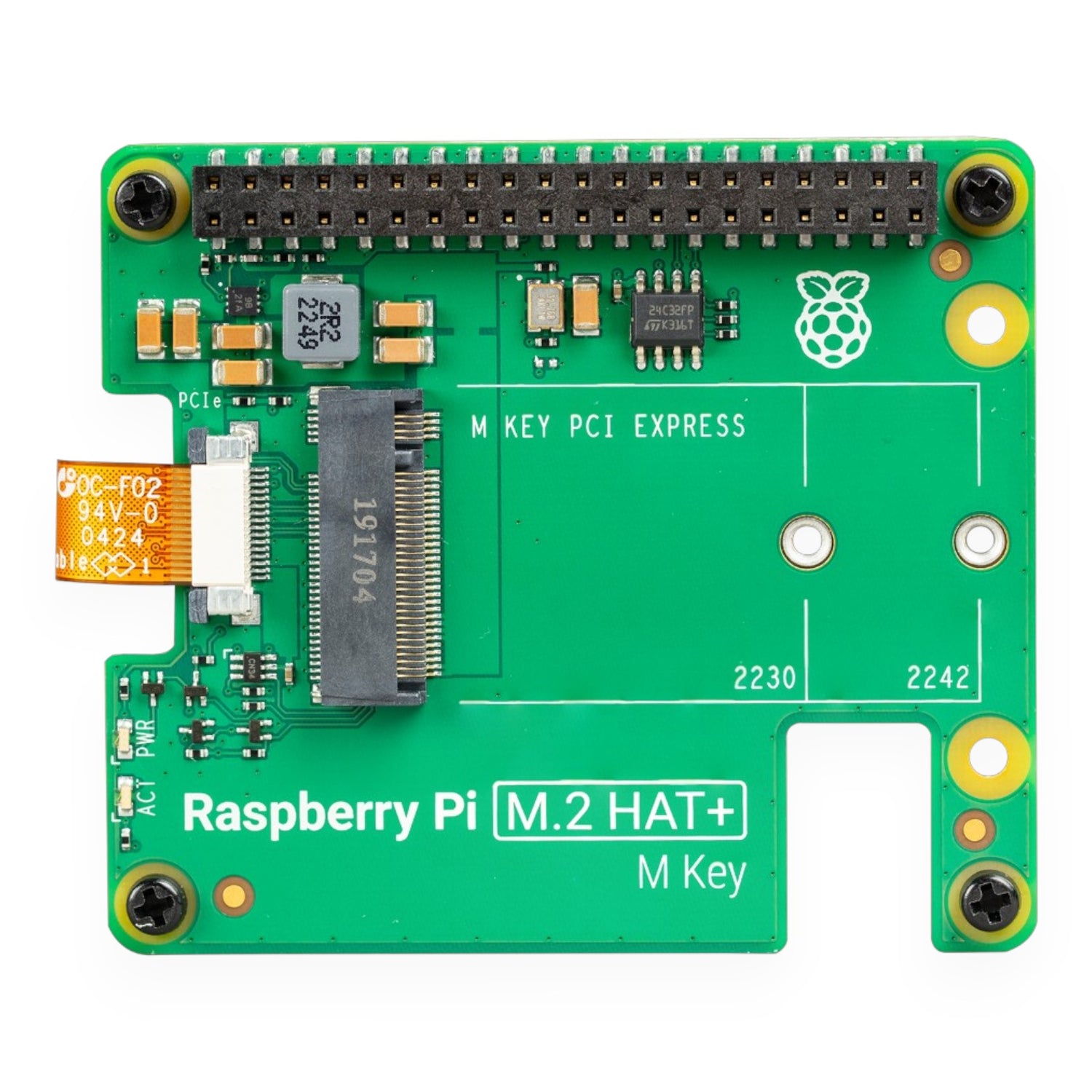

This adapter board features a 16-pin, 0.5mm-pitch FPC connector that links to the Raspberry Pi 5's single-lane PCI Express 2.0 interface. It is designed for M.2 devices compatible with the M Key edge connector in 2230 and 2242 form factors.

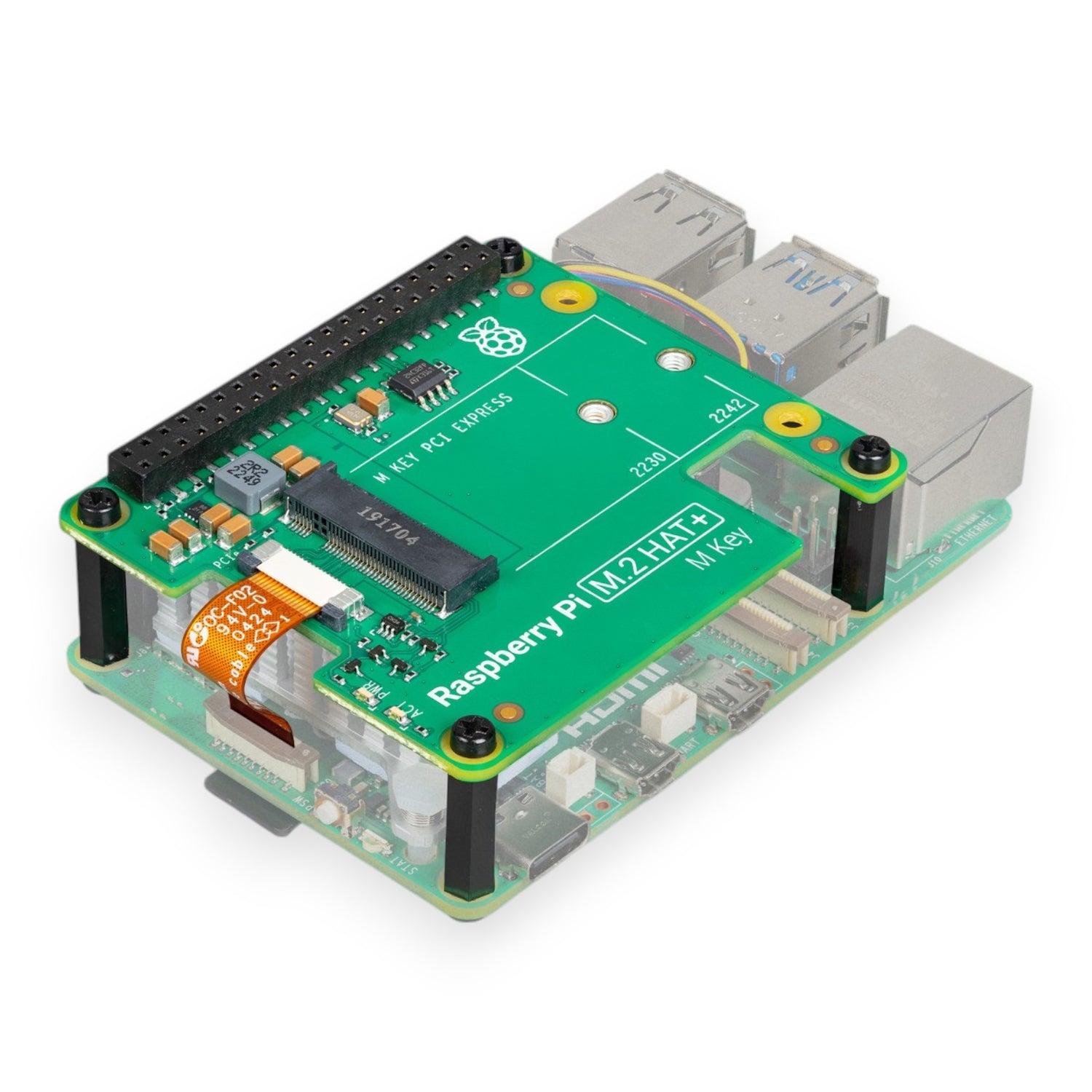

The board can supply up to 3A of power to these devices. Compliant with the Raspberry Pi HAT+ specification, the M.2 HAT+ is automatically recognised by the latest Raspberry Pi software and firmware. It includes a 16mm stacking header and threaded spacers for installation alongside the Raspberry Pi Active Cooler.

Key Features:

• Supports a single-lane PCIe 2.0 interface with a maximum transfer rate of 500 MB/s.
• Compatible with M.2 M Key edge connector devices.
• Suitable for devices in 2230 and 2242 form factors.
• Provides up to 3A of power to connected M.2 devices.
• Includes power and activity indicators.
• Meets Raspberry Pi HAT+ specification standards.
• Comes with installation accessories such as a ribbon cable, 16mm stacking header, threaded spacers, screws, and a knurled double-flanged screw for securing the M.2 peripheral.
• Operates within a temperature range of 0°C to 50°C.

Documents:

• Product Brief
• M.2 Device Specification README
