Raspberry Pi  |  SKU: RP-SC0073

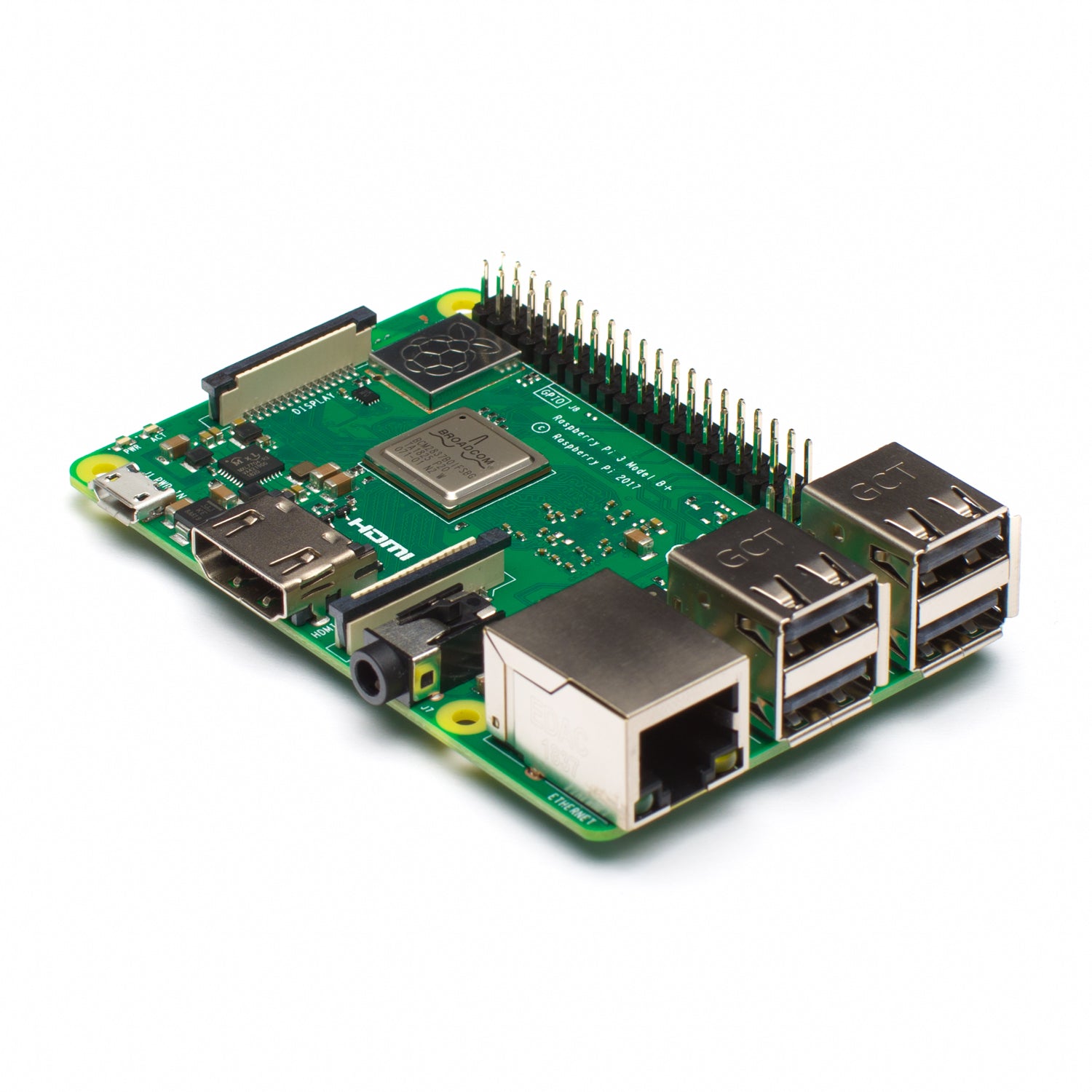

Raspberry Pi 3 Model B+

$80.87
Tax included Shipping calculated at checkout.

Essentials for Raspberry Pi 3 Model B+

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

The Raspberry Pi 3 Model B+ (Raspberry Pi 3 Model B Plus) is the latest version of the Raspberry Pi, a tiny credit card size computer. Just add a keyboard, mouse, display, power supply, micro SD card with installed Linux Distribution and you'll have a fully fledged computer that can run applications from word processors and spreadsheets to games.

As the Raspberry Pi 3 Model B + supports HD video, you can even create a media centre with it. The Raspberry Pi 3 Model B is the first Raspberry Pi to be open-source from the get-go, expect it to be the defacto embedded Linux board in all the forums.

There are many exciting projects you could create with the Raspberry Pi 3B+. Check out our free, beginner-friendly, step-by-step guides here:

Tech Specs

Chip
  • Broadcom BCM2837B0
  • 64bit
  • ARMv8
  • Quad Core Cortex A53
  • 1.4 GHz
Storage microSD Card
Memory 1 GB LPDDR2 SDRAM
Graphics
  • 400 MHz Dual Core VideoCore IV GPU
  • OpenGL ES 2.0
  • Hardware-Accelerated OpenVG
  • 1080p30 H.264 high-profile decode
Weight 42g
Audio
  • HDMI port supports multichannel audio output
  • Audio line out/3.5-mm headphone jack (analog)
Connections and
Expansions
Created with Sketch. USB 2.0 ports 10/100BASE-T Ethernet ports Composite Video and Audio jack CSI Camera port HDMI port MicroUSB Power Input DSI Display port 40-pin GPIO
  • Four USB 2.0 ports (up to 480 megabits per second)
  • HDMI port
  • 3.5mm 4-pole Composite Video and Audio jack
  • MicroUSB Power Input
  • DSI Display Port
  • CSI Camera Port
  • MicroSD card Sold
  • 40-pin GPIO (Male headers)
Communications Wi-Fi
802.11ac WiFi wireless Networking;IEEE 802.11.b/g/n/ac compatible

Bluetooth
Bluetooth 4.2 wireless technology with BLE (Bluetooth Low Energy)

Ethernet
10/100/1000BASE-T Ethernet limited to 300Mbps (RJ-45 connector)
Electrical and
Operating Requirements
Input voltage: 5V DC
Power over Ethernet: (requires separate PoE HAT)
Current Requirement: 2.5 Amps
Operating System Raspberry Pi Foundation's Offical supported Operating Systems
  • NOOBS
  • Raspbian
Third Party Operating Systems
  • Libreelec
  • Open Elec
  • OSMC
  • Pinet
  • RISC OS
  • Snappy Ubuntu Core
  • Ubuntu Mate
  • Weather Station
  • Windows IOT Core
  • XBian

GPIO Pin-Out

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 3.3V SDA GPIO2 SCL GPIO3 GPIO4 GND GPIO17 GPIO27 GPIO22 3.3V MOSI GPIO10 MISO GPIO9 SCLK GPIO11 GND IDSD GPIO5 GPIO6 GPIO13 GPIO19 GPIO26 GND 5V 5V GND GPIO14 TXD GPIO15 RXD GPIO18 CLK GND GPIO23 GPIO24 GND GPIO25 GPIO8 CD0 GPIO7 CE1 IDSD GND GPIO12 GND GPIO16 GPIO20 DIN GPIO21 DOUT SPI I2C SPI UART PCM PCM PCM 5V Power 3.3V Power Ground https://piaustralia.com.au


Getting Started

Check out our guide on how to get started with the Raspberry Pi 3 Model B+!

Have a look through our videos:



Raspberry Pi - Questions and Answers

Is the Raspberry Pi 3 Model B Plus good for gaming?

Can I use a cell phone charger to power the Raspberry Pi 3 Model B+?

Does the Raspberry Pi 3 support PoE?

Can you use a xbox one controller with the Raspberry Pi 3 model B+?

Do I *need* a keyboard and mouse for my RPi3B+ for Retro Pie?

Is the RAM upgradeable on a Raspberry Pi 3?

Will I be able to set up the Raspberry Pi 3 as a media centre?

Will the Raspberry Pi 3 fit in a Raspberry Pi 2 case?

Is the Raspberry Pi 3 made in the UK?

Do I need a WiFi dongle for my Raspberry Pi 3?

What comes with the Raspberry Pi 3 and what do I need?

Is the SD cards spring loaded on the Raspberry Pi 3?
