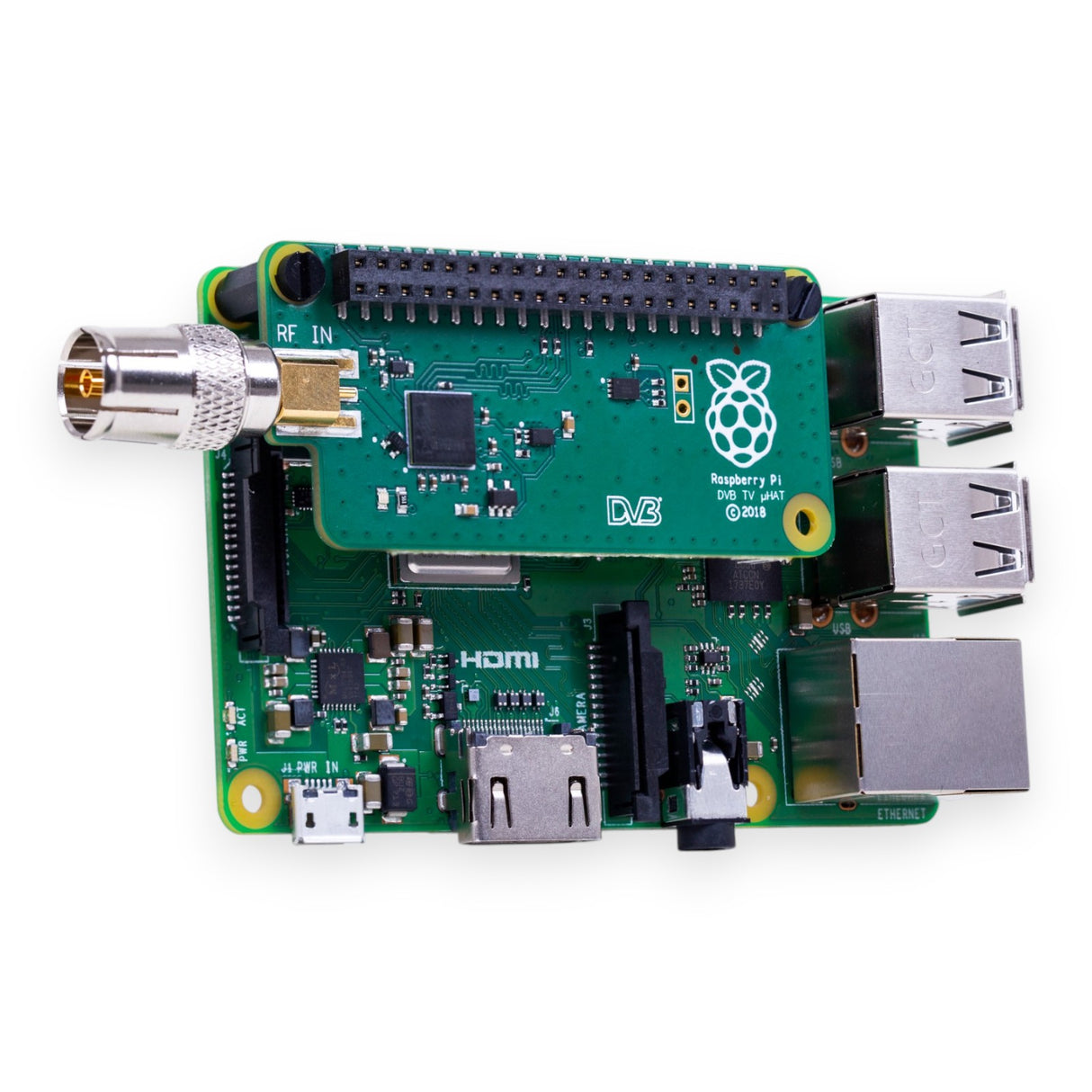

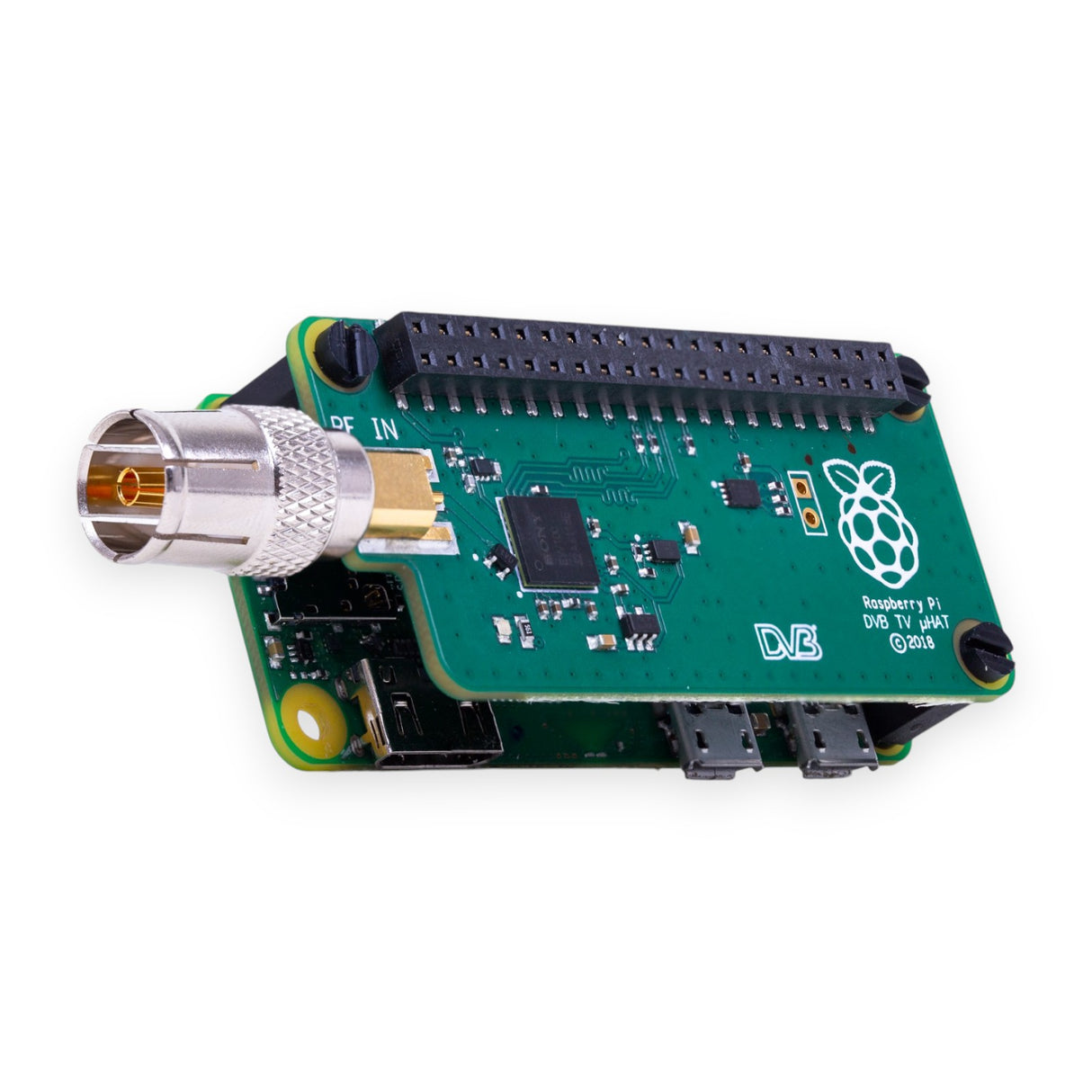

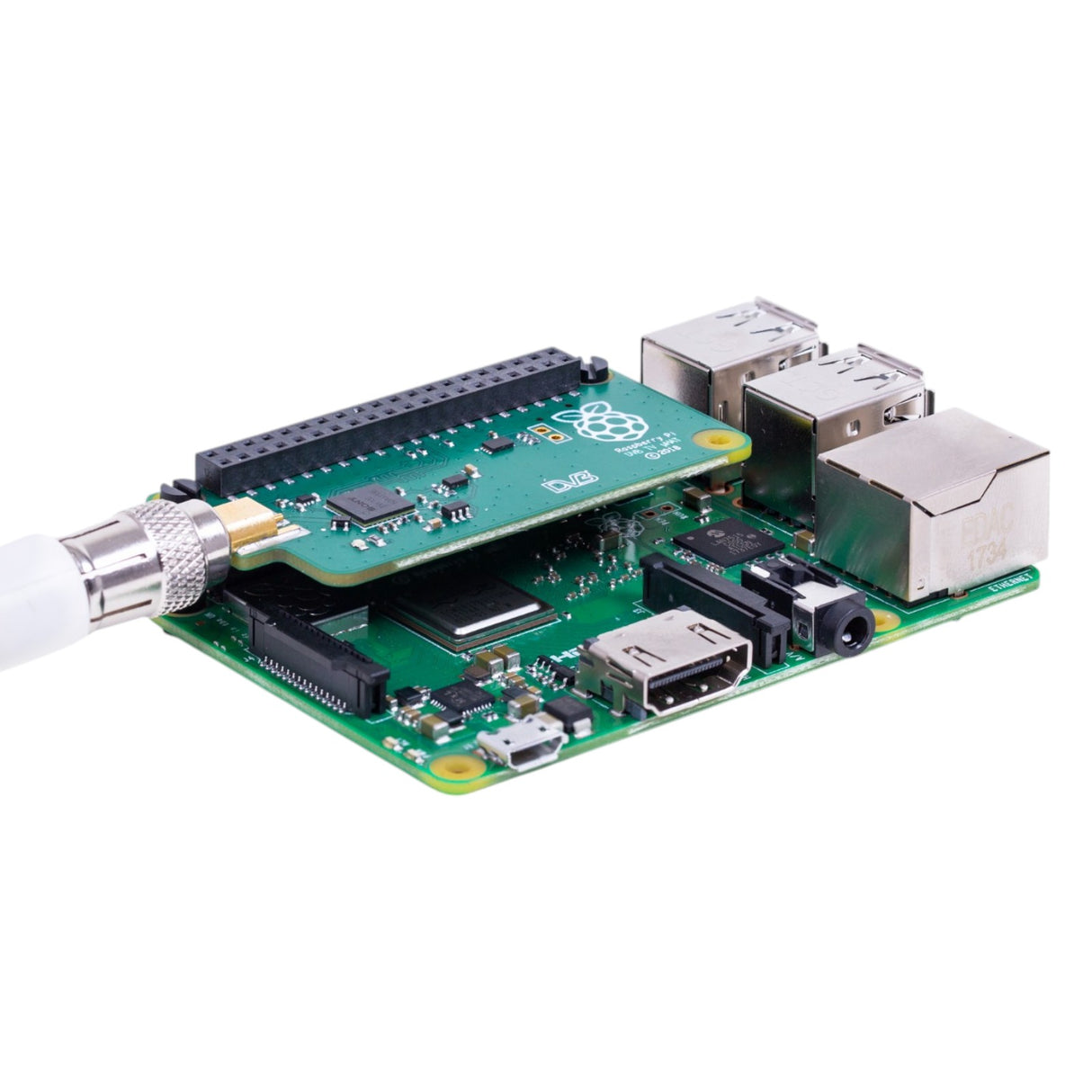

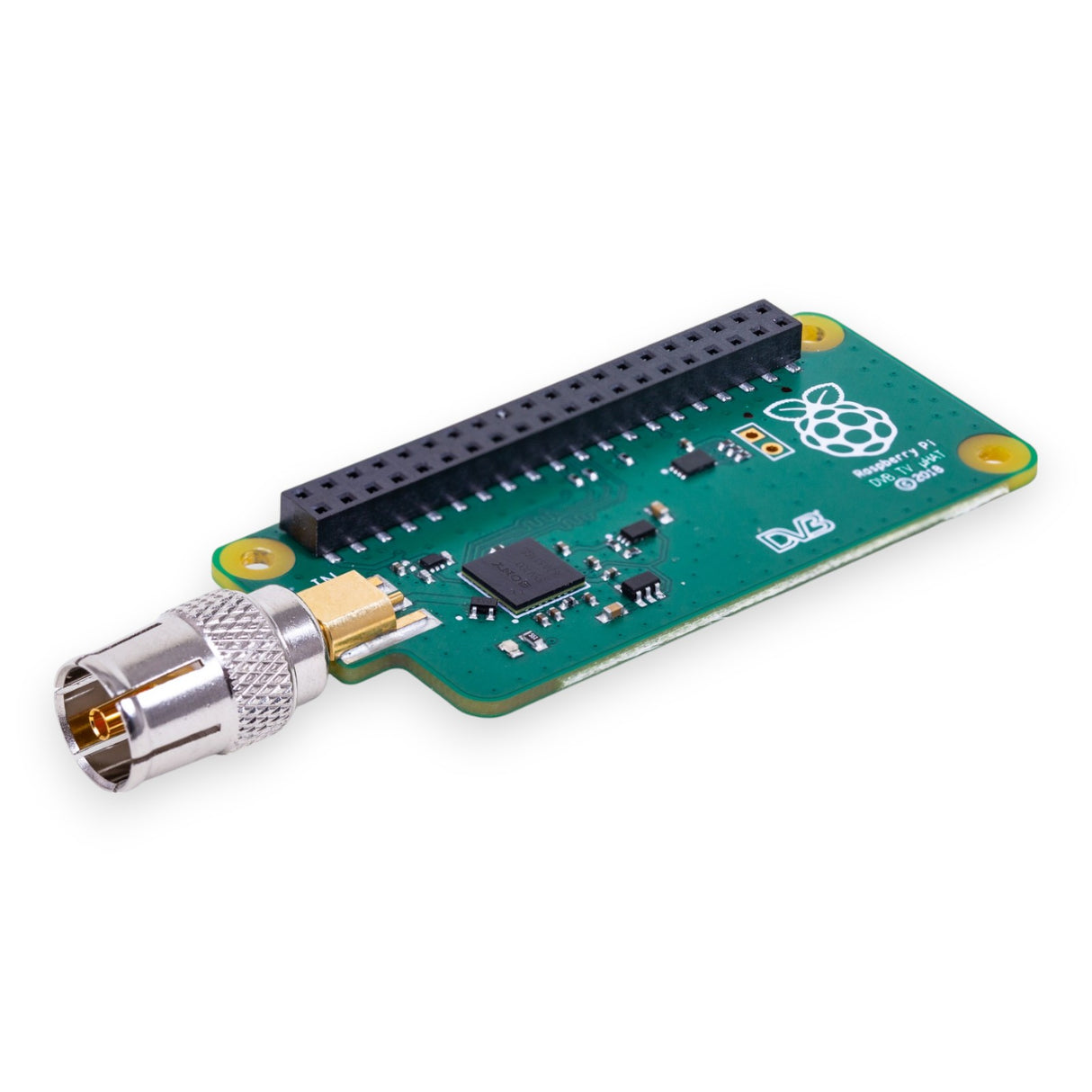

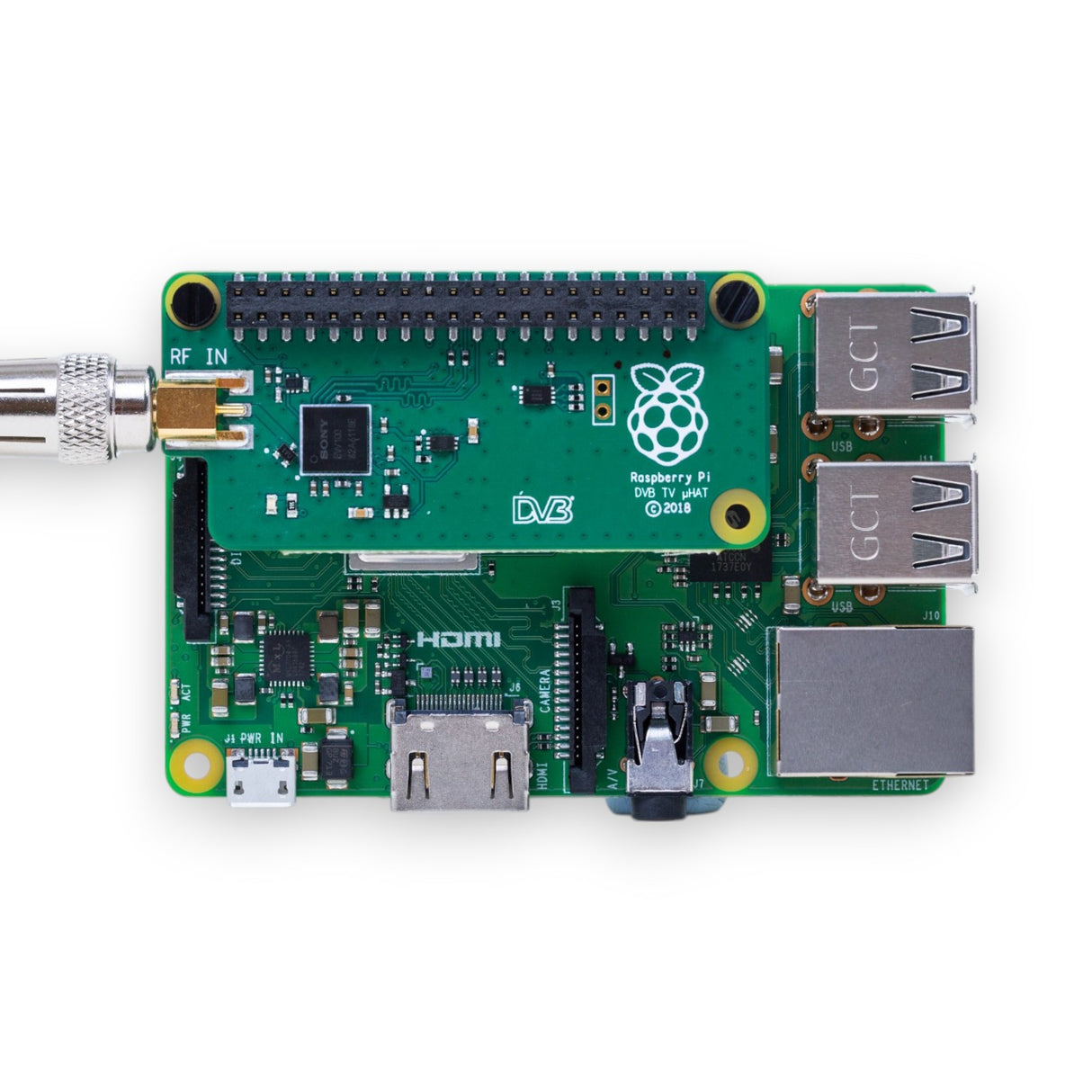

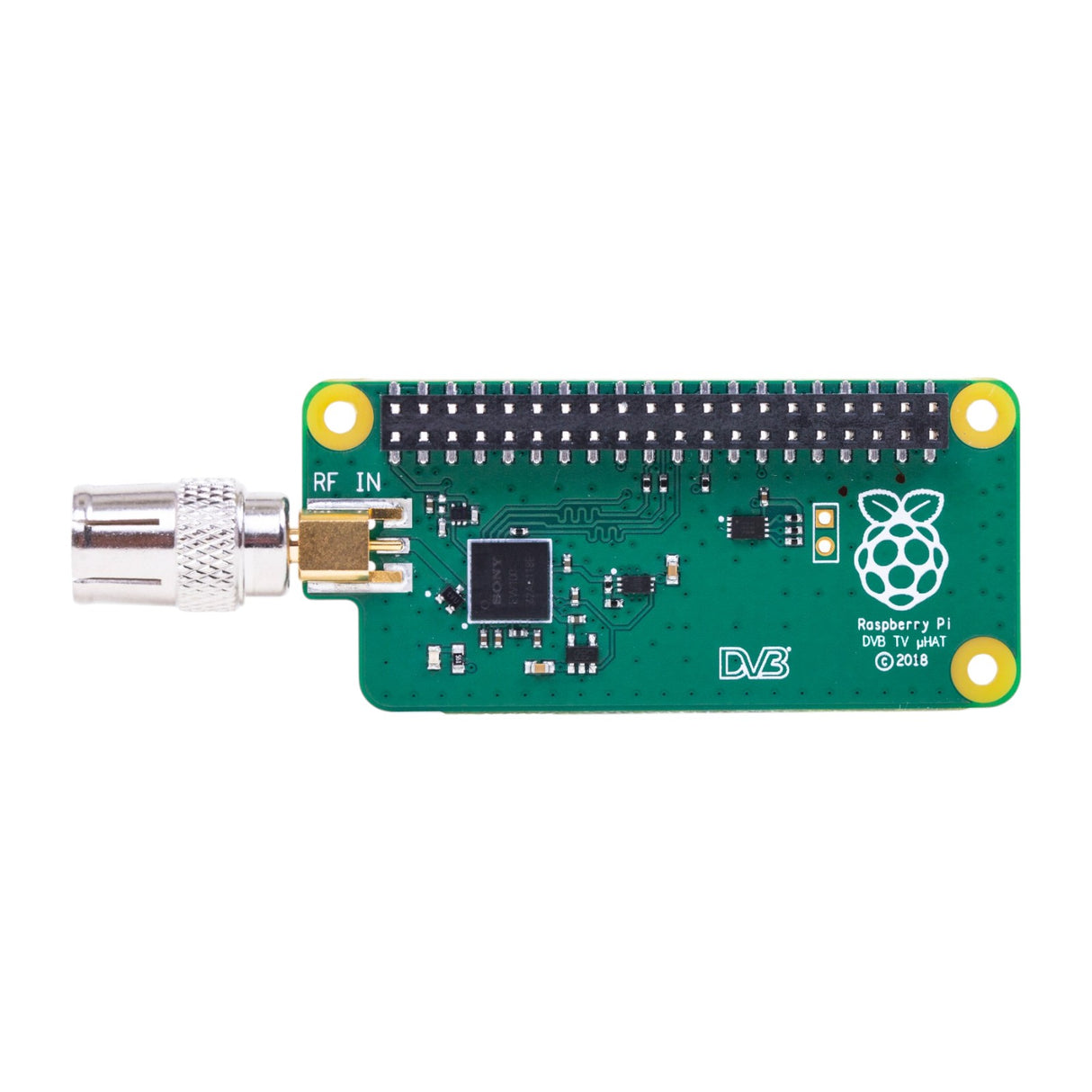

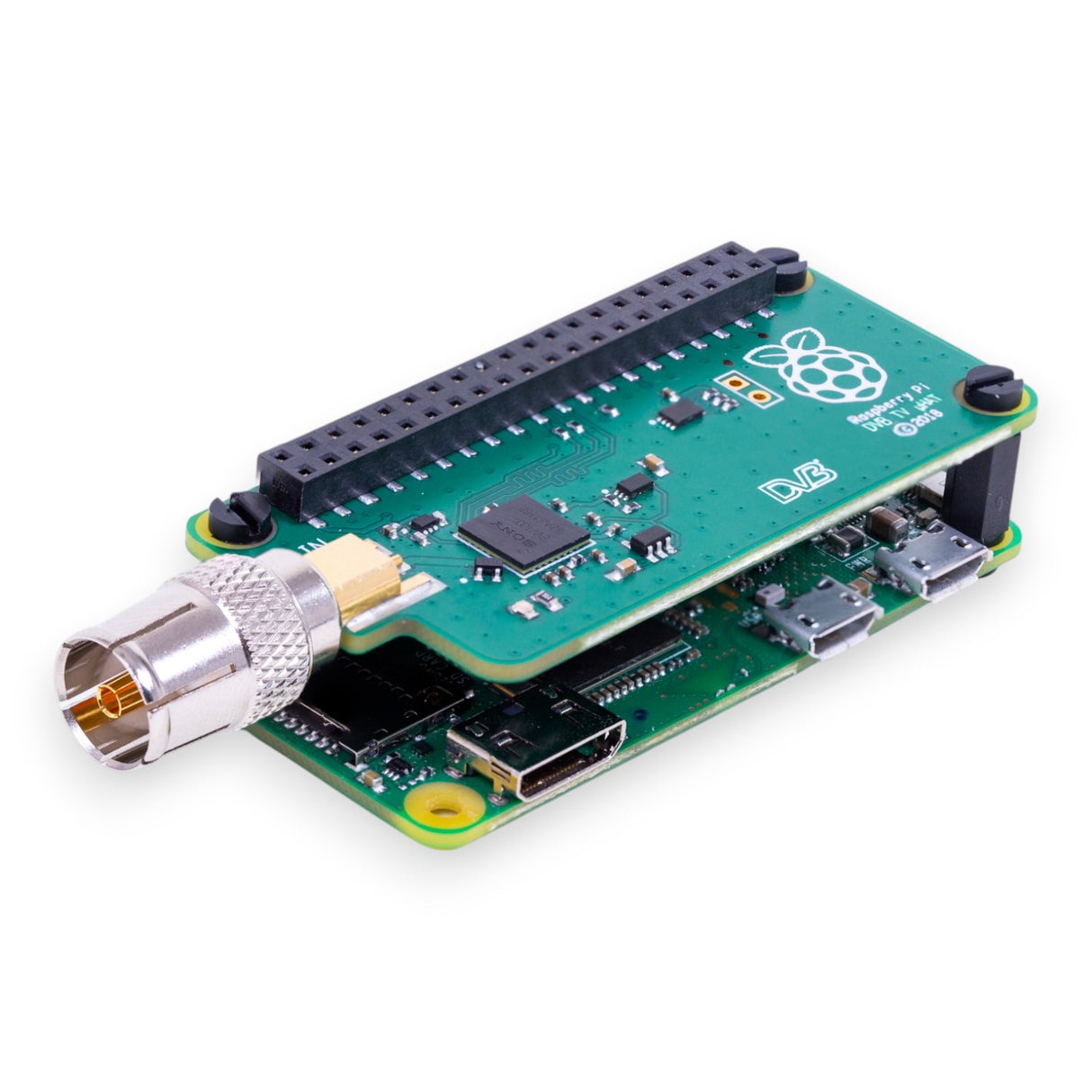

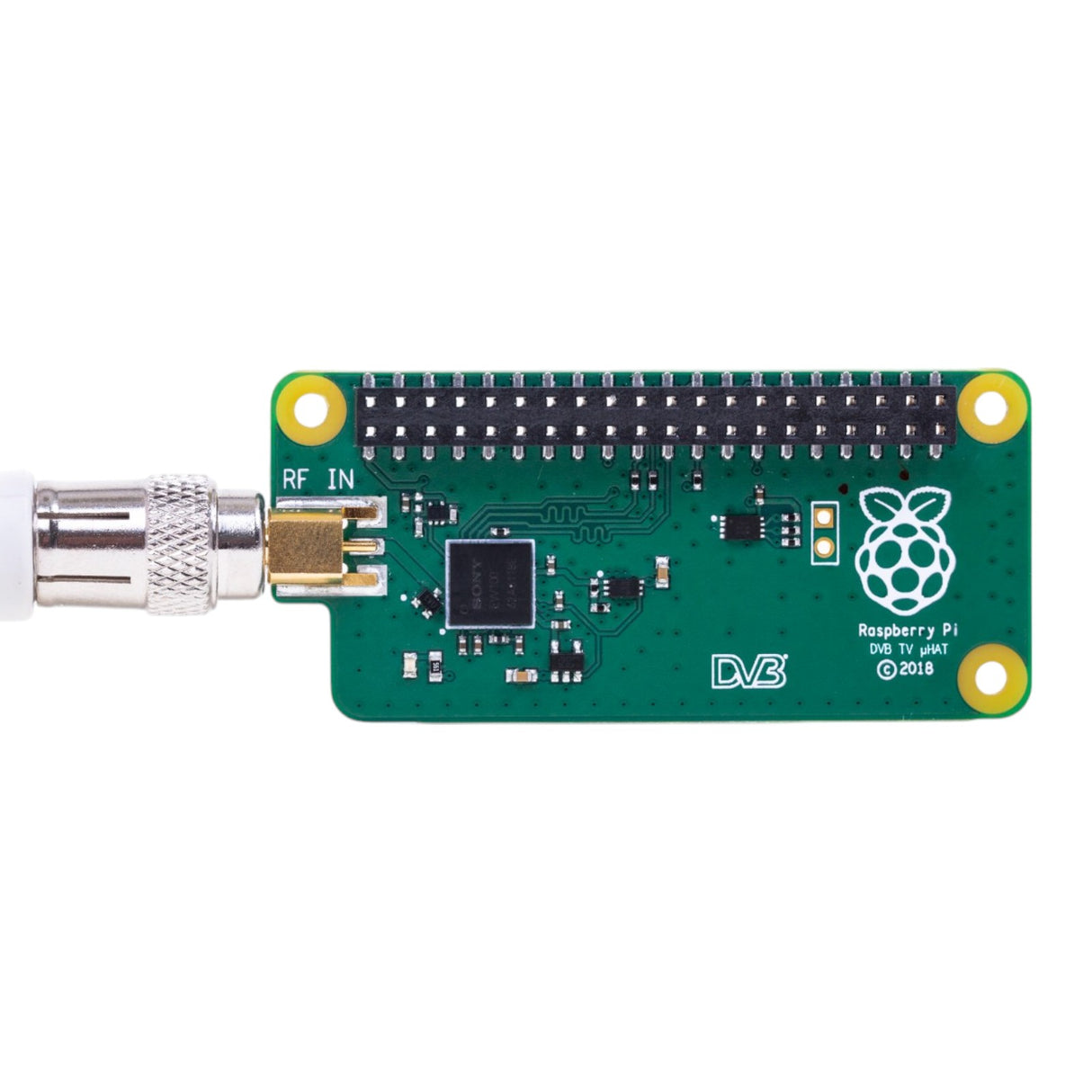

The Raspberry Pi TV HAT is a DVB-T2 Digital TV receiver add on for the Raspberry Pi, compatible with the Raspberry Pi 3 Model B+ or Raspberry Pi Zero W (and older Raspberry Pi 2 & 3 models)
The Raspberry Pi TV HAT allows you to receive digital terrestrial TV broadcast systems which includes DVB-T and DVB-T2 on a Raspberry Pi. This means that you can receive and view TV on a Raspberry Pi or create a TV server that allows you to stream received TV over a network to other devices (including PCs, tablets, smartphones (via apps), media centres and more)
The TV HAT can be used on all Raspberry Pi boards when running as a backend (server for other devices on the network), however when receiving and viewing TV directly on a Raspberry Pi it is recommended to use a Raspberry Pi 3 Model B+ (or older Raspberry Pi Model 3) to do this.
The TV HAT features a Sony CXD2880 TV tuner supporting DVB-T and the second generation DVB-T2 TV standards.
We’ve put together a clear and easy to follow step-by-step guide to show you exactly how to assemble, install and configure the Raspberry Pi TV HAT. We've also written a tutorial on how to get the Raspberry Pi TV HAT working with Plex!

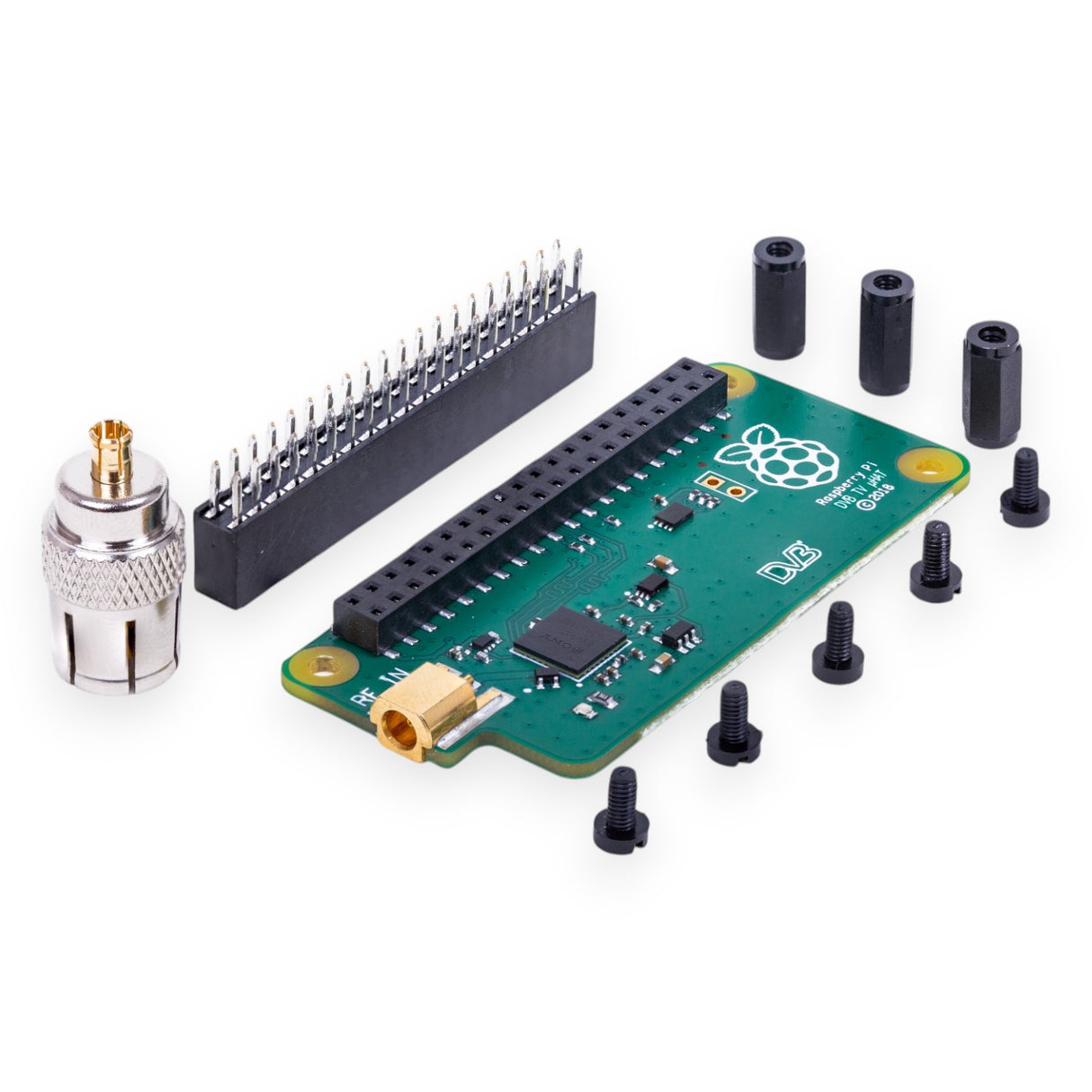

- Set of mechanical spacers
- 40 way GPIO header

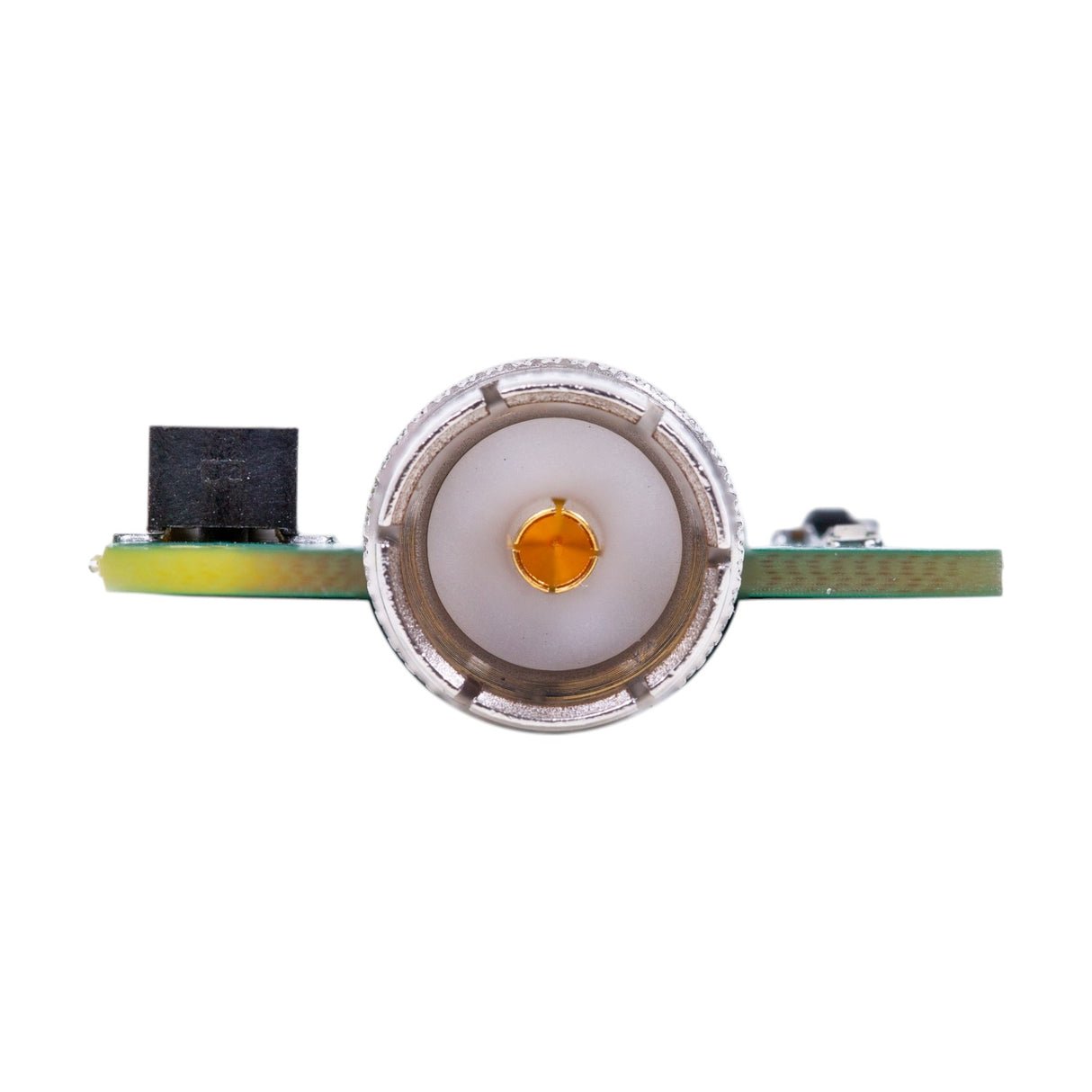

- Aerial adaptor.
- Sony CXD2880 TV tuner
- Supported TV standards: DVB-T2, DVB-T
- Reception frequency: VHF III, UHF IV, UHF V
- Channel bandwidth:
- DVB-T2: 1.7MHz, 5MHz, 6MHz, 7MHz, 8MHz
- DVB-T: 5MHz, 6MHz, 7MHz, 8MH
Digital Video Broadcast (DVB) is a widely adopted standard for transmitting broadcast Television, countries that have adopted the DVB standard can be found here; https://www.dvb.org/resources/public/images/site/dvb-t2_map.pdf
Please note it is the responsibility of the end user to ensure that they have the necessary permissions / license to receive broadcast television in their country
Raspberry Pi TV HAT
We have 11 units in our Sydney Warehouse available for immediate dispatch.
|Raspberry Pi Model Compatibility|
|RP4||Doesn't with Raspberry Pi 4 Model B|
|RP3A+||Doesn't with Raspberry Pi 3 Model A+|
|RP3B+||Doesn't with Raspberry Pi 3 Model B+|
|RP3B||Doesn't with Raspberry Pi 3 Model B|
|RP2B||Doesn't with Raspberry Pi 2 Model B|
|RP1B+||Doesn't with Raspberry Pi 1 Model B+|
|RP1A+||Doesn't with Raspberry Pi 1 Model A+|
|RP0W||Doesn't with Raspberry Pi Zero W|
|RP0||Doesn't with Raspberry Pi Zero|
|RPCM3+||Doesn't with Raspberry Pi Compute Module 3+|
