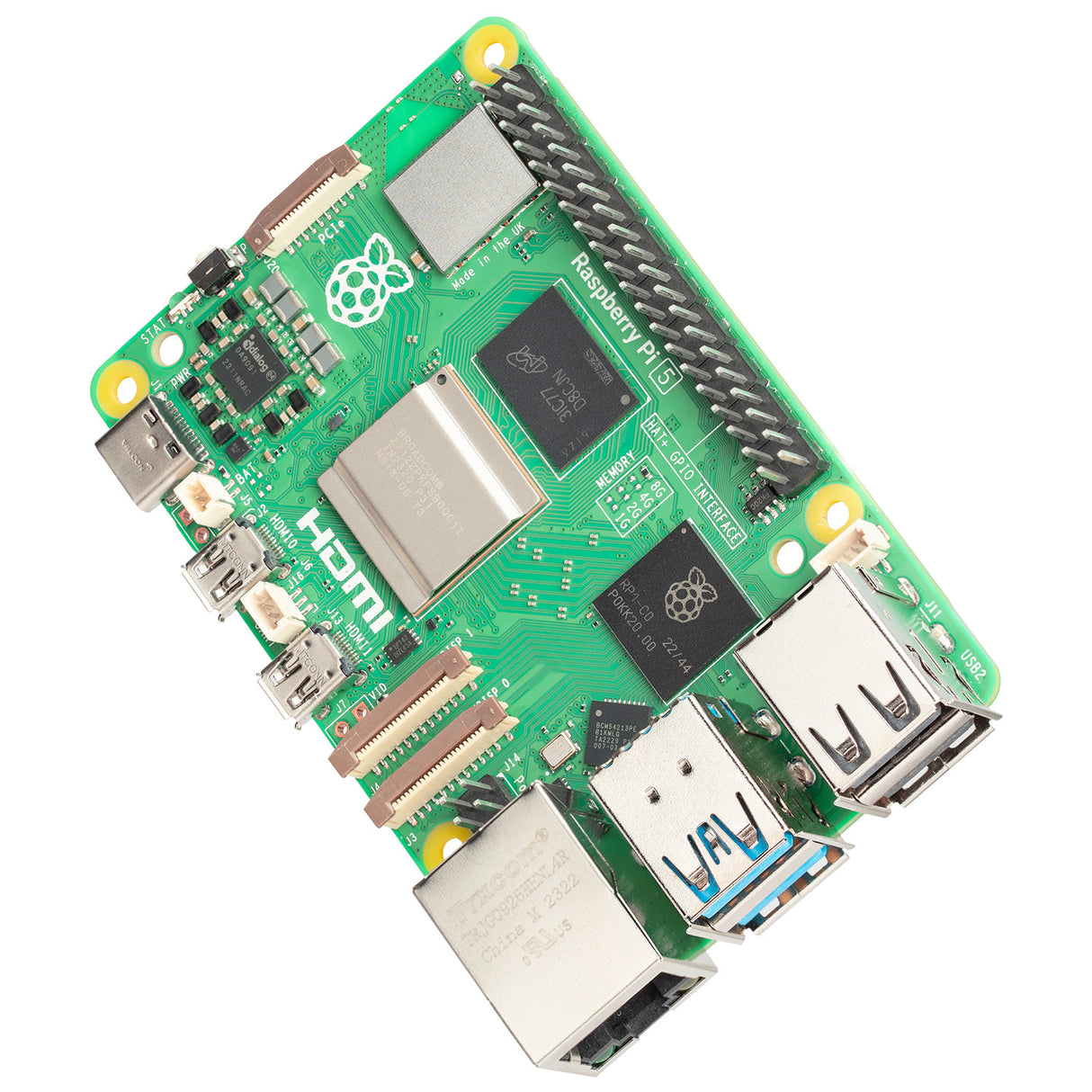

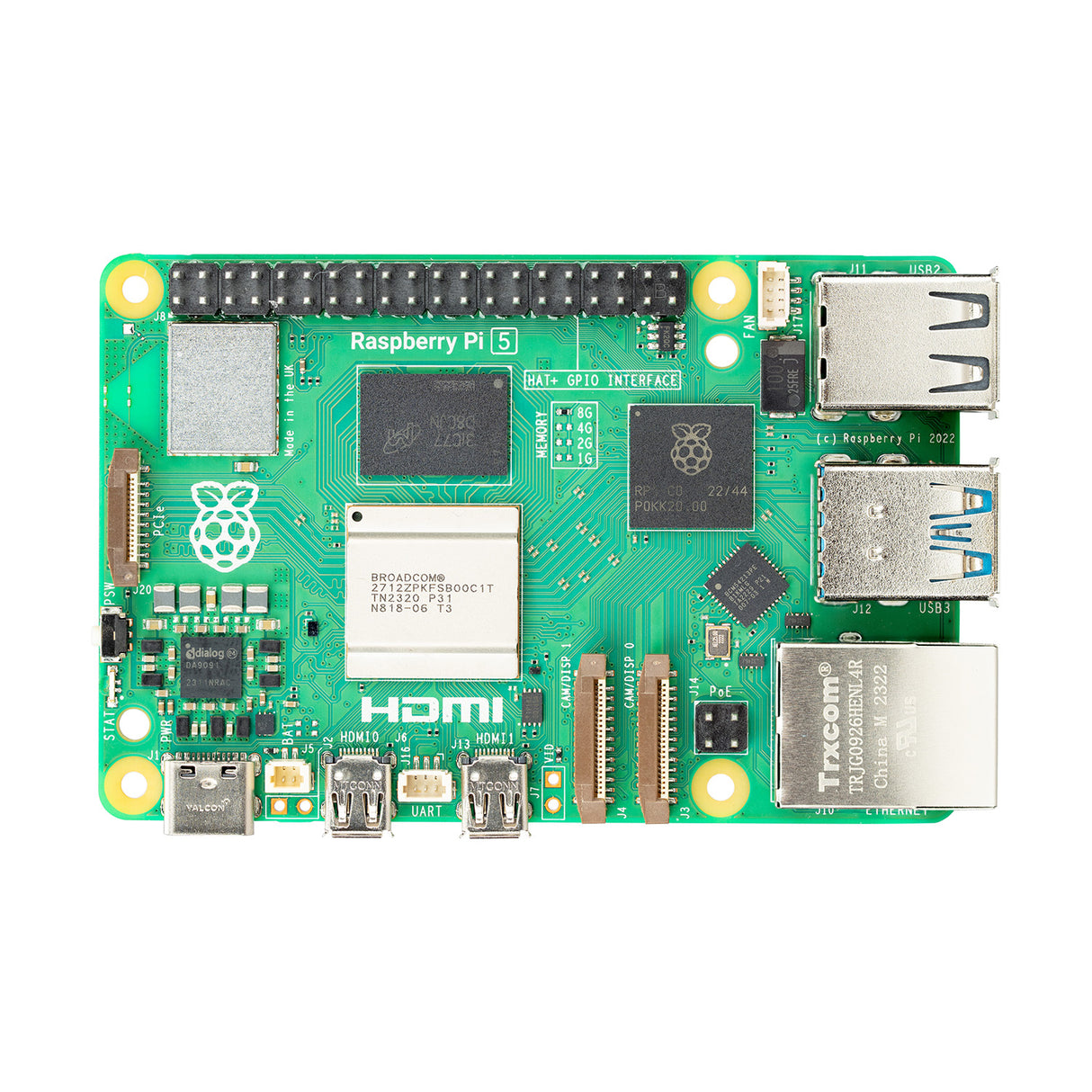

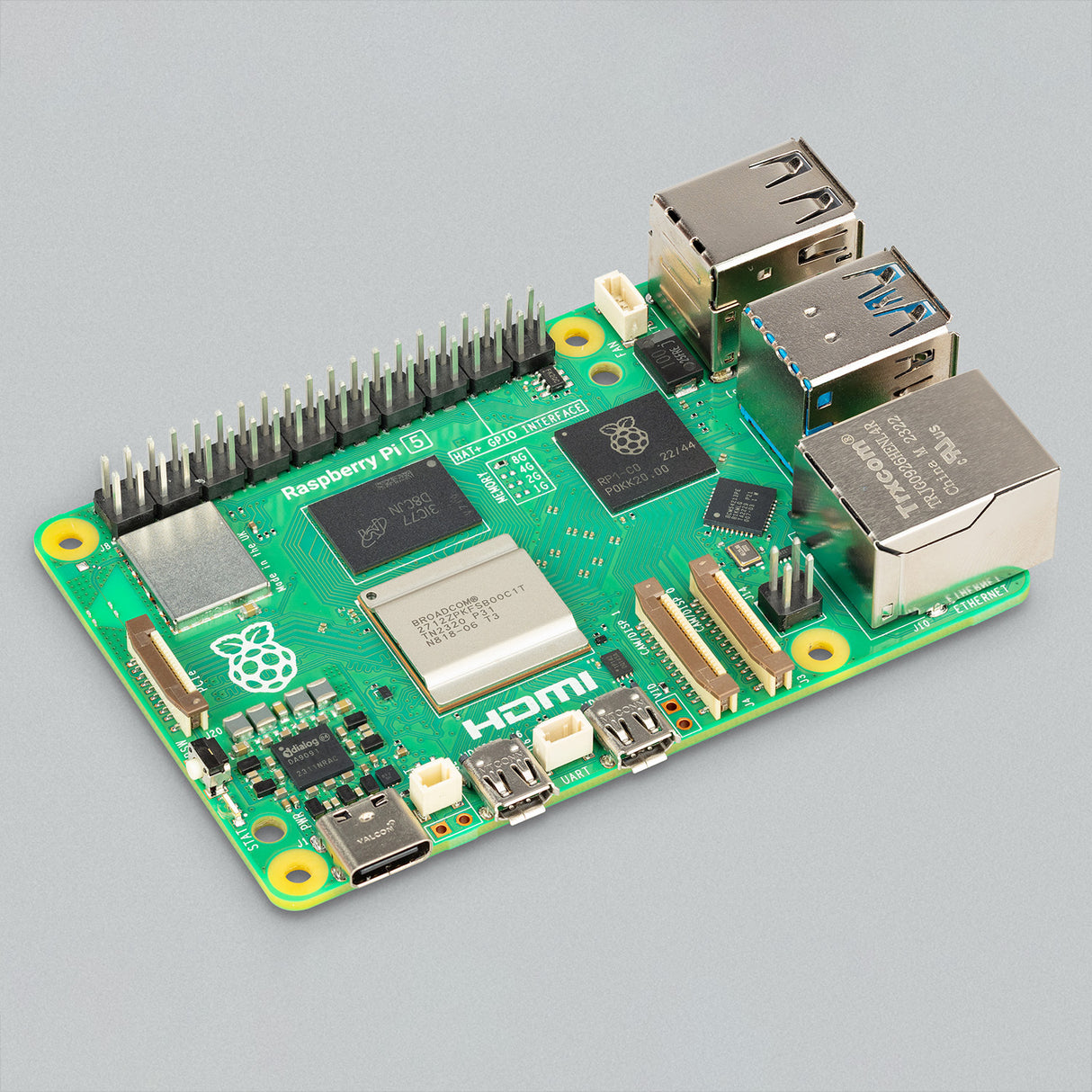

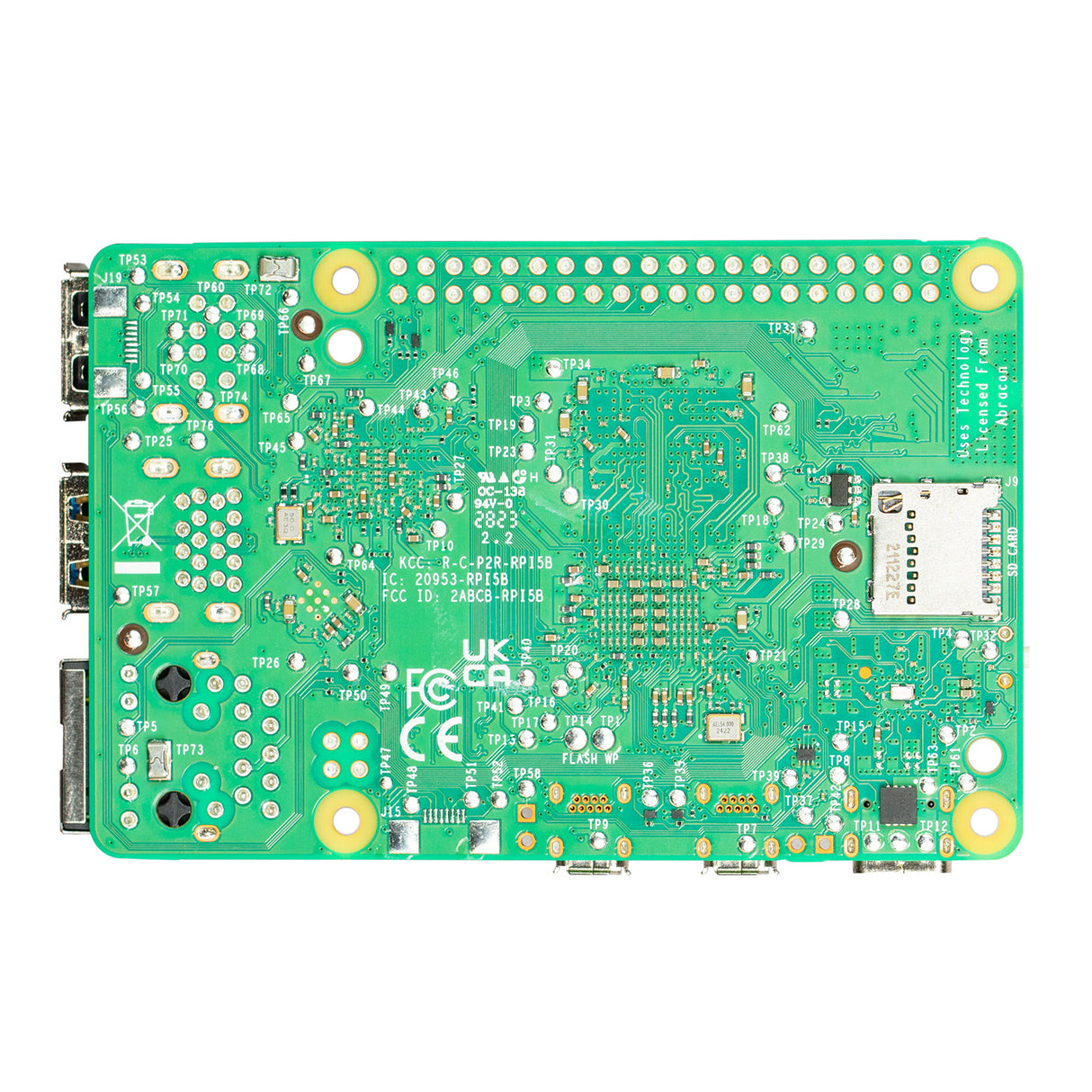

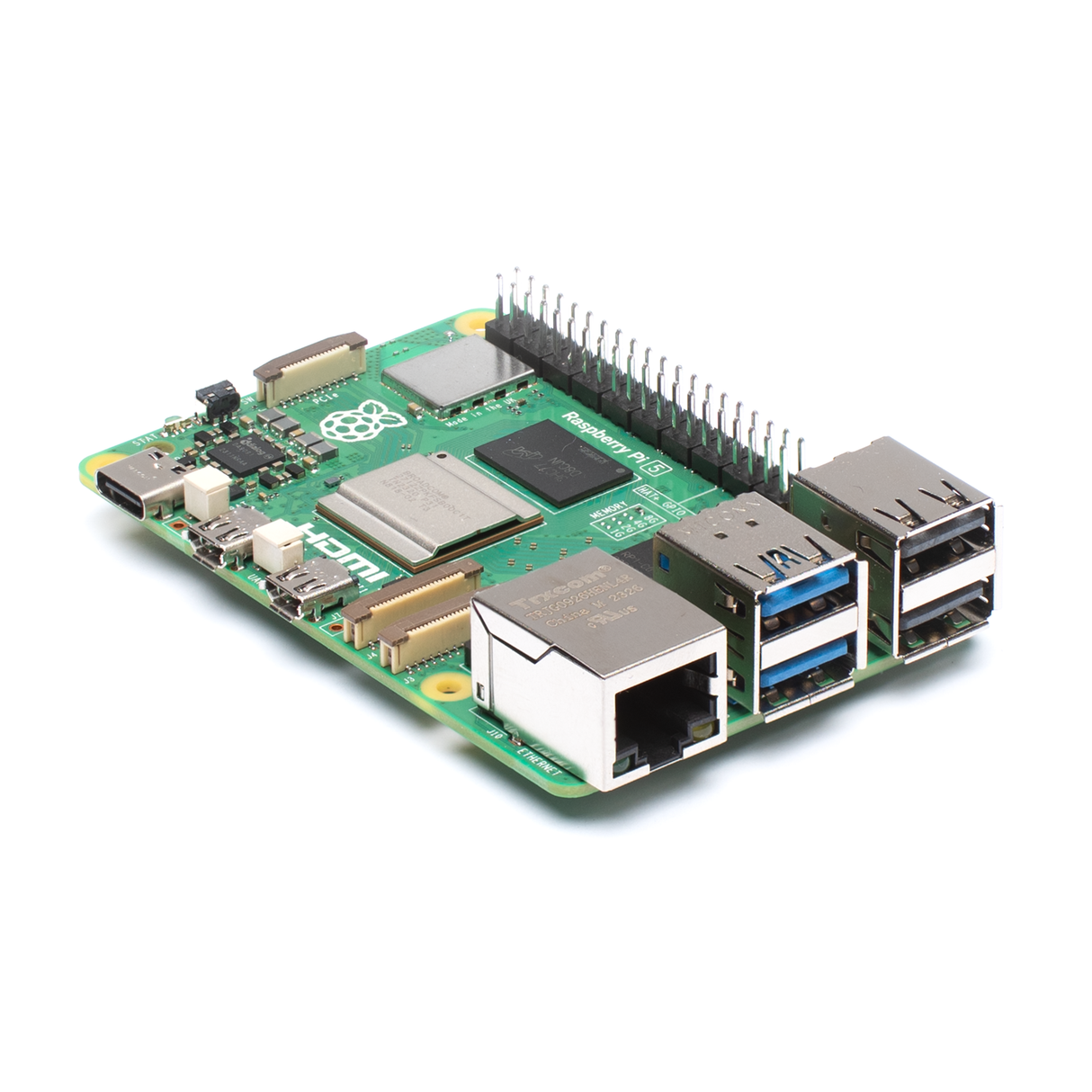

Raspberry Pi 5

Step into the latest generation with the Raspberry Pi 5, the most innovative model to date from the house of Raspberry Pi Ltd. Famously dubbed as the "everything computer", it takes the digital experience several notches higher than its predecessor, the Raspberry Pi 4.

Boasting Features:

• A powerful 64-bit quad-core Arm Cortex-A76 processor clocked at a smooth 2.4GHz. It promises a staggering 2-3 times uplift in CPU performance.
• The enhanced graphics are all thanks to the 800MHz VideoCore VII GPU.
• Dual 4Kp60 display outputs over HDMI mean ultra-clear visuals for users.
• The newly restructured Raspberry Pi Image Signal Processor guarantees state-of-the-art camera support.

This groundbreaking computer does not just cater to regular consumers but also to industrial customers, widening the spectrum of possible applications.

Key Features & Specifications:

• Processor: Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76
• Memory: LPDDR4X-4267 SDRAM. Options of 4GB and 8GB available at launch.
• Graphics: VideoCore VII GPU with OpenGL ES 3.1 and Vulkan 1.2 support
• Display: Dual 4Kp60 HDMI with HDR support
• Connectivity: Dual-band 802.11ac Wi-Fi, Bluetooth 5.0, and BLE
• Storage: microSD card slot compatible with high-speed SDR104 mode
• USB Ports: Two USB 3.0 and two USB 2.0 ports
• Networking: Gigabit Ethernet with optional PoE+ support (requires PoE+ HAT)
• Extras: PCIe 2.0 x1 interface, real-time clock (RTC), power button, and the signature Raspberry Pi 40-pin header.

The Raspberry Pi 5 is anticipated to remain in production until at least January 2035.

Safety & Care To ensure the longevity and performance of your Raspberry Pi 5:

• Always place it on a stable, flat, non-conductive surface.
• Avoid exposure to water, moisture, or excessive heat.
• Use peripherals that comply with the relevant standards.
• Handle with care to avoid damaging the circuit board and connectors.

When it's powered, minimal handling is recommended to prevent risks related to electrostatic discharge.

Physical Specifications The board's dimensions are given in millimetres, ensuring you have the exact idea for setting it up in your workspace. (Please refer to the provided diagrams for precise measurements.)

Warnings:

• Ensure the Raspberry Pi 5 operates in a well-ventilated environment. If inside a case, it should remain uncovered.

Your Raspberry Pi 5 is more than just a computer; it's an experience. Dive into the world of endless possibilities, creativity, and innovation.

The new Raspberry Pi 5 has a Mini Camera connector.  You will need this cable to connect it to your Camera Modules
