Please Note: This is not the latest model of the Raspberry PI 3. The latest model is the Model 3 B+

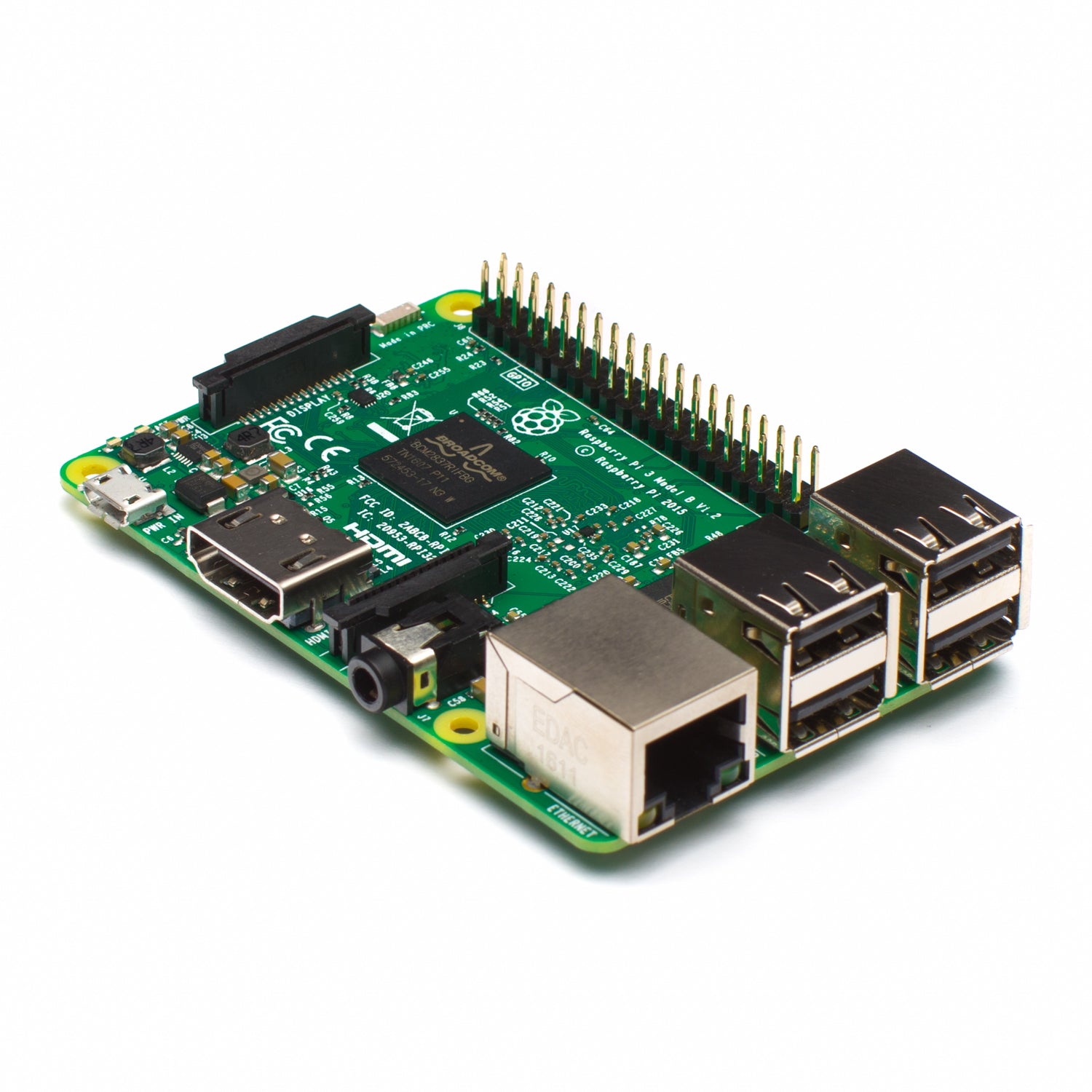

The Raspberry Pi 3 Model B  is a tiny credit card size computer. Just add a keyboard, mouse, display, power supply, micro SD card with installed Linux Distribution and you'll have a fully fledged computer that can run applications from word processors and spreadsheets to games.

As the Raspberry Pi 3 supports HD video, you can even create a media centre with it. The Raspberry Pi 3 Model B is the first Raspberry Pi to be open-source from the get-go, expect it to be the defacto embedded Linux board in all the forums.

Tech Specs

Chip
  • Broadcom BCM2837
  • 64bit
  • ARMv8
  • Quad Core Cortex A53
  • 1.2 GHz
Storage microSD Card
Memory 1 GB
Graphics
  • 400 MHz Dual Core VideoCore IV GPU
  • OpenGL ES 2.0
  • Hardware-Accelerated OpenVG
  • 1080p30 H.264 high-profile decode
Weight 42g
Audio
  • HDMI port supports multichannel audio output
  • Audio line out/3.5-mm headphone jack (analog)
Connections and
Expansions
Created with Sketch. USB 2.0 ports 10/100BASE-T Ethernet ports Composite Video and Audio jack CSI Camera port HDMI port MicroUSB Power Input DSI Display port 40-pin GPIO
  • Four USB 2.0 ports (up to 480 megabits per second)
  • HDMI port
  • 3.5mm 4-pole Composite Video and Audio jack
  • MicroUSB Power Input
  • DSI Display Port
  • CSI Camera Port
  • MicroSD card Sold
  • 40-pin GPIO (Male headers)
Communications Wi-Fi
802.11n WiFi wireless Networking;IEEE 802.11a/g/b/n compatible

Bluetooth
Bluetooth 4.1 wireless technology

Ethernet
10/100BASE-T Ethernet (RJ-45 connector)
Electrical and
Operating Requirements
Input voltage: 5V DC
Current Requirement: 2.5 Amps
Operating System Raspberry Pi Foundation's Offical supported Operating Systems
  • NOOBS
  • Raspbian
Third Party Operating Systems
  • Libreelec
  • Open Elec
  • OSMC
  • Pinet
  • RISC OS
  • Snappy Ubuntu Core
  • Ubuntu Mate
  • Weather Station
  • Windows IOT Core
  • XBian

GPIO Pin-Out

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 3.3V SDA GPIO2 SCL GPIO3 GPIO4 GND GPIO17 GPIO27 GPIO22 3.3V MOSI GPIO10 MISO GPIO9 SCLK GPIO11 GND IDSD GPIO5 GPIO6 GPIO13 GPIO19 GPIO26 GND 5V 5V GND GPIO14 TXD GPIO15 RXD GPIO18 CLK GND GPIO23 GPIO24 GND GPIO25 GPIO8 CD0 GPIO7 CE1 IDSD GND GPIO12 GND GPIO16 GPIO20 DIN GPIO21 DOUT SPI I2C SPI UART PCM PCM PCM 5V Power 3.3V Power Ground https://piaustralia.com.au



Raspberry Pi - Questions and Answers

Is the Raspberry Pi 3 good for gaming?

Can I use a cell phone charger to power the Raspberry Pi 3?

Does the Raspberry Pi 3 support PoE?

Can you use a xbox one controller with the Raspberry Pi 3?

Do I *need* a keyboard and mouse for my Raspberry Pi 3 for Retro Pie?

Is the RAM upgradeable on a Raspberry Pi 3?

Will I be able to set up the Raspberry Pi 3 as a media centre?

Will the Raspberry Pi 3 fit in a Raspberry Pi 2 case?

Is the Raspberry Pi 3 made in the UK?

Do I need a WiFi dongle for my Raspberry Pi 3?

What comes with the Raspberry Pi 3 and what do I need?

Is the SD cards spring loaded on the Raspberry Pi 3?



(ET-RASPBERRY-PI-3)

SKU ET-RASPBERRY-PI-3
Barcode # 640522710850
Brand Raspberry Pi
Shipping Weight 0.0700kg
Unit Of Measure ea

Fantastic product and great service

By: on 14 April 2018
Very happy with the quality and thought put into the product and instruction manuals. Setting up the Pi was easy and it works well with the advertised case and power supply. I was pleasantly surprised when the Pi arrived in 2 working days and I received a follow up email to check if I had received the package and that everything was alright. I'll be purchasing more in future.
(5)

Lovely staff, Good product.

6 March 2018
Brand new parts in the original pack. It was so nice to meet the staff out there. They are full of energy and willing to help. When the staff know I bought this for my younger brother, he gave me a quick-start made by little bird as well. The warehouse is a bit harder to find though. The entrance is actually at Leighton Pl before Salisbury Rd.
(5)

Raspberry PI 3 B

By: on 24 February 2018
Had this up and configured in no time its just a great product for development or as a dedicated unit for whatever purpose you have in mind. Set up is easy and there is a whole internet of support. I cant praise the PI 3 enough. Got to get another couple for further projects.
(5)

Wow!

By: on 11 November 2017
I looked briefly into Micro-computers such as the Raspberry Pi, Arduino and several other systems. The Pi 3 seemed unreal spec-wise. Quad-core processor, a gigabyte of RAM. Powering it up the first time after adding the NOOBS files to an SD Card, everything just worked. Connected flawlessly to my WiFi. Quick (for an SD Card) to power on and setup. Will definitely be adding more to the collection down the line. My main use is for small media box. The OpenElec operating system is the same Kodi on PC. Additional components work without a hitch as well as everything else I have thrown at it.
(5)

Raspberry Pi3, perfect

By: on 27 October 2017
My first Pi, previous linux experience though. What a brilliant little device, I'm feeling hooked. Great service from Little Bird Electronics, definitely my go to place for all things Pi, thanks guys.
(5)
