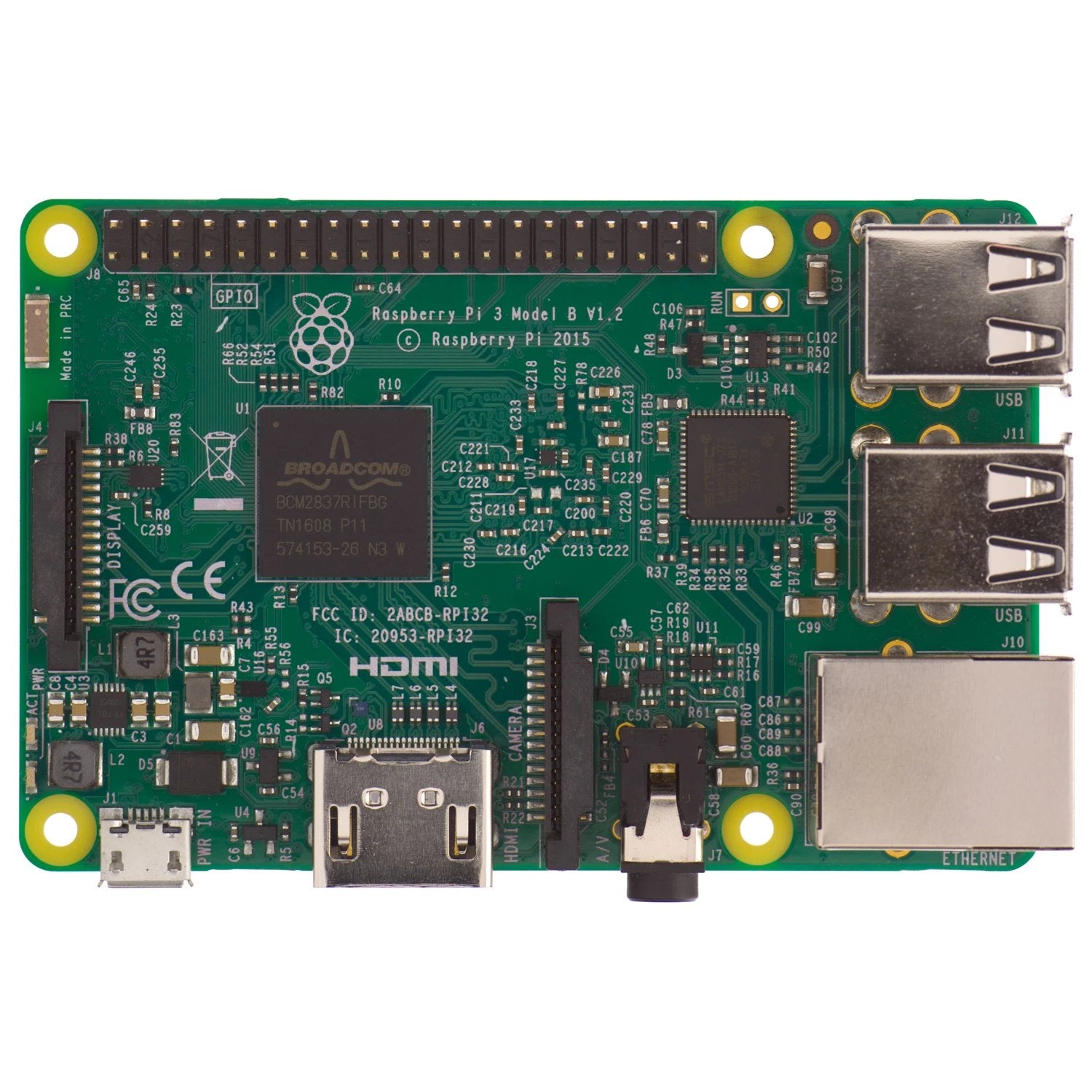

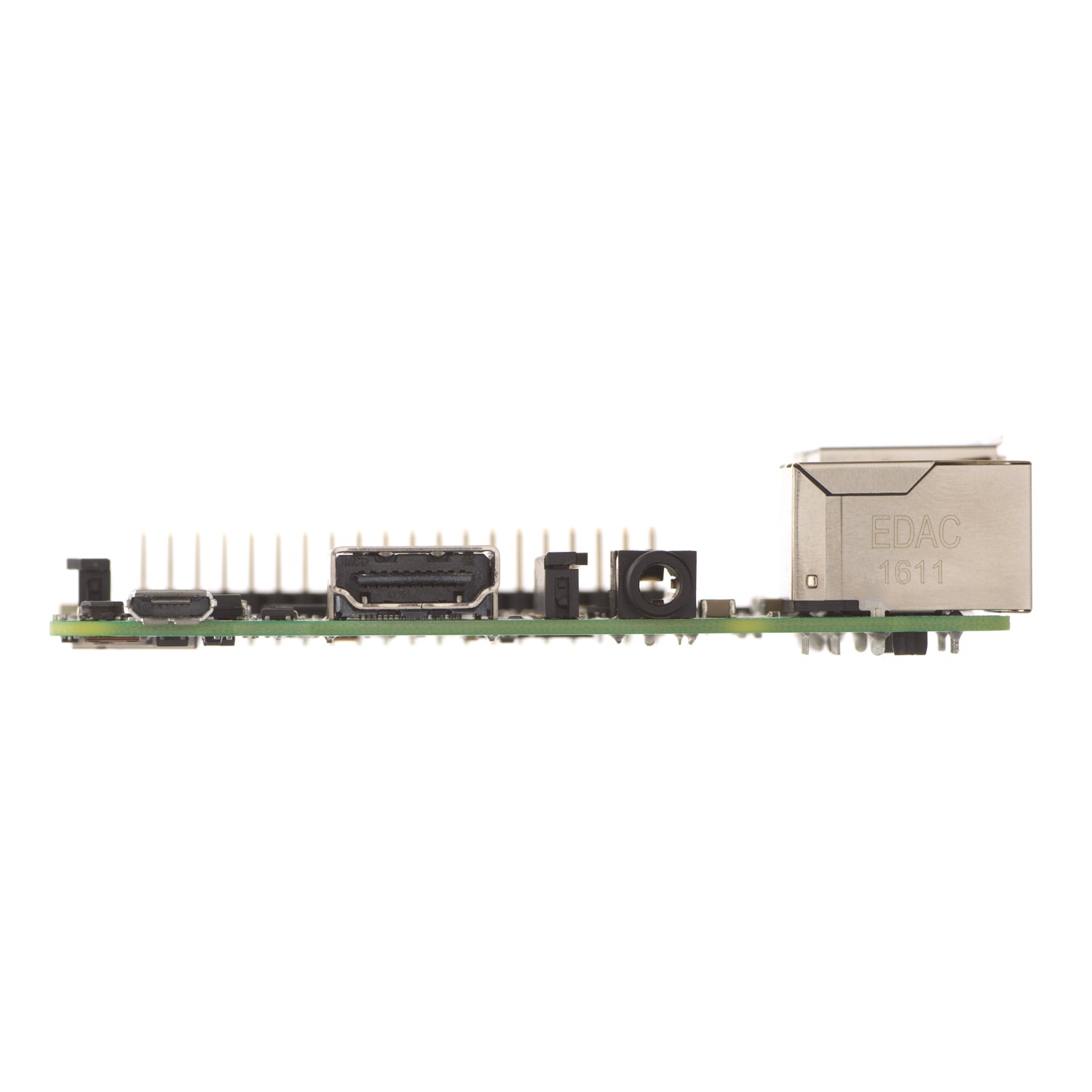

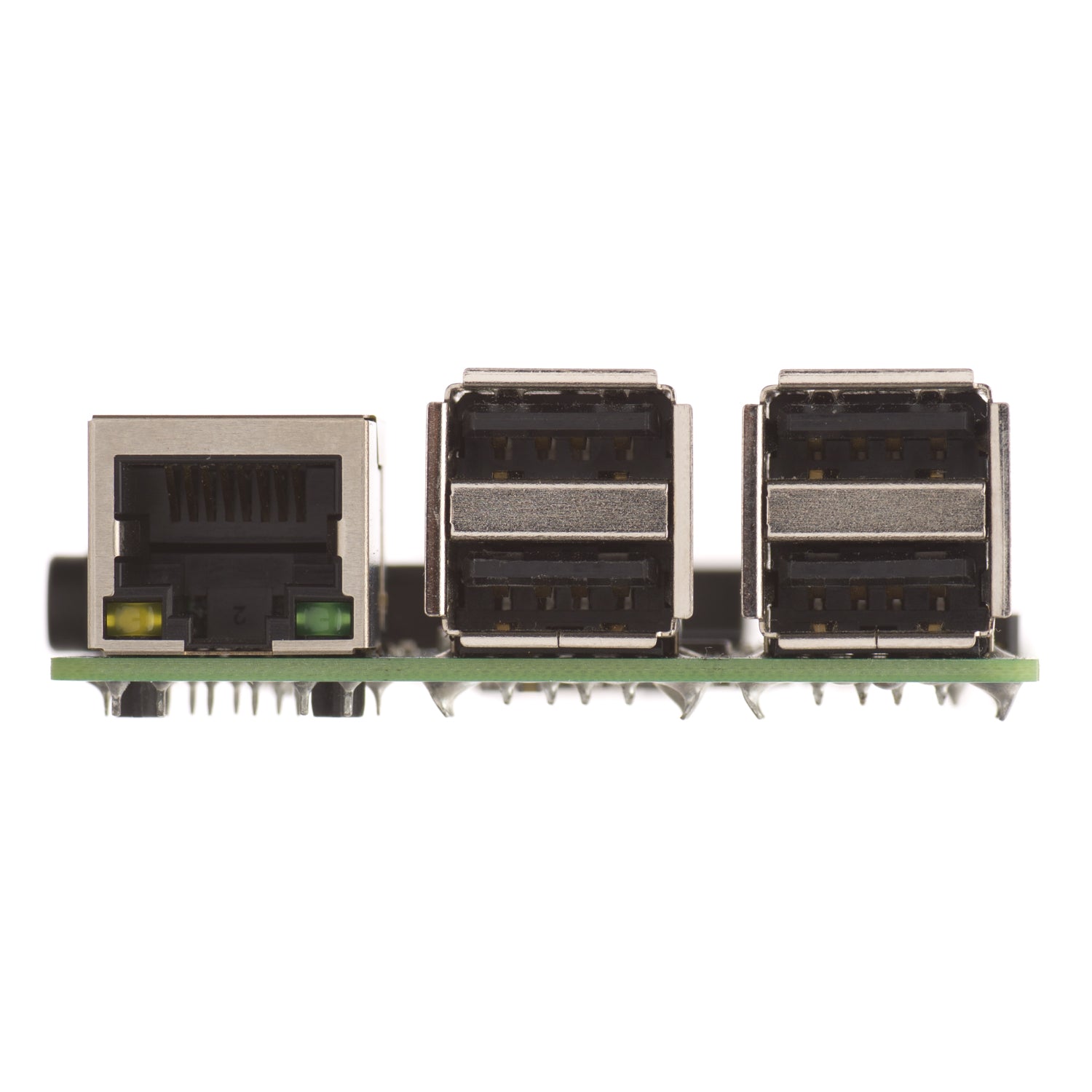

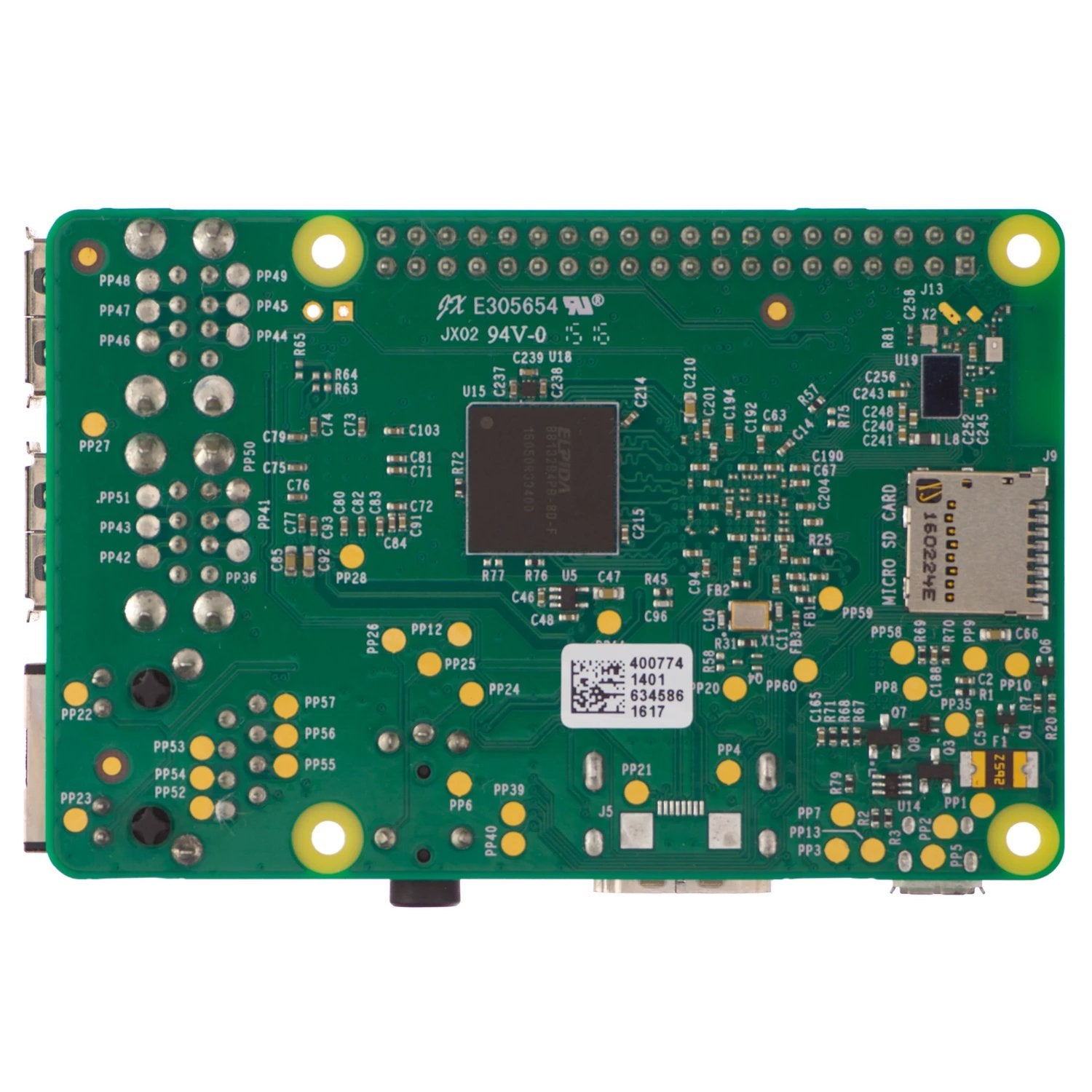

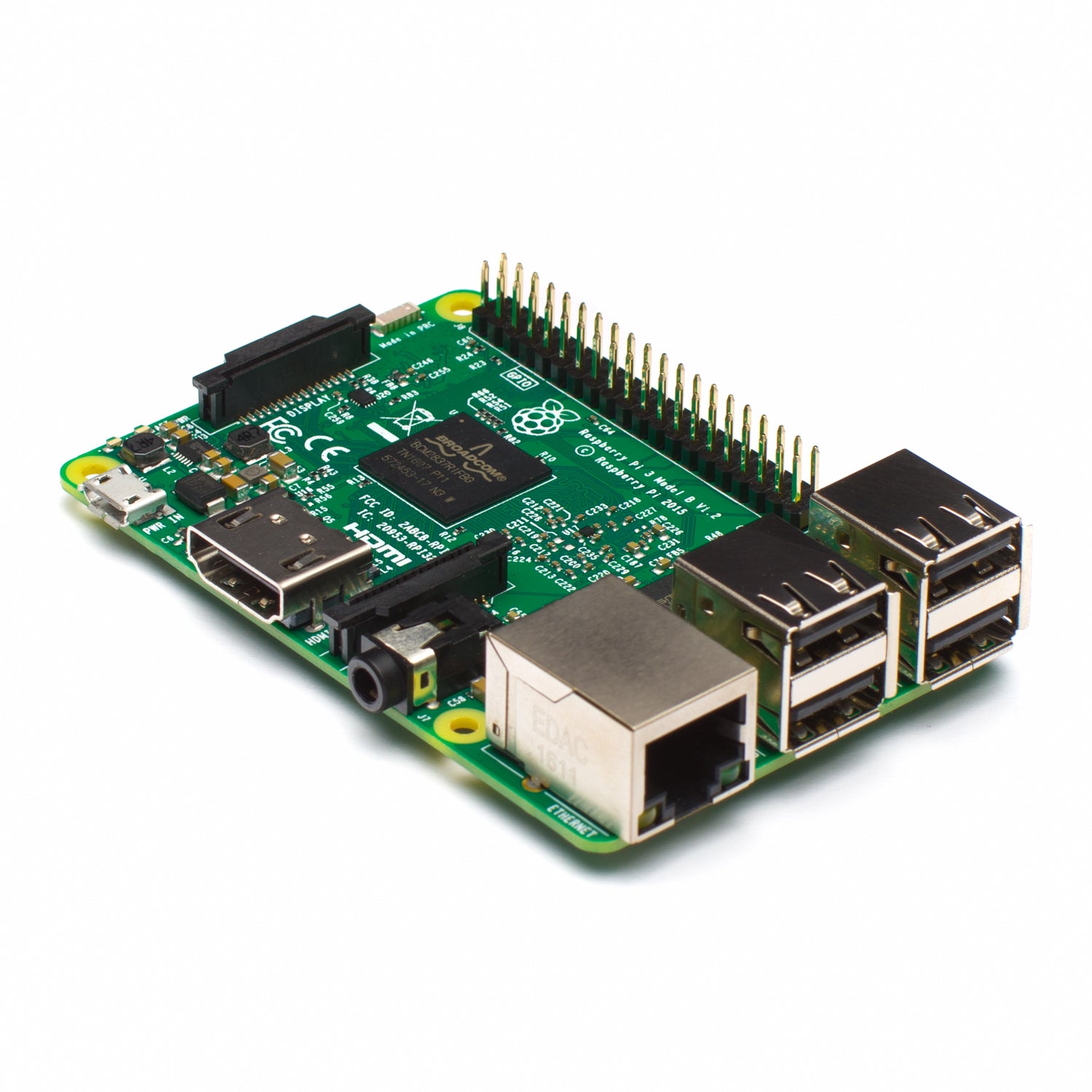

Raspberry Pi 3 Model B

SKU: RP-SC0022
Price
$65
GST included. Shipping calculated at checkout.

Got a Question?

Give us a call on 1300 240 817

Frequently Bought Together

We Accept

American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa

Please Note: This is not the latest model of the Raspberry Pi. The latest model is the Model 5

The Raspberry Pi 3 Model B is a tiny credit card size computer that was designed in the UK by the Raspberry Pi Foundation. Originally intended to assist in teaching computer science, the Pi's accessible price makes it popular with hobbyists/makers/hackers who use it to create everything from Living Room PCs to Robotics Projects. Just add a keyboard, mouse, display, power supply, micro SD card with installed Linux Distribution and you'll have a fully fledged computer that can run applications from word processors and spreadsheets to games.

As the Raspberry Pi 3 supports HD video, you can even create a media centre with it. The Raspberry Pi 3 Model B is the first Raspberry Pi to be open-source from the get-go, expect it to be the defacto embedded Linux board in all the forums.

Tech Specs

Chip
  • Broadcom BCM2837
  • 64bit
  • ARMv8
  • Quad Core Cortex A53
  • 1.2 GHz
Storage microSD Card
Memory 1 GB
Graphics
  • 400 MHz Dual Core VideoCore IV GPU
  • OpenGL ES 2.0
  • Hardware-Accelerated OpenVG
  • 1080p30 H.264 high-profile decode
Weight 42g
Audio
  • HDMI port supports multichannel audio output
  • Audio line out/3.5-mm headphone jack (analog)
Connections and
Expansions
Created with Sketch. USB 2.0 ports 10/100BASE-T Ethernet ports Composite Video and Audio jack CSI Camera port HDMI port MicroUSB Power Input DSI Display port 40-pin GPIO
  • Four USB 2.0 ports (up to 480 megabits per second)
  • HDMI port
  • 3.5mm 4-pole Composite Video and Audio jack
  • MicroUSB Power Input
  • DSI Display Port
  • CSI Camera Port
  • MicroSD card Sold
  • 40-pin GPIO (Male headers)
Communications Wi-Fi
802.11n WiFi wireless Networking;IEEE 802.11a/g/b/n compatible

Bluetooth
Bluetooth 4.1 wireless technology

Ethernet
10/100BASE-T Ethernet (RJ-45 connector)
Electrical and
Operating Requirements
Input voltage: 5V DC
Current Requirement: 2.5 Amps
Operating System Raspberry Pi Foundation's Offical supported Operating Systems
  • NOOBS
  • Raspbian
Third Party Operating Systems
  • Libreelec
  • Open Elec
  • OSMC
  • Pinet
  • RISC OS
  • Snappy Ubuntu Core
  • Ubuntu Mate
  • Weather Station
  • Windows IOT Core
  • XBian

GPIO Pin-Out

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 1 3 5 7 9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 3.3V SDA GPIO2 SCL GPIO3 GPIO4 GND GPIO17 GPIO27 GPIO22 3.3V MOSI GPIO10 MISO GPIO9 SCLK GPIO11 GND IDSD GPIO5 GPIO6 GPIO13 GPIO19 GPIO26 GND 5V 5V GND GPIO14 TXD GPIO15 RXD GPIO18 CLK GND GPIO23 GPIO24 GND GPIO25 GPIO8 CD0 GPIO7 CE1 IDSD GND GPIO12 GND GPIO16 GPIO20 DIN GPIO21 DOUT SPI I2C SPI UART PCM PCM PCM 5V Power 3.3V Power Ground https://piaustralia.com.au



Raspberry Pi - Questions and Answers

Is the Raspberry Pi 3 good for gaming?

Can I use a cell phone charger to power the Raspberry Pi 3?

Does the Raspberry Pi 3 support PoE?

Can you use a xbox one controller with the Raspberry Pi 3?

Do I *need* a keyboard and mouse for my Raspberry Pi 3 for Retro Pie?

Is the RAM upgradeable on a Raspberry Pi 3?

Will I be able to set up the Raspberry Pi 3 as a media centre?

Will the Raspberry Pi 3 fit in a Raspberry Pi 2 case?

Is the Raspberry Pi 3 made in the UK?

Do I need a WiFi dongle for my Raspberry Pi 3?

What comes with the Raspberry Pi 3 and what do I need?

Is the SD cards spring loaded on the Raspberry Pi 3?
