INTRODUCTION
If you are familiar with our product, you will find there is waterproof temperature sensor named DS18B20. This waterproof temperature sensor kit is using the same probe--DS18B20 probe AS . It contains a probe with a resister module. So it is easy to connect to the Raspberry Pi. The DS18B20 temperature sensor provides 9 to 12-bit (configurable) temperature readings over a 1-Wire interface, so that only one wire (and ground) needs to be connected from a central microprocessor. Compatible with 3.0-5.5V systems.
SPECIFICATION
- Operating voltage: 3.0~ 5.5V
- ±0.5°C Accuracy from -10°C to +85°C
- Usable temperature range: -55 to 125°C (-67°F to +257°F)
- 9 to 12 bit selectable resolution
- Uses 1-Wire interface- requires only one digital pin for communication
- Unique 64 bit ID burned into chip
- Multiple sensors can share one pin
- Temperature-limit alarm system
- Query time is less than 750ms
- 3 wires interface:
- Type A
- Red wire - VCC
- Black wire - GND
- Yellow wire - DATA
- Type B
- Red wire - VCC
- Yellow wire - GND
- Green wire - DATA
- Type A
- Stainless steel tube 6mm diameter by 35mm(1.34") long
- Cable diameter: 4mm(0.16")
- Length: 90cm(35.43")
SHIPPING LIST
- Waterproof DS18B20 Digital temperature sensor (DFR0198) x1

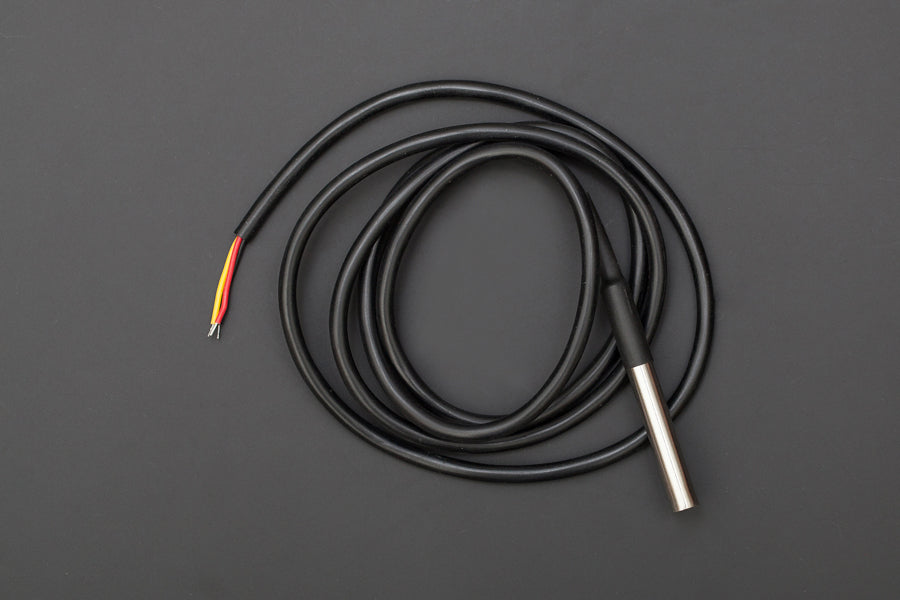

Waterproof DS18B20 Sensor Kit
We have 8 units in our Sydney Warehouse available for immediate dispatch.
We can get a further 971 units in Australia from Adafruit. If you order today, we can dispatch this stock between Sep 30, 2020 - Oct 03, 2020.
| Raspberry Pi Model Compatibility | ||
|---|---|---|
| RP4 |
|
Works with Raspberry Pi 4 Model B |
| RP3A+ |
|
Works with Raspberry Pi 3 Model A+ |
| RP3B+ |
|
Works with Raspberry Pi 3 Model B+ |
| RP3B |
|
Works with Raspberry Pi 3 Model B |
| RP2B |
|
Works with Raspberry Pi 2 Model B |
| RP1B+ |
|
Works with Raspberry Pi 1 Model B+ |
| RP1A+ |
|
Works with Raspberry Pi 1 Model A+ |
| RP0W |
|
Works with Raspberry Pi Zero W |
| RP0 |
|
Works with Raspberry Pi Zero |
| RPCM3+ |
|
Requires other products to use with Raspberry Pi Compute Module 3+ |
