Pi Australia  |  SKU: DF-DFR0564

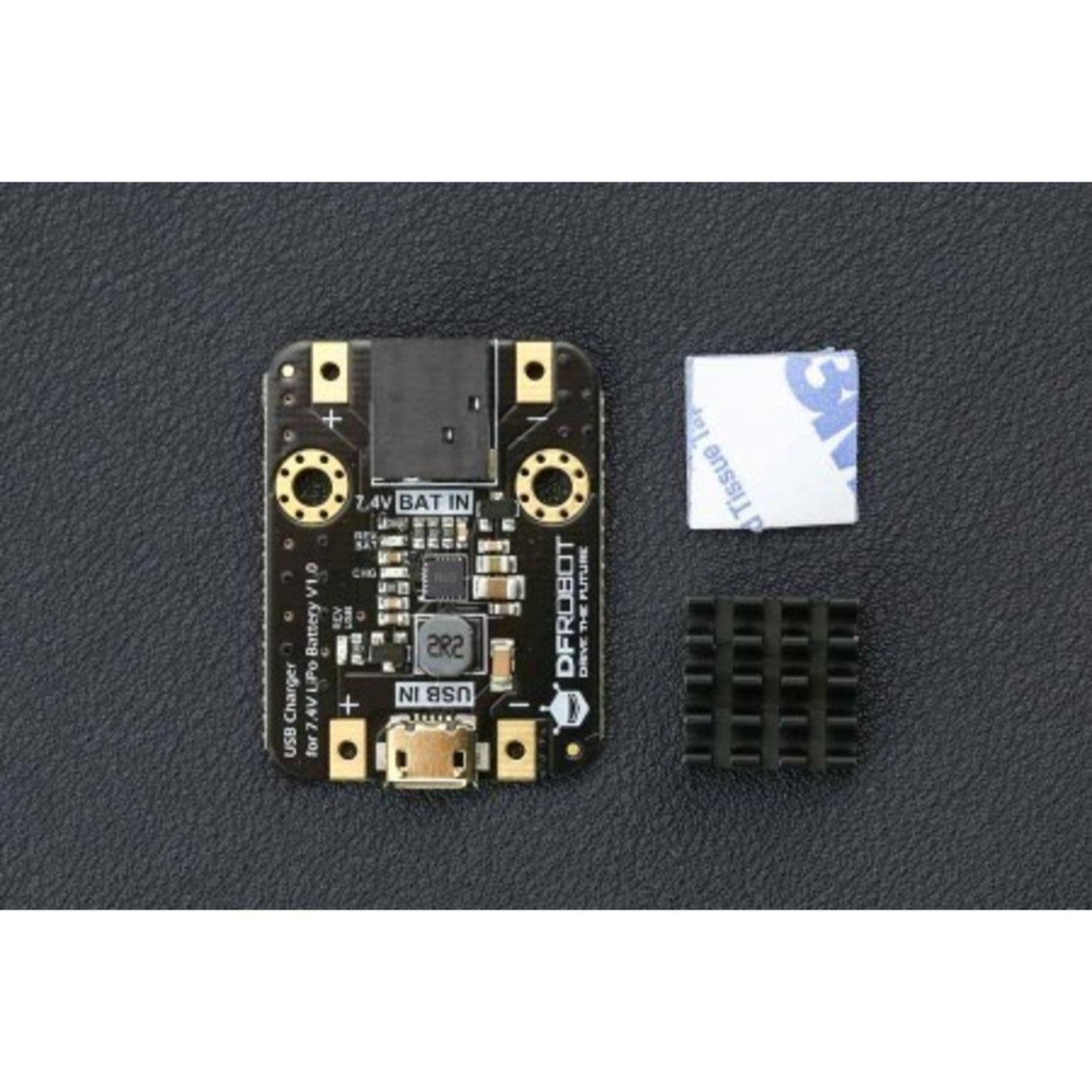

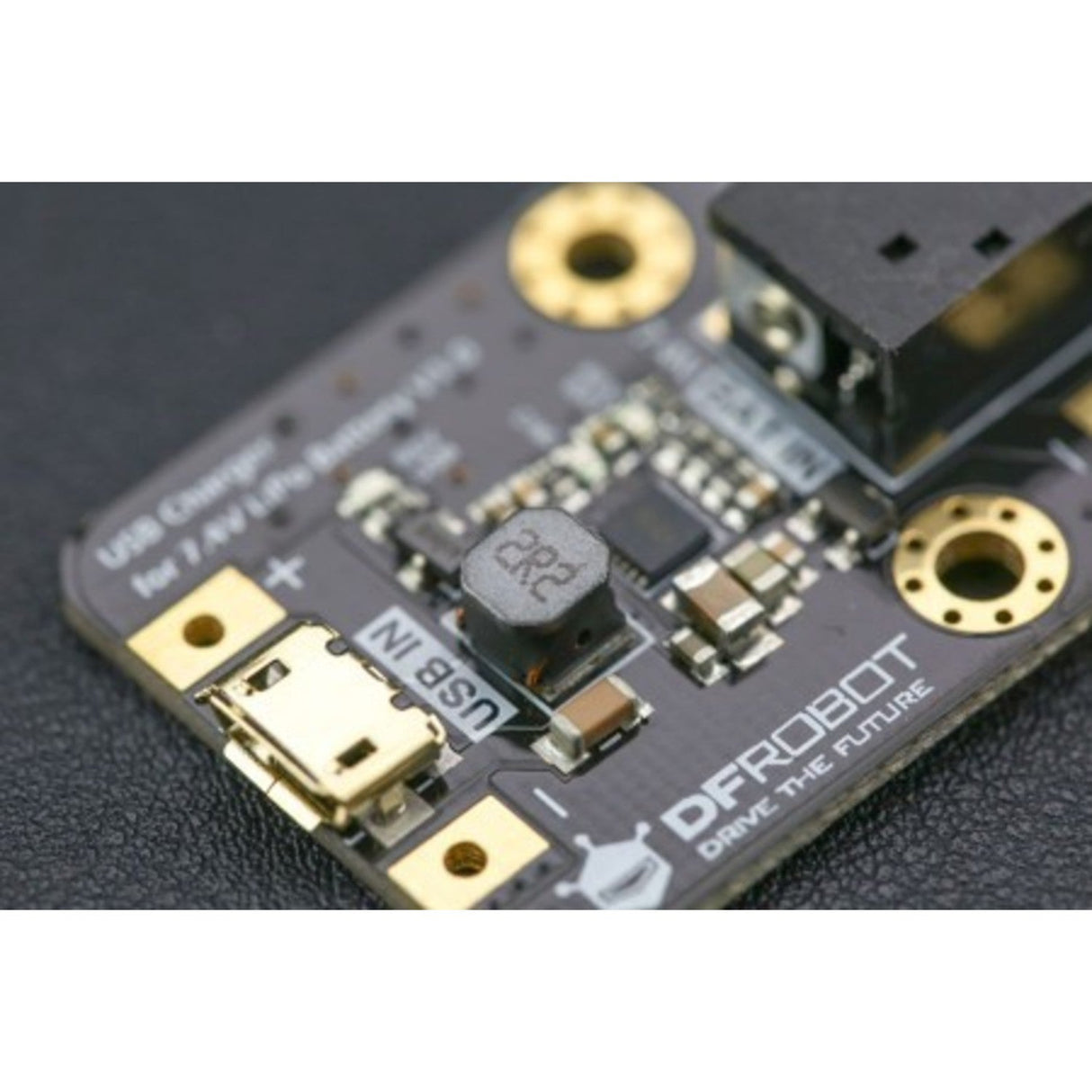

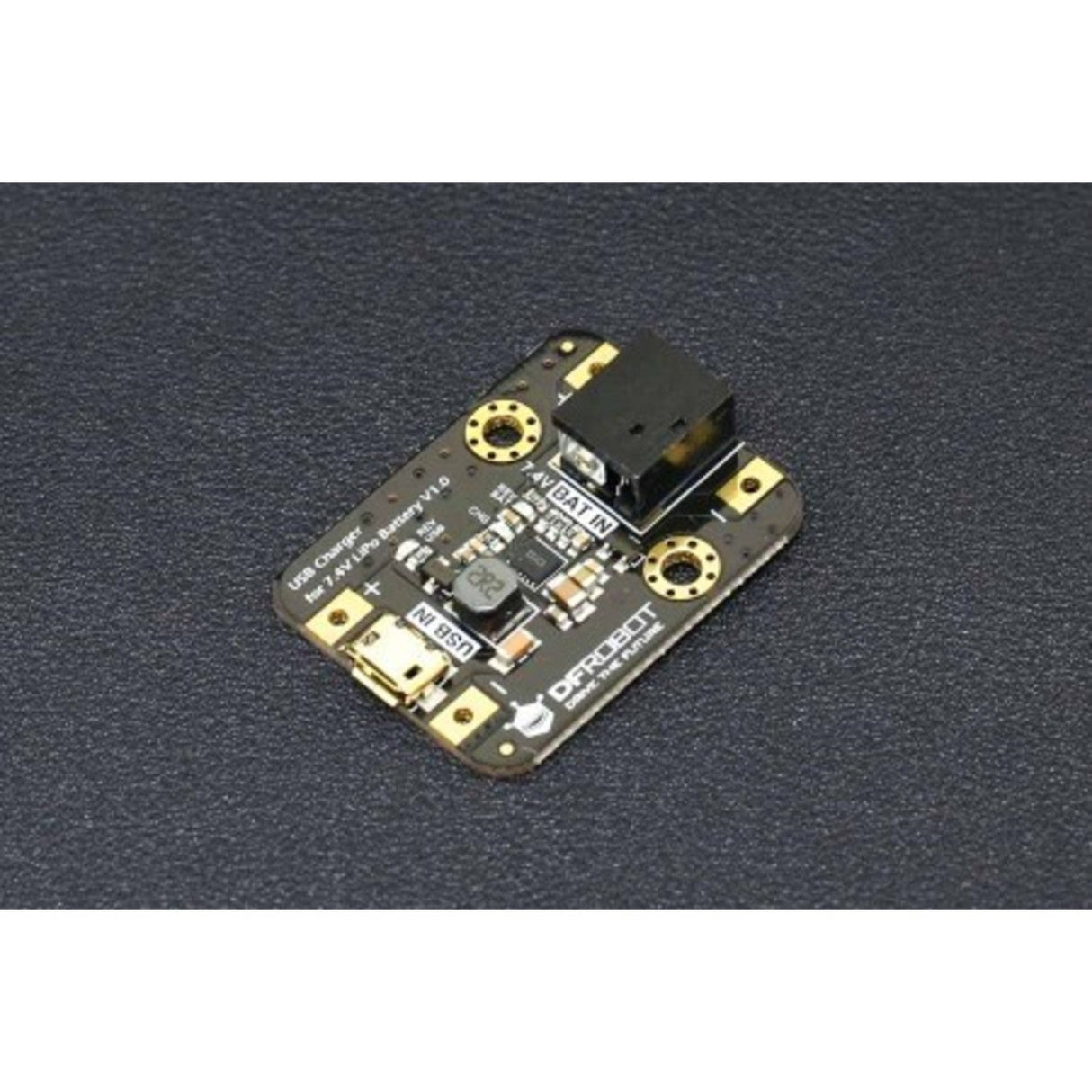

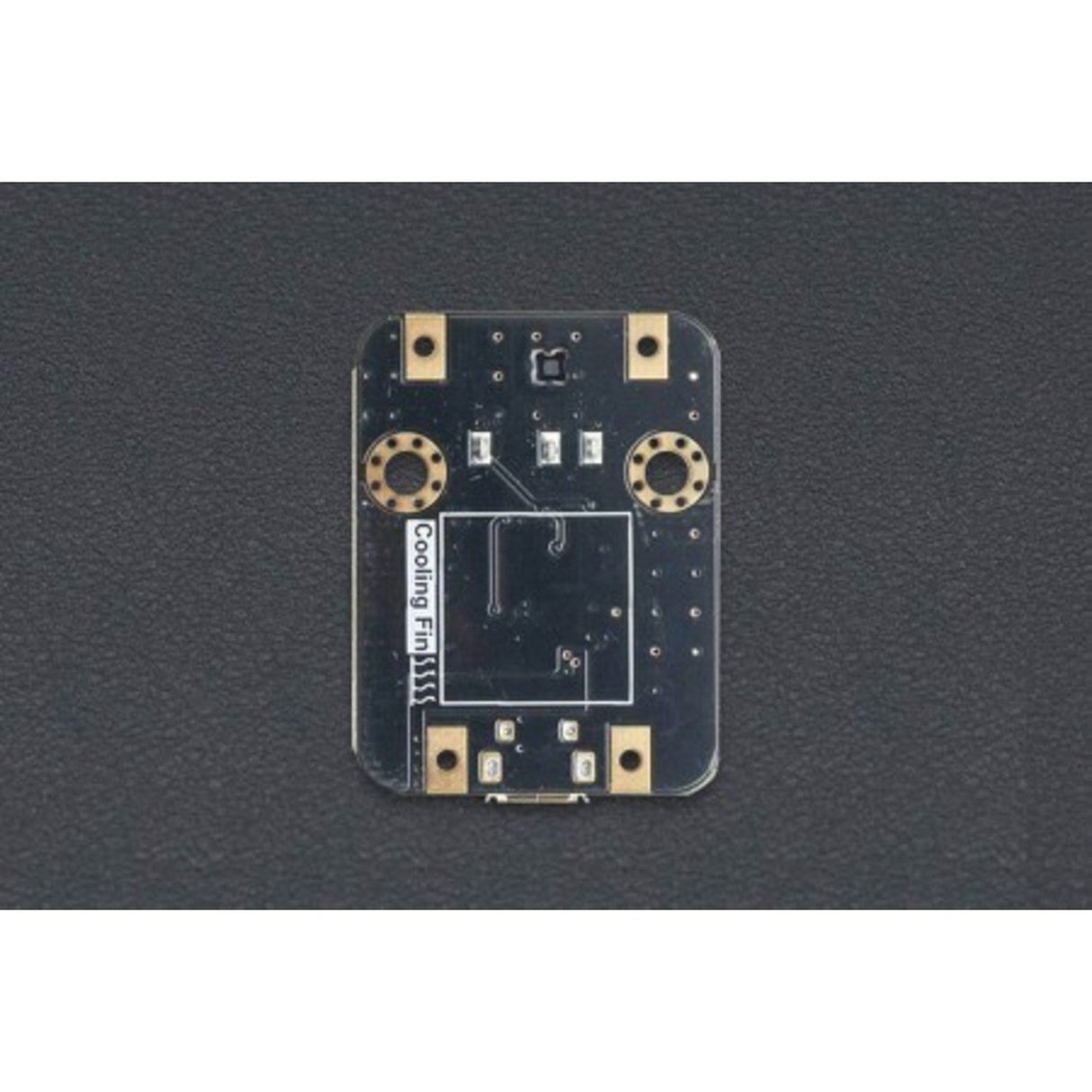

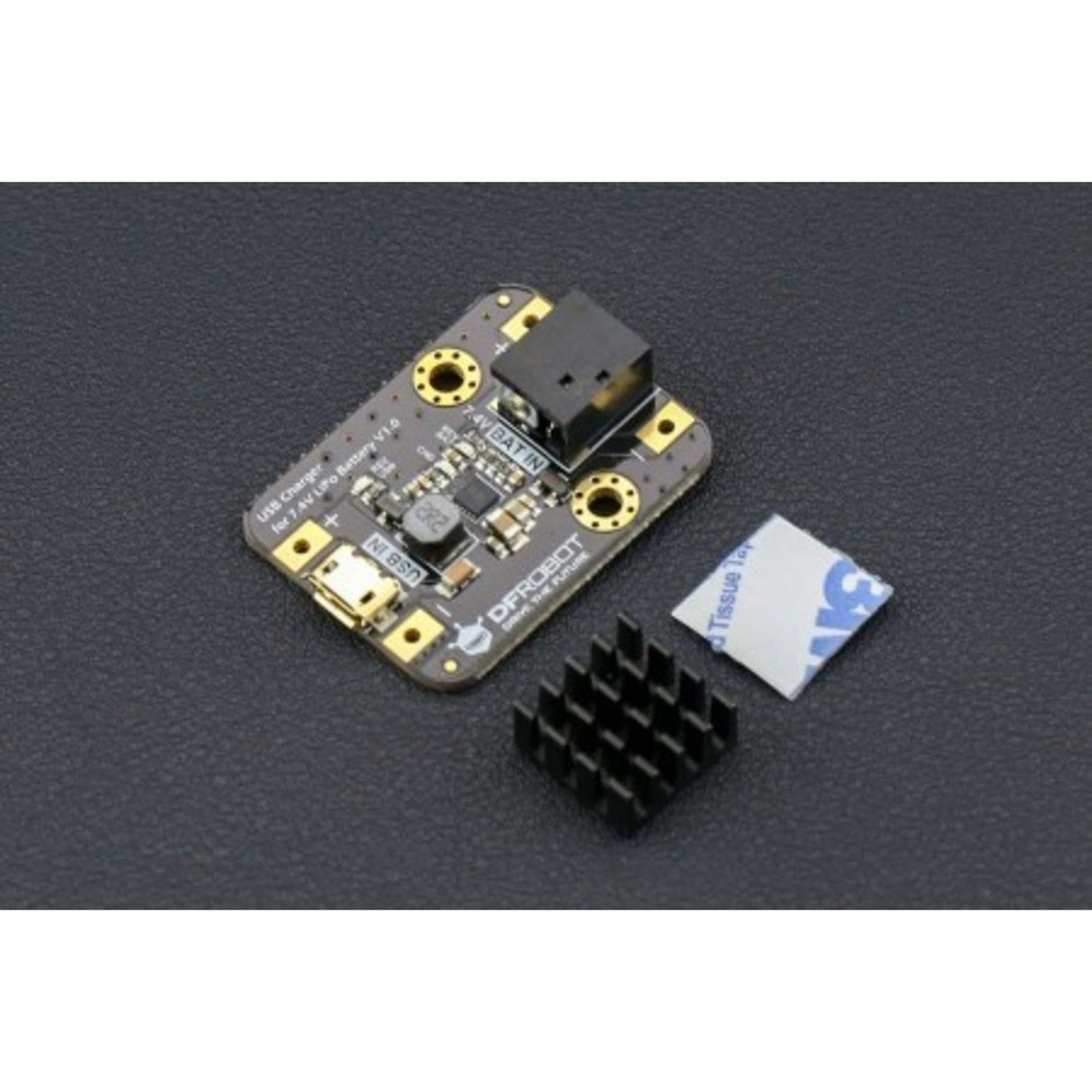

USB Charger for 7.4V LiPo Battery

$8.54
Tax included Shipping calculated at checkout.

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

Still using a big, bulky, traditional power adapter to charge your lithium battery? DFRobot provides you with a compact and efficient 7.4V lithium battery USB charger, only the size and weight of an ordinary Gravity sensor. With just a mobile phone AC adapter (or power bank) and an Android data cable, you can safely and efficiently charge the 7.4V lithium battery up to 1A, which commonly used in various robots and motor drivers. The light-weight and micro USB interface features make it ideal for outdoor applications. In addition to serve as a charger, it can also be embedded in a variety of 7.4V lithium battery-powered projects, adding a USB charging function to it, eliminating the need for battery swapping and the use of traditional bulky power adapters.

Board Overview




USB Charger for 7.4V LiPo Battery Board Overview
 Connection Diagram


Use a mobile phone AC adapter or power bank to charge lithium battery





FEATURES





  • High efficiency boost type USB charger, designed for 7.4 lithium battery
  • Charge input and battery port reserved pads for easy modification and measurement
  • All-round protection of battery and power supply
  • Multifunction LED status indicator, system status at a glance
  • USB ESD shell





APPLICATIONS





  • Robots and motor drivers
  • Lithium battery charger





SPECIFICATION





  • Charge input voltage (USB IN)：3-6V (5V, typical for USB IN)
  • Battery input (BAT IN): 7.4V 2s cells Li-polymer/Li-ion battery
  • Maximum charge current: 1A trickle charging, constant current, constant voltage three phases charging
  • Charge cutoff voltage: 8.4V±1%
  • Charge efficiency: >90%
  • Protections
     BAT IN: over charge/reverse connection protection
     USB IN: adaptive input current limitation, over heat/reverse connection protection
  • Operation temperature: -40℃～85℃
  • Dimension: 28.0mm*37.0mm/ 1.1 * 1.46 inches





DOCUMENTS
