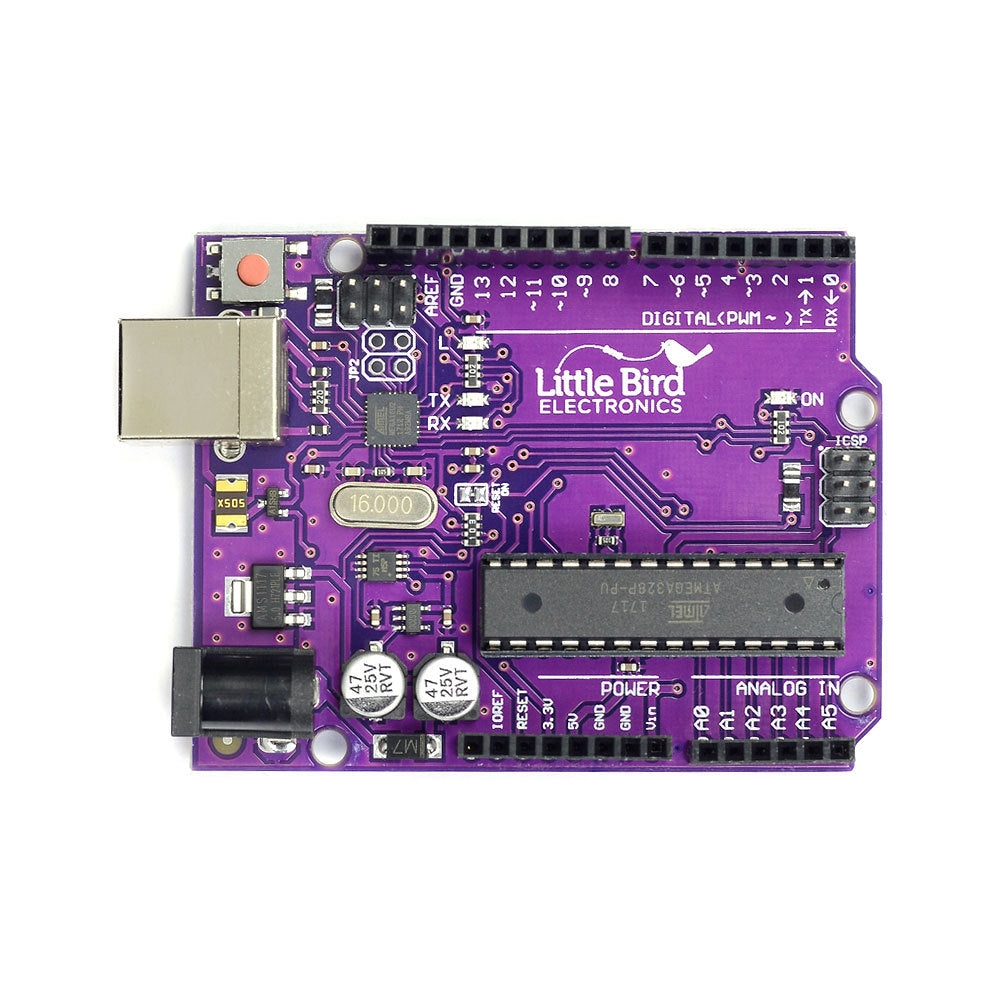

The Little Bird Uno R3, is a 100% Arduino™ compatible development board.
Just like the original Arduino Uno the Arduino Shield compatible design makes adding expansion boards easy.
This Arduino can be powered from 7-15 VDC or using your computer's USB port (limited aviable current to pins if done so).
This board includes a USB type B Cable.
Fully Arduino-Uno Compatible
- ATMEL ATMega328P Microcontroller
- ATMega16u2 USB-Serial Chipset
- Digital IO: 14 pins (6 are configurable as Digital or PWM)
- PWM Capable: 6 pins
- Analog Inputs: 6 pins
- Serial Ports: 1 (more supported via SoftwareSerial library)
- Input voltage:
- 5V DC Regulated via USB port or 5V pin
- 7-14V DC via Vin pin or power jack. (On-board regulator supplies 5V when the unit is powered via Vin pin)
- Dimensions: 75(W) x 53(L) x 13(H)mm
Uno R3 - Little Bird
We can get 1000 units in Australia from Little Bird. If you order today, we can dispatch this stock between Apr 06, 2020 - Apr 15, 2020.
