Waveshare  |  SKU: WS-25586

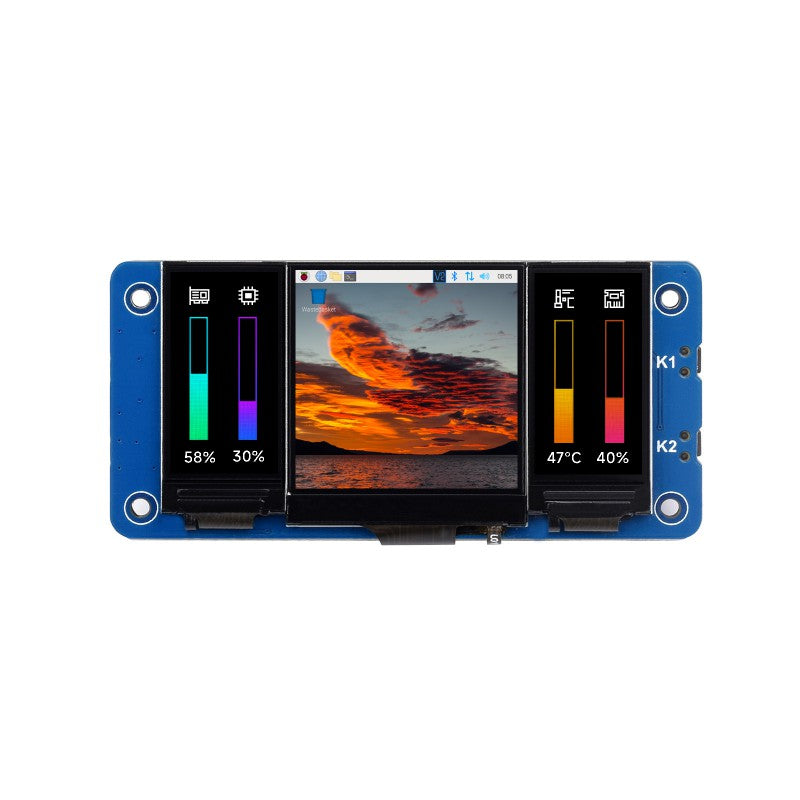

Triple LCD HAT For Raspberry Pi, Onboard 1.3inch IPS LCD Main Screen and Dual 0.96inch IPS LCD Secondary Screens

$23.89
Tax included Shipping calculated at checkout.

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

Triple LCD HAT For Raspberry Pi, Onboard 1.3inch IPS LCD Main Screen and Dual 0.96inch IPS LCD Secondary Screens, With 40PIN GPIO Header, Compatible With Raspberry Pi Series Boards
Dual 0.96inch LCD Secondary Screens
 Using SPI communication, supports 65K color display, Can be used to display key
 information, status indicator messages or small graphics
Features at a glance
  • Standard Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
  • 1.3inch IPS LCD Main Screen with built in ST7789 driver chip, SPI interface communication, wide viewing angle, supports 65K color display, 240×240 resolution
  • Dual 0.96inch LCD secondary screens with built in ST7735S driver chip, SPI interface communication, supports 65K color display, 160×80 resolution, can be used to display key informations, status indicator messages or small graphics
  • Onboard 2x user-defined keys for extended applications
  • Comes with online development resources and manual (Raspberry Pi/VisionFive2/Arduino/STM32, etc.)
Onboard 2x user-defined keys
 Supports customizing the key function, easy to use
Application Scenarios
Pin definition
Product Show
Outline dimensions
Resources & Services
  1. Zero LCD HAT (A) x1
  2. Standoffs pack x1
