SX1262 LoRa Node Module For Pico
LoRaWAN Protocol Support
Features At A Glance
The Pico-LoRa-SX1262-XXXM is LoRa node expansion module designed for Raspberry Pi Pico based on SX1262 with better performance than the SX127X series. The LoRa modulation technology solves the balancing problem between transmission distance, interference immunity, and power consumption that traditional solutions aren't able to deal with.
It supports LoRaWAN protocol, which allows it to connect the TTN, ChirpStack servers through a LoRa gateway to use LoRa Cloud service fast and easily.
- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- Supports LoRaWAN protocol, different frequency bands are available
- Adopts active temperature compensation crystal oscillator, ensuring stable long-term operating in extreme high/low temperature conditions
- Supports FSK, GFSK, LoRa modulations, outstanding block resistance and ultra long communication distance
- PH1.25 battery header and recharge controller, allows connecting rechargeable Lithium battery
- High receiving sensitivity (up to -148dBm), programmable emitting power (up to 22dBm)
- Supports preamble detection, with CRC, up to 256 bytes data packet engine
- Comes with development resources and manual (example in C)
Specifications
FREQUENCY BAND433M
(410~525MHZ)868M
(863~870MHZ)915M
(902~930MHZ)
RFID | SX1262
Emiting power | 22dBm
Emiting current | 107mA@22dBm | 118mA@22dBm
Receiving current | 5.3mA@125KHz
Modulation | LoRa/(G)FSK
Operating voltage | 3.3V
Communication bus | SPI
Operating temperature | -40 ~ 85℃
Dimensions | 21.00 × 52.00mm
(410~525MHZ)868M
(863~870MHZ)915M
(902~930MHZ)
RFID | SX1262
Emiting power | 22dBm
Emiting current | 107mA@22dBm | 118mA@22dBm
Receiving current | 5.3mA@125KHz
Modulation | LoRa/(G)FSK
Operating voltage | 3.3V
Communication bus | SPI
Operating temperature | -40 ~ 85℃
Dimensions | 21.00 × 52.00mm

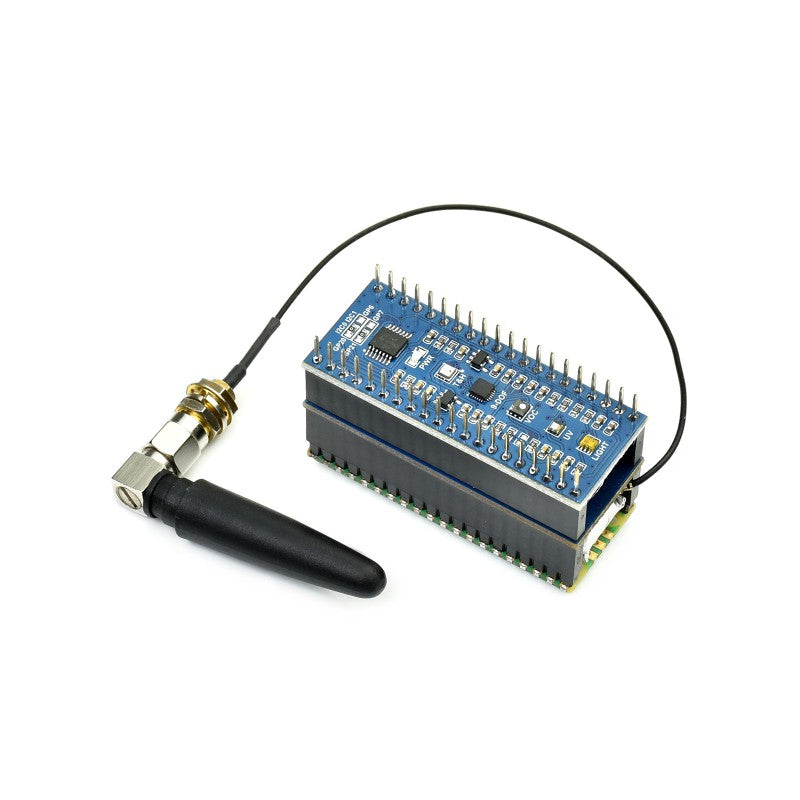

Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Raspberry Pi Pico is NOT included.

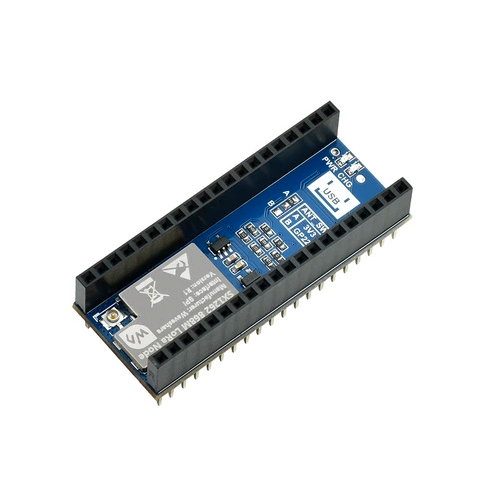

What's On Board
- Raspberry Pi Pico header
-
Status indicators
PWR: power indicator
CHG: recharge indicator -
RF switch control
A: controlled by high level
B: controlled by GPIO22
- MCP73831 recharge IC
- SX1262 module
- IPEX 1 antenna connector
- Power switch
- PH1.25 battery header
Pinout Definition
Application Examples
Industrial Control, Intelligent Home, And Data Acquisition...
Outline Dimensions
Resources & Services
Wiki: Pico-LoRa-SX1262
