Raspberry Pi connectivity, compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W

Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.

Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning

Bluetooth 3.0, supports data transferring through Bluetooth

Onboard USB TO UART converter CP2102 for UART debugging

6x LEDs for indicating the module working status

SIM card slot for 1.8V/3V SIM card

RTC with backup battery holder

Baud rate auto detection (1200bps ~115200bps)

Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)

Supports SIM application toolkit: GSM 11.14 Release 99

Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)

GSM/GPRS

Band

•         GSM 850/EGSM 900/DCS 1800/PCS 1900 MHz
•         Quad-band auto search
•         Compliant to GSM phase 2/2+

  Emitting power

•         Class 4 (2W @ GSM 850/EGSM 900 MHz)
•         Class 1 (1W @ DCS 1800/PCS 1900 MHz)

GPRS connectivity

•         GPRS multi-slot class 12 (default)
•         GPRS multi-slot class 1~12 (configurable)

GPRS data feature

•         Downlink speed: max 85.6kbps
•         Uplink speed: max 85.6kbps
•         Coding schemes: CS-1\CS-2\CS-3\CS-4
•         Supports PAP (Password Authentication Protocol) for PPP connection
•         Supports PBCCH
•         Supports USSD

  SMS

•         Supports: MT/MO/CB/Text/PDU mode
•         SMS storage: SIM card

Audio

•         Voice encode/decode mode: Half Rate\Full Rate\Enhanced Full Rate\Adaptive muti rate
•         Supports echo cancellation
•         Supports noise reduction

GNSS

•     Receiver type
•         33 tracking channels
•         99 acquisition channels
•         GPS L1 C/A code

    Sensitivity

•         Tracking: -165 dBm
•         Cold starts : -148 dBm

Time-To-First-Fix

•         Cold starts : 28s (typ.)
•         Hot starts : < 1s
•         Warm starts: 26s

Accuracy

•         Horizontal position : <2.5m CEP

Bluetooth

•     Integrates AT commands
•     Compliant to Bluetooth specification3.0 + EDR
•     Supports SPP, OPP, HFP/HSP, etc.

Misc

•     Operating voltage: 5V
•     Operating temperature: -40°C ~ 85°C
•     Storage temperature: -45°C ~ 90°C
•     Dimensions: 30.2mm x 65mm

Package Includes:

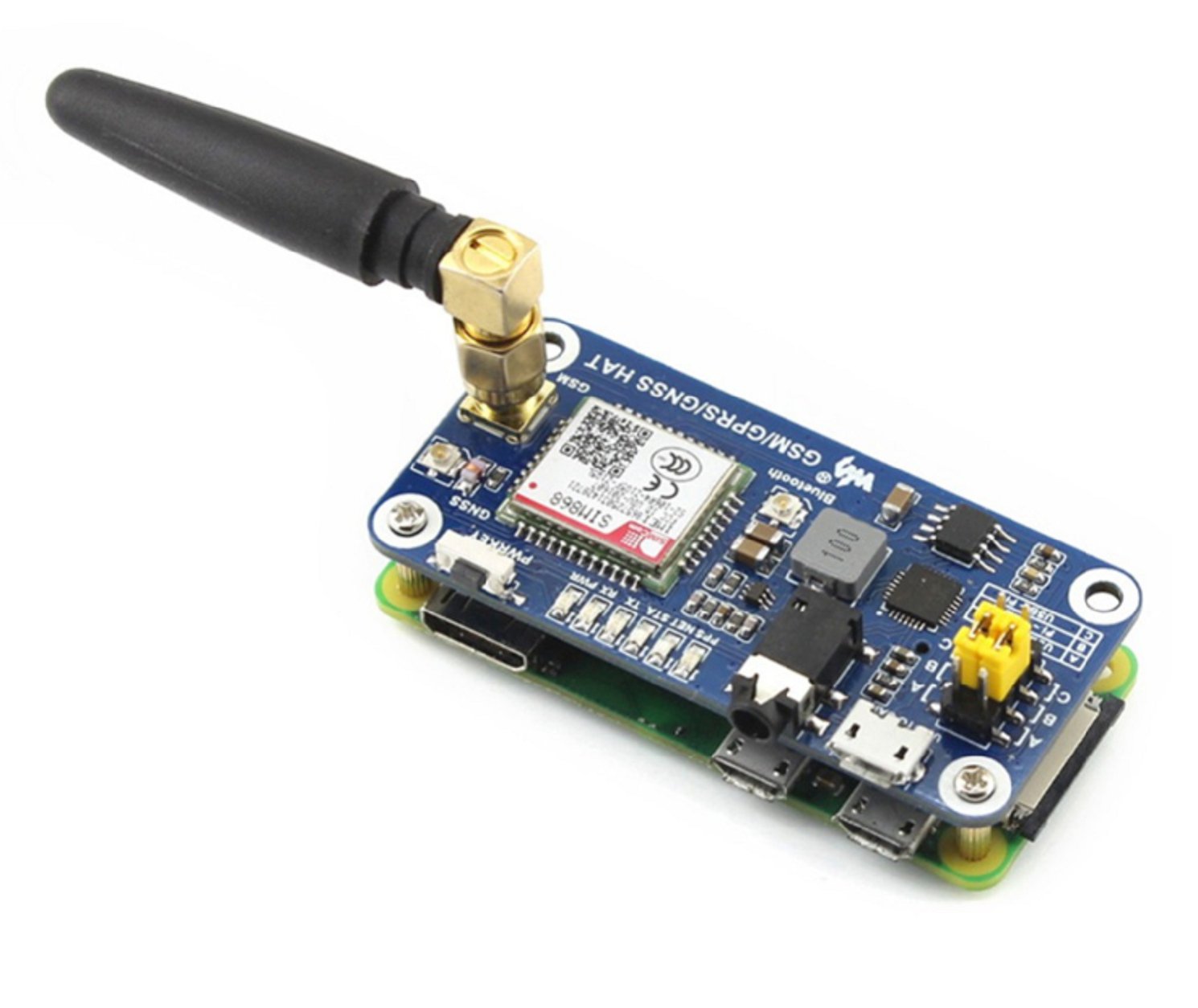

• 1 X GSM/GPRS/GNSS HAT
• 1 X GSM Antenna
• 1 X GPS External Antenna (B)
• 1 X Bluetooth Antenna
• 1 X USB type A plug to micro plug cable
• 1 X RPi screws pack (2pcs)
