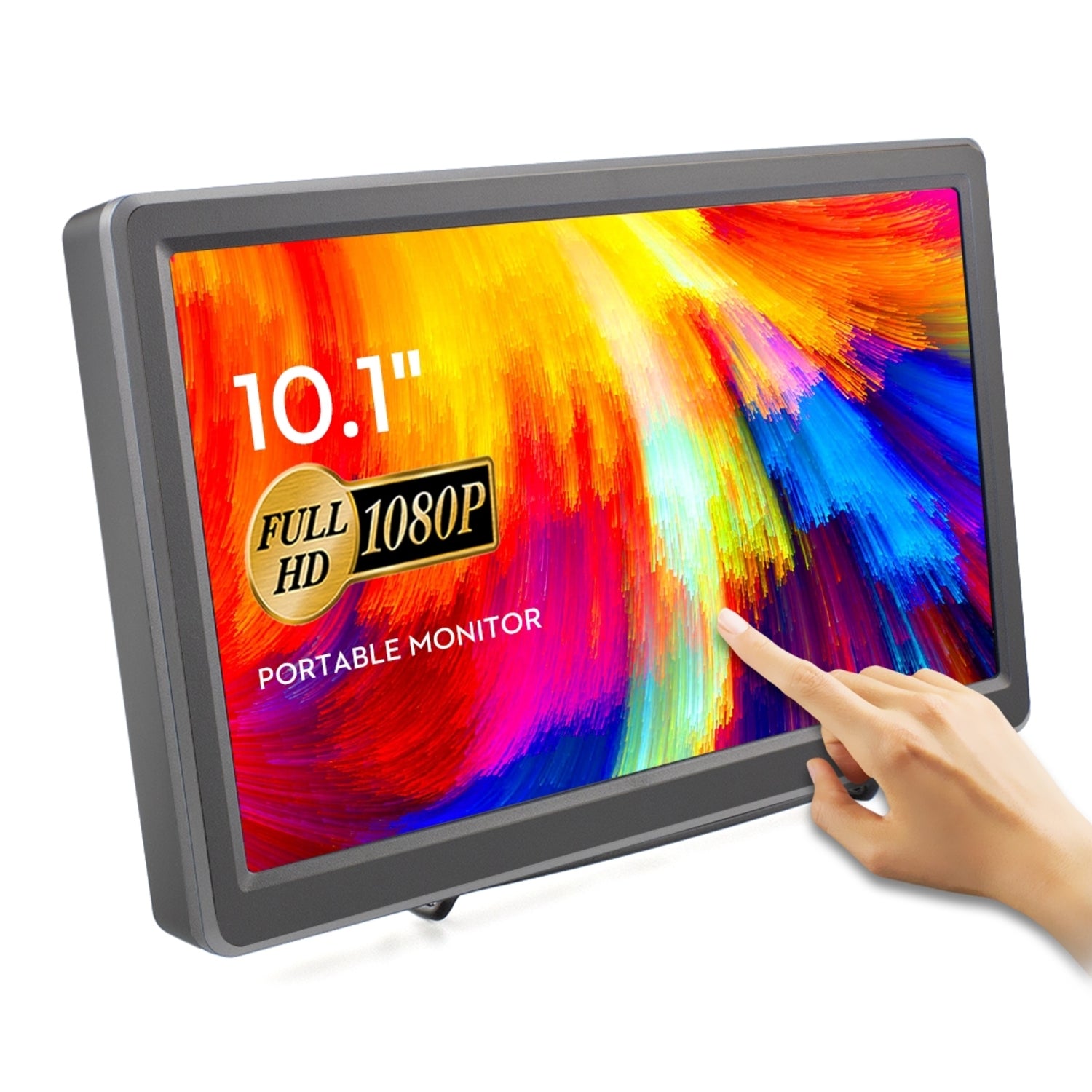

This 10.1 inch portable monitor supports 1920x1080 resolution max, the image is colorful and crystal clear. IPS LED technology brings a subversive color experience and large viewing screen.
Support 10 point touch, no extra driver needed, just connect the USB cable to your signal outut device like PC/Raspberry Pi to achieve the touch screen function.

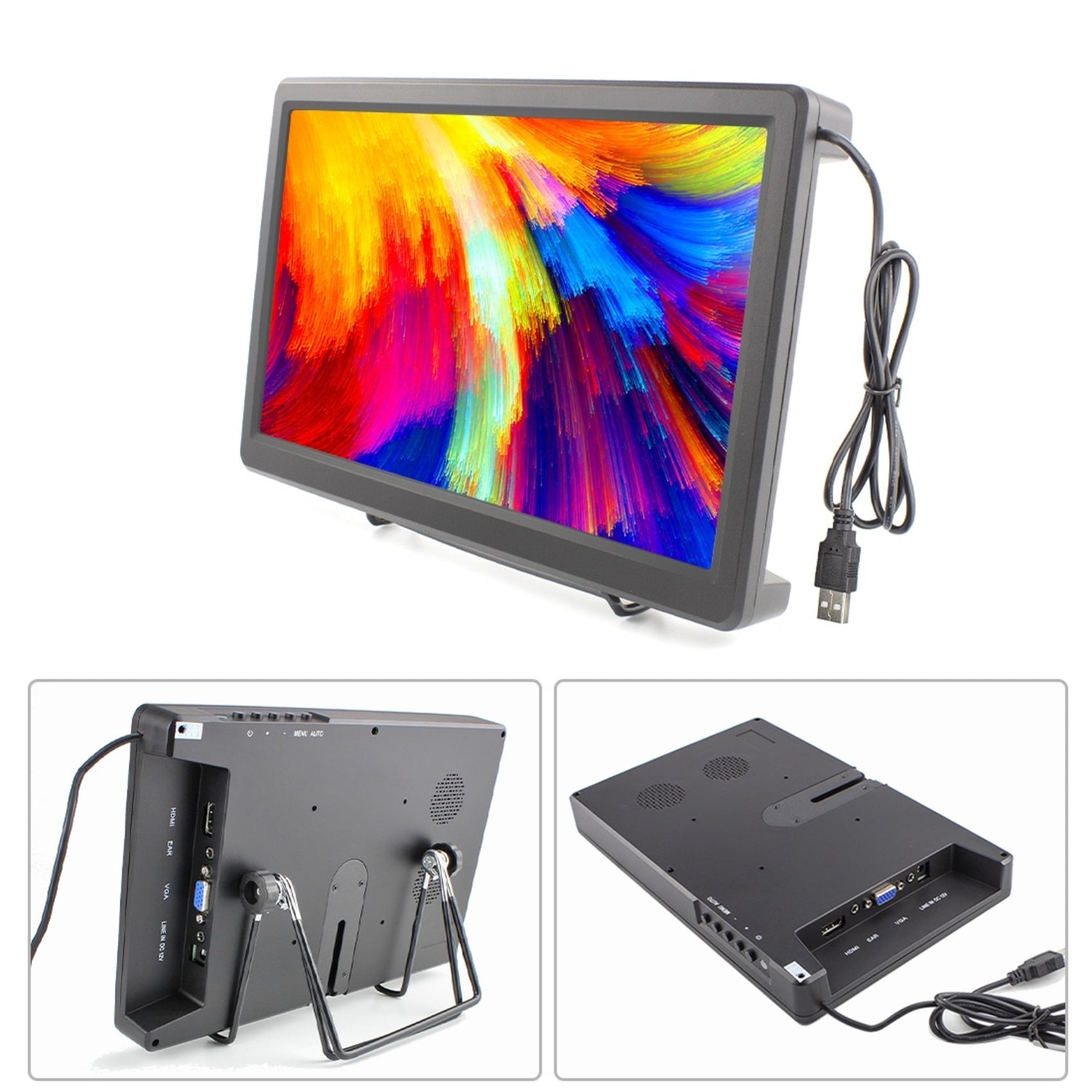

Equipped with HDMI / VGA ports, built-in high quality speakers and 3.5mm headphone output jack.
It can works with most devices with HDMI or VGA port, compatible with Win 7 8 10 PC, Raspberry Pi, industrial equipment, medical equipment.
10.1 inch compact size, 75x75mm VESA wall mountable holes, makes your space planning more flexible.
Capacitive USB Touchscreen
Full HD 1080P IPS Screen，1920 x 1080 resolution
Multipoint touch supported, no need to install the driver, just plug and play!
Built-in dual speakers deliver high quality audio quality.
Flexible connectivity with HDMI and VGA
Screen Size: 10.1 inches
Touch: USB touch
Digital input: VGA/HDMI
Digital Output:Digital Output
Panel brightness: 350cd / m²
Contrast: 800: 1 (Min) (transmission)
Resolution: 1920X1080, up to 1080p
Aspect ratio: 16: 9 (width: height)
Display color: 262K/16.7M (6-bit/6-bit+Hi-FRC)
Response time: 13/12 (TYP) (Tr/Td)（ms）
Viewing angle: 80/80/80/80 (Min.)(CR≥10)
Display Mode: ADS, Normally Black Transmissive
Refresh Rate: 60Hz
Power Supply: 12V 2A Adapter
Pitch of the VESA mount holes: 75mm*75mm
Net Weight: 652.5g
Package weight: 1350g

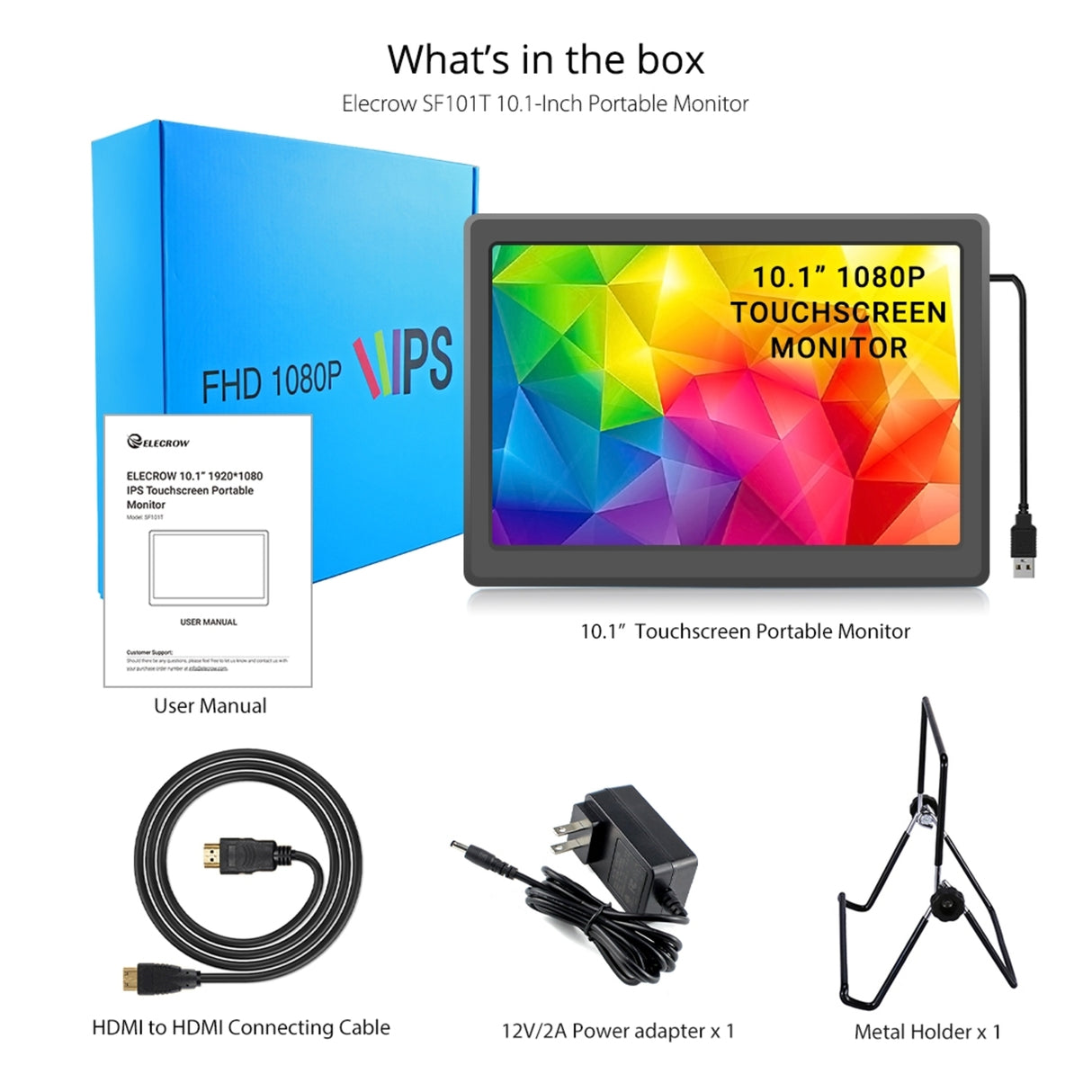

1 x Portable monitor
1 x HDMI to HDMI connecting cable
1 x 12V/2A power adapter
1 x metal holder
Wiki & External link
- User manual
SF101T 10.1 Inch Touchscreen 1920x1080 IPS Monitor for Raspberry Pi
We have 1 units in our Sydney Warehouse available for immediate dispatch.
|Raspberry Pi Model Compatibility|
|RP4||Doesn't with Raspberry Pi 4 Model B|
|RP3A+||Doesn't with Raspberry Pi 3 Model A+|
|RP3B+||Doesn't with Raspberry Pi 3 Model B+|
|RP3B||Doesn't with Raspberry Pi 3 Model B|
|RP2B||Doesn't with Raspberry Pi 2 Model B|
|RP1B+||Doesn't with Raspberry Pi 1 Model B+|
|RP1A+||Doesn't with Raspberry Pi 1 Model A+|
|RP0W||Doesn't with Raspberry Pi Zero W|
|RP0||Doesn't with Raspberry Pi Zero|
|RPCM3+||Doesn't with Raspberry Pi Compute Module 3+|
