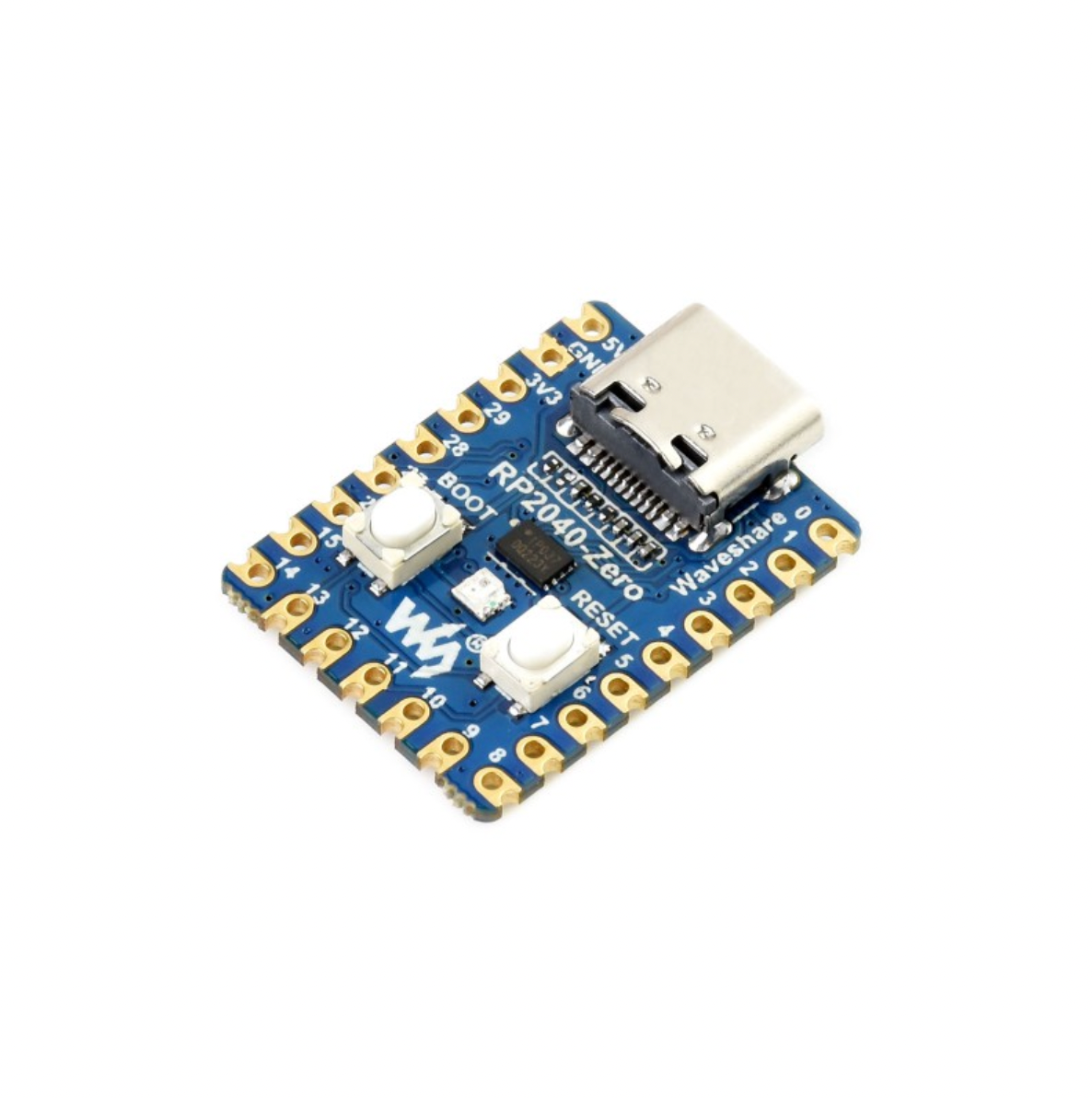

RP2040-Zero, a Pico-like MCU Board Based on Raspberry Pi MCU RP2040...
Plus, with USB 1.1 device and host support, low-power sleep and dormant modes, drag-and-drop programming, and 29 multi-function GPIO pins, you'll have plenty of features to work with. This board also offers two SPI, two I2C, two UART, four 12-bit ADC, 16 controllable PWM channels, an on-chip temperature sensor, and even accelerated floating-point libraries. And with 8 Programmable I/O (PIO) state machines, you can customize your peripherals.
Don't wait - get the RP2040-Zero and start your next project right away!
- RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
- Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
- 264KB of SRAM, and 2MB of on-board Flash memory
- USB-C connector, keeps it up to date, easier to use
- Castellated module allows soldering direct to carrier boards
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 29 × multi-function GPIO pins (20× via edge pinout, others via solder points)
- 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 8 × Programmable I/O (PIO) state machines for custom peripheral support
