Description

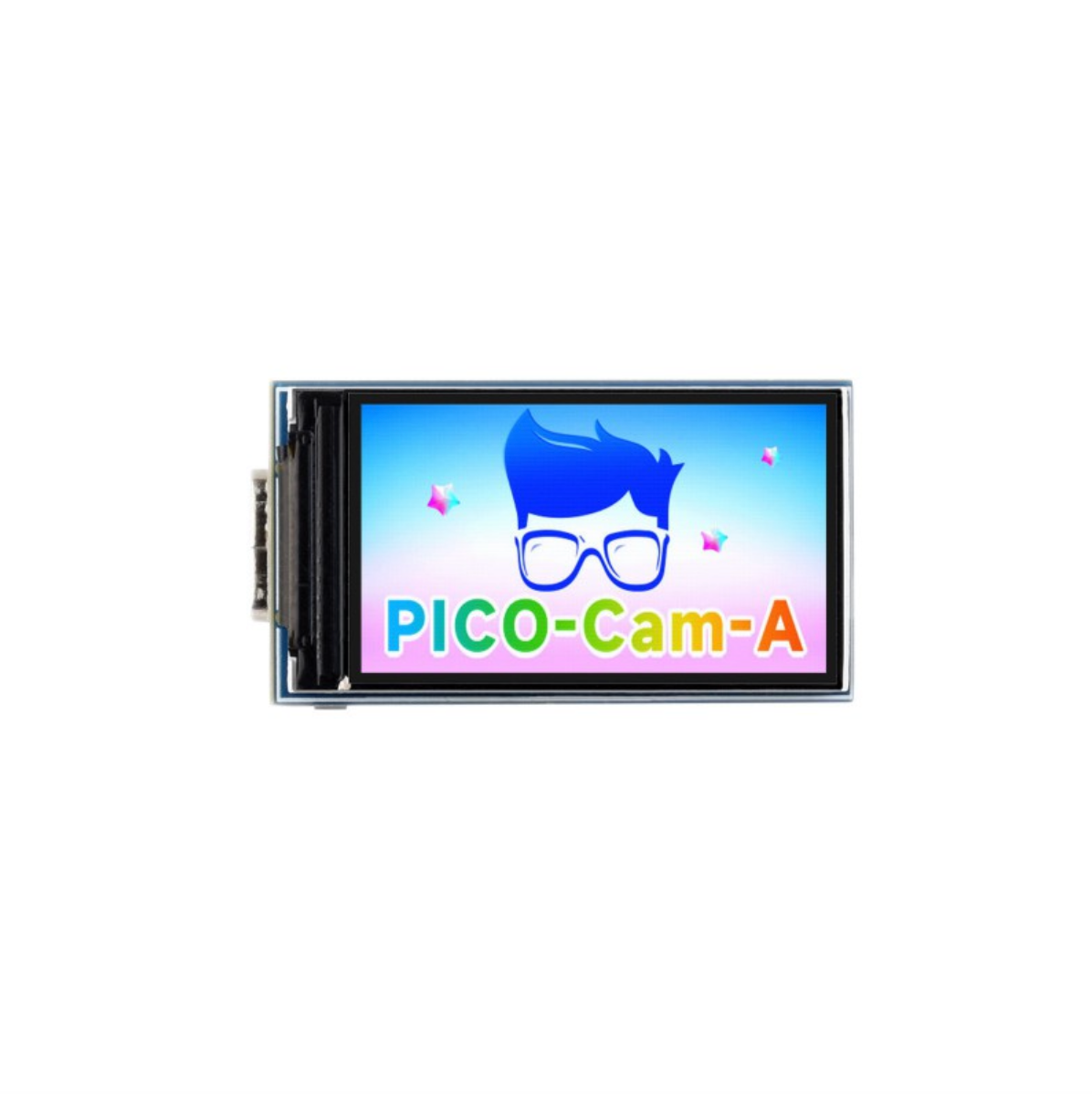

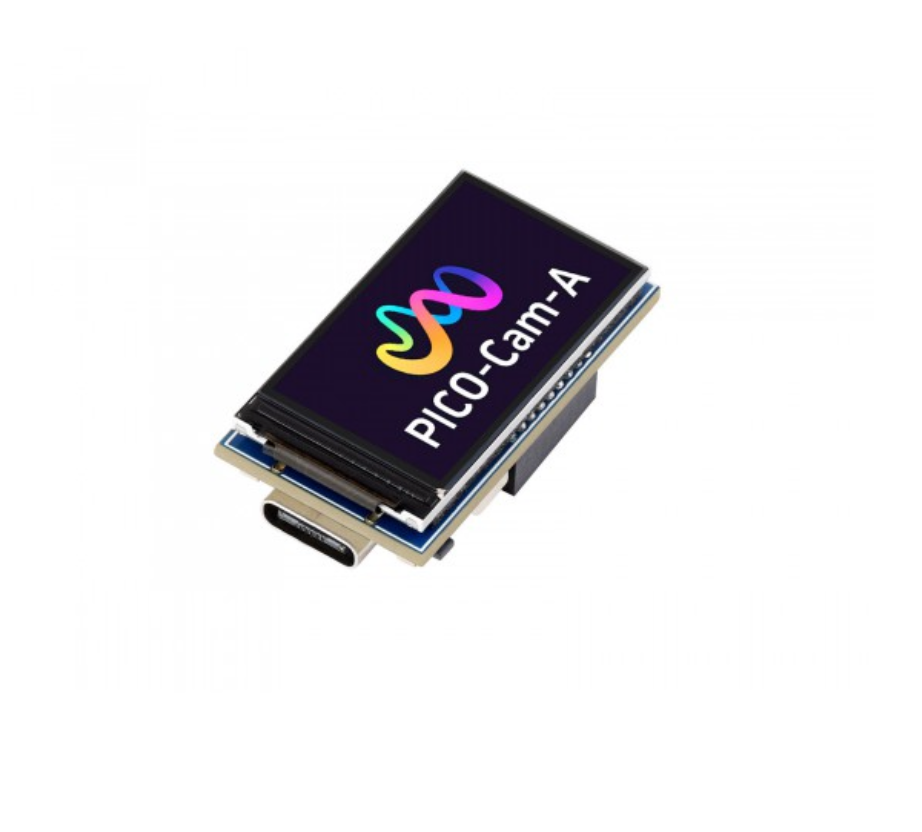

Introducing the PICO-CAM-A: RP2040 Camera Development Board


Unlock the potential of image information capture with our PICO-CAM-A, a cost-effective, high-performance MCU camera board based on the Raspberry Pi RP2040. Tailored for various application scenarios, this development board boasts a range of features designed to facilitate seamless integration and flexible development.


Key Features:

  • RP2040 Microcontroller Chip:
    • Dual-core Arm Cortex M0+ processor, clock running up to 133 MHz.
    • 264KB SRAM and 16MB onboard Flash memory.
  • Type-C Connector:
    • Ensures up-to-date connectivity for easier use.
  • Onboard HM01B0 Grayscale Camera:
    • Ideal for image information capture.
  • 1.14-inch IPS LCD Display:
    • 240×135 resolution, 65K color.
  • USB 1.1:
    • Supports both device and host functionality.
  • Low-power Modes:
    • Sleep and dormant modes for energy efficiency.
  • Drag-and-drop Programming:
    • Utilize mass storage over USB for convenient programming.
  • 13 × Multi-function GPIO Pins:
    • Configure for various functions to support flexible development.
  • Accurate Clock and Timer:
    • On-chip for precise timing.
  • Temperature Sensor:
    • Enhances environmental monitoring.
  • Accelerated Floating-Point Libraries:
    • On-chip for optimized performance.
  • 8 × Programmable I/O (PIO) State Machines:
    • Custom peripheral support for enhanced functionality.

Development Support:

  • Supports C/C++:
    • Easy integration into your preferred development environment.
  • Comprehensive SDK, Dev Resources, Tutorials:
    • Streamline your development with available resources.

Onboard Camera:

  • Adopts HM01B0 Grayscale Camera for image information capture.

Dual-Core Arm Processor:

  • Dual-core Arm Cortex M0+ processor with a flexible clock running up to 133 MHz.

18 × GPIO Pins:

  • Includes 13 × Multi-Function GPIO Pins, configurable for various functions, enabling flexible development and integration.

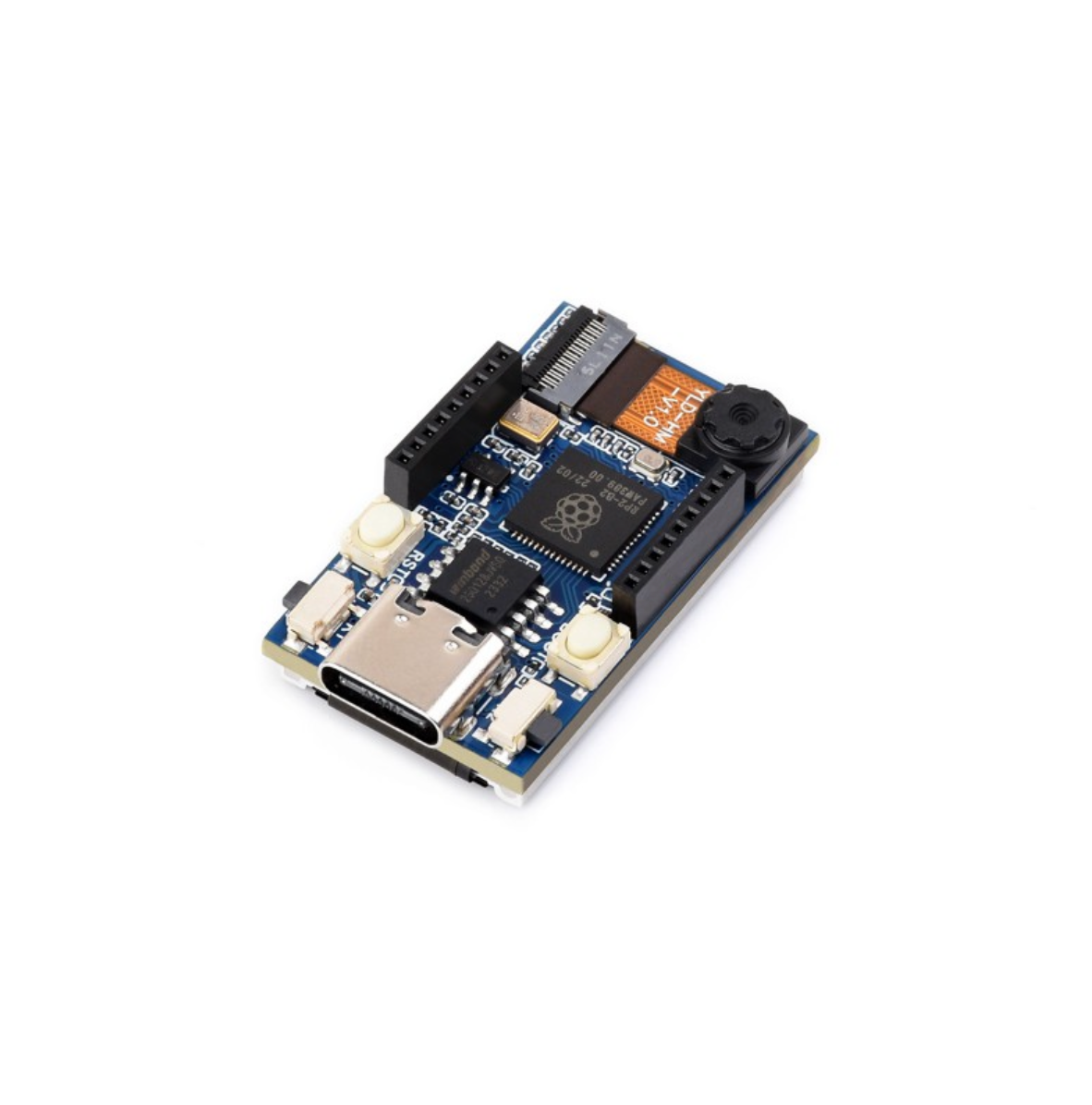

What's On Board:

  • USB Type-C connector
  • User button
  • BOOT button (for entering download mode)
  • RESET button
  • GPIO pins
  • RP2040 dual-core processor
  • HM01B0 grayscale camera
  • W25Q128 16MB NOR-Flash
  • 1.14-inch LCD (240×135 pixels, 65K Color)

Explore the possibilities of image information capture with the PICO-CAM-A. Dive into comprehensive development support for a seamless and customizable experience.
