Description

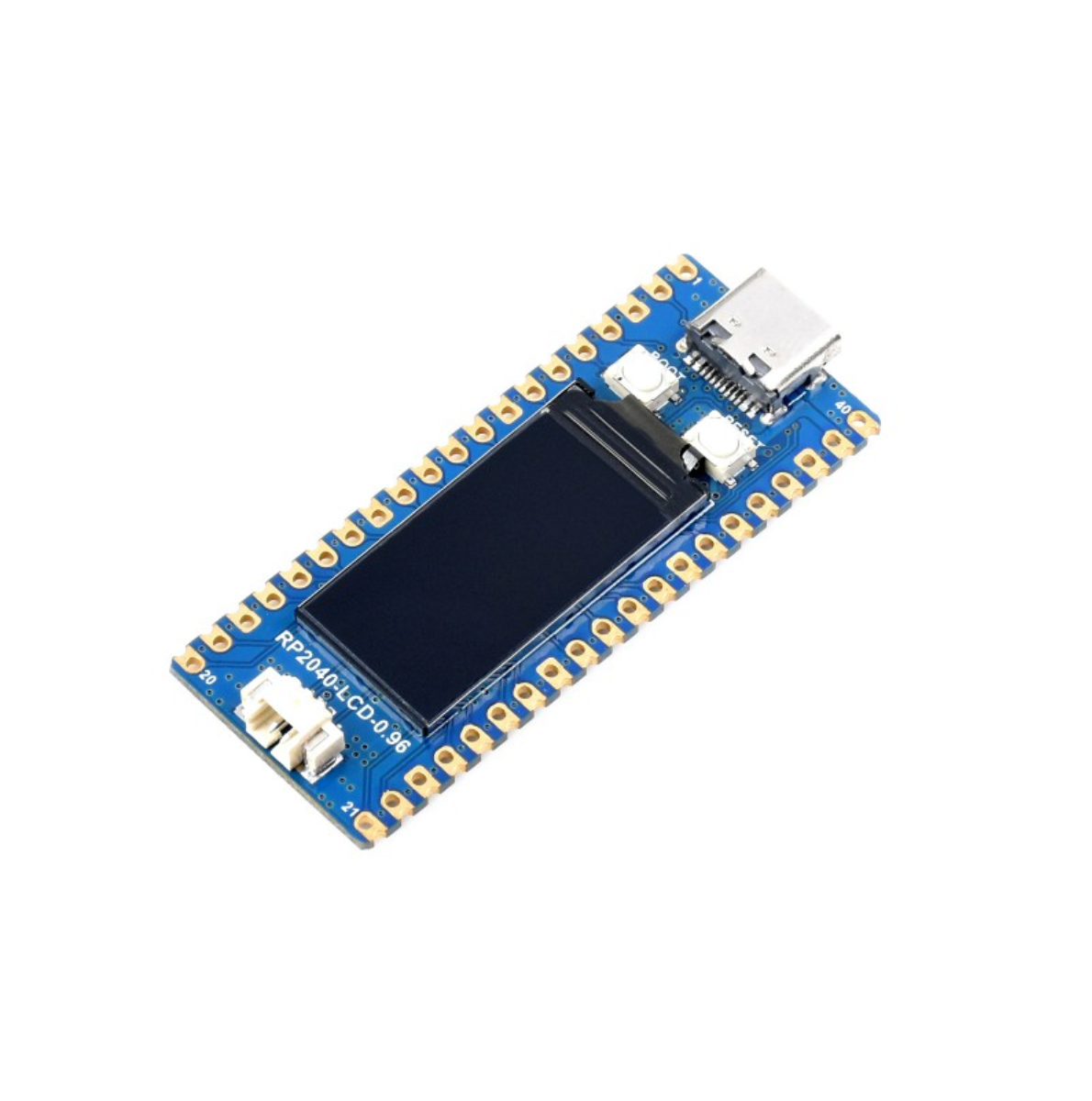

Introducing the RP2040-LCD-0.96 – a low-cost, high-performance MCU board perfect for your end products! It features the Raspberry Pi RP2040 microcontroller chip, Dual-core Arm Cortex M0+ processor, up to 133MHz clock speed, 264KB SRAM, 2MB on-board Flash memory, USB-C connector, 0.96inch 160×80 pixels 65K colorful IPS LCD display, Lithium battery recharge/discharge header, high efficiency DC-DC buck-boost chip, and more. Plus, you can easily program it with the Raspberry Pi C/C++ SDK or MicroPython.
Get started today and take advantage of the easy drag-and-drop programming, 26 multi-function GPIO pins, 2 SPI, 2 I2C, 2 UART, 3 12-bit ADC, 16 controllable PWM channels, accurate clock and timer on-chip, temperature sensor, and accelerated floating-point libraries.

Features:
  • High-performance, low-cost MCU board perfect for end products
  • Features Raspberry Pi RP2040 microcontroller chip, Dual-core Arm Cortex M0+ processor, up to 133MHz clock speed, 264KB SRAM, 2MB on-board Flash memory, USB-C connector, 0.96inch 160×80 pixels 65K colorful IPS LCD display, Lithium battery recharge/discharge header, and high efficiency DC-DC buck-boost chip
  • Easy drag-and-drop programming, 26 multi-function GPIO pins, 2 SPI, 2 I2C, 2 UART, 3 12-bit ADC, 16 controllable PWM channels, accurate clock and timer on-chip, temperature sensor, and accelerated floating-point libraries
  • Flexible digital interfaces and the ability to program it with either the Raspberry Pi C/C++ SDK or MicroPython
  • Easily integrate it into end products

Specifications:
  • Microcontroller: RP2040
  • Processor: Dual-core Arm Cortex M0+
  • Clock Speed: Up to 133MHz
  • SRAM: 264KB
  • Flash Memory: 2MB
  • Connector: USB-C
  • Display: 0.96inch 160×80 pixels 65K colorful IPS LCD
  • Battery Header: Lithium recharge/discharge
  • DC-DC Buck-Boost Chip: TPS63000, 1.8A current switch
  • GPIO Pins: 26 multi-function
  • SPI: 2
  • I2C: 2
  • UART: 2
  • ADC: 3 12-bit
  • PWM Channels: 16 controllable
