Raspberry Pi  |  SKU: RP-SC1975

Raspberry Pi Touch Display 2 - 5"

$82.00
Tax included Shipping calculated at checkout.

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

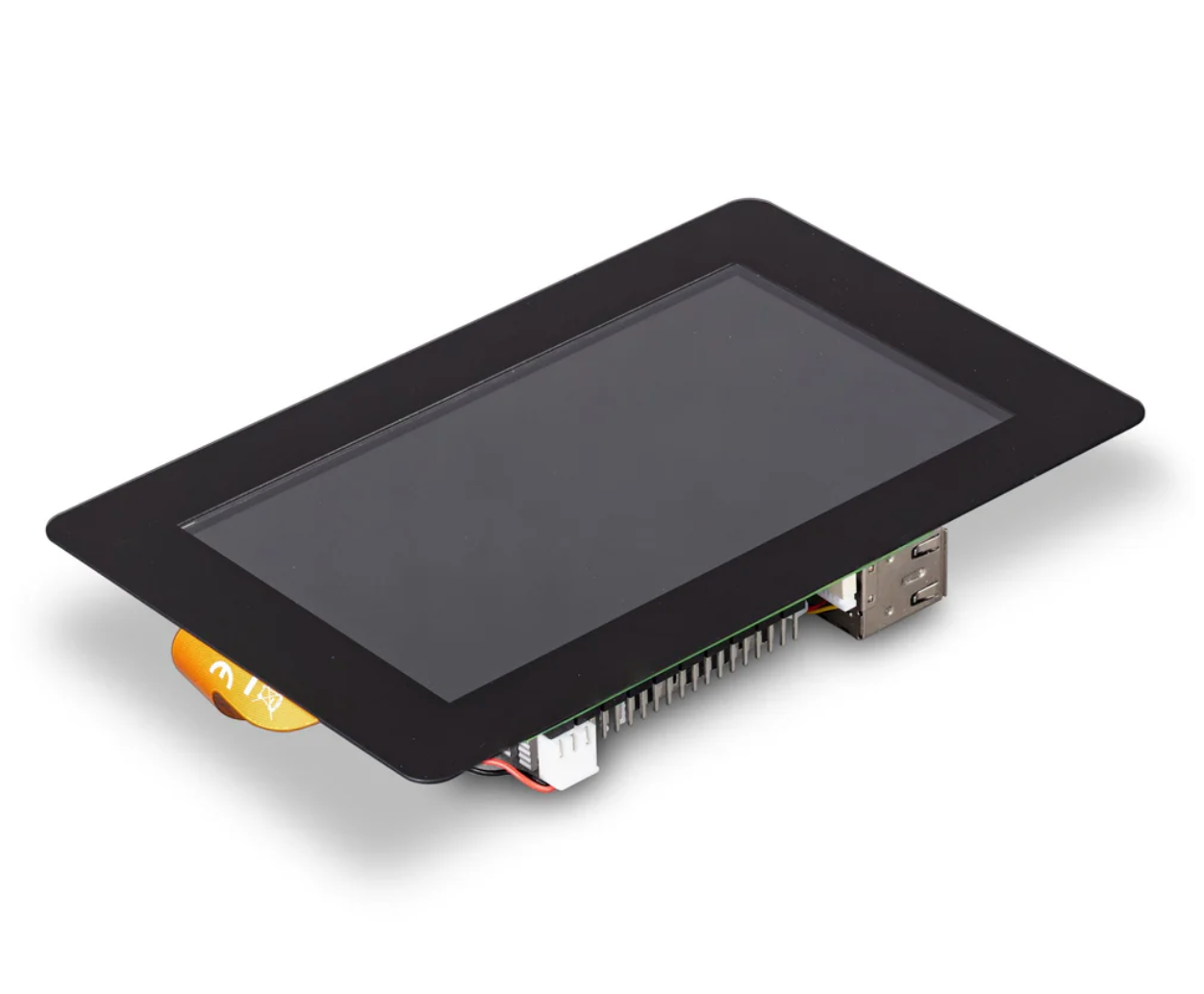

The 5" Raspberry Pi Touch Display 2 is the compact version of the official 7" model, offering the same sharp 720x1280 resolution in a smaller form factor. Its bright capacitive touchscreen supports five-finger multi-touch, making it ideal for projects where space is limited but full display functionality is required.
Just like the 7", this display connects to your Raspberry Pi with only two cables: a GPIO power lead and a DSI ribbon cable. Both are included, with versions to support different Raspberry Pi models (excluding the Pi Zero and Pi 400/500 series). No extra power supply is needed—the Raspberry Pi powers the display directly. Raspberry Pi OS includes built-in touchscreen drivers, providing seamless multi-touch and on-screen keyboard support.

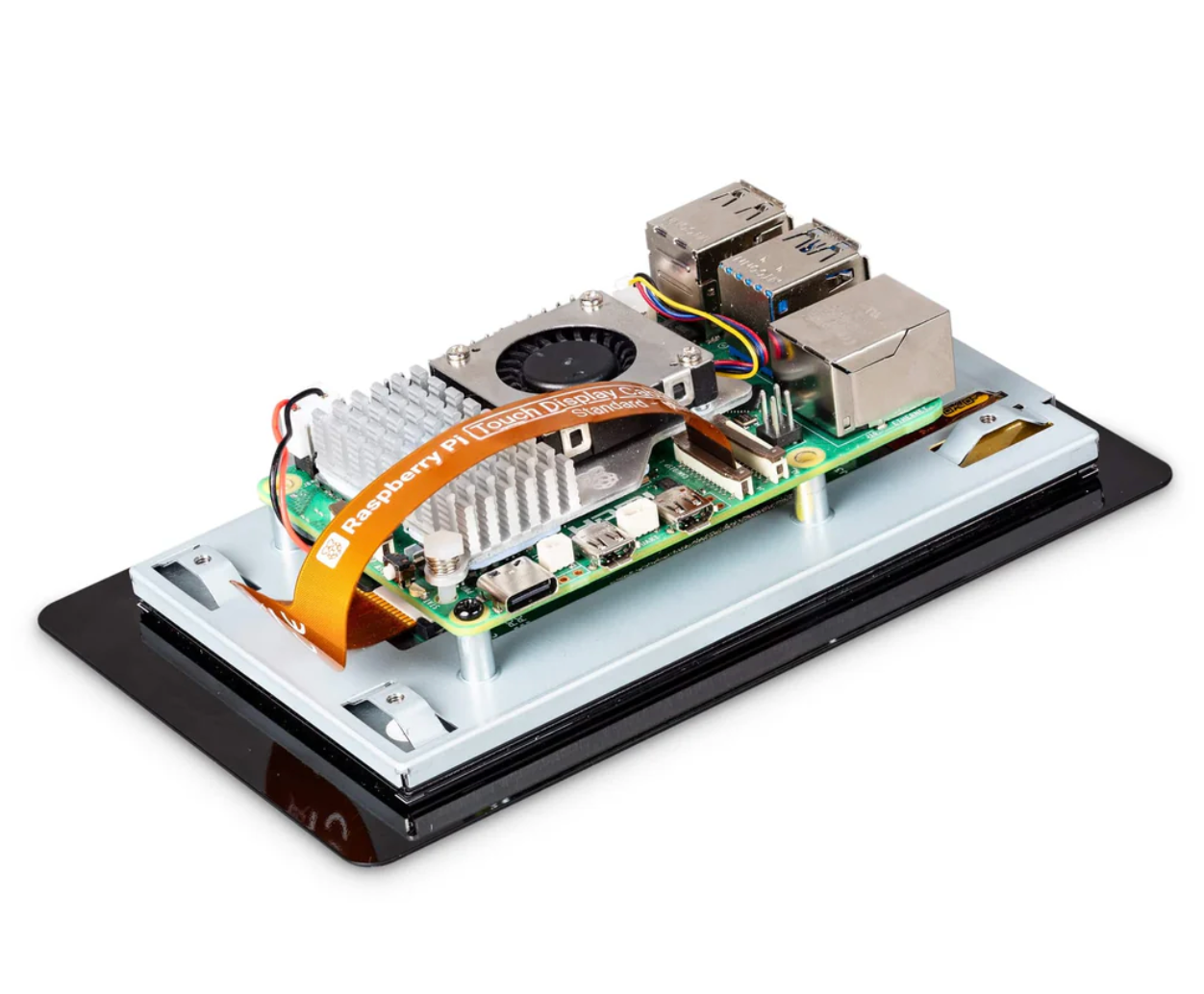

Your Raspberry Pi can be mounted neatly on the rear of the display using the supplied fixings, with space to accommodate Active Coolers and HATs. If you need to keep your GPIO pins free, consider using a HAT with stacking headers or powering the display with a USB adapter.
Raspberry Pi and Active Cooler not included.
Features
  • Compact 5" capacitive touchscreen display
  • 720x1280 resolution with five-finger multi-touch
  • On-screen keyboard support in Raspberry Pi OS
  • Simple two-cable connection: GPIO power + DSI ribbon
  • Powered directly from the Raspberry Pi—no extra PSU required
  • Rear mounting option for Raspberry Pi with included fixings
  • Compatible with all Raspberry Pi computers (except Pi Zero and Pi 400/500)
Specifications
  • Display size: 5″
  • Active area: 110.4 × 62.1 mm
  • Resolution: 720 × 1280 pixels
  • Display type: TFT LCD, normally black, transmissive
  • Touch: Capacitive, five-finger multi-touch (35 ms response time)
  • Viewing angle: 80°
  • Brightness: 500 cd/m² (typical)
  • Colour: RGB-stripe, 24-bit
  • Surface: Anti-glare
  • Operating temperature: −20 °C to +70 °C
  • Product number: SC1975
  • EAN: 5056561803944
  • Production lifetime: Supported until at least January 2030
Package Contents
  • 1x Raspberry Pi Touch Display 2 (5")
  • 1x DSI cable (for Pi 5)
  • 1x DSI cable (for Pi 4/3/3B+/2)
  • 1x GPIO power cable
  • 8x M2.5 mounting screws
