The Raspberry Pi PoE+ HAT is designed to replace the existing Raspberry Pi PoE HAT in all new and existing designs. Like the original, the PoE+ HAT allows you to power your Raspberry Pi using Power over Ethernet networks. The PoE+ HAT meets all the requirements of the IEEE 802.3af (802.3at Type 1, PoE+) specifications. This ups the power the network can supply from 15.4 watts (PoE) to 25.5 Watts (PoE+) over CAT5 cable.
No modification to the main Raspberry Pi board is needed for the PoE+ HAT to work but you will need to ensure that your Pi’s software is up to date for all functionality to be available. The Raspberry Pi PoE+ HAT is fitted with a small fan that is controlled by the Raspberry Pi via I2C and will turn on and off automatically depending on the temperature of the main processor on your Pi.
Note: There is no Raspberry Pi included with this product. Your desired Pi will need to be purchased separately.
Features:
- Input voltage: 37-57V DC, Class 2 device
- Output power: 5V DC/3.0A
- Cooling: 25mm x 25mm brushless fan delivering 2.2CFM for processor cooling
- Fully isolated switch-mode power supply
- Fan control
- Mechanically compatible with the existing Raspberry Pi PoE HAT

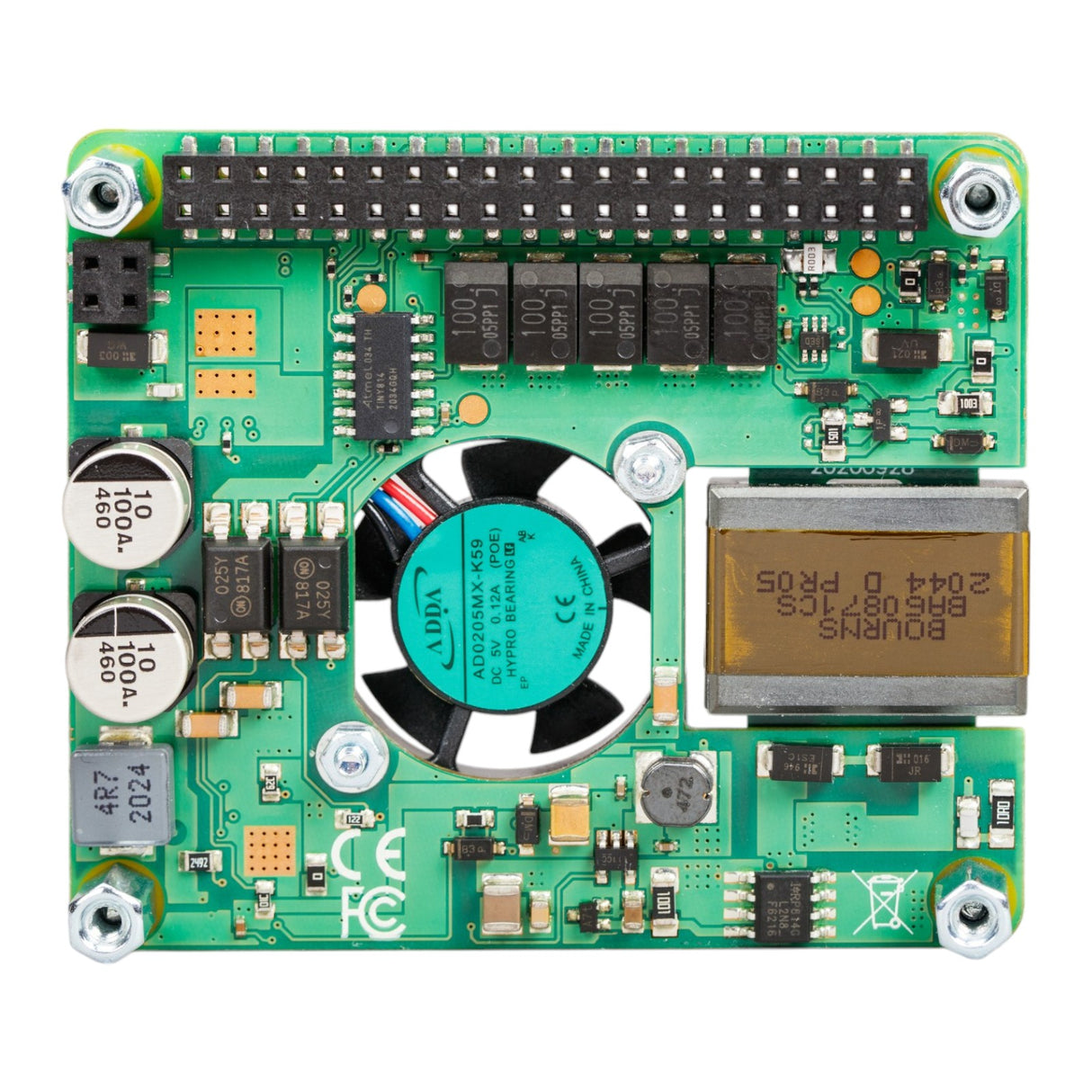

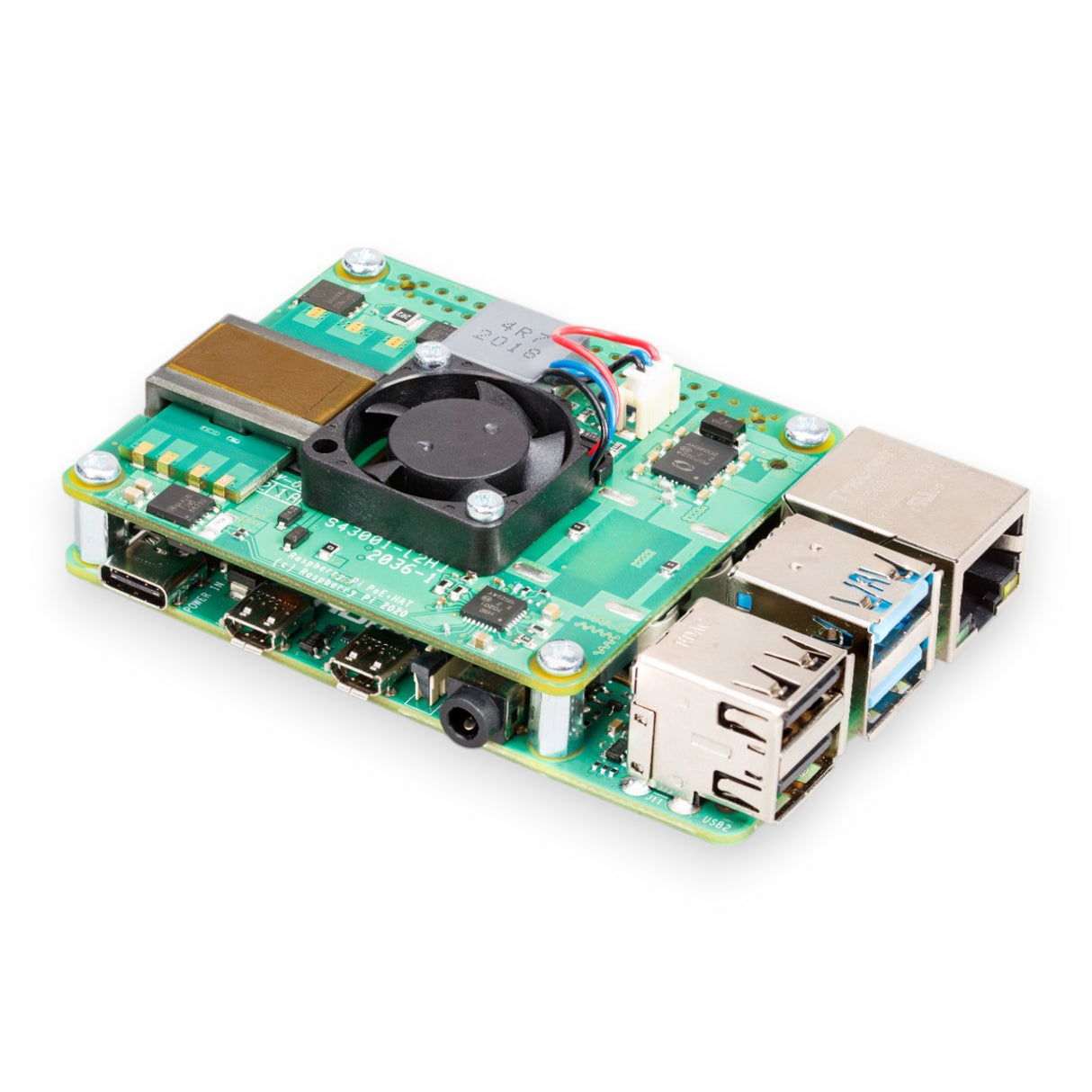

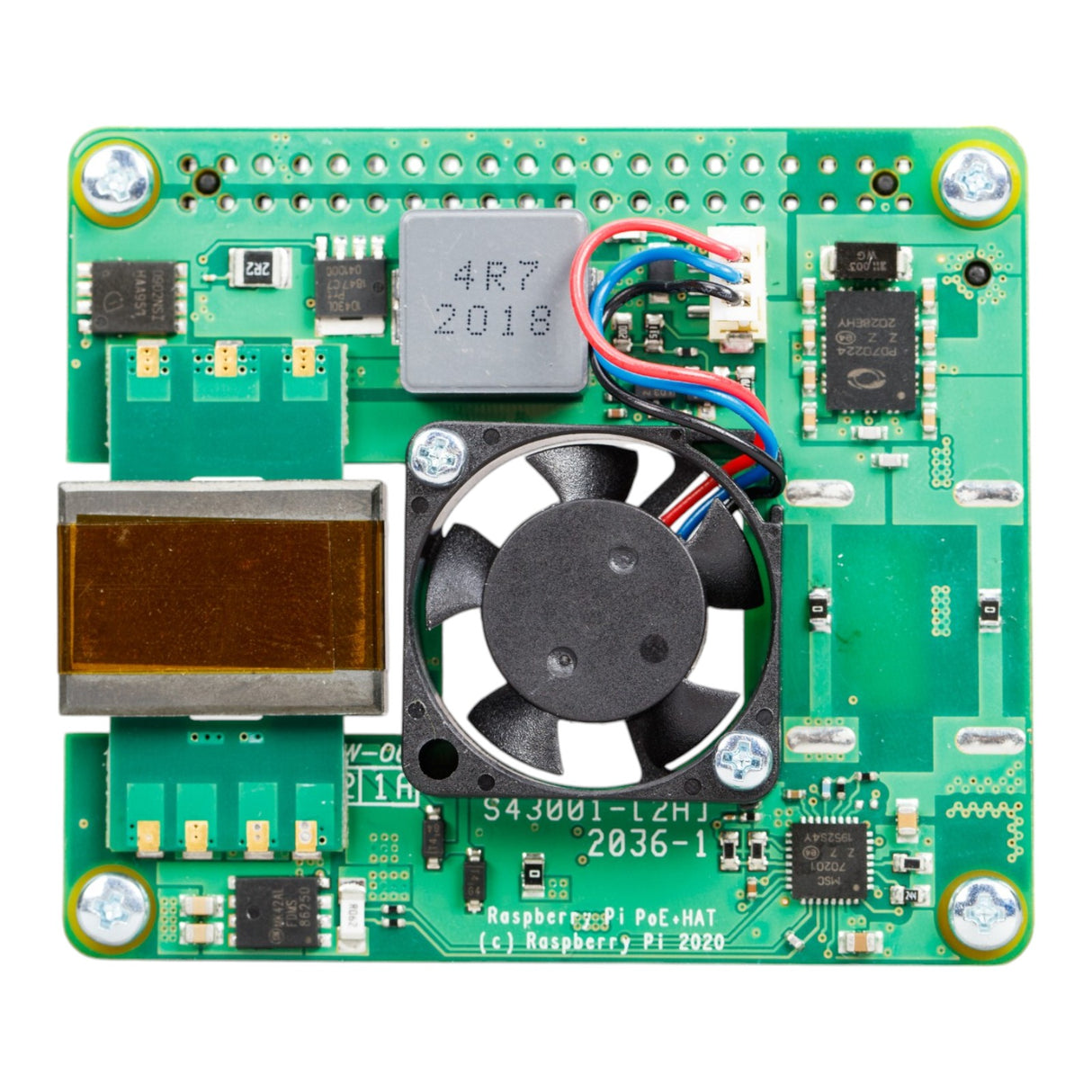

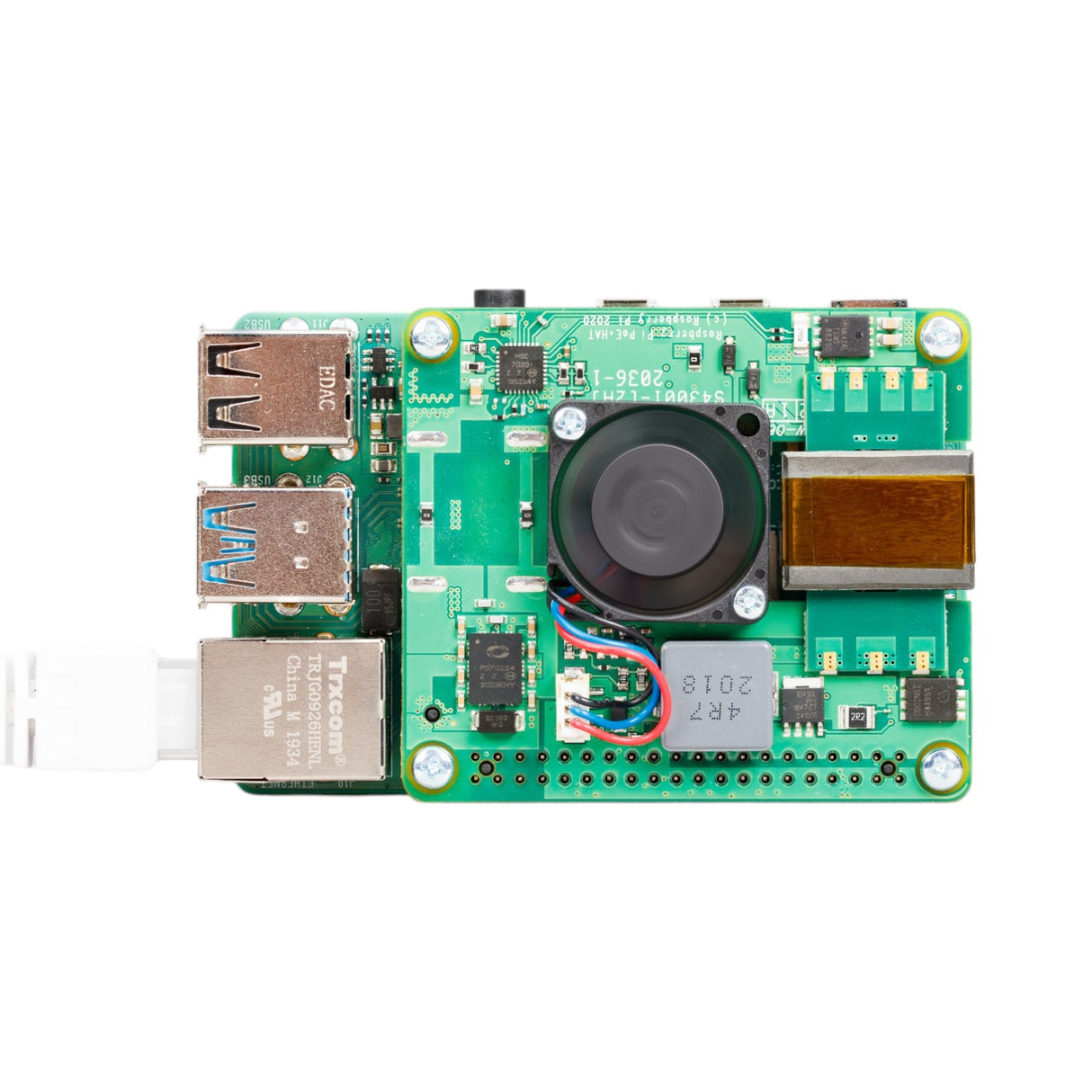

Raspberry Pi PoE+ HAT
We have 200 units in our Sydney Warehouse available for immediate dispatch.
Raspberry Pi Model Compatibility | ||
---|---|---|
RP4 |
|
Works with Raspberry Pi 4 Model B |
RP3A+ |
|
Doesn't with Raspberry Pi 3 Model A+ |
RP3B+ |
|
Works with Raspberry Pi 3 Model B+ |
RP3B |
|
Doesn't with Raspberry Pi 3 Model B |
RP2B |
|
Doesn't with Raspberry Pi 2 Model B |
RP1B+ |
|
Doesn't with Raspberry Pi 1 Model B+ |
RP1A+ |
|
Doesn't with Raspberry Pi 1 Model A+ |
RP0W |
|
Doesn't with Raspberry Pi Zero W |
RP0 |
|
Doesn't with Raspberry Pi Zero |
RPCM3+ |
|
Doesn't with Raspberry Pi Compute Module 3+ |
