Raspberry Pi HQ Camera - M12 mount

SKU: RP-SC0870
Price
$87
GST included. Shipping calculated at checkout.

Got a Question?

Give us a call on 1300 240 817

Frequently Bought Together

We Accept

American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa

Description

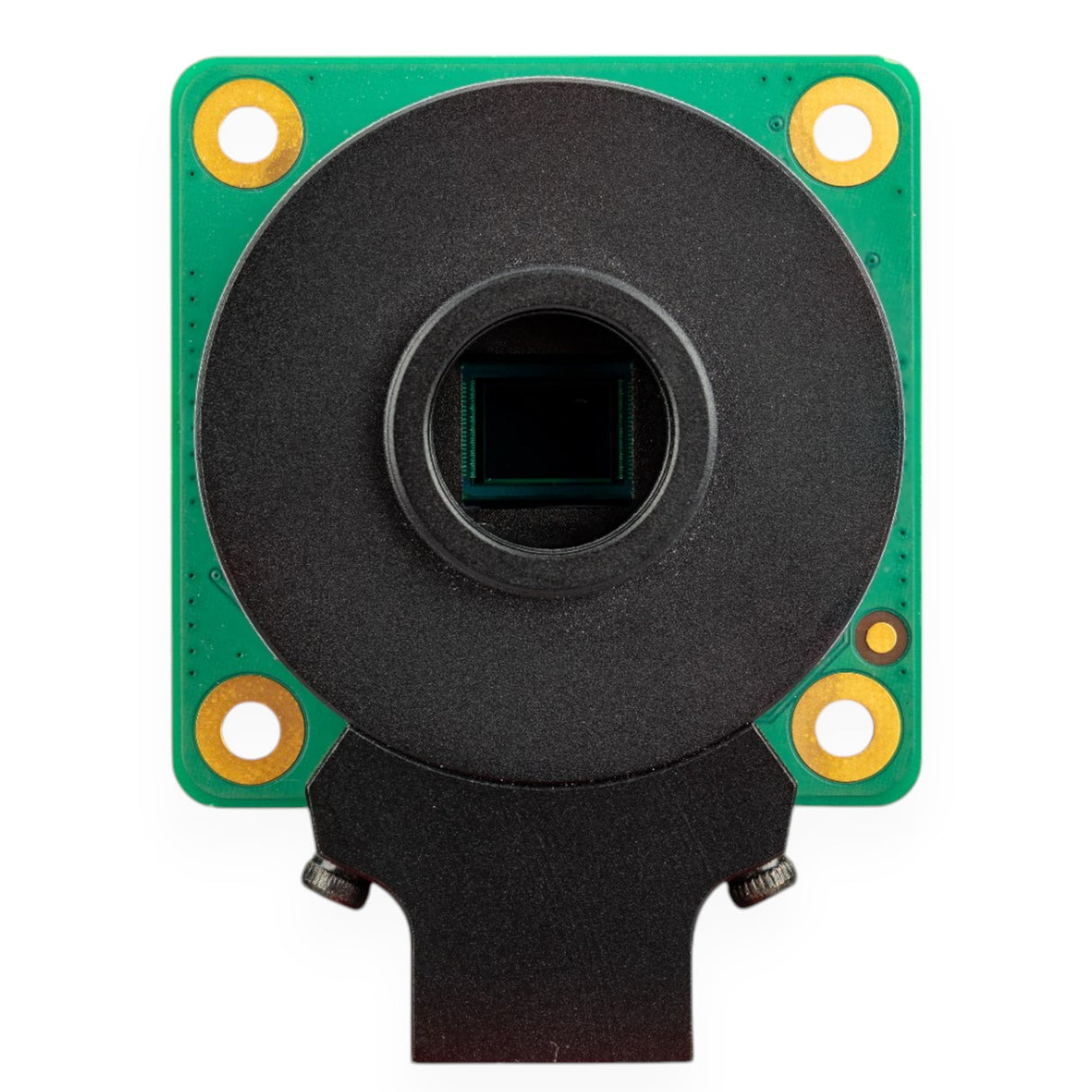

The new Raspberry Pi HQ Camera Module is here with M12 Mount! Featuring a 12.3-megapixel Sony IMX477 image sensor module, it has greater resolution and sensitivity than the existing Camera Module v2 – perfect for a range of industrial and consumer applications.

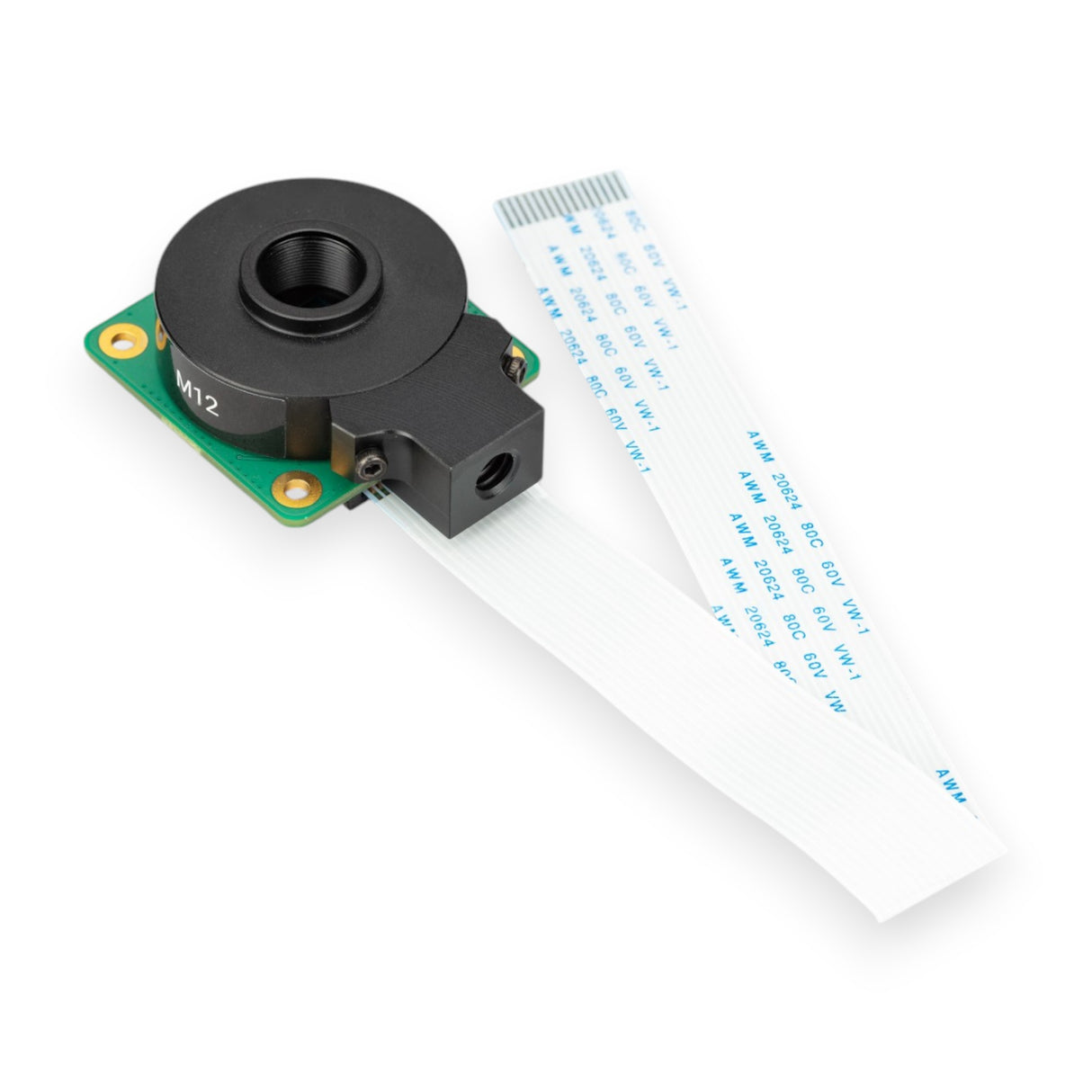

Compatible with all Raspberry Pi models from Raspberry Pi 1 Model B onward, this new camera accessory comes with a circuit board, FPC cable, milled aluminium lens mount with integrated tripod mount, focus adjustment ring, and M12 adapter – though you'll need to get your own lens to complete the setup.

Take advantage of this great addition to the Raspberry Pi family and explore the world of security, machine vision, and more!

Specifications:

  • Focus range: 2.6mm – 11.8mm (M12 Mount)
  • Focal length: Varied depending on lens
  • Diagonal field of view: Varied depending on lens
  • Horizontal field of view: Varied depending on lens
  • Vertical field of view: Varied depending on lens
  • Focal ratio (F-stop): Varied depending on lens
  • Infrared-sensitive: No
  • Sensor: Sony IMX477R stacked, back-illuminated sensor
  • Resolution: 12.3 megapixels
  • Sensor size: 1/2.3” (7.9mm) or larger
  • Pixel size: 1.55μm × 1.55μm
  • Common video modes: RAW12/10/8, COMP8
  • Output: RAW12/10/8, COMP8
  • Autofocus system: N/A
  • Dimensions: Varied depending on lens
  • Ribbon cable length: 200mm
  • Cable connector: FPC
  • Compliance: FCC 47 CFR Part 15, Subpart B, Class B Digital Device Electromagnetic Compatibility Directive (EMC) 2014/30/EU Restriction of Hazardous Substances (RoHS) Directive 2011/65/EU
  • Production lifetime: The Raspberry Pi High Quality Camera will remain in production until at least January 2030
