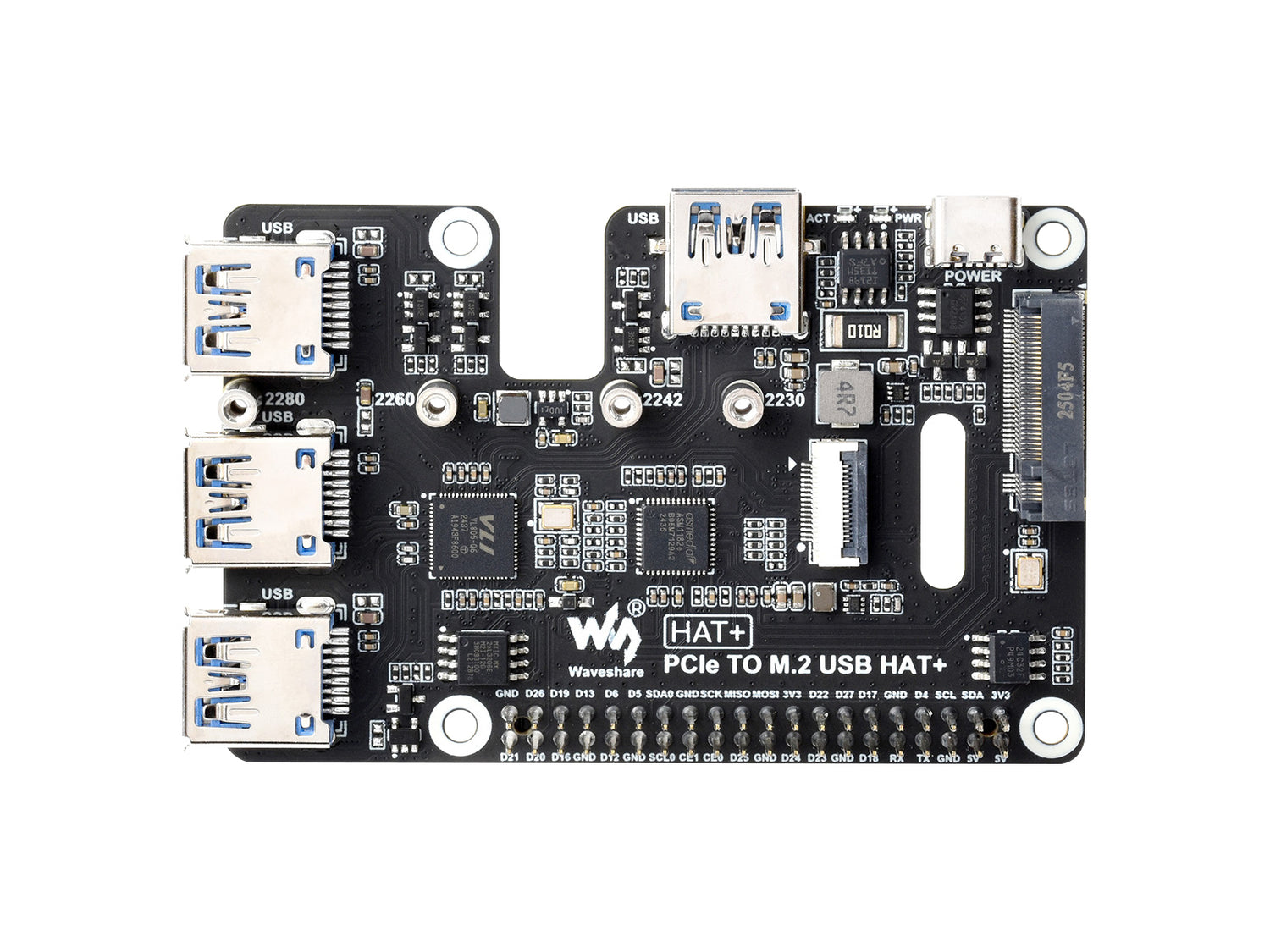

Raspberry Pi 5 PCIe HAT – USB 3.2 Gen1, M.2 NVMe SSD Support
- NVMe Protocol Support: Specially designed for the NVMe protocol solid-state drives, the HAT accommodates various M.2 SSD sizes (2230/2242/2260/2280). Benefit from lightning-quick data transfer speeds that leave traditional TF card slots in the dust.
- Expandable USB 3.2 Ports: Our HAT doesn't stop at storage solutions. It extends your Raspberry Pi's capabilities with four additional high-speed USB 3.2 Gen1 ports, allowing you to connect a wide range of peripheral devices effortlessly.
- Plug and Play: Installation is a breeze. You don't need to fiddle with drivers—just plug it in, and it's ready to roll. Turn your Raspberry Pi 5 into a versatile workstation or a powerful media center with minimal setup time.
- Built for Raspberry Pi 5: Tailored for the Raspberry Pi 5, our HAT connects via a 16-pin cable to the Pi's own PCIe interface, ensuring a snug and reliable fit.
- High-Speed Reading/Writing: Experience enhanced system and file reading/writing efficiency with our HAT. It can also support booting your Raspberry Pi 5 directly from an NVMe solid-state drive.
- Intuitive LED Indicators: Dual onboard LED indicators provide instant visual feedback on the working status of your device, simplifying diagnostics and monitoring.
- Advanced Power Monitoring: With an integrated power monitoring chip and EEPROM, our HAT ensures stable operation with real-time power status tracking.
- To install, simply attach the thermal tapes, mount the Official Active Cooler, and secure the HAT to your Raspberry Pi setup. Even though it's easy, make sure to refer to the package content for a detailed parts list and step-by-step instructions.
- Compact and Convenient: We've opted for a design that's not just robust but also sleek, ensuring that your Raspberry Pi 5 doesn't get bulked up by unnecessary weight or size.
- 1× PCIe To M.2 USB HAT+
- 1× 16PIN PCIe cable
- 1× Screw pack
- Product Code: PCIe TO M.2 USB HAT+
- Interfaces: M.2 (NVMe), USB 3.2 Gen1 × 4
- PCIe Version: Gen2 (compatible)
- Mounting Solution: HAT+ Standard
- Extended Interface: 16PIN PCIe
- Protocol Support: NVMe (Bootable)
- Onboard Features: Power monitoring, Dual LED indicators
- Weight: 0.052 kg

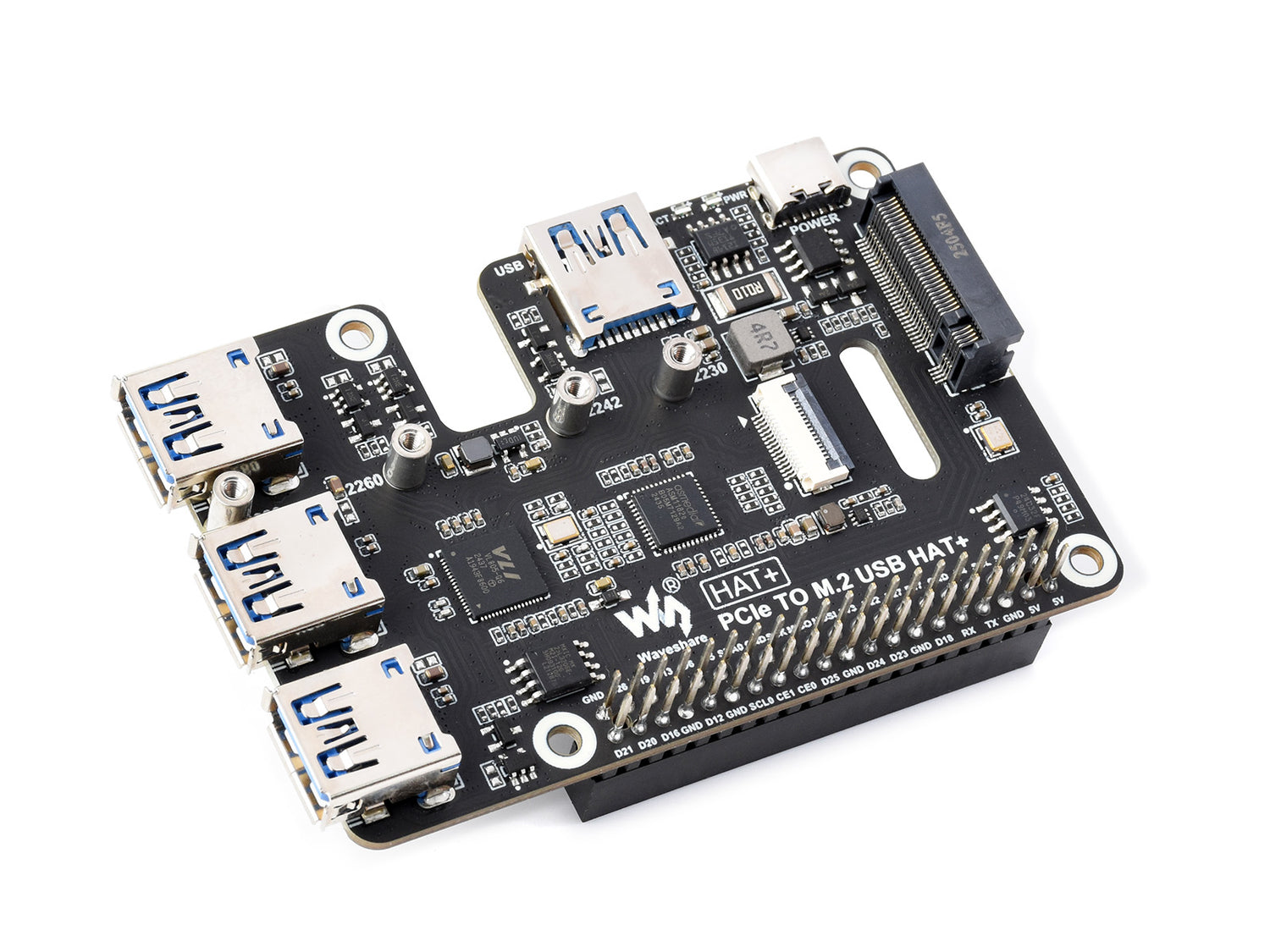

Designed for Raspberry Pi 5, driver-free, plug and play
Based on 16PIN PCIe Interface of Raspberry Pi 5
* for reference only, the Raspberry Pi 5 is not included.
Compatible With 2230 / 2242 / 2260 / 2280 Size M.2 Solid State Drive
Supports Gen2 standard, Supports Booting PI5 From Solid State Drive
* Only supports the NVMe Protocol Solid State Drives.
Extends The PCIe Interface To 4 × High-Speed USB 3.2 Gen1 Ports for connecting
more peripherals

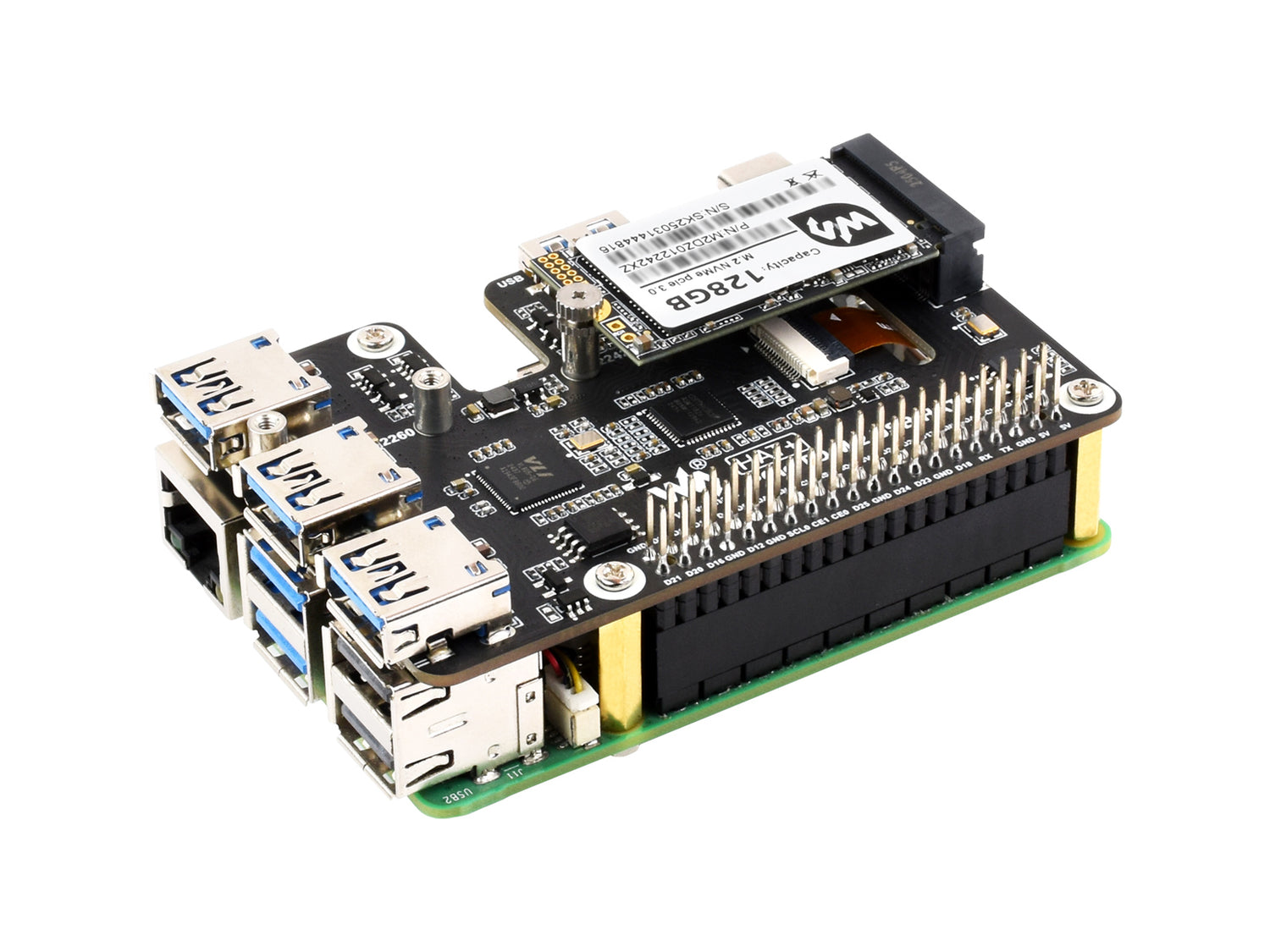

Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive
* for reference only, the Raspberry Pi 5 and Solid State Drive are not included.
Easy to monitor the Working Status
Real-time monitoring of power status, for more stable operation
Attach the thermal tapes first, then install the Official Active Cooler and fix the HAT
* for reference only, please refer to the Package Content for detailed part list
