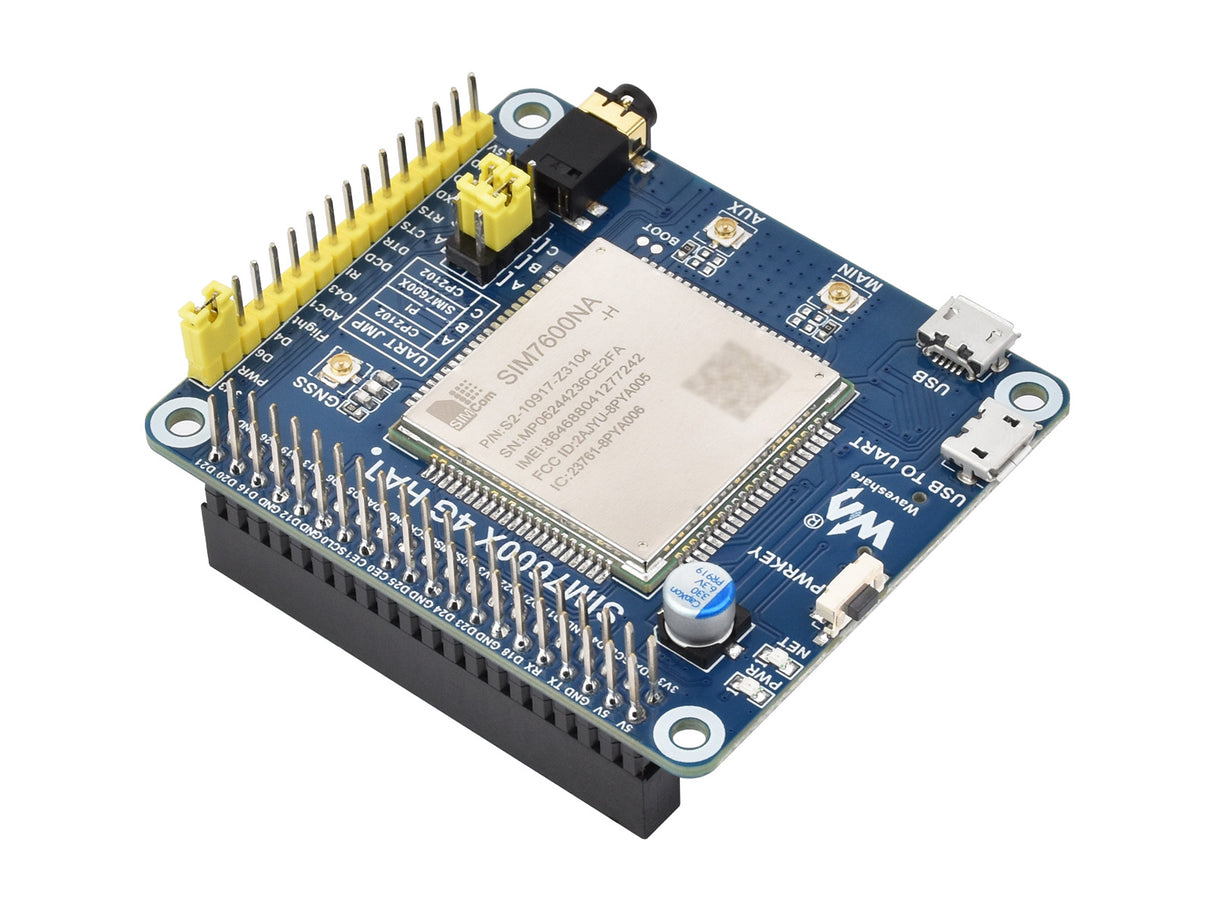

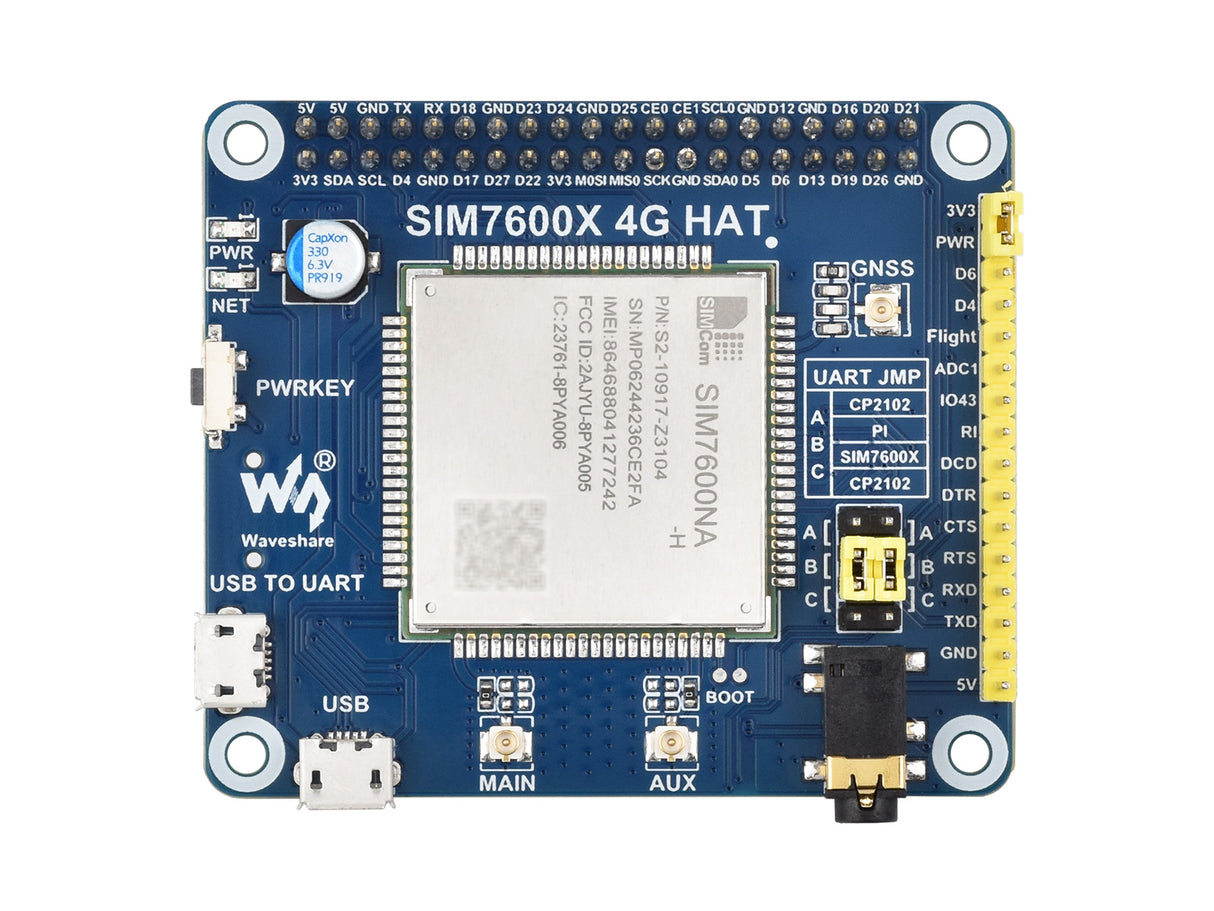

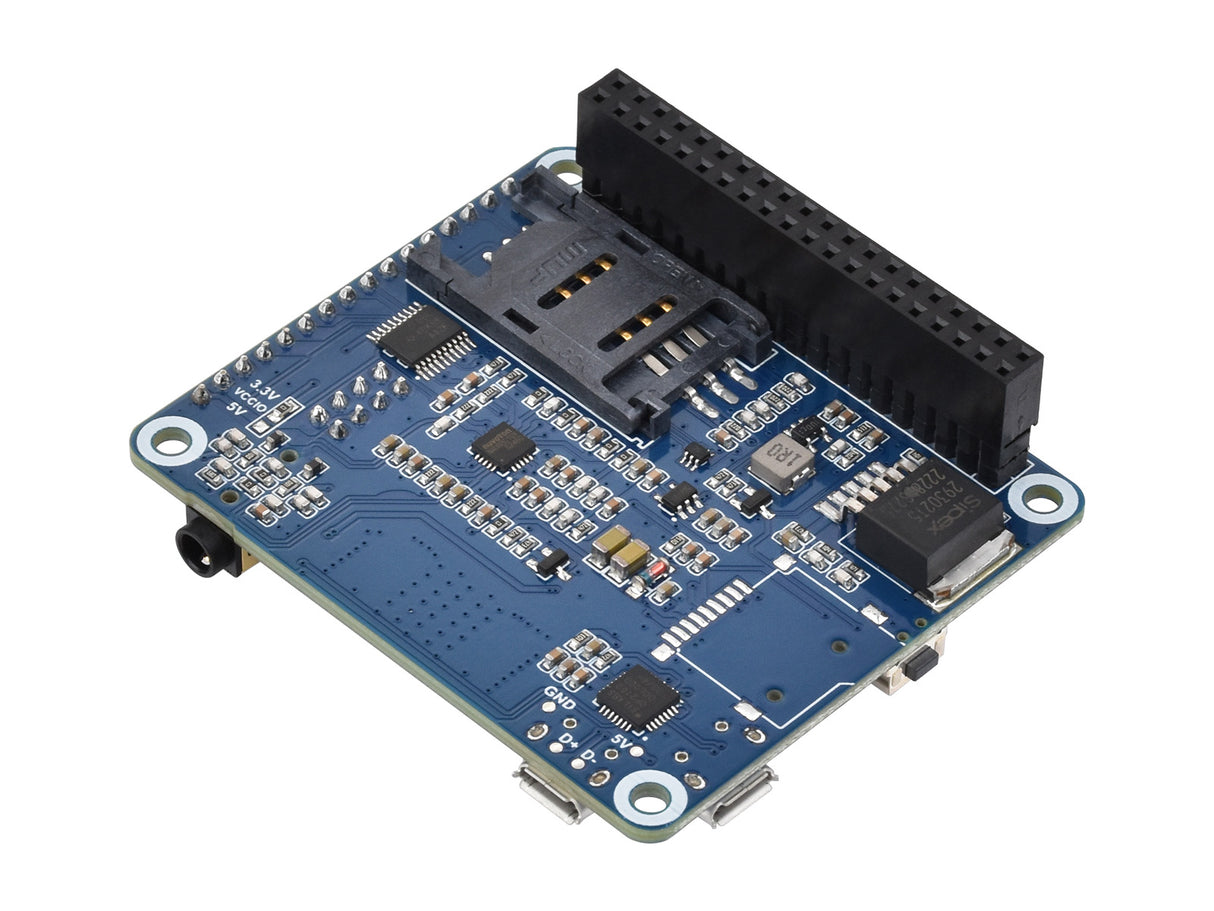

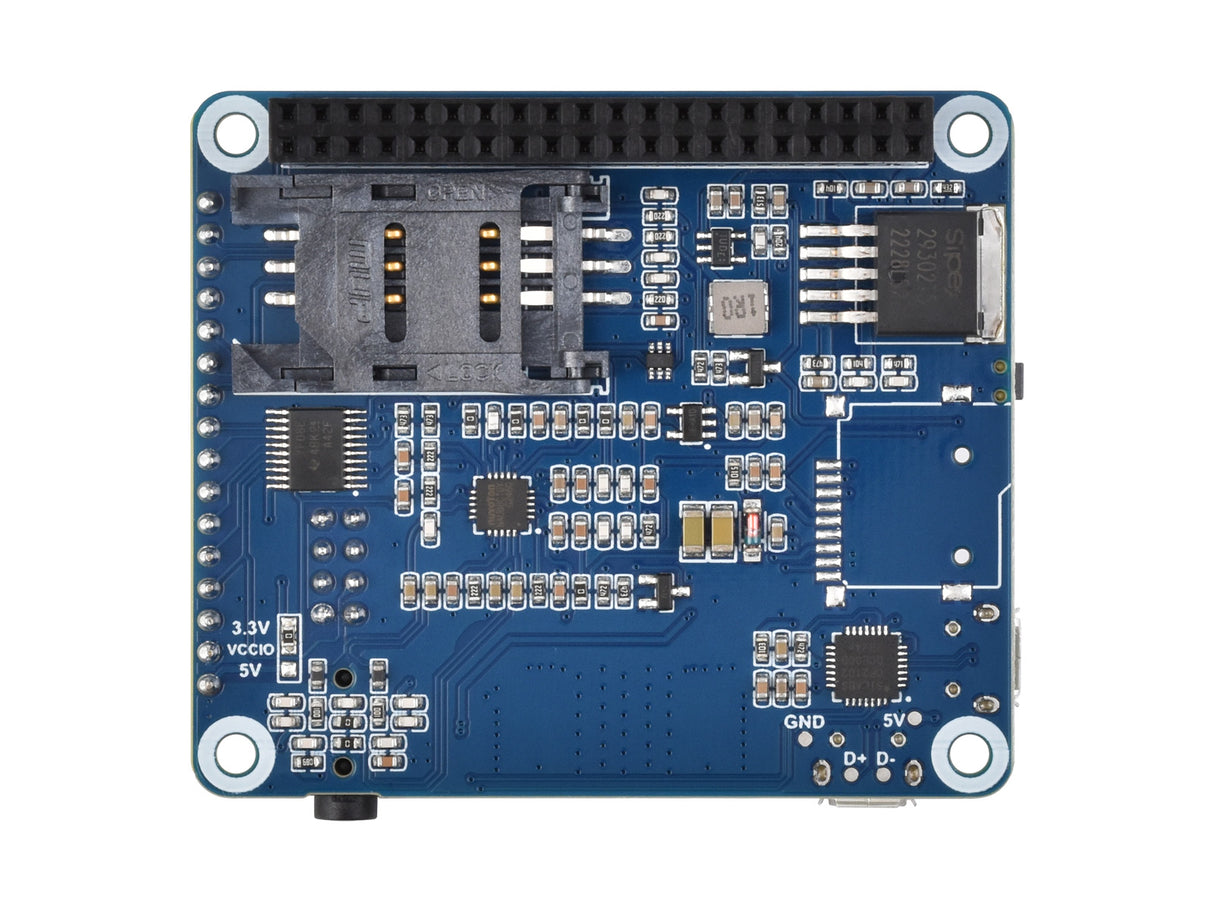

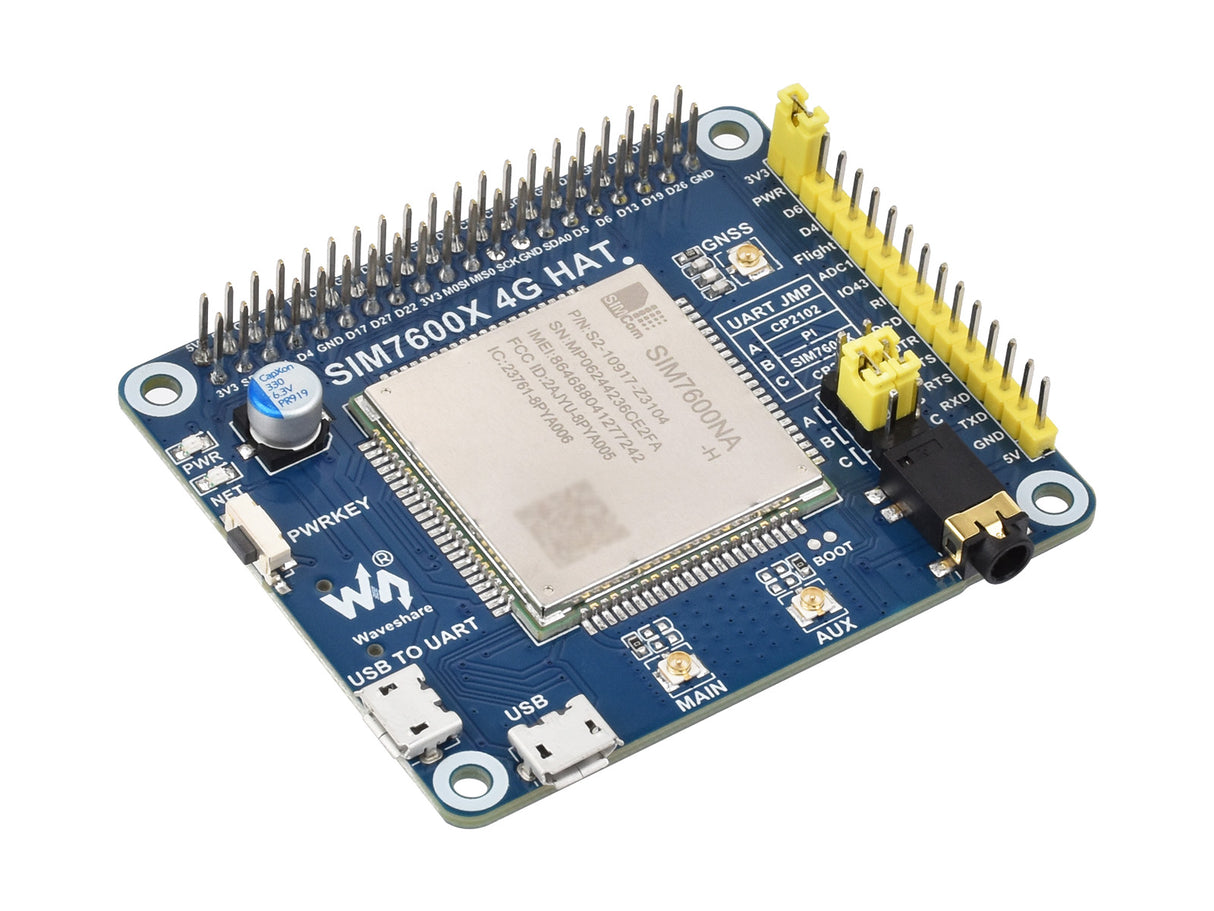

Raspberry Pi 4G HAT SIM7600NA-H – LTE Cat-4, GNSS, North America

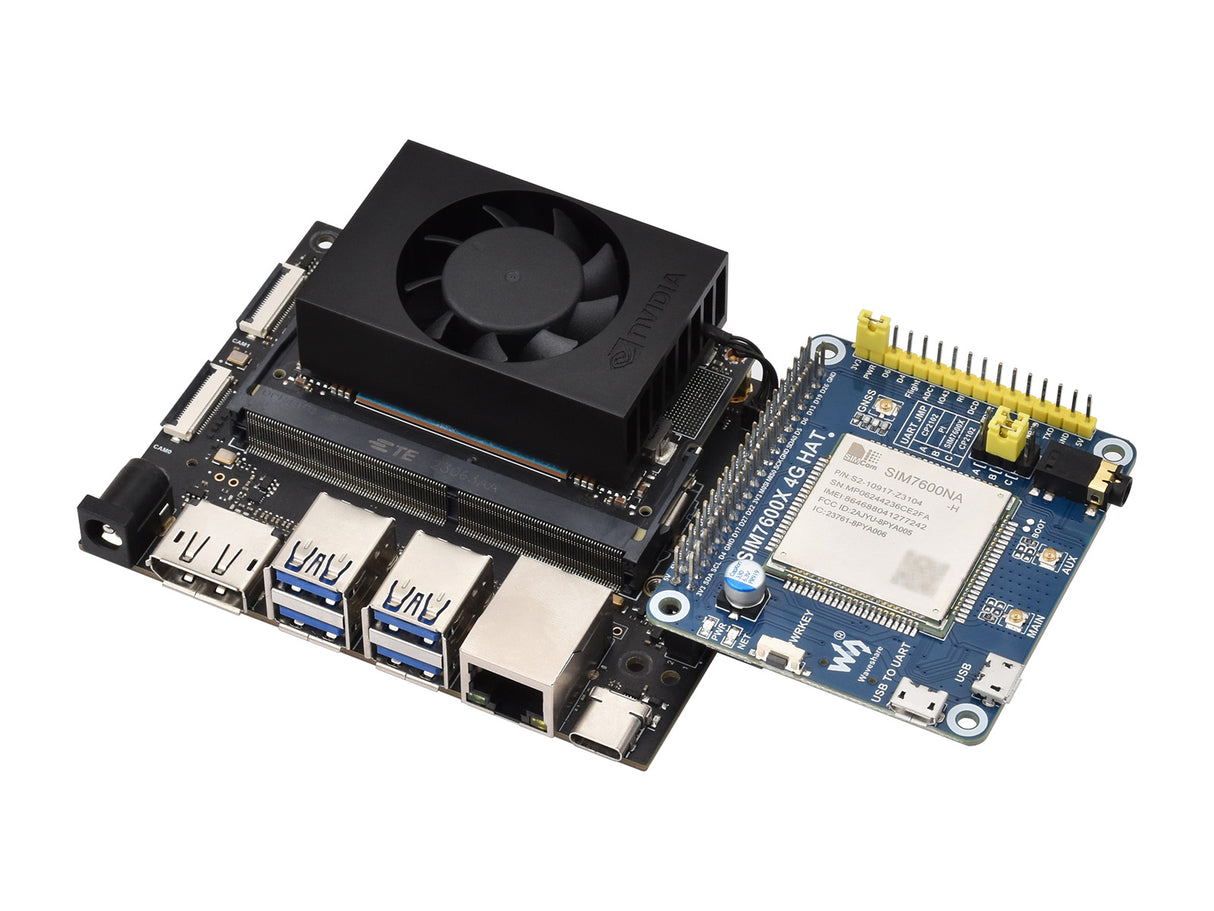

- Broad Compatibility: Features a standard Raspberry Pi 40PIN GPIO extension header, making it suitable for Raspberry Pi series boards, as well as the Jetson Nano.
- Multi-functional Communication: Support for dial-up, telephone call, SMS, TCP/IP, UDP, DTMF, HTTP, FTP, and more.
- Global Navigation Satellite System (GNSS): Integrates GPS, BeiDou, Glonass, GALILEO, and QZSS for multifaceted positioning functionality.
- Convenient Interfaces: Comes with an onboard USB interface for testing AT commands and an onboard CP2102 USB to UART converter for serial debugging.
- Audio Ready: Make calls directly from your project with the onboard audio jack and audio decoder.
- Indicator LEDs: Two LED indicators make monitoring the operating status hassle-free.
- Power and Voltage Flexibility: Onboard voltage translator allows for operation at 3.3V or 5V, configurable via a resistor pad.
- High-Speed Data Transfer: Experience LTE Cat-4 data rates, with uplink speeds up to 50Mbps and downlink speeds up to 150Mbps*.
- AT Command Control: Easy control via AT commands, consistent with 3GPP TS 27.007, 27.005, and V.25TER command set standards.
- LTE Frequency Band Support for North American networks, ensuring reliable and extensive coverage.
- GNSS Receiver Sensitivity: -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou), for quick and accurate location fixes.
- SMS and Audio Features: Manage text communication and calls with ease.
- Expanded Power Supply Options: 5V input with a configurable operating voltage.
- Size: 56mm × 65mm, a compact design that fits neatly on top of a Raspberry Pi.
- SIM7600NA-H 4G HAT Module

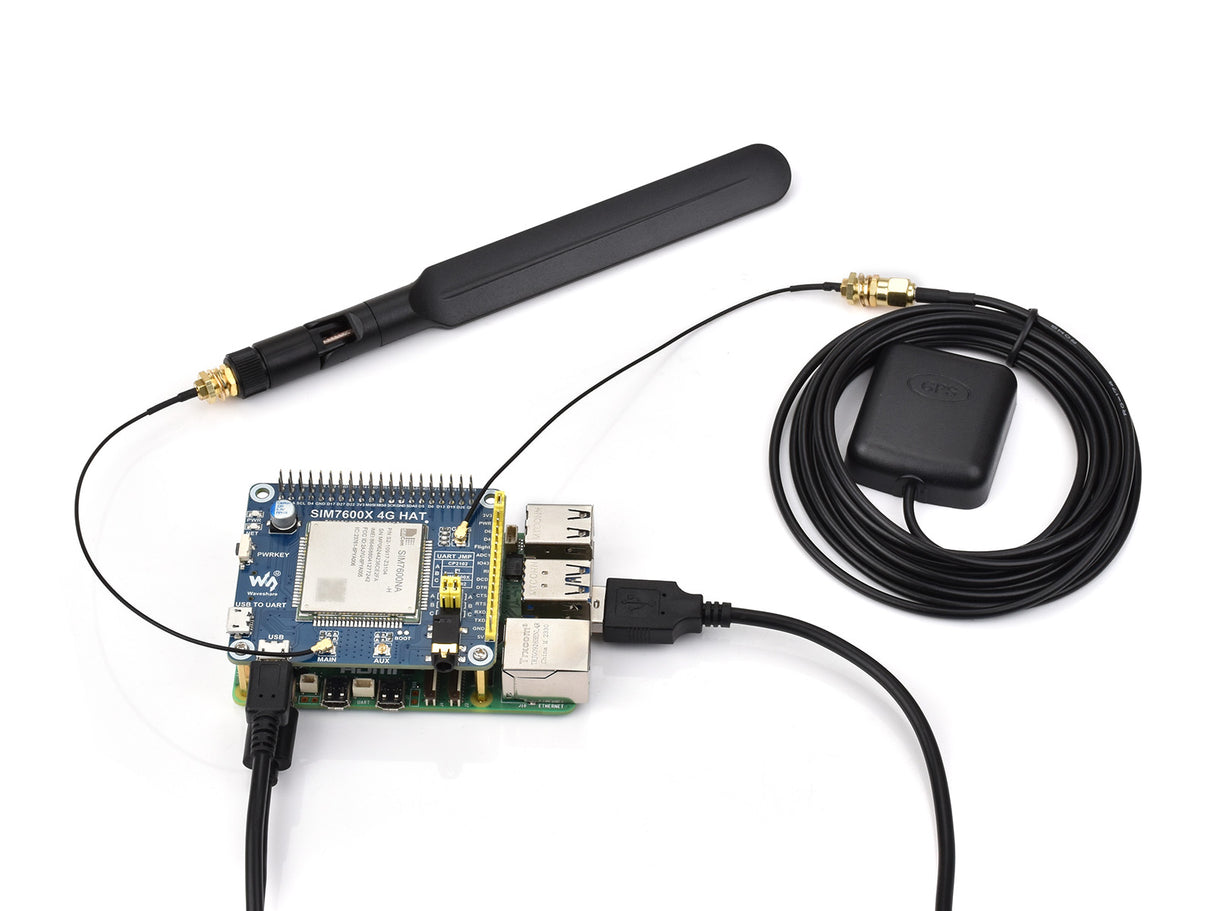

- Multi-band SMA Antenna for reliable 4G connection
- GPS External Antenna for improved positional accuracy
- USB Cables for power and data connectivity
- Necessary screws pack for quick and easy assembly
