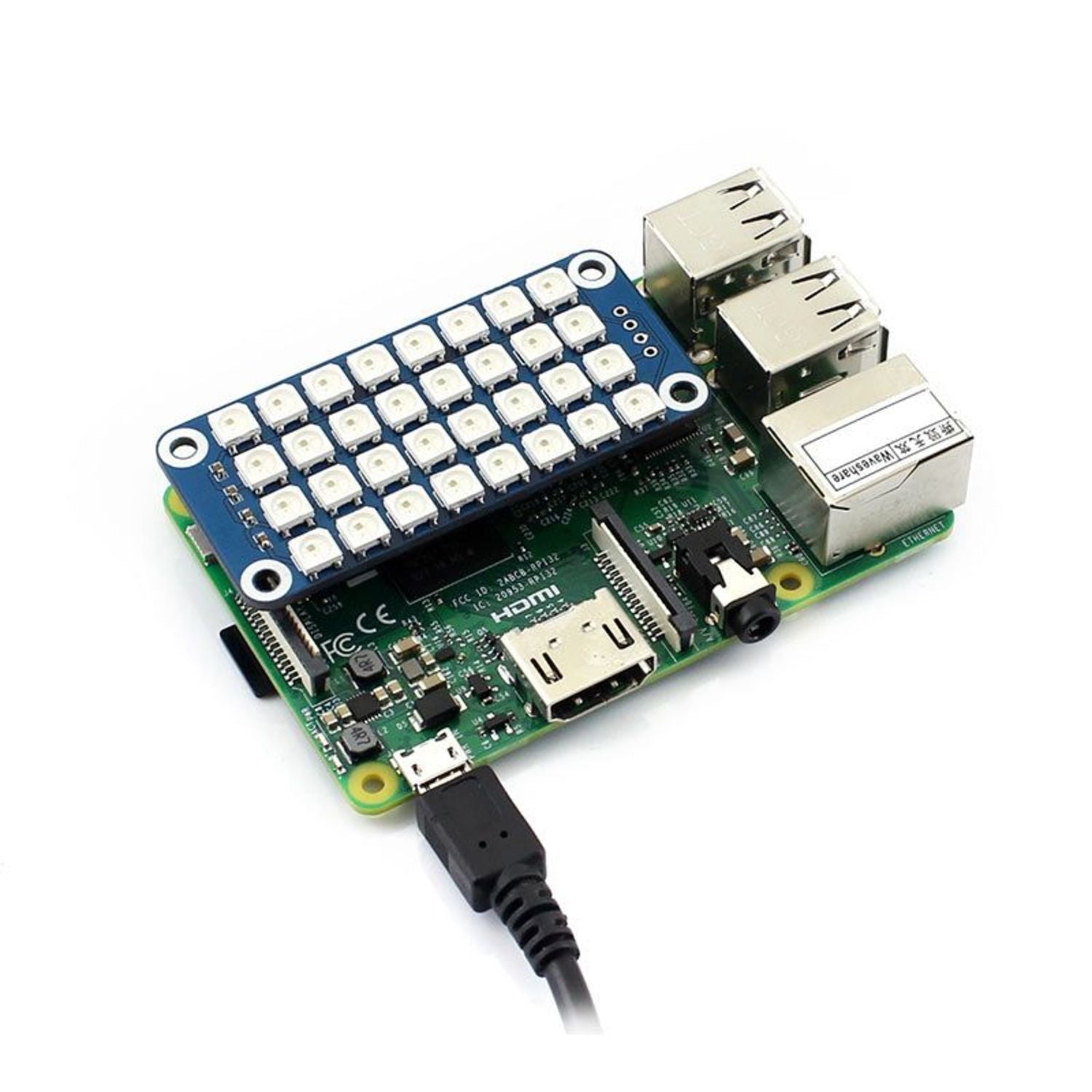

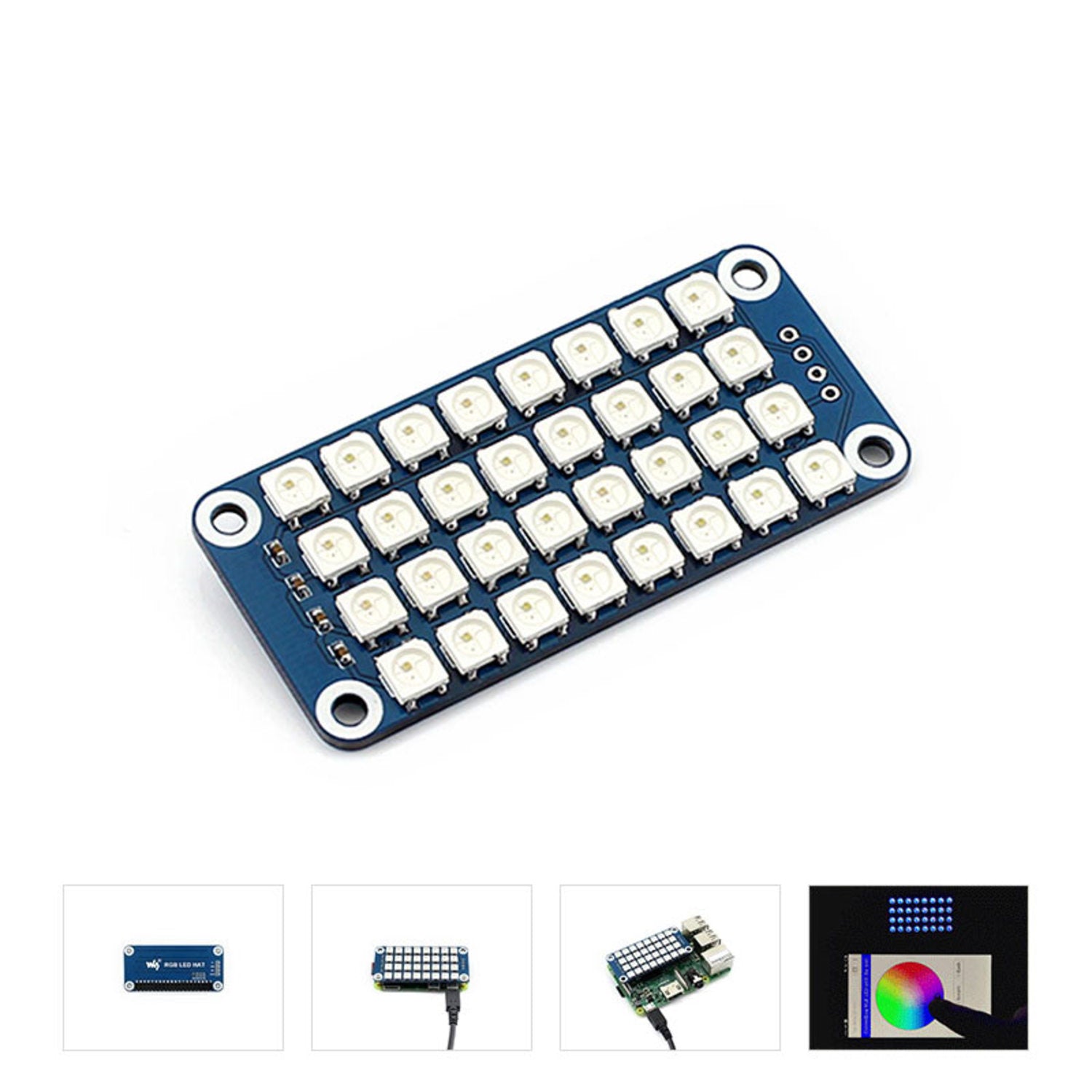

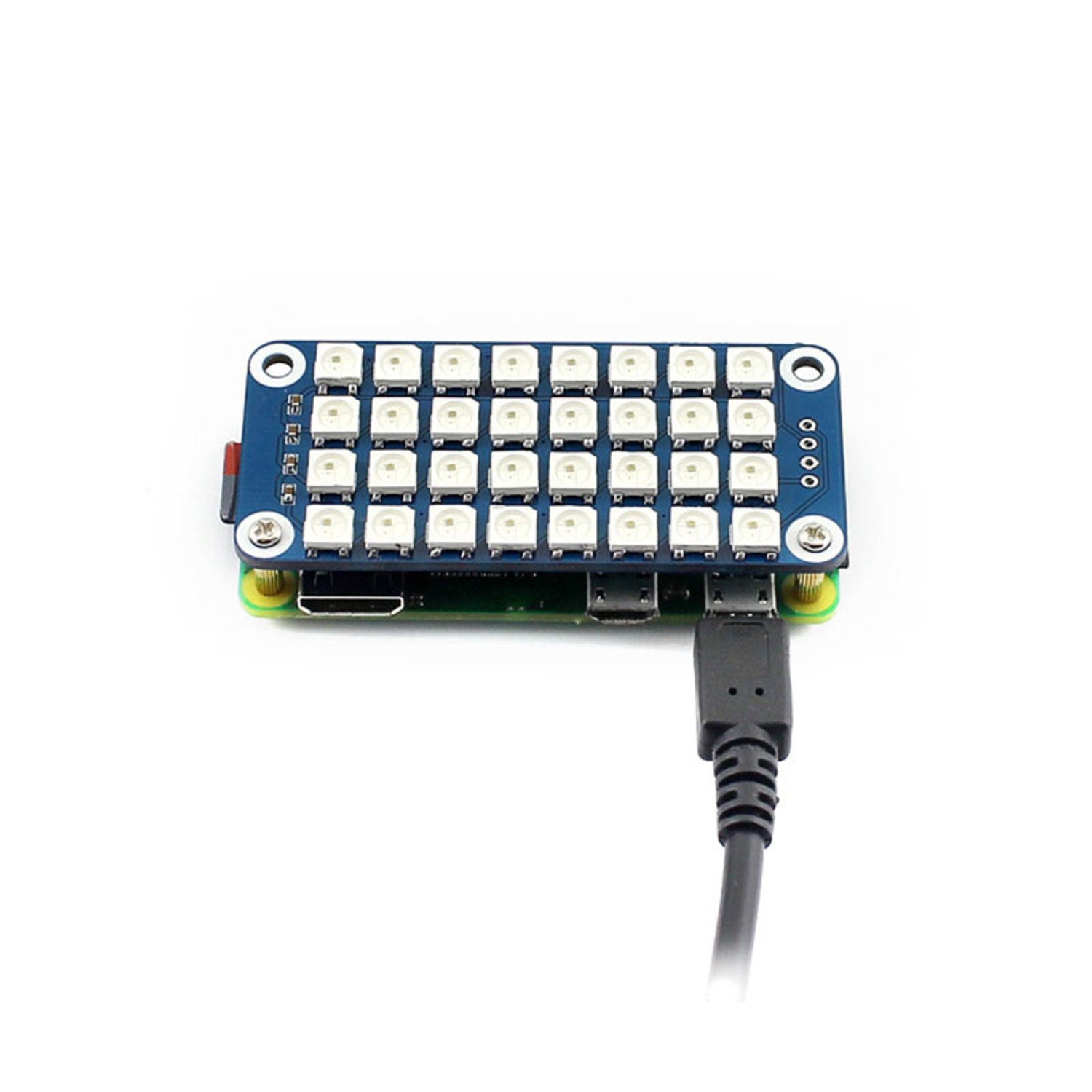

This RGB LED HAT is designed to work seamlessly with your Raspberry Pi. It features 4x8 RGB LED, adjustable brightness of 256 levels, and 24-bit color depth to create over 16 million colors. Installation is a breeze - simply attach the board to your Raspberry Pi and control the display with just one signal pin. Compatible with any version of Raspberry Pi, you can plug it directly into your device.

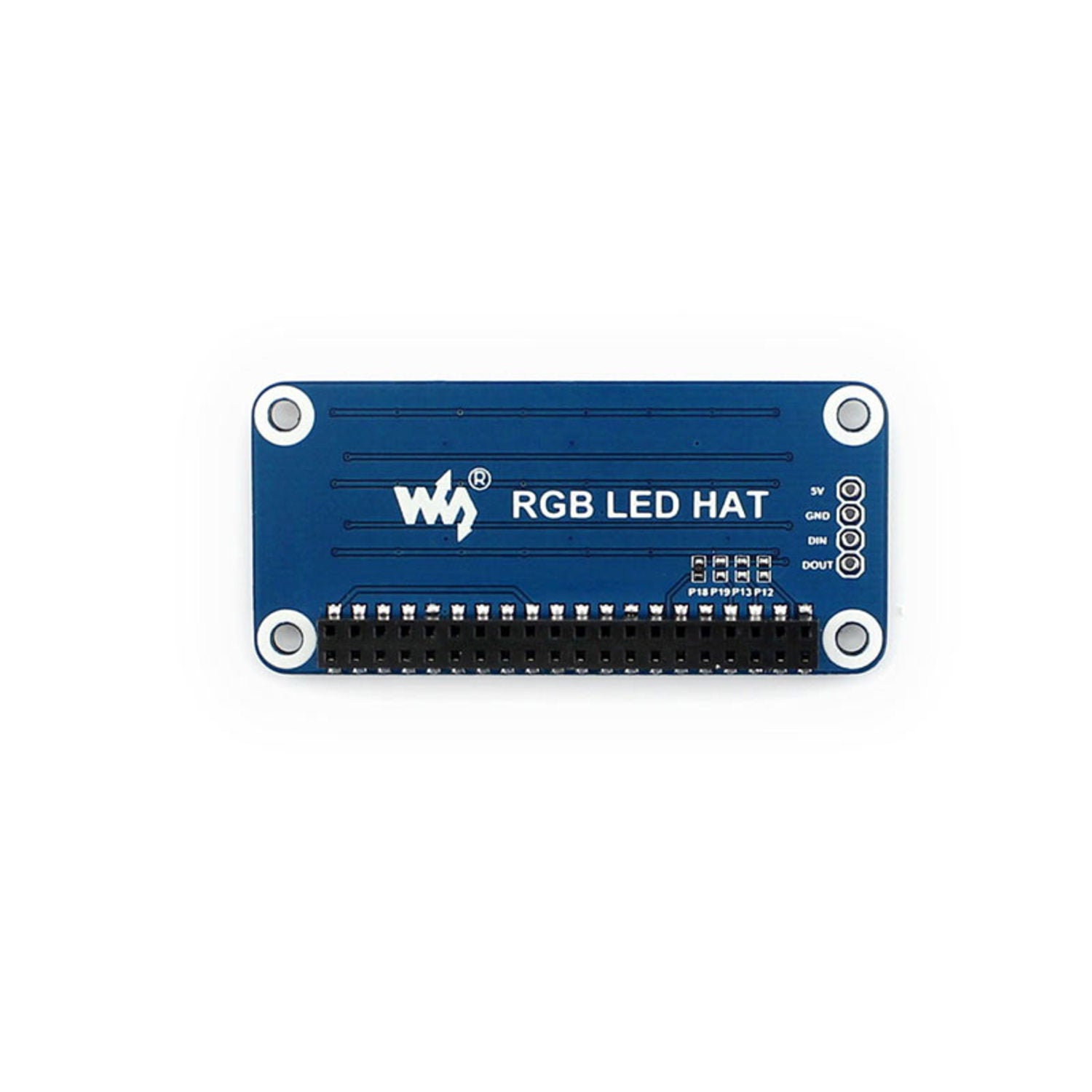

This LED HAT also comes with a 5V power connection, GND, DIN for signal input, and DOUT for signal output (optional). Plus, it has 3.0mm mounting holes for easy installation. Enjoy a world of color with this RGB LED HAT!
Features
- Compatible with any version of Raspberry Pi
- 4x8 RGB LED with adjustable brightness of 256 levels and 24-bit color depth
- Create over 16 million colors
- Easy installation – just attach the board to your Raspberry Pi
- 5V power connection, GND, DIN for signal input, and DOUT for signal output (optional)
- 3.0mm mounting holes for easy installation
Specifications
- Working voltage: 5V
- Brightness: 256 adjustable levels
- Color depth: 24 bit
- Data rate: 800 Kbps (typ)
- Size: 65mm x 30.2mm
- Mounting holes size: 3.0mm
