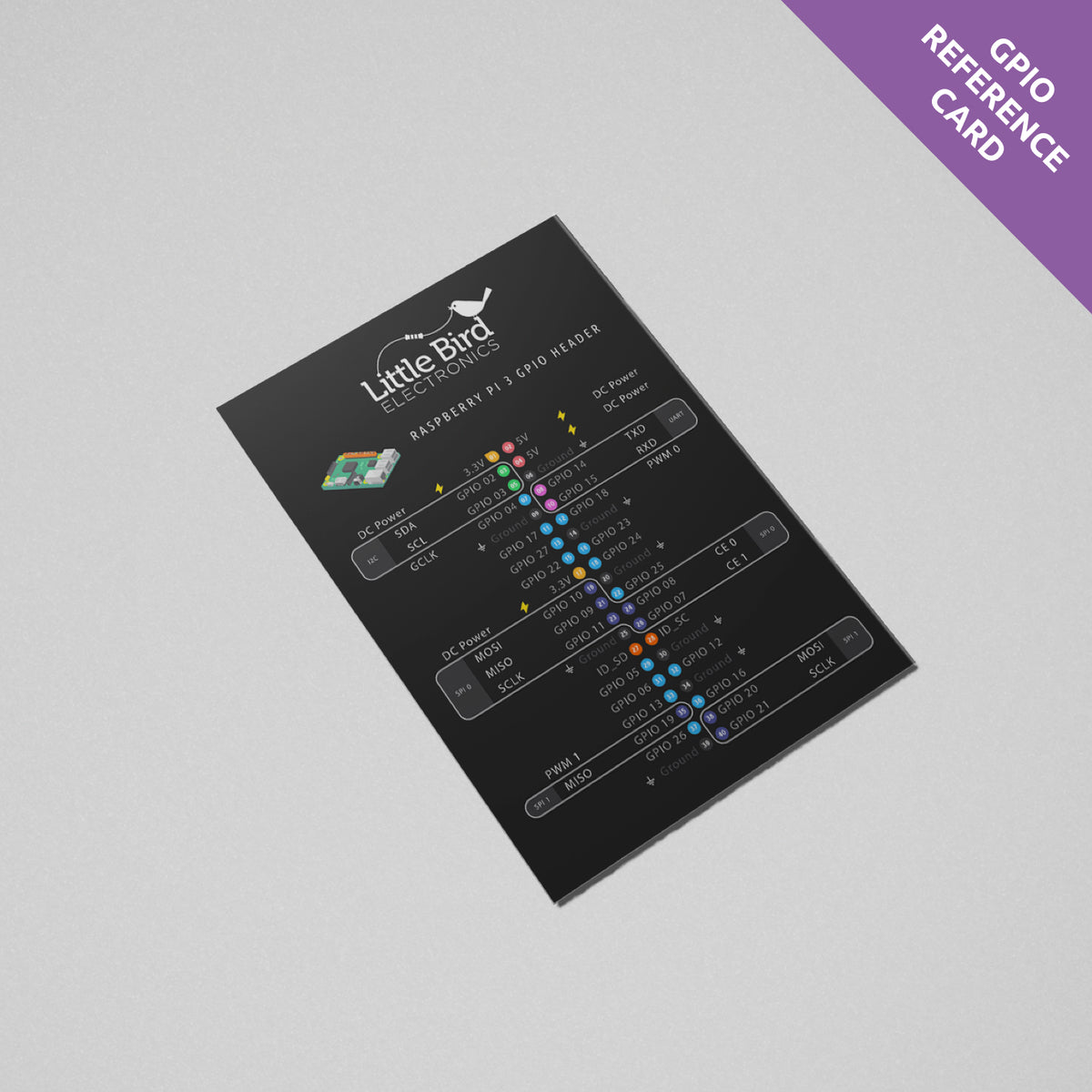

This clearly-labelled Raspberry Pi 3 GPIO Reference Card made by Little Bird will show you which Raspberry Pi pin does what in seconds!
Although it is called the 'Raspberry Pi 3 GPIO Reference Card, it will also work with the Raspberry Pi Zero / Pi 2 / Pi 3!
Raspberry Pi 3 GPIO Reference Card
We have 39 units in our Sydney Warehouse available for immediate dispatch.
We can get a further 1000 units in Australia from Little Bird.
| Raspberry Pi Model Compatibility | ||
|---|---|---|
| RP4 |
|
Works with Raspberry Pi 4 Model B |
| RP3A+ |
|
Works with Raspberry Pi 3 Model A+ |
| RP3B+ |
|
Works with Raspberry Pi 3 Model B+ |
| RP3B |
|
Works with Raspberry Pi 3 Model B |
| RP2B |
|
Works with Raspberry Pi 2 Model B |
| RP1B+ |
|
Works with Raspberry Pi 1 Model B+ |
| RP1A+ |
|
Works with Raspberry Pi 1 Model A+ |
| RP0W |
|
Works with Raspberry Pi Zero W |
| RP0 |
|
Works with Raspberry Pi Zero |
| RPCM3+ |
|
Doesn't with Raspberry Pi Compute Module 3+ |
