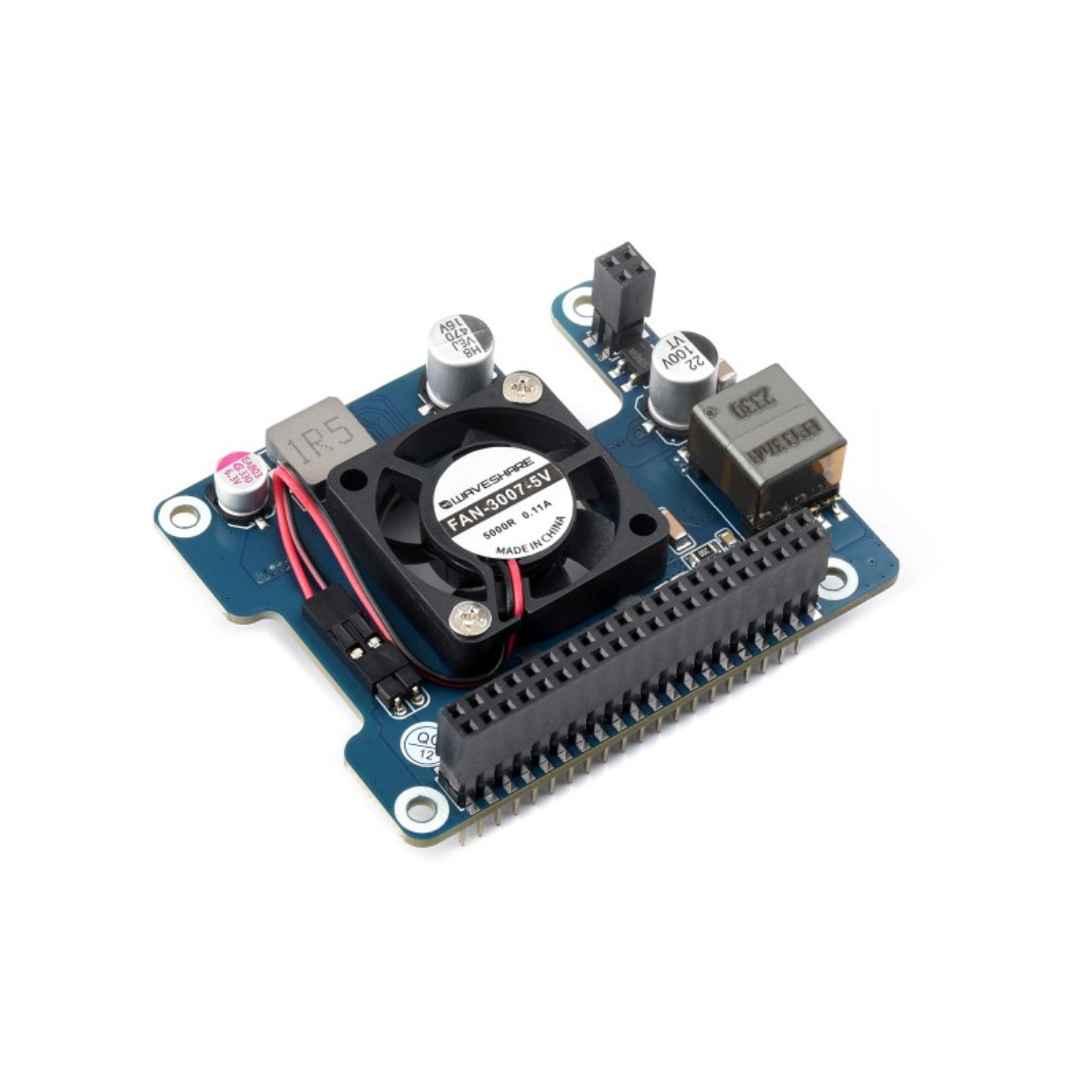

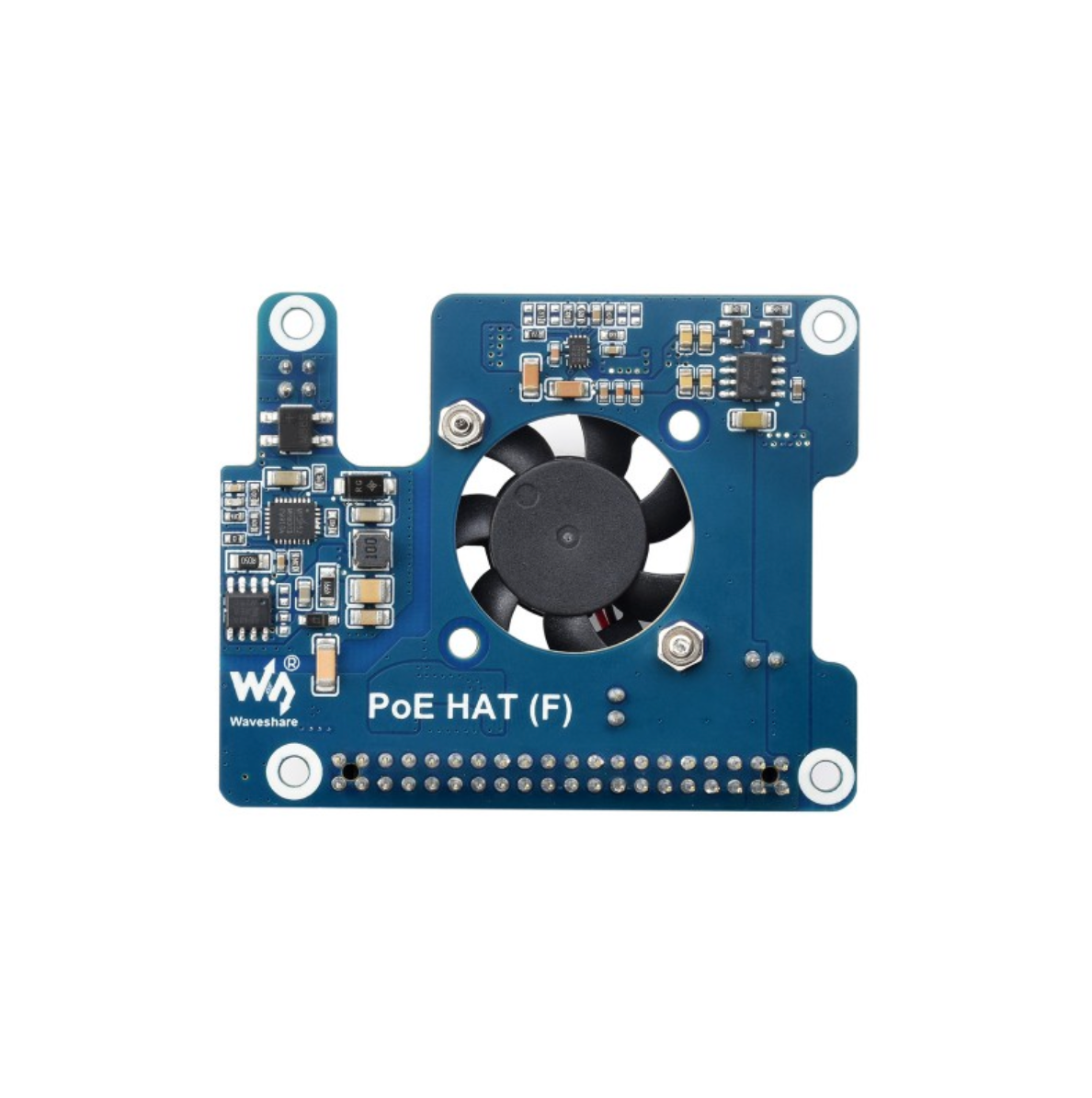

Power Over Ethernet HAT (F) For Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/at network standard

SKU: WS-26399
Price
$22
Taxes and shipping calculated at checkout
Title:
Power Over Ethernet HAT (F) For Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3af/at network standard

Got a Question?

Give us a call on 1300 240 817

Frequently Bought Together

No reviews

We Accept

American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa

Description

Introducing the POE HAT for Raspberry Pi 5: Simplify Connectivity and Power!


Power Over Ethernet (PoE) HAT designed for Raspberry Pi 5, compliant with IEEE 802.3af/at network standards, offering a seamless solution for both network connection and power supply through a single Ethernet cable.


Key Features:

  • Supports Raspberry Pi 5 with a standard 40PIN GPIO header.
  • IEEE 802.3af/at-compliant PoE capability.
  • Fully isolated switched-mode power supply (SMPS).
  • Onboard high-speed active cooling fan with a metal heatsink for superior heat dissipation.

Specifications:

  • POE Power Input: 37V ~ 57V DC in.
  • Power Output: GPIO header - 5V 4.5A (MAX), 2P header - 12V 2A (MAX).
  • Dimensions: 56.5 × 70.0mm.
  • Network Standard: IEEE 802.3af/at PoE.

Designed for Raspberry Pi 5:

  • Standard Raspberry Pi 40PIN GPIO stackable header, allowing easy connection with other HATs.

Power Over Ethernet Efficiency:

  • Combine network connection and power supply in one cable for a clutter-free setup.

Onboard 5V & 12V Header Outputs:

  • 5V header provides up to 4.5A output (MAX 25W for 12V+5V total output power).
  • Power additional devices while ensuring stable power to the Raspberry Pi.

Active Cooling Fan:

  • Enhance cooling with the onboard fan for more stable performance.

Onboard MP8759GD Buck Chip:

  • Original voltage buck chip provides up to 5A under sufficient heat dissipation conditions.

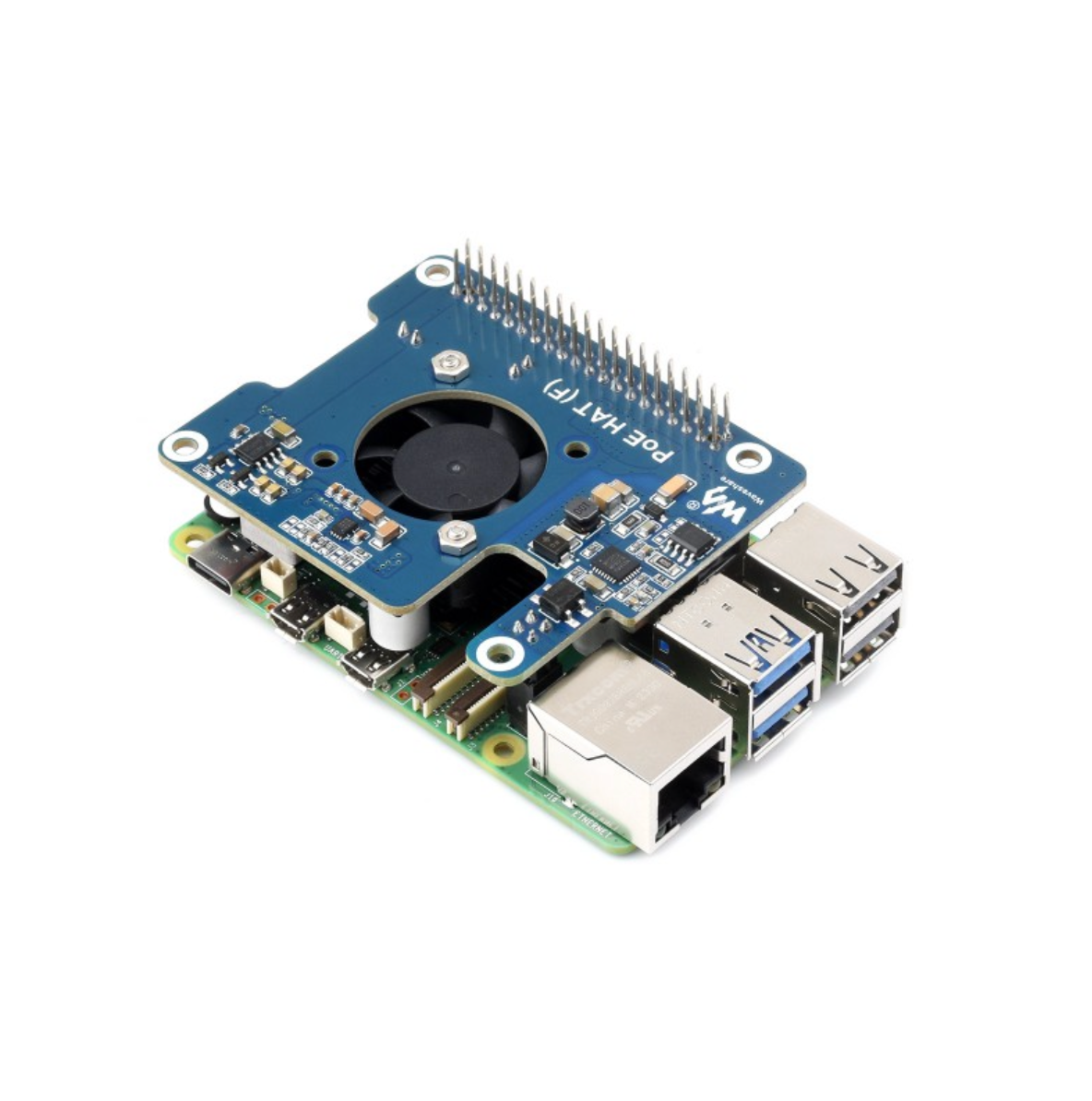

Easy Installation:

  • Attach thermal tapes first, then install the metal heatsink and securely fix the PoE HAT.

*For reference only, the Raspberry Pi 5 and switch are NOT included.


Explore the Package Content for a detailed part list. Upgrade your Raspberry Pi 5 experience with the efficiency of Power Over Ethernet.
