This PIR sensor is suitable for use with Arduino and Raspberry PI. The 3.3v logic level is very handy as it allows you to use this sensor with 3.3v Arduinos like the Due or Pro Mini as well as 5V like the Uno as 3.3v is still a logical HIGH on a 5v input.
You will still need some 5V available to run the sensor.
Dimension: 3.2cm x 2.4cm x 1.8cm (approx)
The sensitivity and holding time can be adjusted
Working Voltage Range: DC 4.5V- 20V
Current drain:<60uA
Voltage Output: High/Low level signal:3.3V TTL output
Detection distance: 3--7M(can be adjusted)
FOV: <140°
Delay time: 5-200S(can be adjusted, default 5s +-3%)
Blockade time: 2.5 S (default)
Trigger: L: Non-repeatable trigger H: Repeat Trigger (default)
Work temperature:-20-+80°C

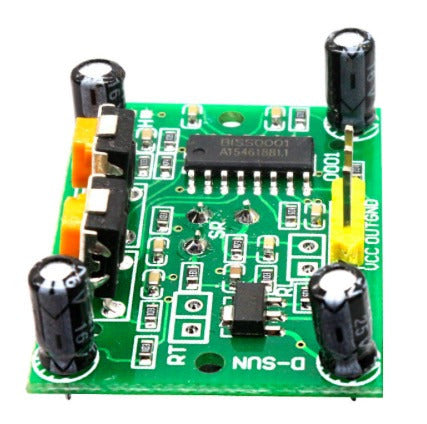

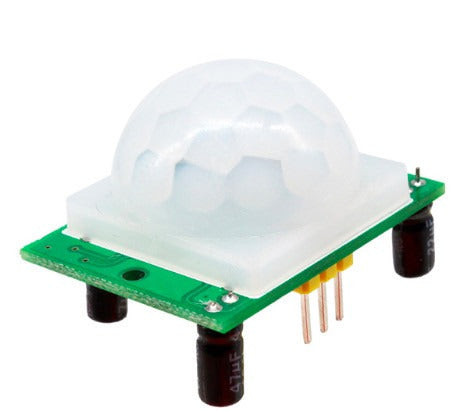

PIR Motion Sensor
$5.28
SKU LB-00158
We have 128 units in our Sydney Warehouse available for immediate dispatch.
We can get a further 1000 units in Australia from Little Bird.
| Raspberry Pi Model Compatibility | ||
|---|---|---|
| RP4 |
|
Requires other products to use with Raspberry Pi 4 Model B |
| RP3A+ |
|
Requires other products to use with Raspberry Pi 3 Model A+ |
| RP3B+ |
|
Requires other products to use with Raspberry Pi 3 Model B+ |
| RP3B |
|
Requires other products to use with Raspberry Pi 3 Model B |
| RP2B |
|
Requires other products to use with Raspberry Pi 2 Model B |
| RP1B+ |
|
Requires other products to use with Raspberry Pi 1 Model B+ |
| RP1A+ |
|
Requires other products to use with Raspberry Pi 1 Model A+ |
| RP0W |
|
Requires other products to use with Raspberry Pi Zero W |
| RP0 |
|
Requires other products to use with Raspberry Pi Zero |
| RPCM3+ |
|
Requires other products to use with Raspberry Pi Compute Module 3+ |
