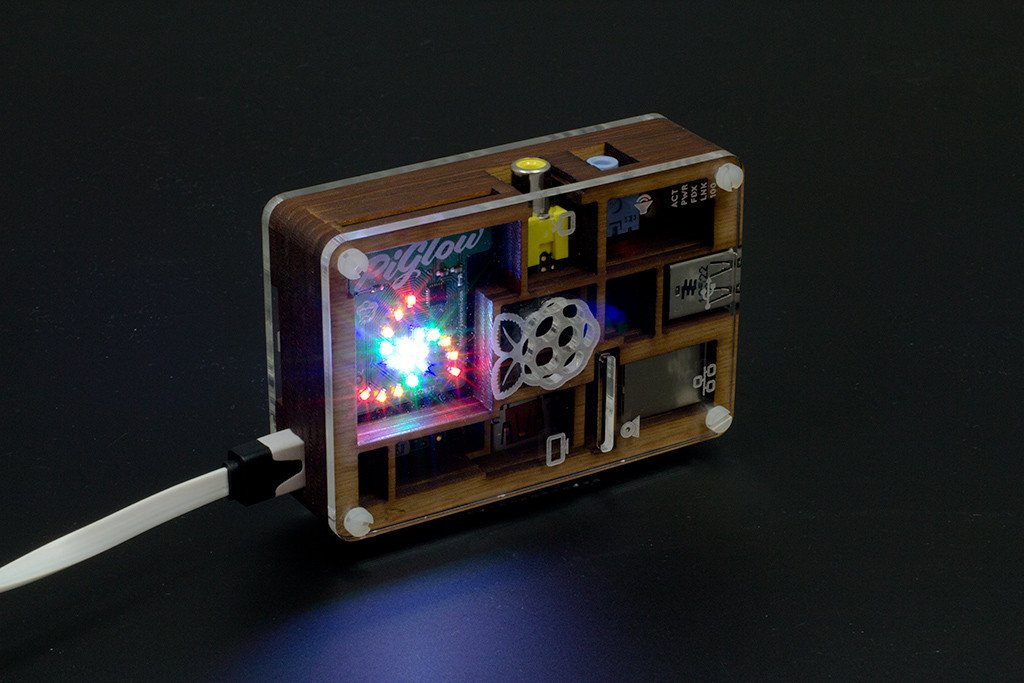

The PiGlow is a small add on board for the Raspberry Pi that provides 18 individually controllable LEDs. You can use it for all sorts of things! And of course, it fits inside a Pibow!
Works just fine with all models of Raspberry Pi including the B+!
There are tons of things you can do with it:
- Mood lighting / ambience
- Showing current system load
- Notify you of events like mentions in tweets or incoming e-mail
- Feedback the status of scripts/daemons running on your Pi
- Works great when VESA mounted to provide a cast against a wall
- ...and pretty much anything else you can think of!
PiGlow sample code and other instructions
If you just want some Python code to start tinkering with please check out our GitHub repository which also includes the full datasheet for the IC used on PiGlow.
Gordon Henderson has added a PiGlow driver for wiringPi which you can find here: http://wiringpi.com/dev-lib/piglow/
Simon Walters has added PiGlow support for Scratch which is here: http://cymplecy.wordpress.com/
Jason Barnett has put together a great Python class and a load of samples: https://github.com/Boeeerb/PiGlow
Ben Lebherz has forked Jasons project and tidied up the code a bit while adding gamma correction: https://github.com/benleb/PyGlow
Manuel Ernst has created a Node.js library: https://github.com/zaphod1984/node-piglow
Jonathan Stowe has created a module for the Perl divers among you: https://metacpan.org/release/JSTOWE/Device-PiGlow-1.0
Toon Schoenmakers has gone as far as making a library for Golang: https://github.com/schoentoon/piglow

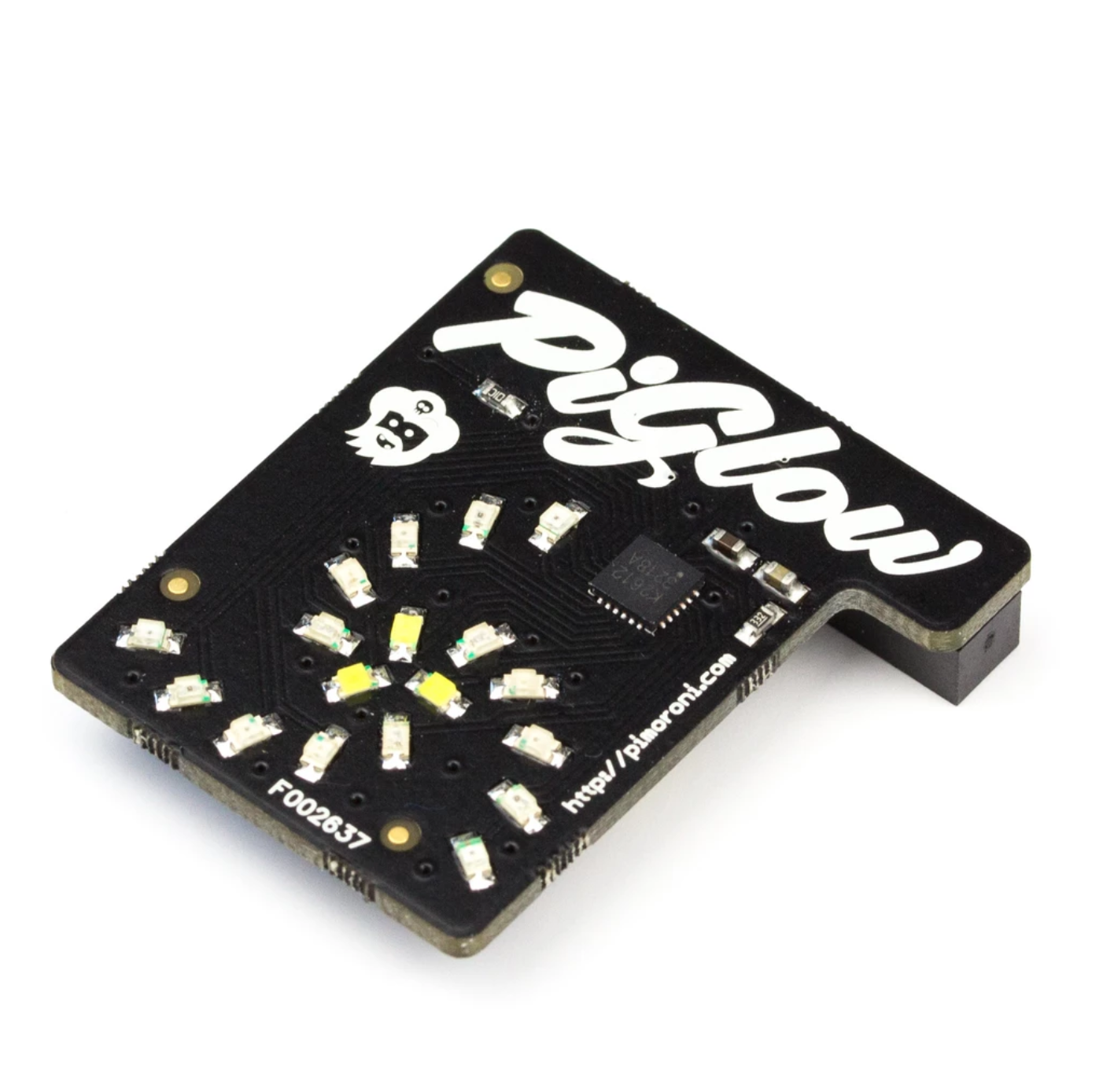

This board uses the SN3218 8-bit 18-channel PWM chip to drive 18 surface mount LEDs. Communication is done via I2C over the GPIO header with a bus address of 0x54 (Python example code provided). Each LED can be set to a PWM value of between 0 and 255.
- 18 LEDs (three each of red, orange, yellow, green, blue, and white)
- Great to provide feedback if you're running your Pi headless
- PWM (dimming) control for each channel
- Fully assembled (no soldering required)
- Python code to access and control lighting provided
We have 4 units in our Sydney Warehouse available for immediate dispatch.
We can get a further 100 units in Australia from Pimoroni. If you order today, we can dispatch this stock between Sep 27, 2020 - Oct 04, 2020.
|Raspberry Pi Model Compatibility|
|RP4||Works with Raspberry Pi 4 Model B|
|RP3A+||Works with Raspberry Pi 3 Model A+|
|RP3B+||Works with Raspberry Pi 3 Model B+|
|RP3B||Works with Raspberry Pi 3 Model B|
|RP2B||Works with Raspberry Pi 2 Model B|
|RP1B+||Works with Raspberry Pi 1 Model B+|
|RP1A+||Works with Raspberry Pi 1 Model A+|
|RP0W||Works with Raspberry Pi Zero W|
|RP0||Works with Raspberry Pi Zero|
|RPCM3+||Doesn't with Raspberry Pi Compute Module 3+|
