Pi Australia  |  SKU: PR-PIM545

Pico Scroll Pack

$31.21
Tax included Shipping calculated at checkout.

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

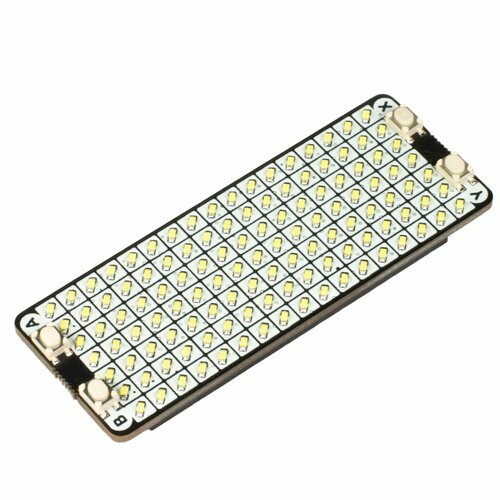

Stop scrolling! And take a moment to appreciate the simplicity and elegance of a bright white LED, so often overlooked next to its flashy RGB cousins. Pico Scroll Pack incorporates 119 white LEDs in a tidy 7x17 matrix, along with four tactile buttons for interacting with your Pico-based contraption. OK, you can start scrolling again.

The brightness of each LED is individually controllable, and it's very nice for displaying graphs, scrolling messages, soothing snowfall animations or for visualising cellular automata. Shiny.

A Raspberry Pi Pico is not included - click here if you'd like to buy one!

Features

  • 17x7 matrix of white LEDs (119 total)
  • Individual PWM brightness control of each LED
  • IS31FL3731 LED matrix driver chip, I2C address: 0x74
  • 4x tactile buttons
  • Pre-soldered female headers for attaching to Pico
  • Compatible with Raspberry Pi Pico.
  • Fully assembled
  • No soldering required (as long as your Pico has header pins attached).
  • Dimensions: approx 65mm x 25mm x 10mm (L x W x H, including headers and buttons)
  • Pinout
  • Programmable with C/C++ and MicroPython
Getting started

The labels on the underside of Pico Scroll Pack will show you which way round to plug it into your Pico - just match up the USB port with the markings on the board.

The most straightforward way of getting started programming our Pico add-ons is by downloading and copying our custom MicroPython image to your Pico, it includes all the libraries you'll need!

You can find our C/C++ and MicroPython libraries and code examples here.

About Raspberry Pi Pico

Raspberry Pi Pico is a flexible, low cost microcontroller development board from the folks at Raspberry Pi, based on their very own chip - the RP2040. It's easily programmable over USB with C/C++ or MicroPython, and ideal for using in all sorts of physical computing projects, devices and inventions - we're so excited to see what you make with it!

We've called our Pico-sized add-ons packs, as they're designed to attach to the back of your Pico as if it were wearing a very stylish backpack (or a miniature jet pack, if you prefer). We've also got Pico bases (larger add-on boards with a space to mount your Pico on top) and some other boards that let you do interesting hackerly things like using multiple packs at once - click here to view them all!

Your Pico will need to have male headers soldered to it (with the pins pointing downwards) to attach to our add-on boards.
