1.14" LCD Display Module For Pico
Embedded ST7789 Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
- Size
1.14" - Resolution
240×135 - Display Color
65K RGB - Interface
SPI - Display Panel
IPS - Driver
ST7789
Features At A Glance
- 240×135 resolution, IPS screen, 65K RGB colors, clear and colorful displaying effect
- SPI interface, requires minimal IO pins
- 4x user buttons for easy interacting
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGERESOLUTIONCOMMUNICATION INTERFACEDISPLAY SIZEDISPLAY PANELPIXEL SIZEDRIVERDIMENSIONS
| 2.6 ~ 5.5V | 240×135 pixels |
| 4-wire SPI | 24.91 × 14.86mm |
| IPS | 0.1101 × 0.1035mm |
| ST7789 | 52.00 × 25.00mm |
Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
4x User Buttons For Easy Interacting
Raspberry Pi Pico is NOT included.
Pinout Definition
Outline Dimensions
Resources & Services
WIKI: Pico-LCD-1.14

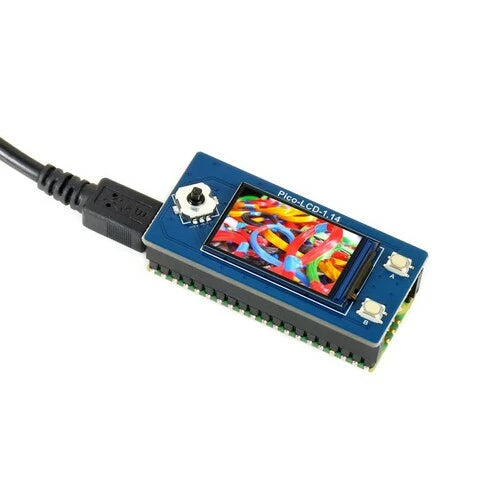

Pico - LCD-1.14 IC Test Board
We have 21 units in our Sydney Warehouse available for immediate dispatch.
| Raspberry Pi Model Compatibility | ||
|---|---|---|
| RP4 |
|
Doesn't with Raspberry Pi 4 Model B |
| RP3A+ |
|
Doesn't with Raspberry Pi 3 Model A+ |
| RP3B+ |
|
Doesn't with Raspberry Pi 3 Model B+ |
| RP3B |
|
Doesn't with Raspberry Pi 3 Model B |
| RP2B |
|
Doesn't with Raspberry Pi 2 Model B |
| RP1B+ |
|
Doesn't with Raspberry Pi 1 Model B+ |
| RP1A+ |
|
Doesn't with Raspberry Pi 1 Model A+ |
| RP0W |
|
Doesn't with Raspberry Pi Zero W |
| RP0 |
|
Doesn't with Raspberry Pi Zero |
| RPCM3+ |
|
Doesn't with Raspberry Pi Compute Module 3+ |
