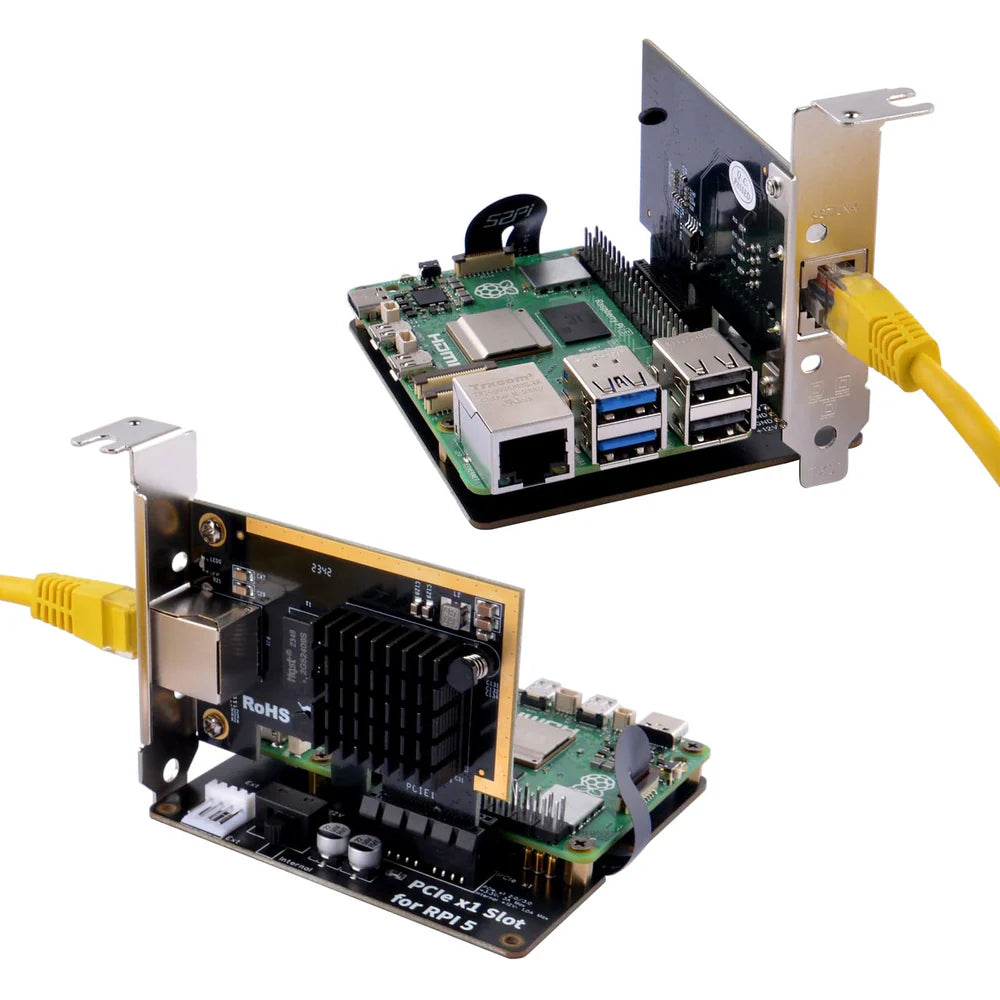

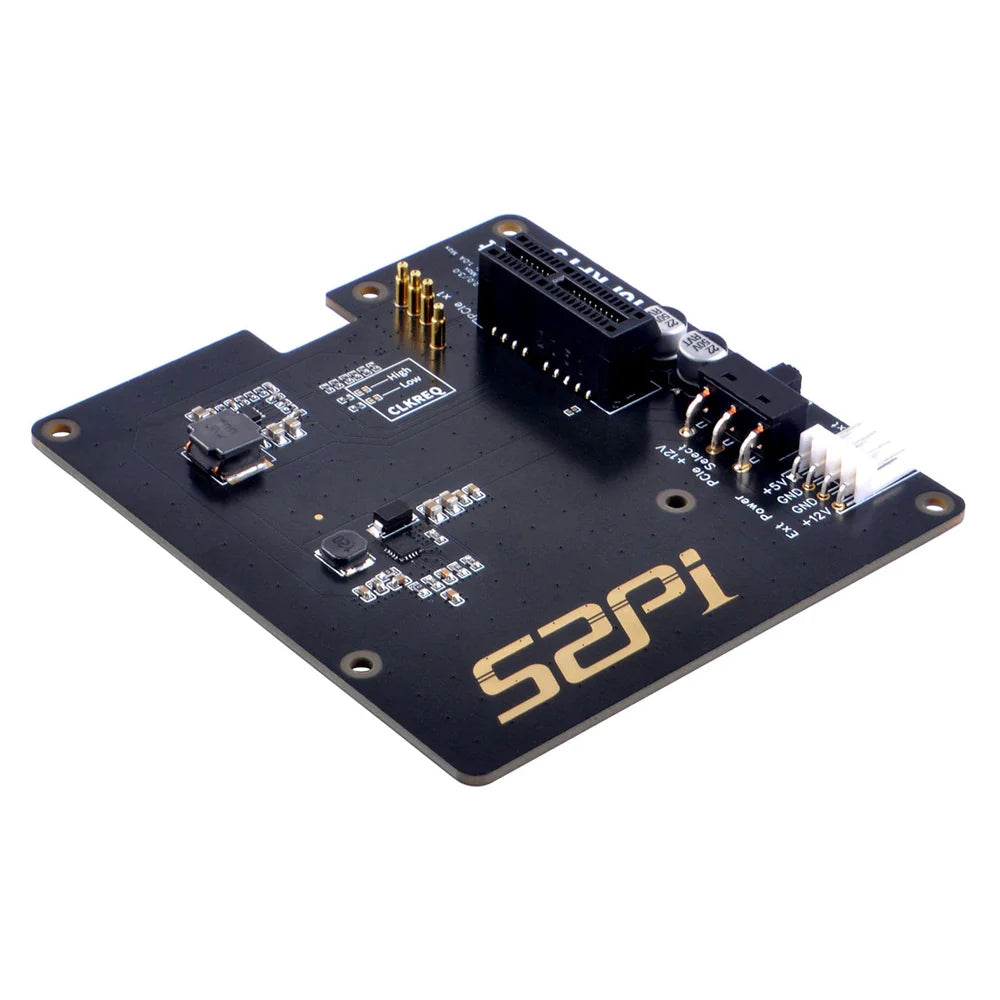

The P02 PCIe slot baseboard for Raspberry Pi 5 is designed to convert the Raspberry Pi 5's PCIe into a PCIe x1 slot.
This accessory broadens Raspberry Pi's capabilities by enabling the connection of PCIe devices, providing a versatile solution for expanding your projects, structurally compatible with x1, x2, x4, x8, x16 using an open slot design.
The baseboard incorporates a built-in 12V power supply design, capable of providing up to 1A current to meet most PCIe adapter card needs. Additionally, the board provides an external 12V power supply header option for high-power PCIe cards.
Raspberry Pi and PCIe devices not included
Features
- Compatibility: Designed for Raspberry Pi 5
- Open Slot Design: Structurally compatible with x1, x2, x4, x8, x16 using an open slot design
- PCIe x1 Supports: Supports PCIe x1 interface in both Gen2 and Gen3 standards
- Power Supply flexibility: Incorporates a built-in 12V power supply design, capable of providing up to 1A current to meet most PCIe adapter card needs. Additionally, provides an external 12V power supply header for high-power PCIe cards.
- Gold-plated PCB: Superior electrical performance.
- PCIe ultra-short signal lines: Utilises short trace routing for PCIe, ensuring reliability and speed, fully meeting the signal requirements of PCIe 3.0
Specifications
- Built-in power for PCIe x1 slot: +12V/1A, +3.3V/3A
- Size: 85x80mm
Resources
Package Contents
- 1 x P02 PCIe Slot baseboard for Raspberry Pi 5
- 2 x Custom PCIe FFC cable
- 4 x M2.5 x 6mm Coppler pillar
- 8 x M2.5 x 4mm Flat head screw
- 1 x Screwdriver
Raspberry Pi and PCIe devices not included
