NVMe Base Duo for Raspberry Pi 5

SKU: PR-PIM706
Price
$199
GST included. Shipping calculated at checkout.
Style:
NVMe Base Duo + 500GB (2x250GB) SSD

Got a Question?

Give us a call on 1300 240 817

Frequently Bought Together

We Accept

American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa

Description

Add two super-fast NVMe SSDs to your Raspberry Pi 5! Ideal if you need redundancy or just a load more storage on your RPi.

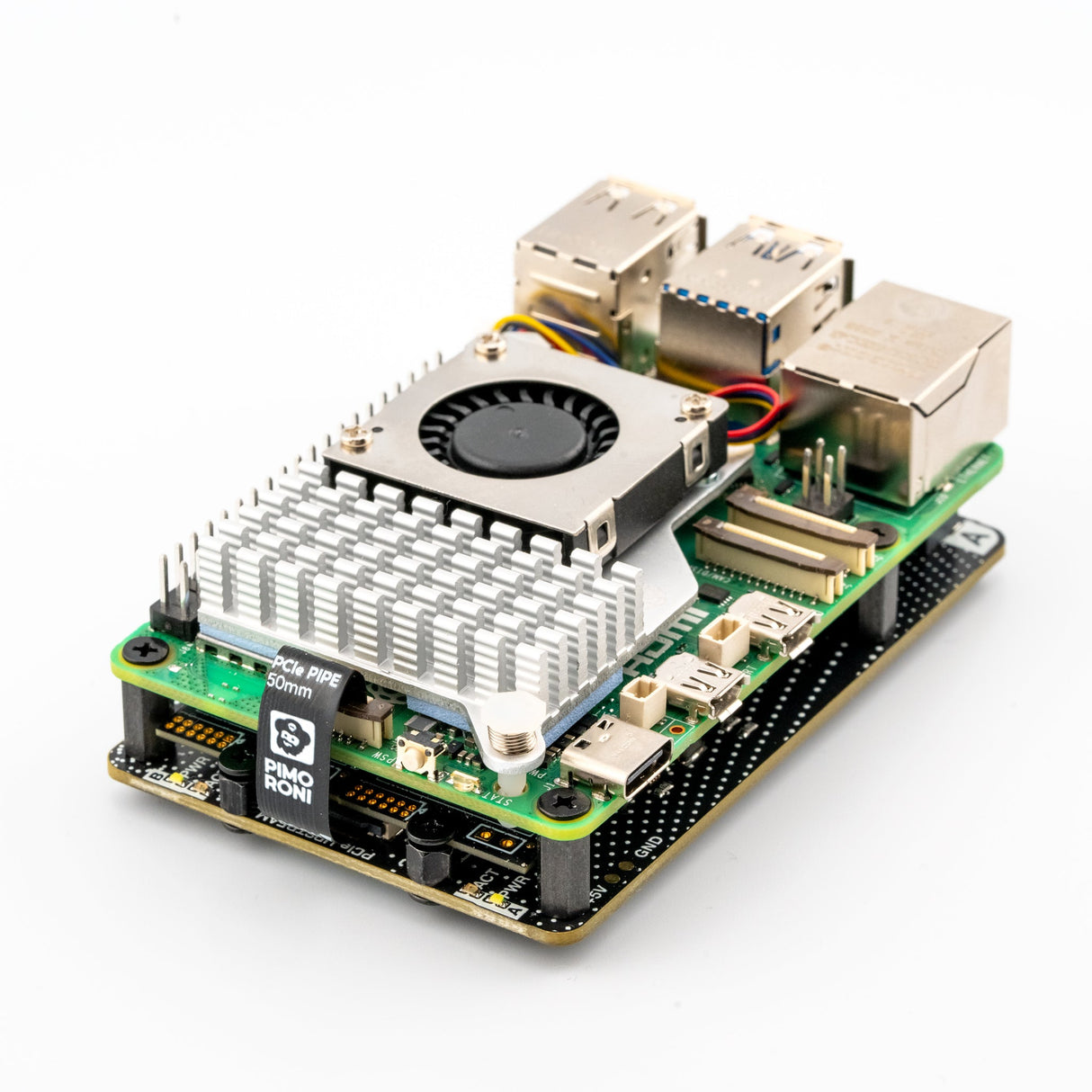

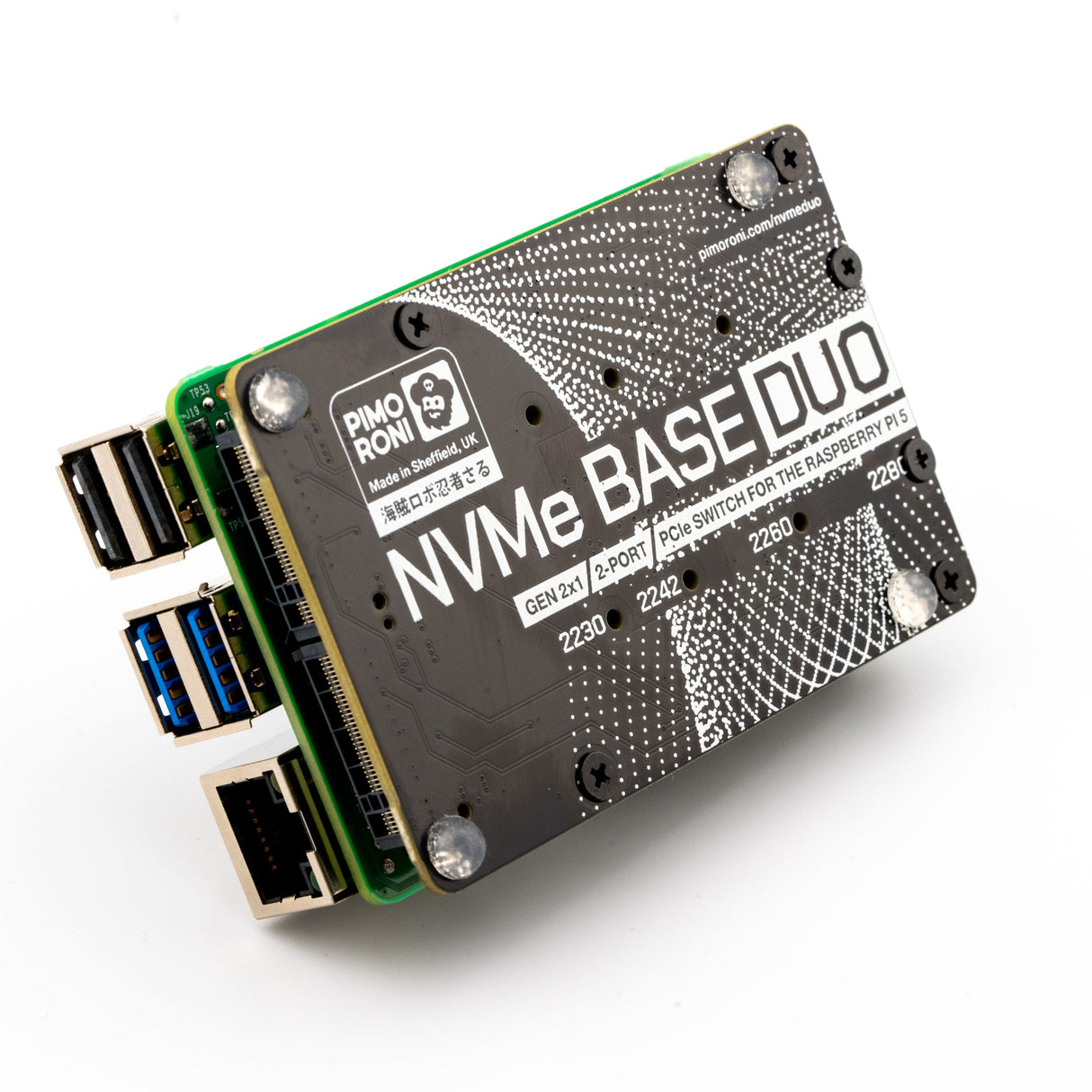

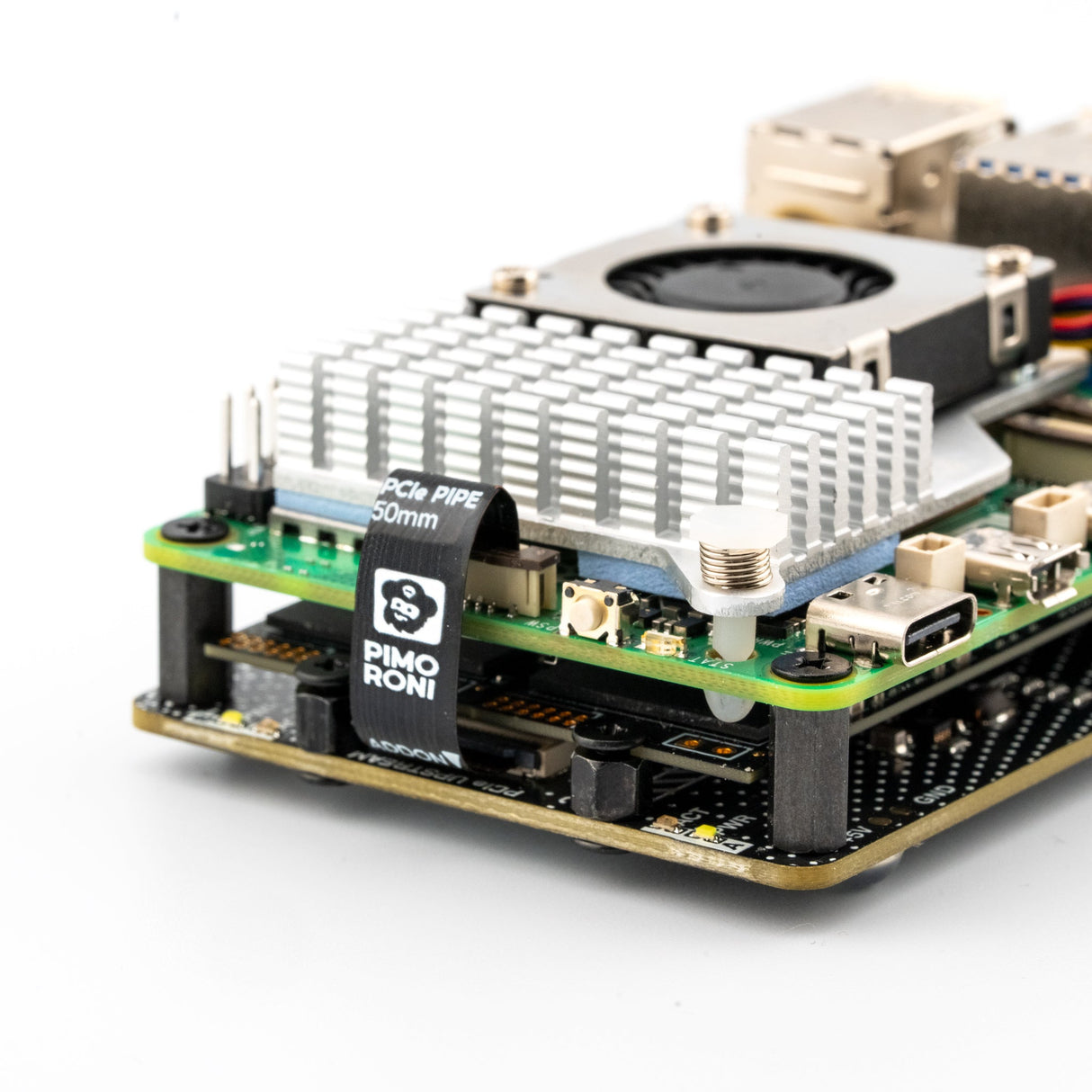

NVMe Base Duo is a PCIe Gen 2 extension board for Raspberry Pi 5. Simply populate it with one or two M-key NVMe SSDs (2230 to 2280 sizes supported) and mount it under (or over) your Pi for a compact and fast storage solution - It even comes with rubber feet!
It's the perfect solution for turning your Raspberry Pi 5 into a file server, media centre, reverse proxy, home automation server with built in backup, etc. - really any task that benefits from large amounts of fast storage, redundancy, or just to make use of a couple of spare disks - especially with random high operations per second (IOPS) workloads. In short it's a game changer!
NVMe Base Duo follows the new "PIP" design guidelines provided by Raspberry Pi ensuring that it will be easy to use and be supported long term by updates to Raspberry Pi OS - though it is very early days and things are improving rapidly there!
NOTE: You cannot boot from NVMe drives installed on NVMe Base Duo. We hope the RPi 5 firmware will support this in the future, but for now, it can only boot from drives that are the root device on the PCIe Bus. i.e. not behind a packet switcher/multiplexer. You'll need to boot from SD and then the system can handover to the pair of fast SSDs!

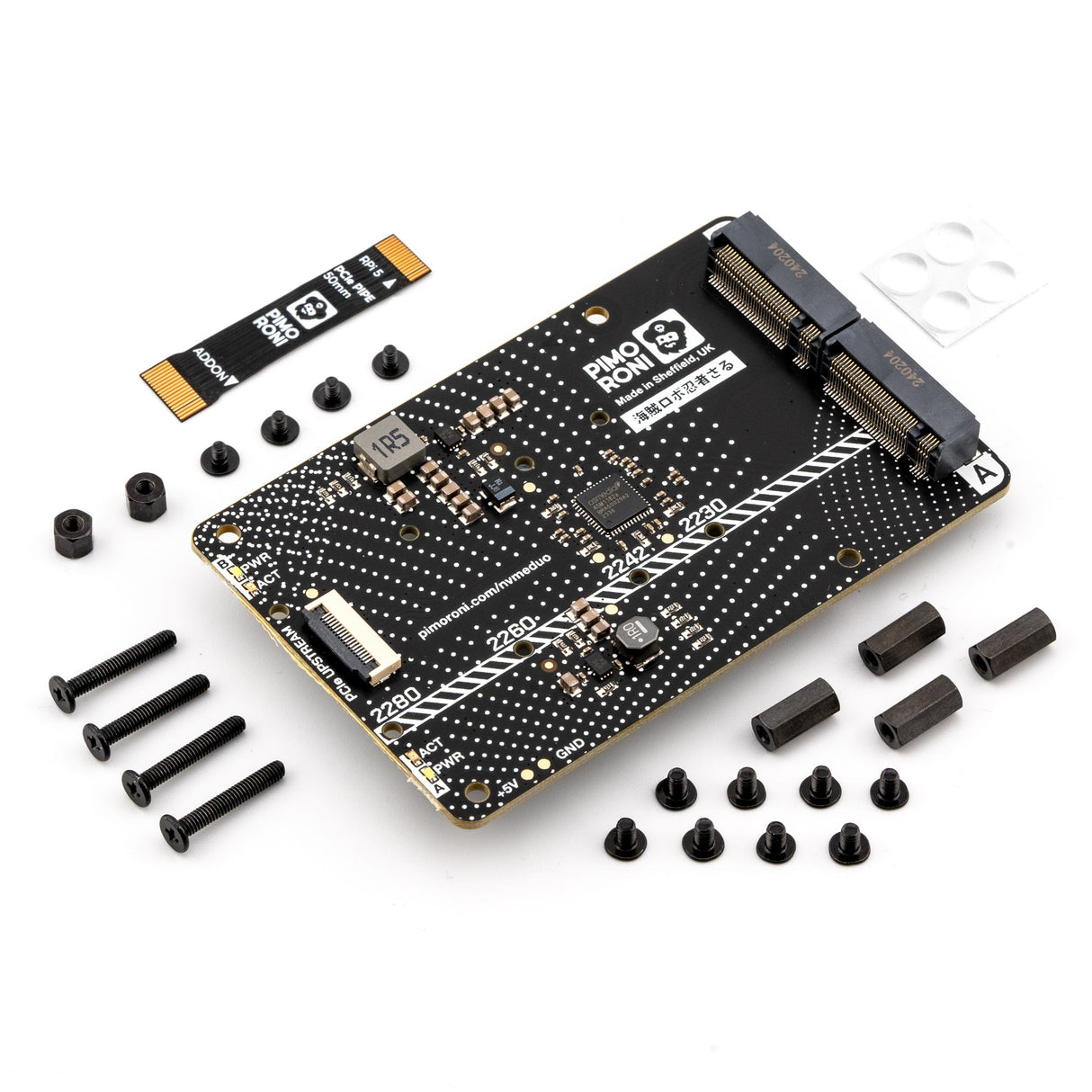

Base Kit
  • NVMe Base Duo PCB with two M.2 slots (M-Key)
  • 'PCIe Flex' Flat Flex Cable
  • 4x Rubber feet
  • 4x M2 bolt and 2x 5mm standoffs for SSD mounting
  • 4x 12mm M2.5 standoffs for base mounting
  • 8x short M2.5 bolts for base mounting
  • 4x 20mm M2.5 bolts for 'pass-thru' mounting with a HAT
The shipping product may have minor differences to the photos, but will be the same in essentials.

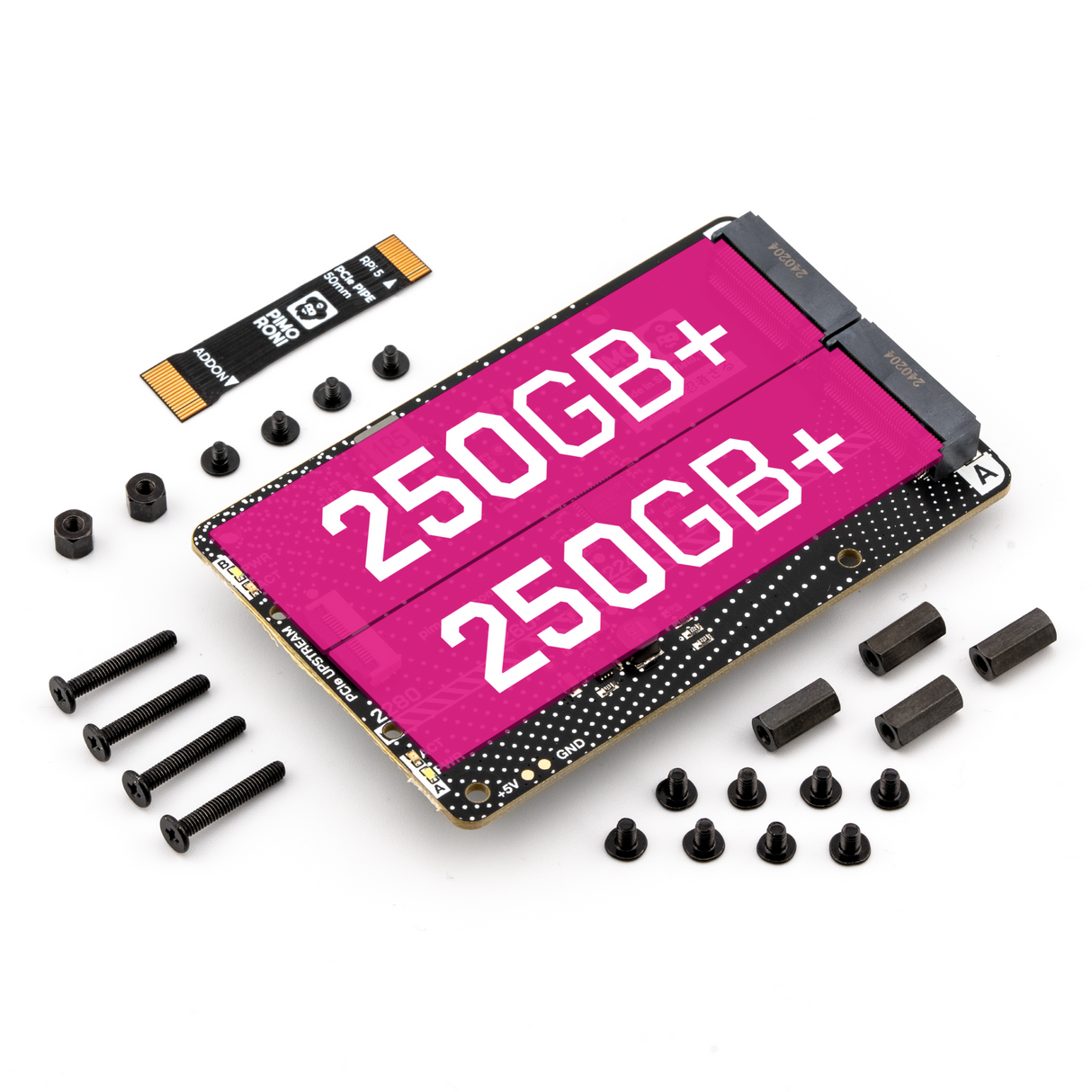

NVMe Base Duo + 500GB (2 x 250GB) SSD Bundle
  • Base Kit
  • 2 x 250GB+ NVMe SSDs

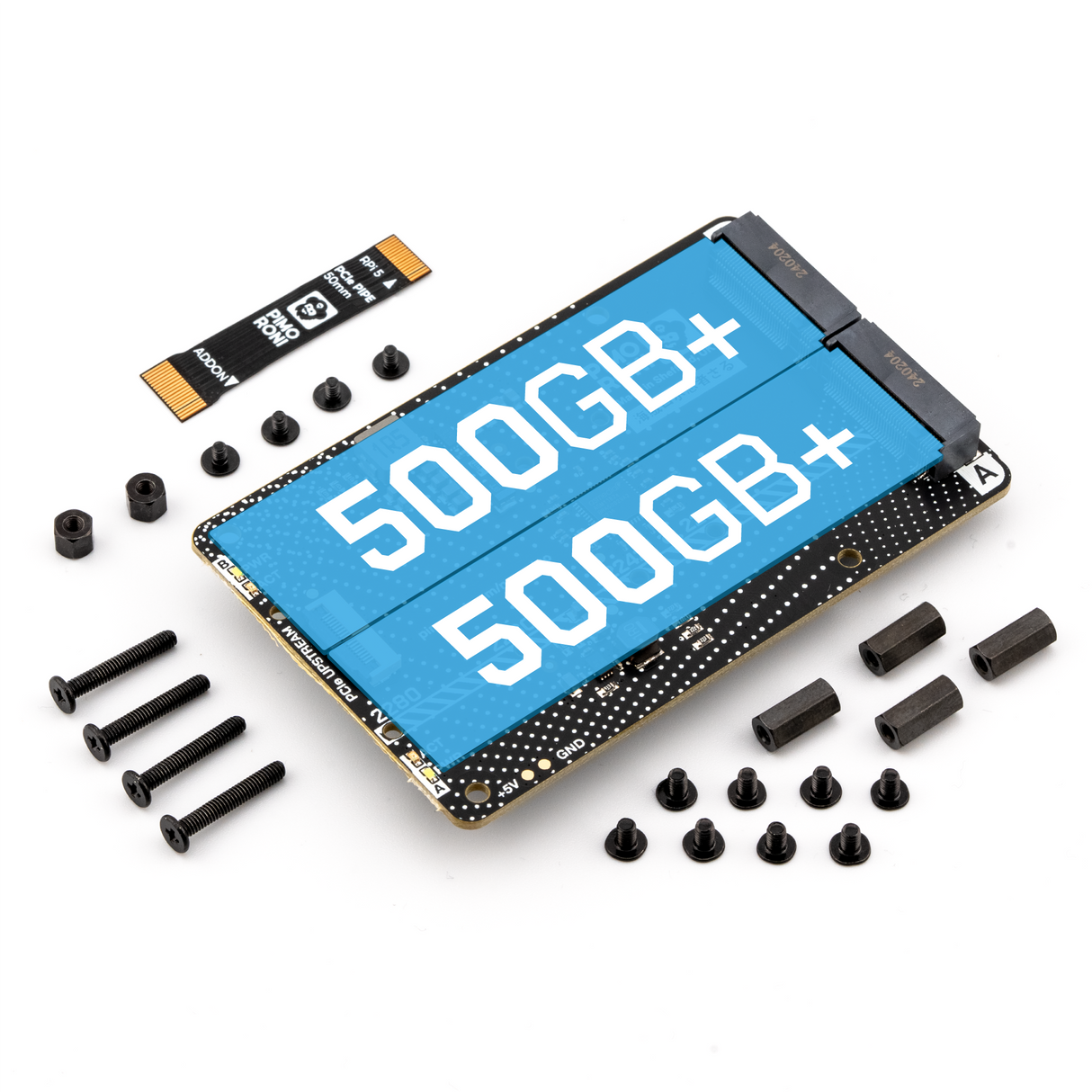

NVMe Base Duo + 1000GB (2 x 500GB) SSD Bundle
  • Base Kit
  • 2 x 500GB+ NVMe SSDs
We recommend running the Raspberry Pi 5 at PCIe Gen 2 x 1 speeds with this Base. The total throughput is around 450MB/sec, or 220MB/sec+ per disk for simultaneous access as they share the bandwidth through the PCIe switch.
Due to the tides and vagaries of the SSD market, we will ship whichever drives offer the best value for decent specs. We can say that:
  • They will have 250/500GB or better capacity
  • They will be rated by the manufacturer at PCIe Gen 3 or better speed (although Duo only supports Gen 2 speeds)
  • We'll have personally tested this model of drive with NVMe Base Duo.
  • They'll be backed by the usual Pimoroni guarantees and customer service.
NOTE: Bundled drives may be from the same manufacturing batch. If you're a storage-integrity aficionado, you may want to source your own drives to avoid the unlikely edge-case of an issue or bug affecting an entire batch of drives.
Drive Compatibility
We've tested NVMe Base Duo with the following drives successfully. We have usually tested one drive from one batch, so this is not comprehensive, or an 'Approved' list, but it's a good guide for drives to seek out.
In general, as the drives are behind the switch and not being used at boot we’ve found a much wider range of drives to be working and useful compared to the standard NVMe Base.
  • ADATA SX8200PNP
  • ADATA LEGEND 700
  • Crucial CT500P5PSSD8
  • Gigabyte GP-GSM2NE3256GNTD
  • Kingston SKC3000S512G
  • KIOXIA EXCERIA SSD 500GB
  • KIOXIA EXCERIA G2 SSD 2TB
  • Lexar SSD NM710 1TB
  • Netac NV200-512-E4X
  • ORIGIN Inception TLC830 Pro 256GB
  • Patriot P300 256GB
  • Patriot P310 240GB
  • Patriot P300 512GB
  • PNY CS1030 1TB
  • Sabrent Rocket Nano 500GB
  • Sabrent SB-RKT4P-1TB
  • Sabrent Rocket 4.0 1TB
  • Samsung SSD 970 EVO Plus 500GB
  • Samsung SSD 980 500GB
  • Samsung SSD 980 PRO 1TB
  • SK hynix GOLD P31
  • TeamGroup TM8FP6256G
  • Toshiba KBG40ZNS1T02 1TB
  • Transcend TS500GMTE110Q
  • WD Blue SN550 500GB
  • WD Black SN750 SE
  • WD PC SN740 512GB
  • WD Red SN700 500GB
  • WD Black SN770 1TB
  • WD Blue SN570 1TB
  • WD Green SN350 480GB
'Avoid' List. We've had problems or reports of problems.
  • Ortial ON-750-128 256GB
Otherwise most M.2 NVMe drive (not SATA!) you have lying around should work fine.
Check out our benchmark results over at pibenchmarks.net!
Getting Started
For the most hassle-free experience, make sure your Raspberry Pi OS is up to date, and your RPi 5 firmware is updated to 2023-12-06 (Dec 6th) or newer. This supports all the features of the RPi PCIe spec and means you don't have to mess with config files to get started.
Software update on the RPi OS should do this for you, but to force it you can:
  • open a Terminal (Ctrl-Alt-T)
  • run sudo raspi-config and choose 'Latest' under Advanced Options > Bootloader Version.
Running sudo rpi-eeprom-update in the Terminal will tell you which version of firmware is running.
Notes
  • Always power off your RPi and disconnect the power supply before installing or uninstalling the NVMe Base.
  • You cannot, at this time, boot from the drives installed on the NVM Base Duo. The single NVMe Base does support booting from the NVMe.
  •  NVMe Base Duo offers offers two PCIe Gen 2 M.2 slots behind a PCIe Gen2 Packet Switcher on a general purpose PCIe x1 connection - while we know most people want to add fast storage in theory you can use other devices with it, we just can't help you make them work! :-D What Would Jeff (Geerling) Do?
