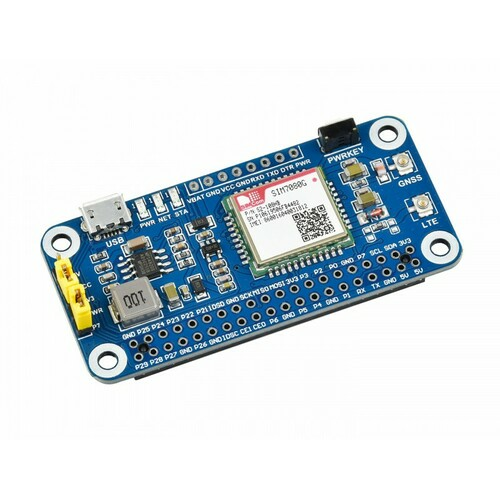

This is a telecommunication HAT for the Raspberry Pi! It features multi communication functionalities: NB-IoT (NarrowBand-Internet of Things), Cat-M (aka eMTC, enhanced Machine Type Communication), and GNSS (Global Navigation Satellite System).
This HAT supports global bands of NB-IoT and Cat-M, as well as positioning function. Its small size, low delay, and wide coverage makes it an ideal choice for IoT applications!
Features
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- Supports communication protocols such as TCP/UDP/HTTP/HTTPS/TLS/DTLS/PING/LWM2M/COAP/MQTT
- Supports GNSS positioning (GPS, GLONASS, BeiDou, and Galileo)
- Onboard USB interface, to test AT Commands, get GPS positioning data, and so on
- Breakout UART control pins, to connect with host boards like Arduino/STM32
- Onboard voltage translator, 3.3V by default, allows to be switched to 5V via onboard jumper
- SIM card slot, supports ONLY 1.8V SIM card (3V SIM card is not available)
- 3x LED indicators, easy to monitor the working status
- Baudrate: 300~3686400 bps
- Common baudrate auto-negotiation: 9600/19200/38400/57600/115200 bps
- Comes with development resources and manual (examples for Raspberry Pi/Arduino/STM32)
Specifications
- Receiver type
- 16-channel
- C/A code
- Bands
- GNSS L1: 1575.42±1.023MHz
- GLONASS: 1597.5~1605.8 MHz
- BeiDou: 1559.05~1563.14 MHz
- Galileo L1: 1575.42±1.023MHz
- Update frequency: 1 Hz (default)
- Data format: NMEA-0183
- Antenna: active antenna
- Power supply voltage: 5V
- Logic level: 5V / 3.3V (configured via jumper)
- Overall current (idle mode): 39mA
- Module sole current (VBAT=3.8V):
- Idle mode: 10mA
- Sleep mode: 1.2mA
- PSM mode: 3.2uA
- eDRX mode: 0.59mA (eDRX=81.92s)
- Operating temperature: -40°C ~ 85°C
- Storage temperature: -45°C ~ 90°C
- Dimension: 30.2mm x 65mm
Includes
- SIM7080G Cat-M/NB-IoT HAT x1
- LTE antenna x1
- GPS External Antenna (B) x1
- USB type A plug to micro plug cable x1
- 2×20PIN female header x1
- RPi screws pack (2pcs) x1
