The Motoron M3H256 Triple Motor Controller makes it easy to control DC motors from a Raspberry Pi (Model B+ or newer) through an I²C interface. Each module can independently control up to three motors, and multiple Motoron boards can be stacked on top of the same Raspberry Pi for projects that need to control even more motors. The M3H256 operates from 4.5 V to 48 V and can deliver continuous output currents up to 2 A per motor. This version ships without any header pins, terminal blocks, or mounting hardware included.
The Motoron M3H256 add-on board makes it easy to control up to three bidirectional, brushed DC motors with a compatible Raspberry Pi (Model B+ or newer). It operates from 4.5 V to 48 V and can deliver continuous output currents up to 2 A per motor. The M3H256 is designed to stack on top of a Raspberry Pi (Model B+ or newer), similar to a HAT (Hardware Attached on Top), and multiple Motoron controllers can be stacked on top of each other, allowing independent control of many motors. Unlike most of our motor drivers and motor driver expansion boards for Raspberry Pi, the Motoron does not require any PWM outputs on your Raspberry Pi. Instead, the Raspberry Pi communicates with the Motoron using I²C, so only two GPIO pins are needed regardless of how many Motorons you connect.
The Motoron M3H256 add-on board makes it easy to control up to three bidirectional, brushed DC motors with a compatible Raspberry Pi (Model B+ or newer). It operates from 4.5 V to 48 V and can deliver continuous output currents up to 2 A per motor. The M3H256 is designed to stack on top of a Raspberry Pi (Model B+ or newer), similar to a HAT (Hardware Attached on Top), and multiple Motoron controllers can be stacked on top of each other, allowing independent control of many motors. Unlike most of our motor drivers and motor driver expansion boards for Raspberry Pi, the Motoron does not require any PWM outputs on your Raspberry Pi. Instead, the Raspberry Pi communicates with the Motoron using I²C, so only two GPIO pins are needed regardless of how many Motorons you connect.
Details for item #5035

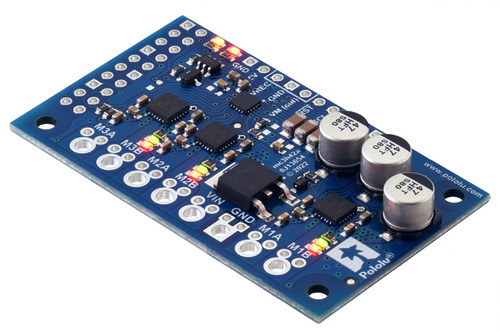

Motoron M3H256 Triple Motor Controller for Raspberry Pi (No Connectors or Standoffs).
This Motoron version is just the assembled PCB module as shown above, with no connectors or mounting hardware included. This version is intended for those who mostly want to solder wires directly to the board or use different connectors from those included with other versions. We have a variety of connectors available separately.
Features and specifications
Features and specifications
- Three motor control channels allow for independent control of up to three bidirectional brushed DC motors per Motoron
- Wide operating voltage range: 4.5 V to 48 V
- Maximum output current per motor: 2.0 A continuous, 6.4 A peak for <1 second
- Reverse-voltage protection on motor power supply (down to -40 V)
- Logic voltage range: 2.8 V to 5.5 V
- Control interface: I²C
- I²C clock speed: up to 400 kHz
- Optional cyclic redundancy checking (CRC)
- Configurable motion parameters:
- Max acceleration/deceleration forward/reverse
- Starting speed forward/reverse
- Direction change delay forward/reverse
- PWM frequency: eight options available from 1 kHz to 80 kHz
- Command timeout feature stops motors if the Raspberry Pi stops communicating
- Configurable automatic error response
- Motor power supply (VIN) voltage measurement
- Optional pins make it easy to power the Raspberry Pi from reverse-protected motor power through an external regulator (not included)
- Two status LEDs
- Motor direction indicator LEDs
- Motoron Python library simplifies getting started using the Motoron with a Raspberry Pi
- Comprehensive user’s guide
