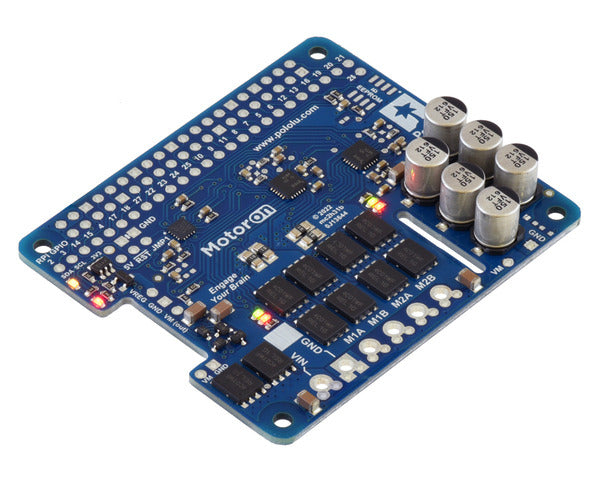

The Motoron M2H18v20 Dual High-Power Motor Controller is the perfect solution for controlling up to two bidirectional, brushed DC motors from a compatible Raspberry Pi (Model B+ or newer). This version comes as an assembled PCB module with no connectors or standoffs included.
The controller operates from 6.5 V to 30 V and can deliver continuous output currents up to 20 A per motor. It features reverse-voltage protection on motor power supply, an I²C control interface (up to 400 kHz clock speed with optional CRC), configurable motion parameters such as max acceleration/deceleration forward/reverse, starting speed forward/reverse and direction change delay, PWM frequency options ranging from 1 kHz to 80 kHz, current sensing and configurable hardware current limiting, and more.
The Motoron also includes two status LEDs, motor direction indicator LEDs, and an optional pin to power the Raspberry Pi from a reverse-protected motor power source. A comprehensive user’s guide and Python library make it easy to start controlling motors with the Motoron.
Specifications:
The controller operates from 6.5 V to 30 V and can deliver continuous output currents up to 20 A per motor. It features reverse-voltage protection on motor power supply, an I²C control interface (up to 400 kHz clock speed with optional CRC), configurable motion parameters such as max acceleration/deceleration forward/reverse, starting speed forward/reverse and direction change delay, PWM frequency options ranging from 1 kHz to 80 kHz, current sensing and configurable hardware current limiting, and more.
The Motoron also includes two status LEDs, motor direction indicator LEDs, and an optional pin to power the Raspberry Pi from a reverse-protected motor power source. A comprehensive user’s guide and Python library make it easy to start controlling motors with the Motoron.
Specifications:
- Logic voltage range: 3.0 V to 5.5 V
- Control interface: I²C
- I²C clock speed: up to 400 kHz
- Configurable motion parameters: max acceleration/deceleration forward/reverse, starting speed forward/reverse, direction change delay forward/reverse
- PWM frequency: eight options available from 1 kHz to 80 kHz
- Current sensing
- Configurable hardware current limiting
- Command timeout feature
- Motor power supply (VIN) voltage measurement
- Two status LEDs
- Motor direction indicator LEDs
