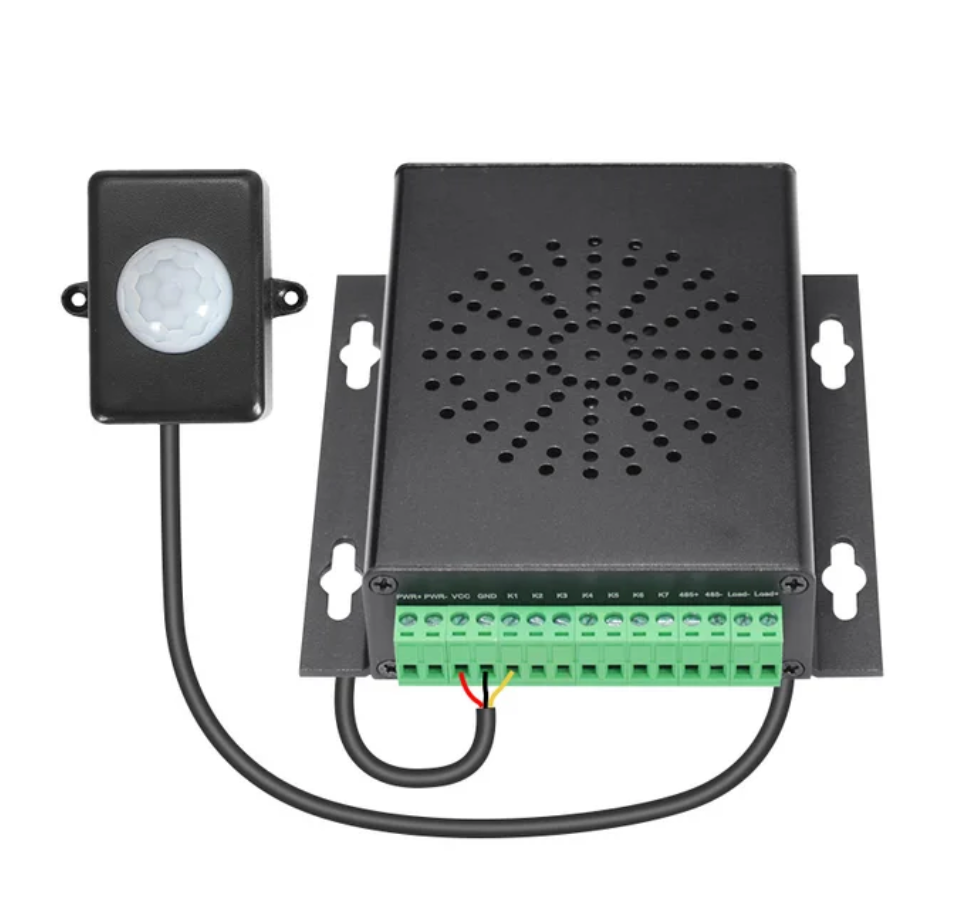

Meet the Audio Player with PIR Motion Sensor – Your Motion-Activated Audio Solution!

Looking to add dynamic, motion-triggered audio to your project? Our Audio Player with PIR Motion Sensor is the perfect fit! Packed with features for flexibility and performance, this device is designed for seamless integration and reliable operation.

What Makes It Awesome?

1. Flexible Motion Sensing: The PIR motion sensor is separate from the audio player, giving you the freedom to install it exactly where you need.

2. Customisable Configurations: Choose between a single PIR sensor model or go big with the dual PIR sensor option for added versatility.

3. Independent Sound Triggers: With the dual PIR setup, each sensor can trigger a unique sound file—simultaneously and without interruptions.

4. High-Quality Audio Playback: Built-in MP3 player with 8MB flash memory ensures crisp, reliable audio every time.

5. Expandable Storage: Supports USB drives and microSD cards up to 32GB each, giving you plenty of room for all your audio files.

6. Serious Sound Power: A class D amplifier delivering 10 watts of power makes your audio loud and clear.

7. Simple File Uploads: Connect via micro USB to easily load audio files from your computer.

8. Adjustable Volume Control: Fine-tune the sound with the integrated potentiometer.

9. Multi-Tasking Capability: Drive external devices like warning lights or motors while playing audio.

10. Audio Output Options: A 3.5mm audio jack lets you connect to external speakers or amplifiers.

11. Built to Last: Encased in tough, durable aluminium alloy for long-term use.

12. Industrial-Grade Design: Engineered for robust performance with strong anti-jamming capabilities.

Specifications

• Power Supply: 12–24V DC
• Current Draw: ≤1000mA
• Power Consumption: ≤10W
• Built-In Flash Memory: 8MB
• Audio Format: MP3

PIR Sensor Specs:

• Operating Voltage: 5–24V DC
• Current Consumption: ≤10mA (DC 12V)
• Standby Current: ≤60μA
• Detection Range: ≤6m
• Angle of Detection: 120°
• Lens Diameter: 23mm
• Cable Length: 45cm
• Operating Temp: -20°C to +50°C

Documentation

Manufacturer's Manual (PDF)

Why You'll Love It

Whether you're building interactive displays, security systems, or creative installations, this motion-sensing audio player offers customisation, reliability, and easy integration—all in one rugged package.

Get yours today and bring motion-triggered audio to life!
