Description

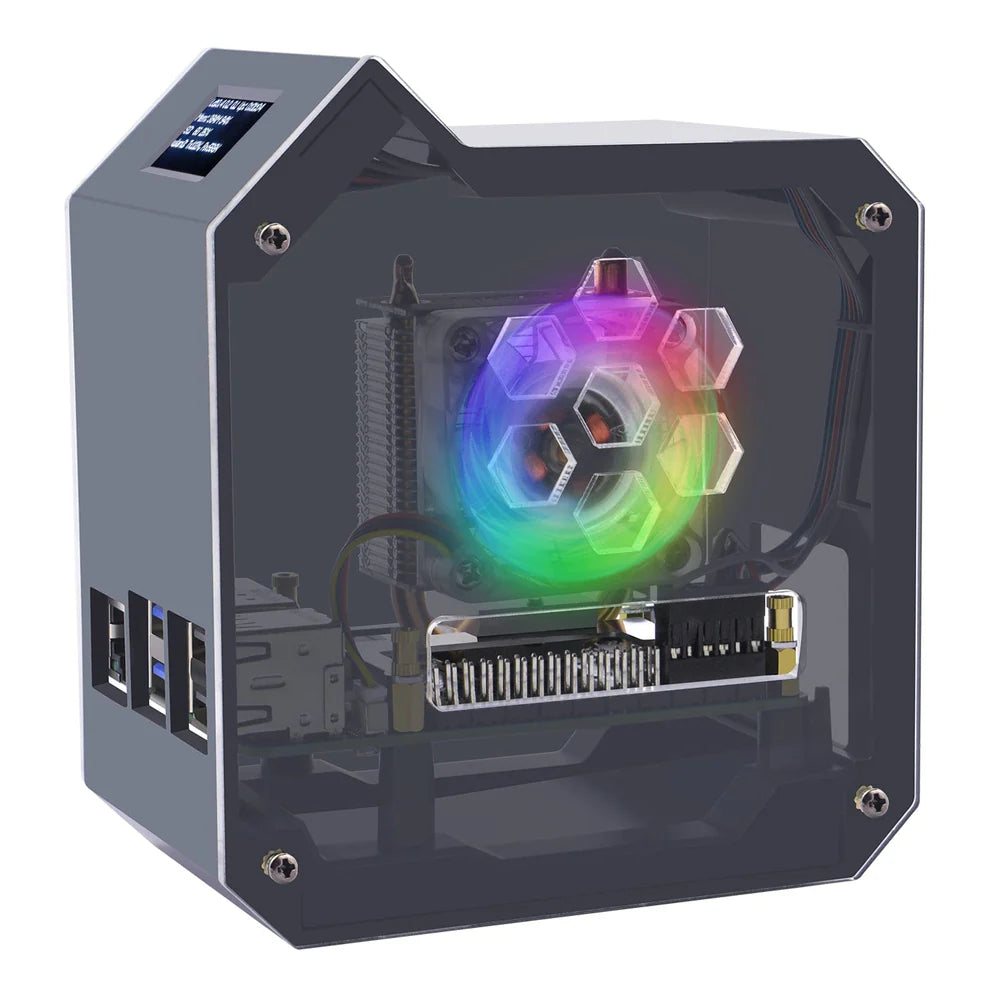

This Mini Tower Kit from 52Pi is the ultimate home for your Raspberry Pi 5, including an LED ICE tower cooler, 0.96" OLED, strong ABS core and full port access!
An update of 52Pi's previous tower kit for the Pi 4, this latest Mini Tower Kit comes packed with improvements based on customer feedback.
The kit holds your Pi 5 within a strong ABS central frame, sandwiched between two acrylic side panels which provide full view of your Raspberry Pi along with access to the all ports including MicroSD card and GPIO pins. The front of the frame holds a 0.96" SSD1306 OLED display (included, pre-fitted) for displaying system status information (or other information if you code it that way) and offers access to the Pi 5 USB and Ethernet ports.

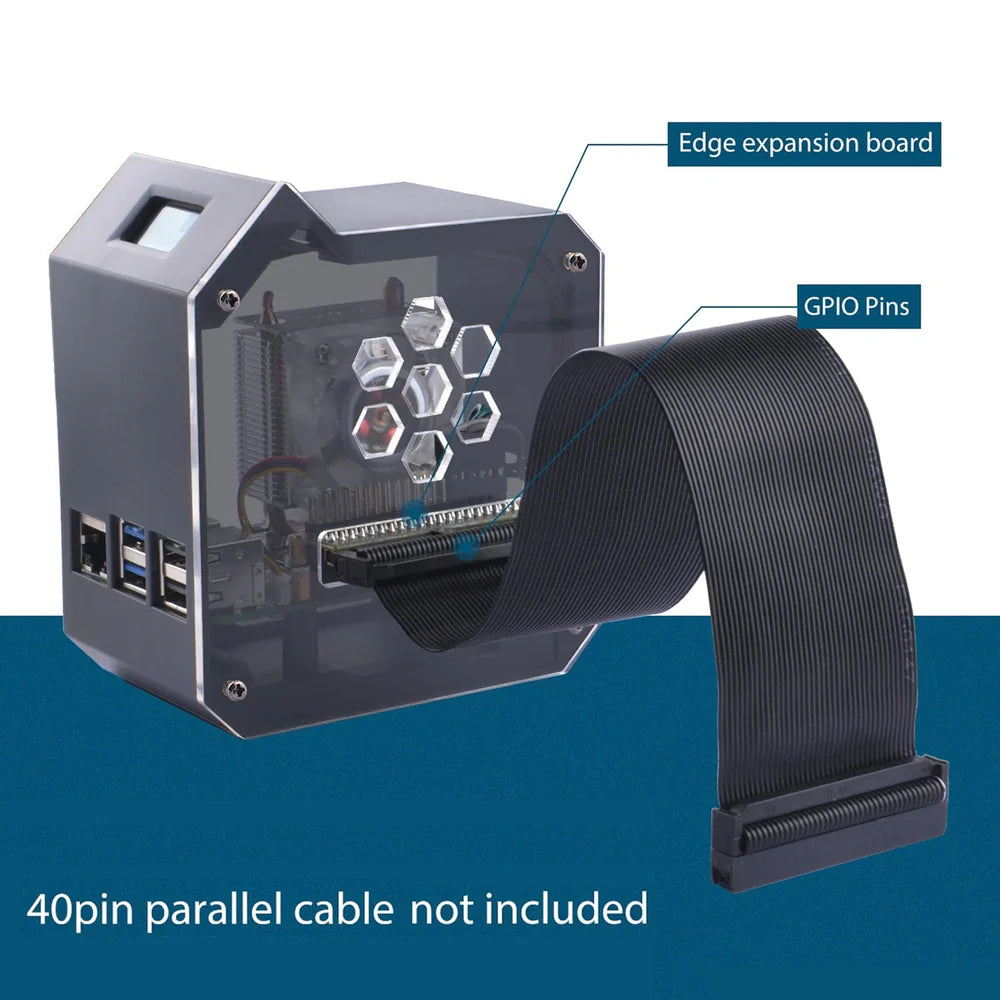

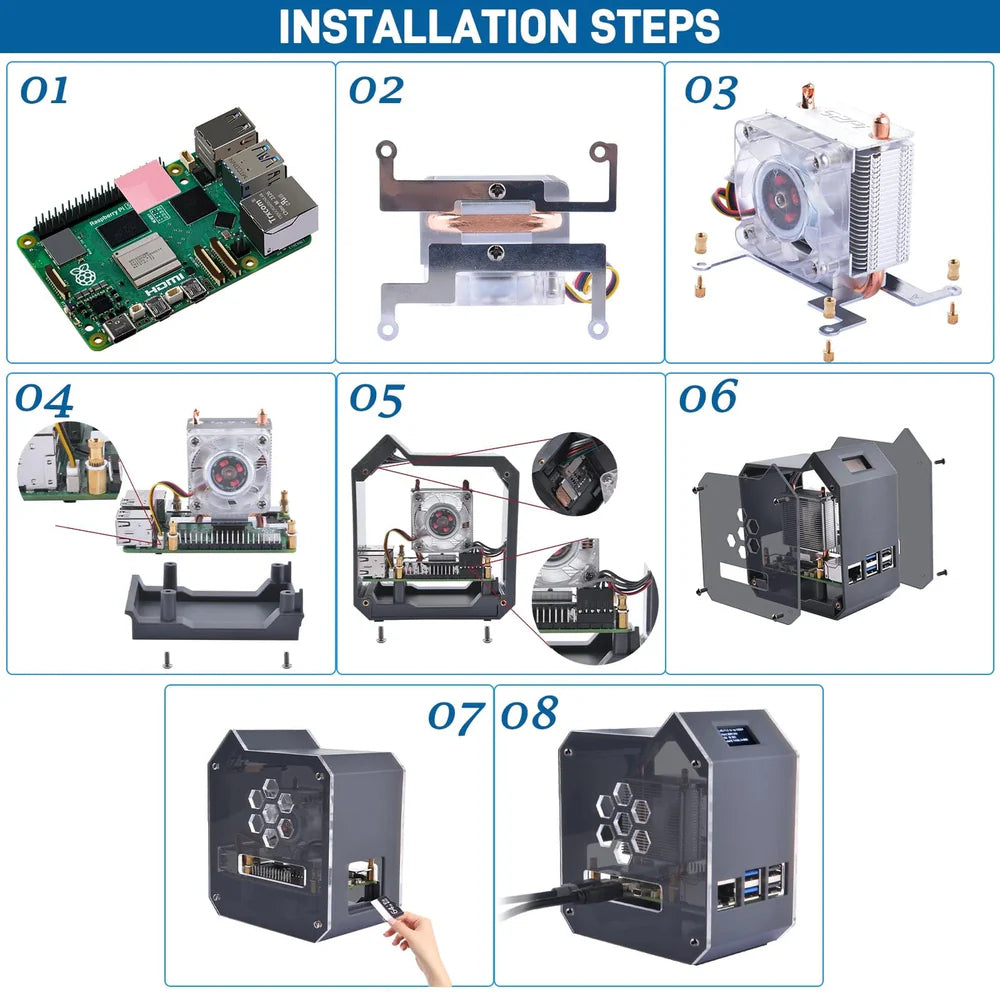

Inside the enclosure is an ICE Tower cooler (included in the package - you'll need to fit this to your Raspberry Pi) keeping your Pi cool whilst also looking amazing with the multi-colour LED lights! There's also a GPIO adapter board included, giving side access to the GPIO pins for attaching ribbon cables.

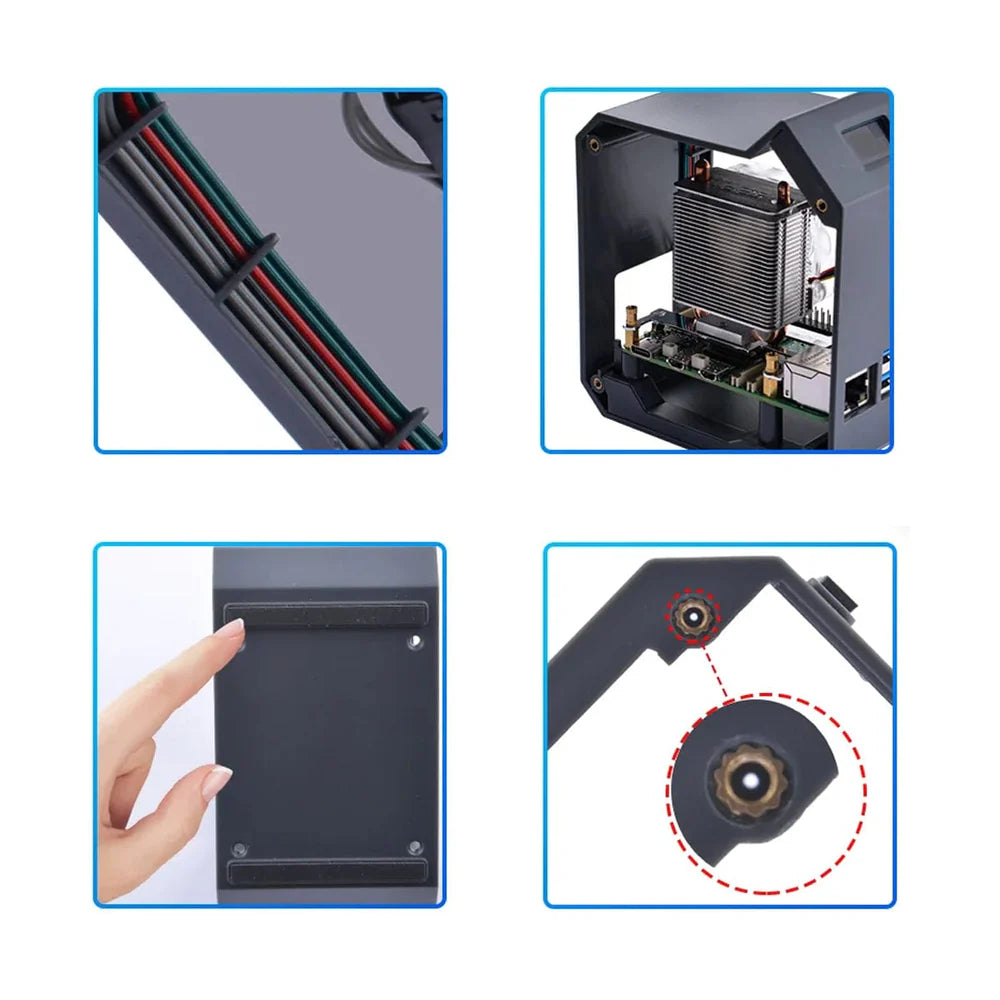

We really like some of the more subtle improvements 52Pi have made here, such as the new ABS materianl, quick-release OLED mount, non-slip rubber feet, cable management and embedded screw mounting points.
Features
- Mini Tower Kit for Raspberry Pi 5
- Precision-molded ABS casing provides
- 0.96" OLED display for displaying system information, such as temperature, CPU usage and more
- ICE Tower Cooler included - keeps your Pi cool in all scenarios
- LED Fan with colour changing lights. Note that these LED lights may not be programmatically turned off.
- JST fan - plugs straight into the Raspberry Pi 5 fan header interface
- Acrylic side panels offering a clear view of internal components, and port access
- GPIO side adapter included
- Quick-release OLED mount (no more sticky tape!)
- Soft anti-sleep feet
- Cable management
- Heat-insert screw threads
Specifications
- OLED Display:
- 0.96"
- SSD1306 chipset
- 128x64 pixels
- I2C protocol
- Default register address: 0x3c
- Fan: PWM adjustable speed fan, JST 4-pin
- Weight: 340g
- Dimensions: 125 x 125 x 80 mm
Resources
Package Contents
- 1x Mini Tower ABS Core
- 2x Arcylic side panels
- 1x ICE Tower cooler for Pi 5, with LED fan
- 1x 0.96" OLED (pre-fitted)
- 1x Edge GPIO expansion board
- 2x Thermal pads
- 1x Screwdriver
- 1x Fixings pack
Raspberry Pi and ribbon cable not included
