Pi Australia  |  SKU: PH-LN031

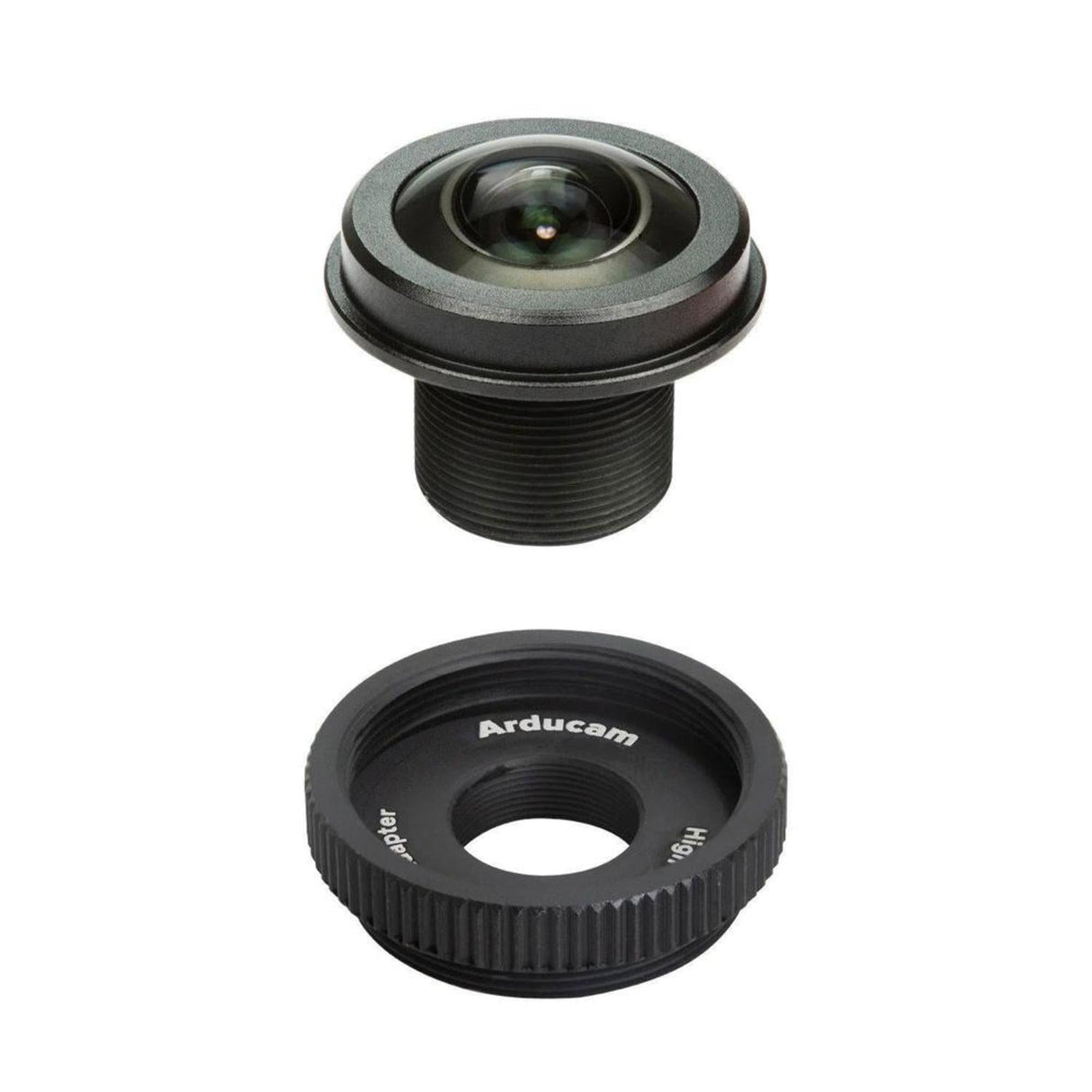

M12 Lens - 180-Degree Fisheye with Raspberry Pi HQ Camera Adapter

$44.85
Tax included Shipping calculated at checkout.

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

This 180-degree fisheye M12 lens is an inexpensive lens option for the Raspberry Pi High Quality Camera, which can be fitted using the included HQ Camera adapter. The lens can also be used as an alternative telephoto lens option for the Arducam Mini High Quality Camera.
The lens has a 180° FoV capable of capturing a 5.7 x 4.27 m (18.70 x 14.02 ft) scene at a 1-meter (3.28 ft) distance.
Why an M12 lens?
  • Lightweight: M12 lenses are tiny and take up less space than traditional C-mount lenses
  • Cost-effective: M12 lenses are generally cheaper than most C-mount lenses
  • Project-centric: Different projects require different lens requirements. M12 lenses provide a more affordable way to collect lenses for different scenarios.
Specification
  • Optical Format: 1/2.3”
  • Focal Length: 1.56mm
  • Aperture: F2
  • Field of View (FOV): 180° (H) on Raspberry Pi High Quality Camera, 140°(H) on Raspberry Pi V1/V2 Camera
  • Mount: M12 mount
  • Back Focal Length: 4.3mm
  • MOD: 0.2m
  • Dimension: Φ20×17.3mm
  • Weight: 7g
  • IR Sensitivity: sensitive to visible light, with 650nm IR filter
  • Model No: M25156H18
