Overview
This module is based on the very popular L298 Dual H-Bridge Motor Driver Integrated Circuit. The circuit will allow you to easily and independently control two motors of up to 2A each in both directions!
It is ideal for robotic applications and well suited for connection to a microcontroller requiring just a couple of control lines per motor. It can also be interfaced with simple manual switches, TTL logic gates, relays, etc.
Features
- Motor supply: 7 to 24 VDC
- Control Logic: Standard TTL Logic Level
- Output Power: Up to 2 A each
- Enable and Direction Control Pins
- Heatsink for IC
- Power-On LED indicator
- 4 Direction LED indicators
Documents
Note: The 5v+ screw terminal supplies 5V power. This can be used to power your Arduino if you are using a single battery pack.
Please visit Itead's wiki page for more info about this product.

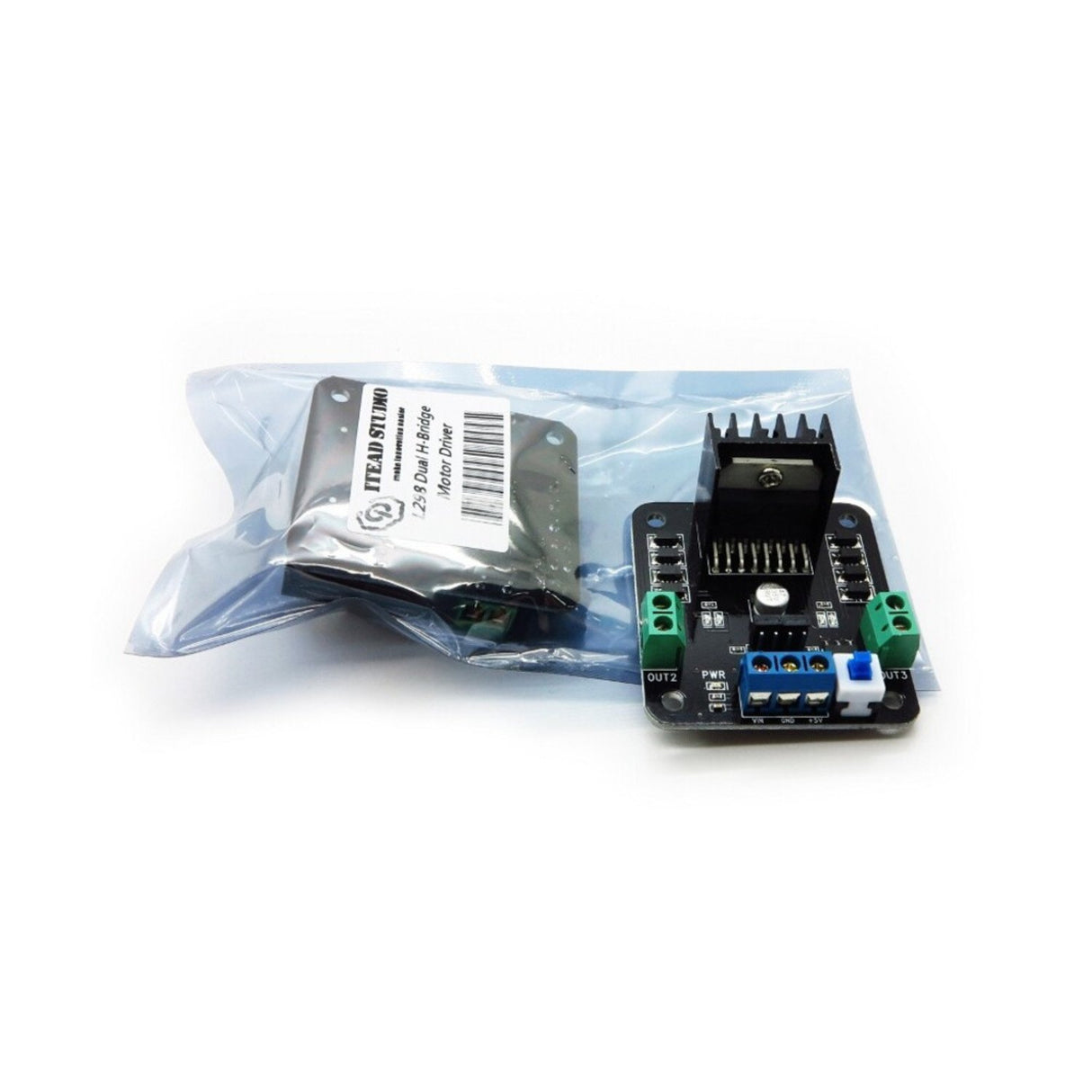

L298 Dual H-Bridge Motor Driver
We have 1 units in our Sydney Warehouse available for immediate dispatch.
