Pimoroni  |  SKU: PR-PIM727

Interstate 75 W (RP2350) - RGB LED Matrix Driver

$29.00
Tax included Shipping calculated at checkout.

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

An all-in-one, RP2350 powered controller for HUB75 LED matrix panels.

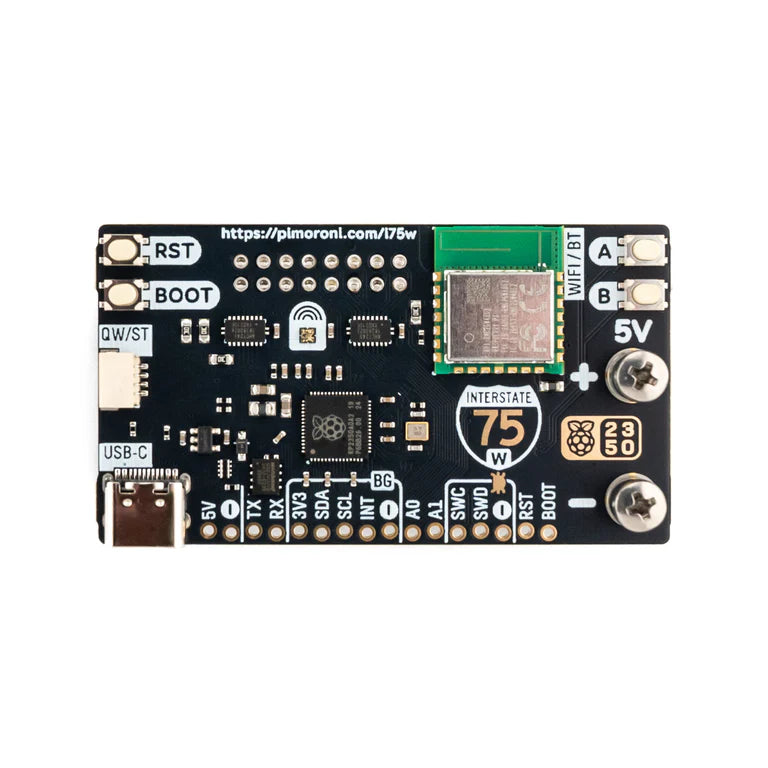

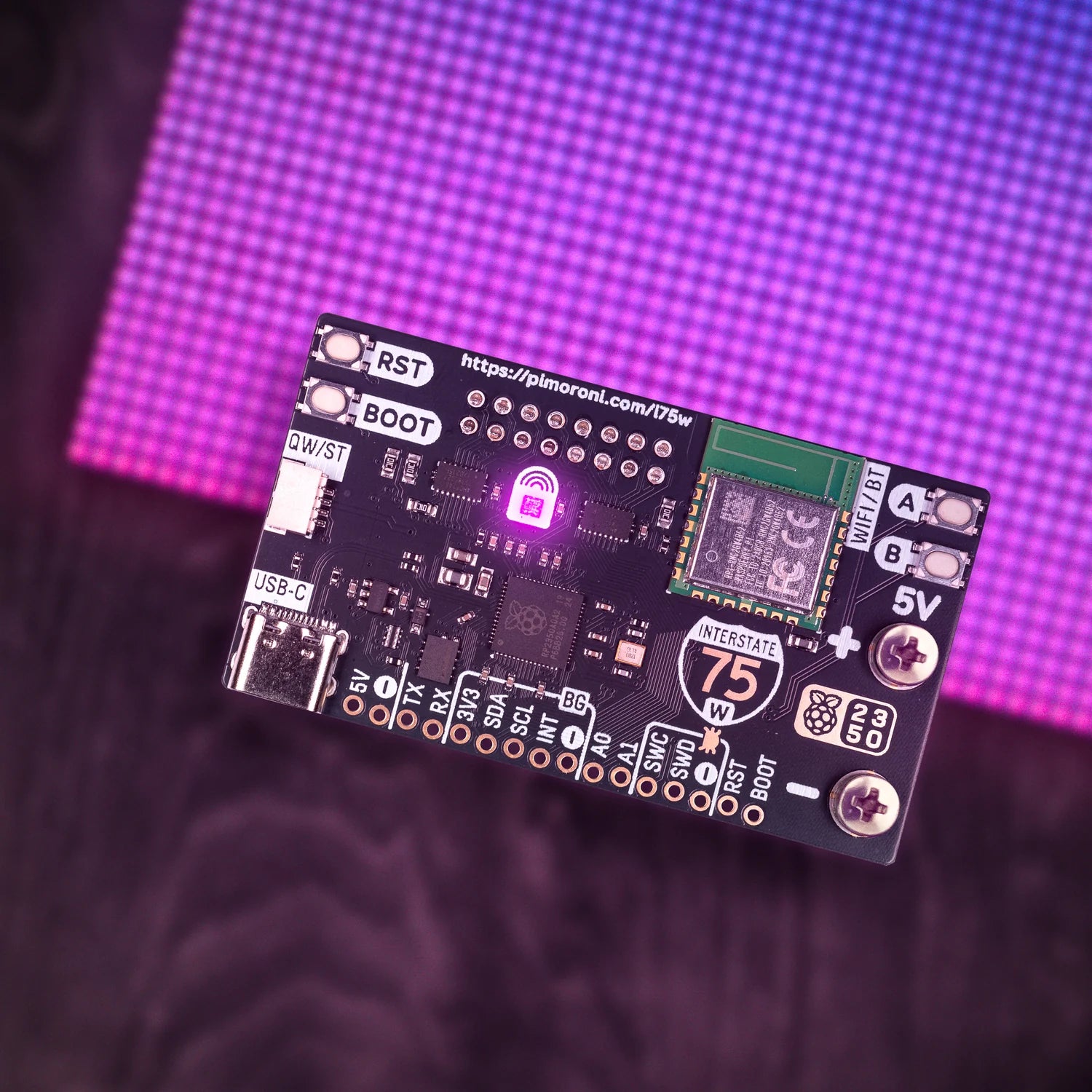

Interstate 75 W is a RP2350-based driver board for HUB75-style LED matrices - they're the chainable LED panels that you sometimes see making up video walls or big advertising displays. It's designed to plug neatly into the back of a LED panel, and it provides a quick and easy way to whip up some scrolling signage or an eye-catching LED display for sensor outputs. I75 W has wireless connectivity so you can also use it to display information from the internet! 🌎

It's powered via USB-C, which should also be able to power a few connected panels happily, assuming you're not planning anything too eye-bleedingly bright. It has three handy user buttons (A, B and BOOT) and an onboard RGB LED.

We've also popped a Qw/ST connector on there, to make it super easy to plug in Qwiic or STEMMA QT breakouts.
Here are some things you could do!
🚌 Tap into an API and display bus times, plane tracking or traffic info.
📈 Generate a big bold graph showing air quality or other sensor readings.
💡 Create some ad hoc, easily adjustable signage for your classroom, maker stall or kebab shop.
💾 Scroll greetz to your crew, just like in the old days:

"`-._,-'"`-._,-' HACKED AND PACKED BY PIMORONI "`-._,-'"`-._,-'

What's in the Starter Kit?

You can buy an I75 W on its own, or as part of a Starter Kit that includes LED panels to make a big square 128 x 128 (32 x 32cm) or rectangular 256 x 64 (64 x 16cm) display. The Starter Kit includes:
  • Interstate 75 W (RP2350)
  • 2x 128x64 RGB LED matrix panels
  • Power and data cables to connect up the panels
  • 8x magnetic feet with screw threads
  • A nice long USB cable

Features
  • Powered by RP2350A (Dual Arm Cortex M33 running at up to 150MHz with 520KB of SRAM)
  • 4MB of QSPI flash supporting XiP
  • Raspberry Pi RM2 module (CYW43439), supporting IEEE 802.11 b/g/n wireless LAN, and Bluetooth
  • Compatible with our 32x32, 32x64, 64x64 and 128x64 LED matrices.
  • Sturdy screw terminals for powering the LED panels
  • USB-C connector for programming and power
  • Two user buttons (labelled A and B)
  • Reset and boot buttons (the boot button can also be used as a user button)
  • RGB LED
  • Qw/ST (Qwiic/STEMMA QT) connector
  • Comes fully-assembled (no soldering required)
  • Programmable with C/C++ or MicroPython


Pinout and Schematic

Getting Started

You can find the most recent version of the MicroPython firmware and examples at the link below:

Connecting Breakouts

I75 W has a Qw/ST (AKA Qwiic/STEMMA QT) connector, so you can connect up Qw/ST breakouts easily using a JST-SH to JST-SH cable.
