Pi Australia  |  SKU: PH-106008

HighPi Pro 5S Case for Raspberry Pi 5

$27.00
Tax included Shipping calculated at checkout.

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

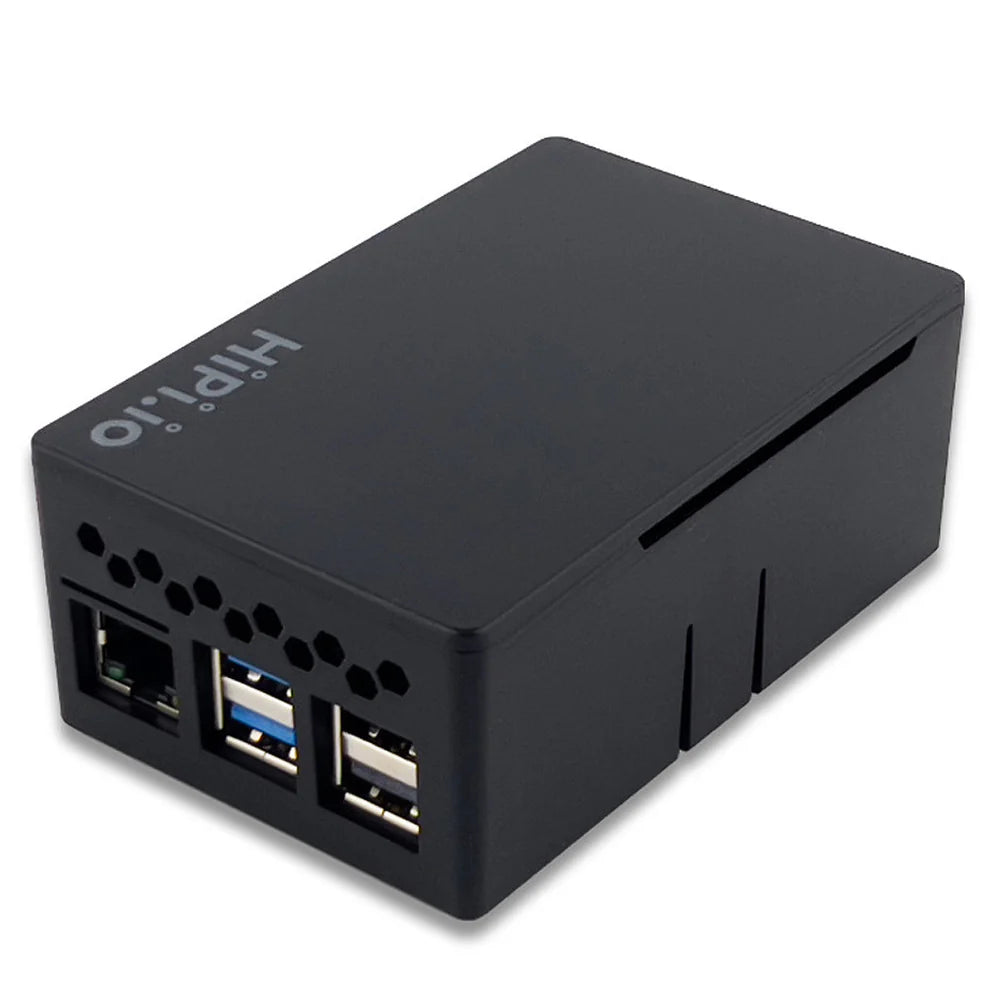

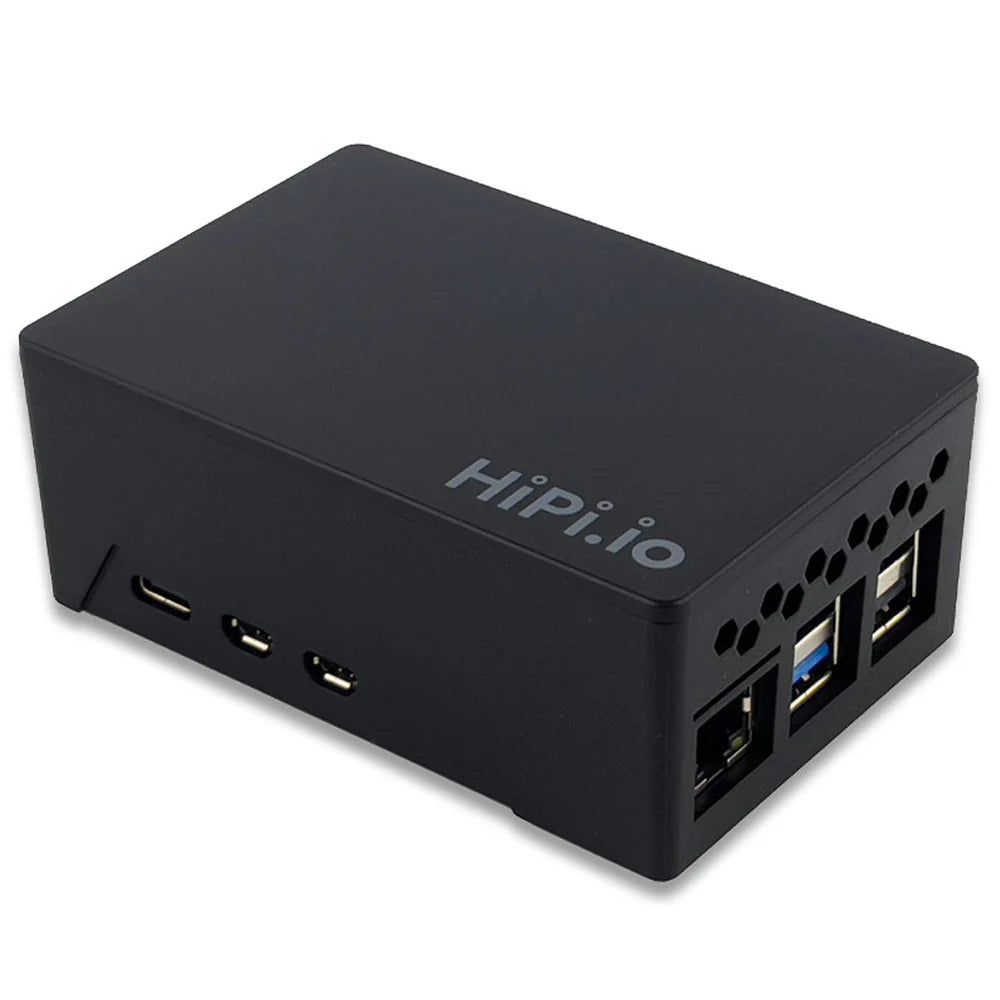

The HighPi Pro 5S Case for Raspberry Pi 5 continues the HighPi case line, offering ease of use, flexible configuration, and attractive design.

It embraces the upgrades found on the Pi 5 board, namely its active cooler, power button, and PCIe port. Lots of space is available for HATs, such as power over ethernet, NVMe storage, or UPS backup boards.

This ABS case is one of the easiest in the market to assemble and disassemble, no tools are required and yet all components are held securely. The package includes four rubber feet for stability.

Raspberry Pi, Active Cooler and Camera Module not included

Features
  • Compatible with Raspberry Pi 5 only
  • Optimized case vents for active coolers
  • Power button and external status LED visibility
  • Camera cable slot above ethernet to connect to external cameras
  • Secure microSD card cover that is removable from inside the case, and is stored underneath the lid when not in use
    • Note - the SD cover is attached to the inside of the lid!
  • Industry-leading ease of use, rapid tool-free assembly and disassembly
  • Large internal volume for HATs, break-out boards, or heatsinks
  • VESA or wall-mounting via optional VESA mount kit (coming soon)
  • GPIO ribbon cable port
  • Self-adhesive rubber feet, set of 4

Specifications

What fits inside?
We were very impressed with the Active Cooler that launched with the Pi 5, so it was made central in our design. Along with the Raspberry Pi 5 and Active Cooler, the case can additionally hold:
  • PoE HATs
  • NVMe HATs
  • UPS HATs
  • Any HAT not requiring input/output ports, up to 14.5mm tall (on top of Active Cooler with 16mm standoffs)
If not using the Active Cooler, then the case can accommodate oversized heatsinks or cooling solutions, or any HAT up to 30.5mm above the Pi PCB that does not require input/output ports.


Assembly Instructions
This case is one of the easiest in the market to assemble and disassemble, no tools are required and yet all components are held securely. To assemble the Pi board and case, follow these simple steps:
  • Install the Active Cooler, Real Time Clock, and any other desired add-on boards/HATs on the Raspberry Pi
  • Slide the Raspberry Pi board into the front of the case, so that the USB-C and micro-HDMI ports go into their positions
  • Press down on the back of the Raspberry Pi board to snap it into the case
  • Insert the right edge of the lid into the case, then snap down the left side
You're done! To remove the lid and Raspberry Pi, simply:
  • Remove the lid by pushing gently on the bump under the hexagon vents, and then pushing upward
  • Remove the Raspberry Pi board by pulling the snap that secures the board outward without your finger

Package Contents
  • 1x HighPi Pro 5S Case
  • 4x Rubber feet
Raspberry Pi, Active Cooler and Camera Module not included
