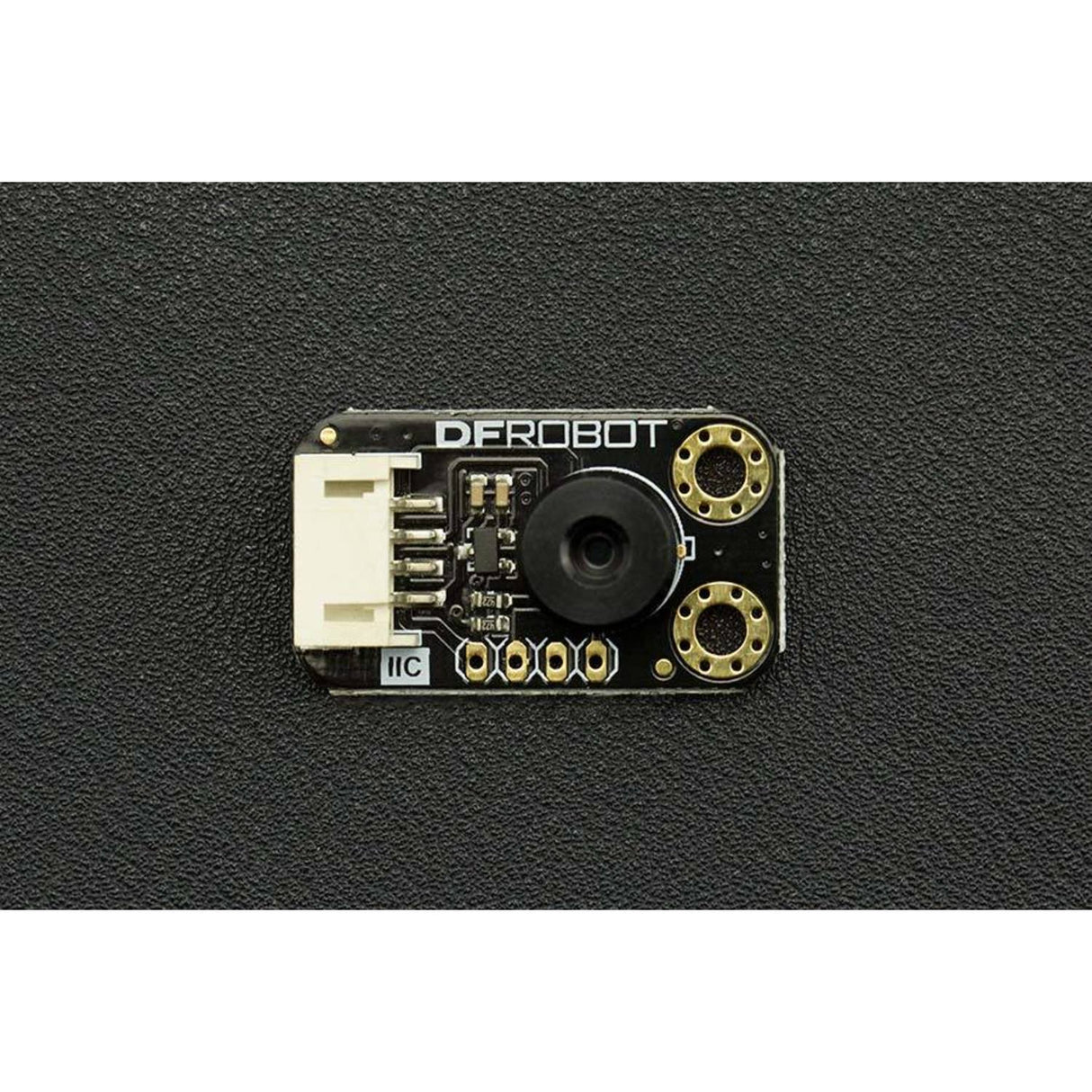

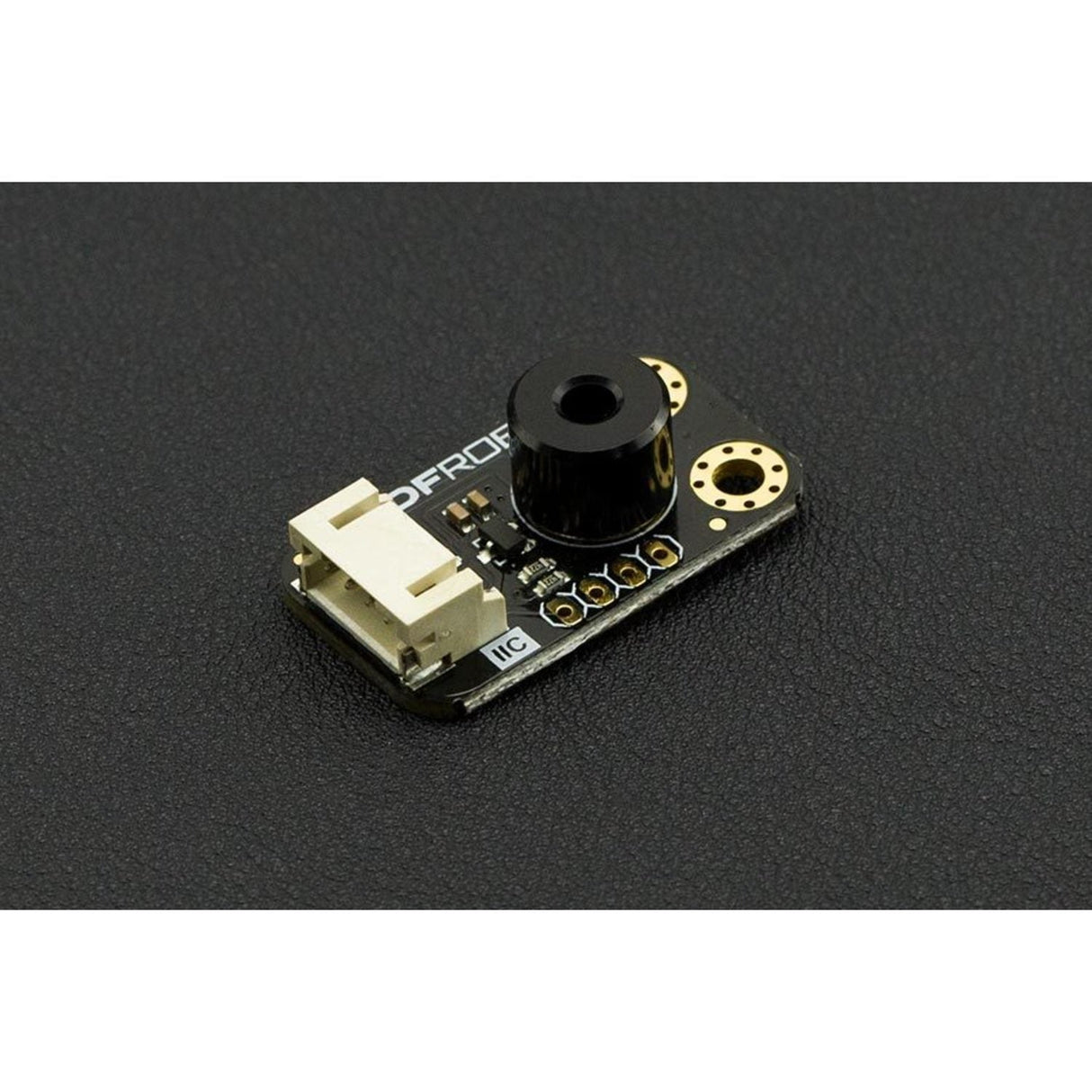

Gravity: Non-contact IR Temeperature Sensor For Arduino

SKU: DF-SEN0206
Price
$23
Taxes and shipping calculated at checkout

Got a Question?

Give us a call on 1300 240 817

Frequently Bought Together

No reviews

We Accept

American Express
Apple Pay
Generic
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa

Description


INTRODUCTION

We can divide temperature measurement in to two types: contact and non-contact. Contact measurement can only accurately measure temperature when the testing object and the sensor reach thermal equilibrium. This can mean longer response times and reading inaccuracies offset by ambient temperature. By contrast, non-contact measurement uses infra-red radiation to measure the temperature and does not require a direct touch. Additionally, this method of measurement can be read quickly and accurately. In recent years non-contact measurement methods have been used for medical, environmental monitoring, home automation, automotive electronic, aerospace and military applications. Our latest infrared temperature measurement module is the MLX90614. This module measures the surface temperature by detecting infrared radiation energy and wavelength distribution. The IR temperature probe consists of an optical system, photoelectric detector, amplifier, signal processing and output module. The optical system collects the infrared radiation in its field of view and the infrared radiation energy is converted in to corresponding electrical signals when converging on the photoelectric detector. After being processed by the amplifier and signal processing circuit, the signal is converted in to a temperature value. The MLX90614 is self calibrating and has a low noise amplifier integrated in to the signal processing chip. The chip itself is a 17 bit ADC and DSP device, giving accurate and reliable results.


SPECIFICATION

  • Operating Voltage: 3.3V - 5V
  • Operating Current: 1.2mA
  • Temperature: -70.01°C to +382.19°C, (0.01 °C resolution)
  • Interface Type: I2C

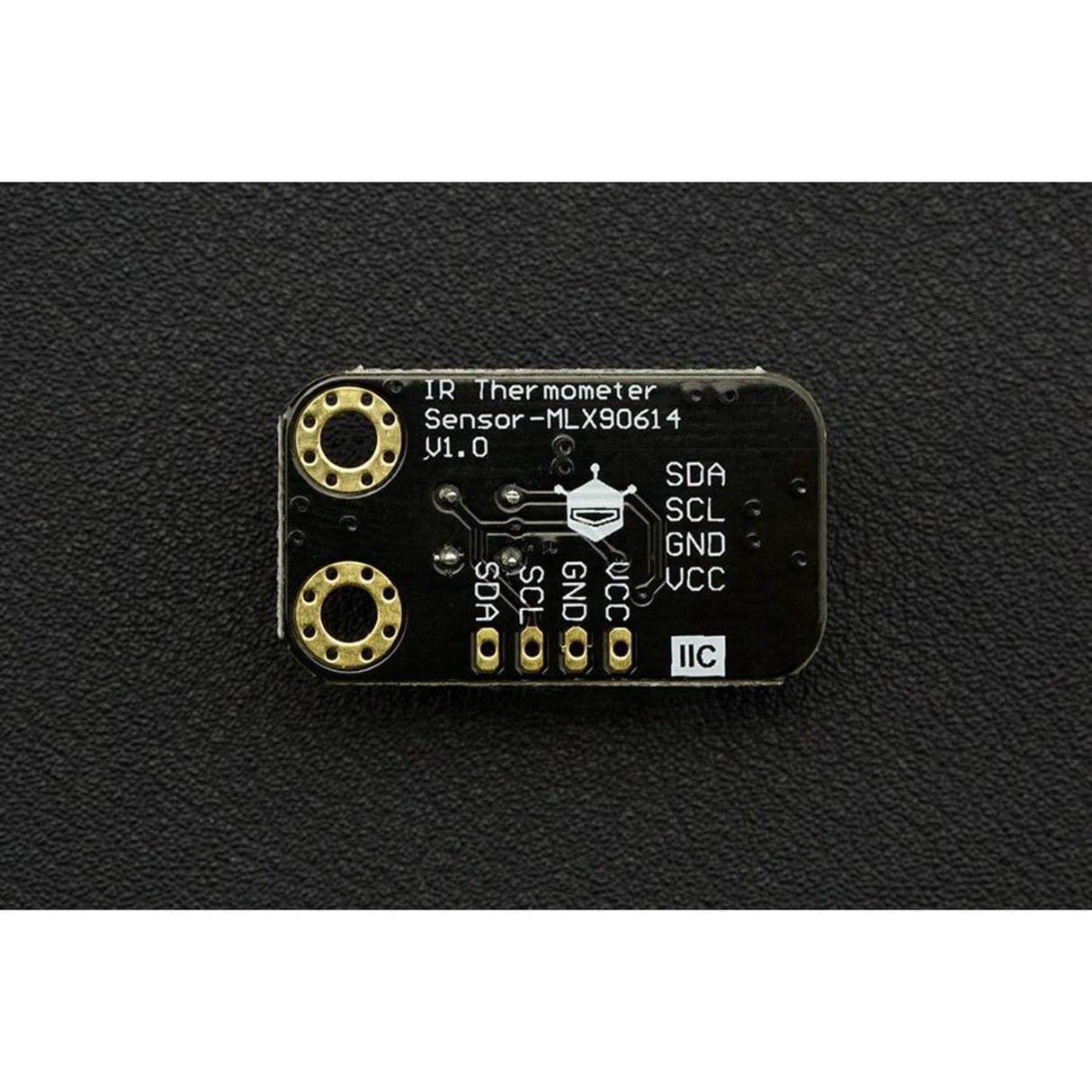

  • Interface Line Sequence: VCC, GND, SCL, SDA
  • Dimensions: 31.5*18 mm/1.24 x 0.7 inches
  • Weight: 15g

DOCUMENTS

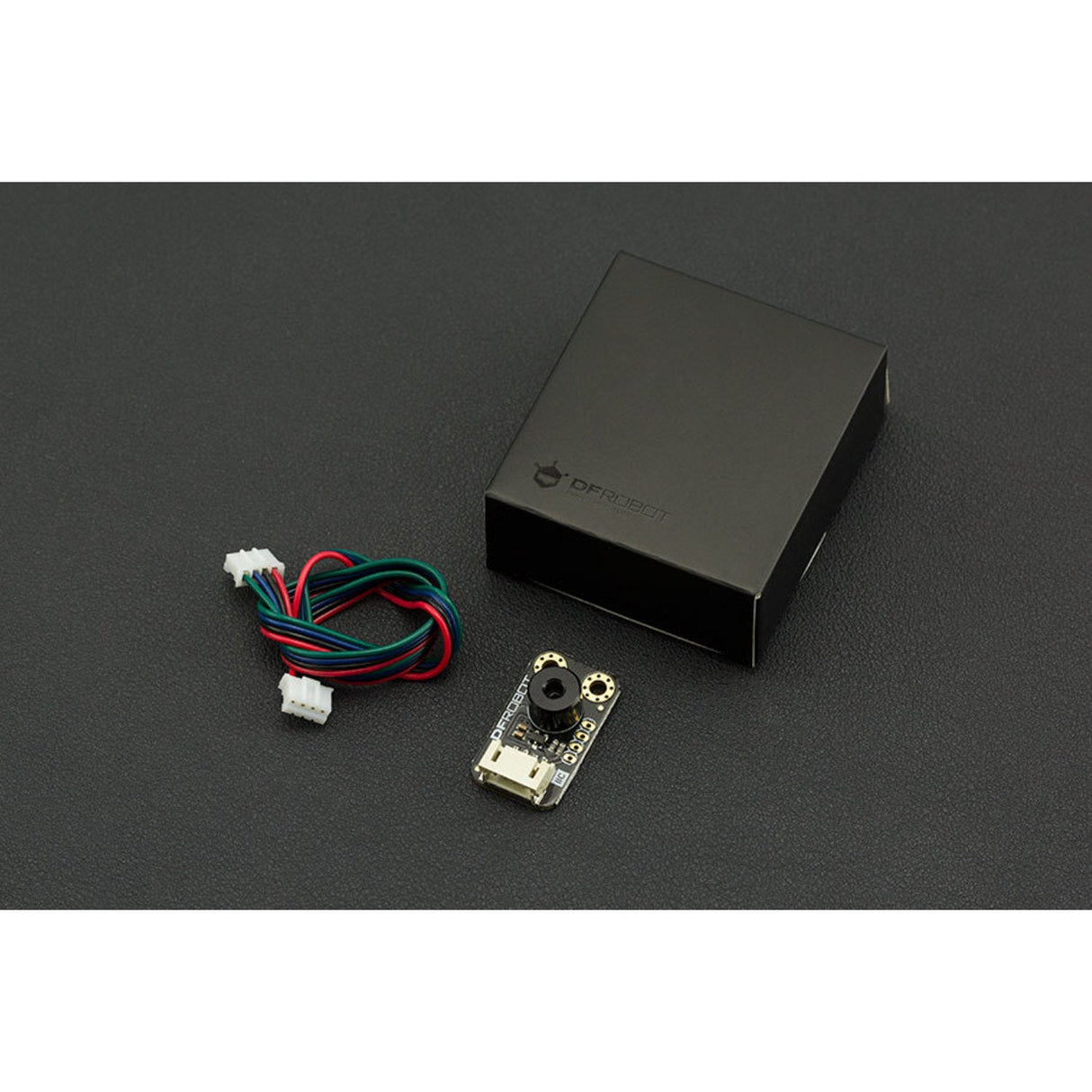

SHIPPING LIST

  • on-contact IR Thermometer Sensor x1
  • JST PH2.0 4-Pin cable x1
