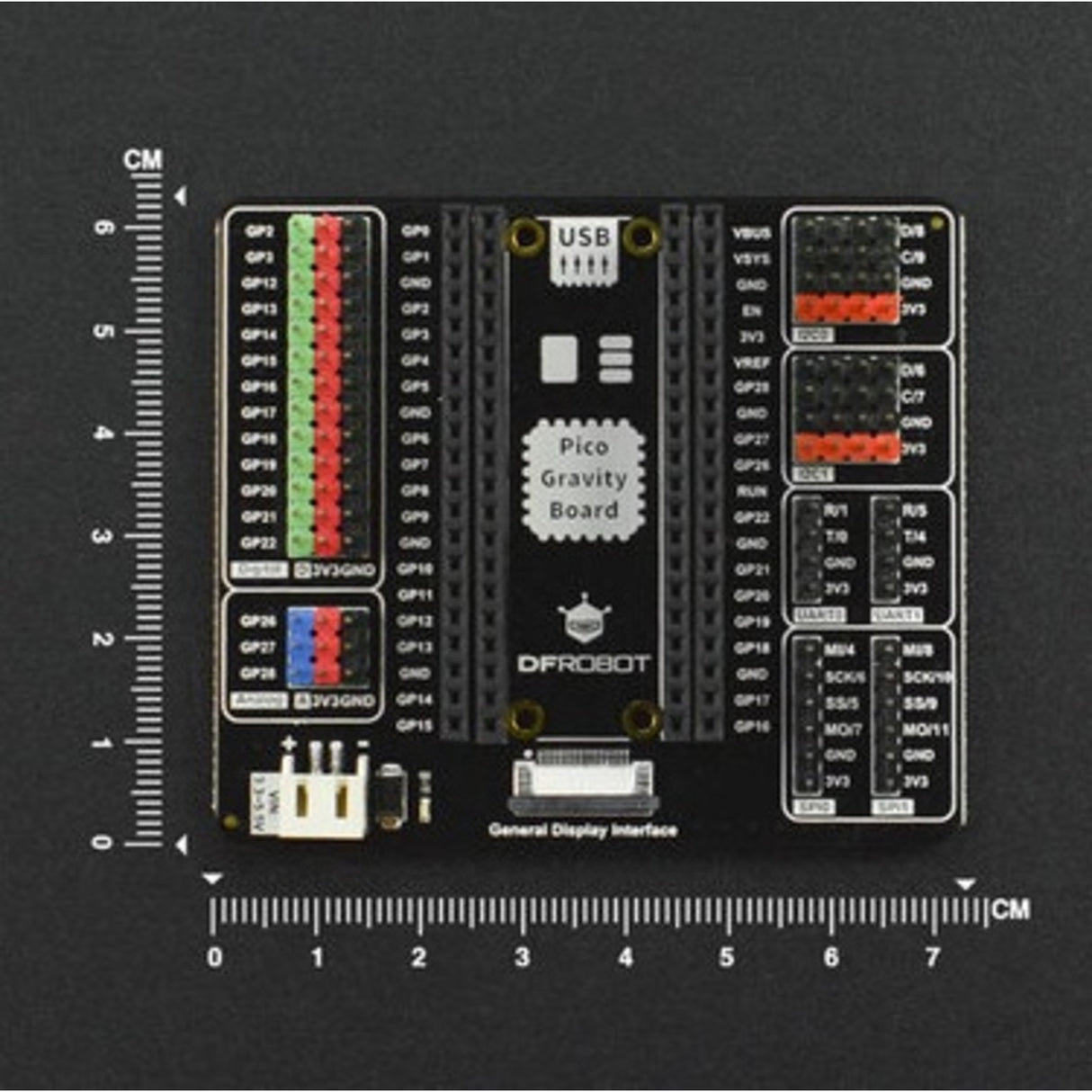

Gravity: Expansion Board for Raspberry Pi Pico
Note: The product not included Raspberry Pi Pico.
This Gravity Expansion Board, specifically designed for Raspberry Pi Pico, is compatible with a variety of Gravity sensors and modules.
With all pins led out, you can directly use it without soldering. Additionally, the board offers various communication ports including, 2 x I2C, 2 x UART, 2 x SPI, 3 x analog IOs and 13 x digital IOs as well as a 3.3~5.5V power connector and GDI port, which provides you with an easier way to prototype.
FEATURES
No need to weld, plug-and-play
Support all kinds of Gravity sensor and modules
Comes with 3.3~5.5 V PH2.0 power interface, applicable to mobile projects
Onboard GDI port, compatible with DFRobot - GDI series display
SPECIFICATION
All pins brought out onto female pin headers
Digital IO x 13: GP2, GP3, GP12-22
Analog IO x 3: GP26-GP28
UART x 2
I2C x 2
SPI x 2
PH2.0 Power Connector: 3.3 V - 5.5 V
Display Screen Interface: GDI
Dimension: 73.00x63.00 mm/28.74x24.8 inch
SHIPPING LIST
Gravity: Expansion Board for Raspberry Pi Pico x 1
