Pi Australia  |  SKU: LB-LR0130

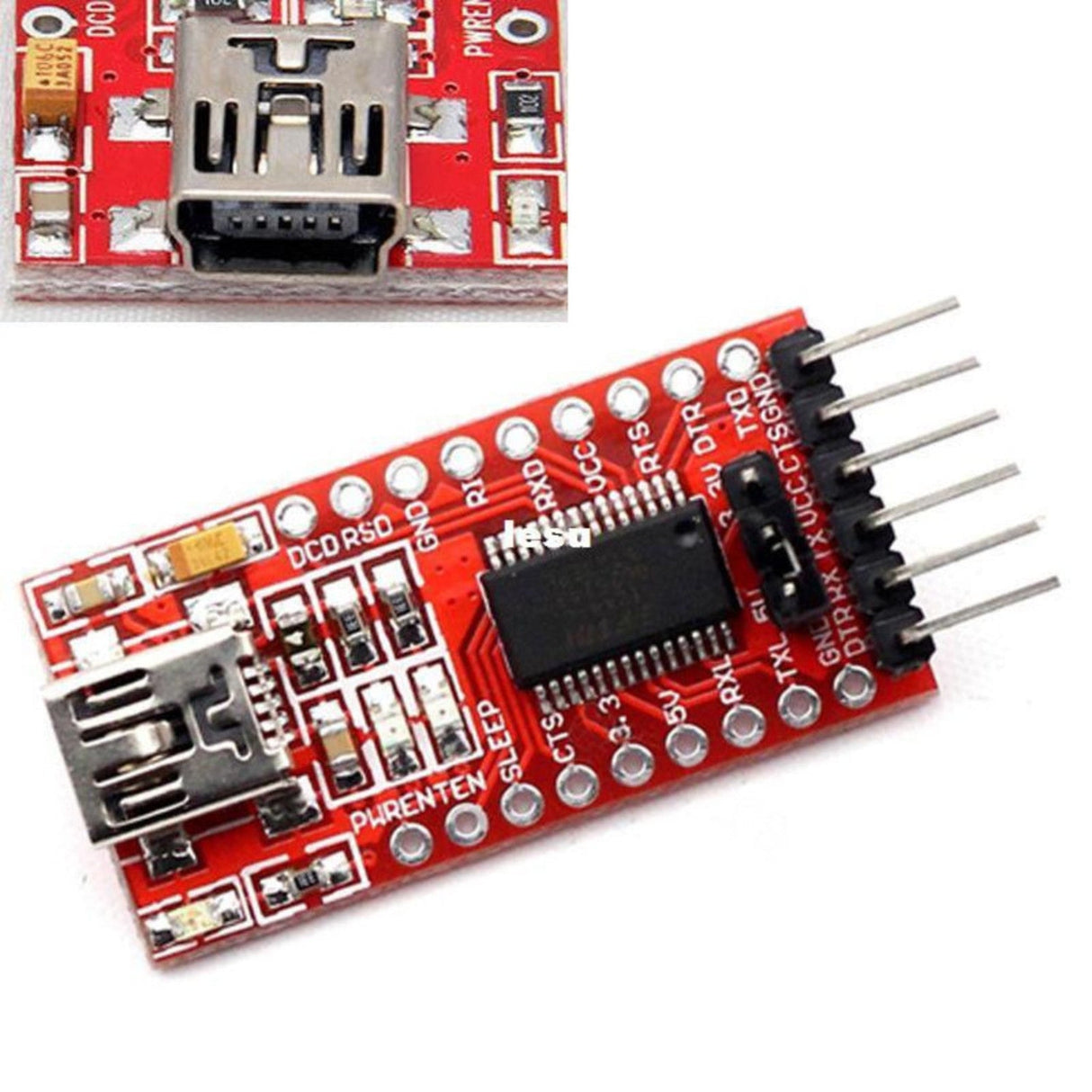

FTDI compatible FT232RL USB to TTL Serial Converter Adapter Module 5V and 3.3V

$7.88
Tax included Shipping calculated at checkout.

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

Features:

Chip: FT232RL compatible
Draw out all signal port of FT232RL chip.
RXD/TXD transceiver communication indicator.
USB power supply, can choose 5V or 3.3V ,set by jumper.
With over current protection, using 500MA self-restore fuse.
Pin definition: DTR,RXD,TX,VCC,CTS,GND
Pitch:2.54mm
Module size:33mm(length)*17mm(width)
Interface: Mini USB
Package Included:
1 x New FT232RL USB To Serial Adapter Module
