Pi Australia  |  SKU: LB-EAGLED-BUZZ

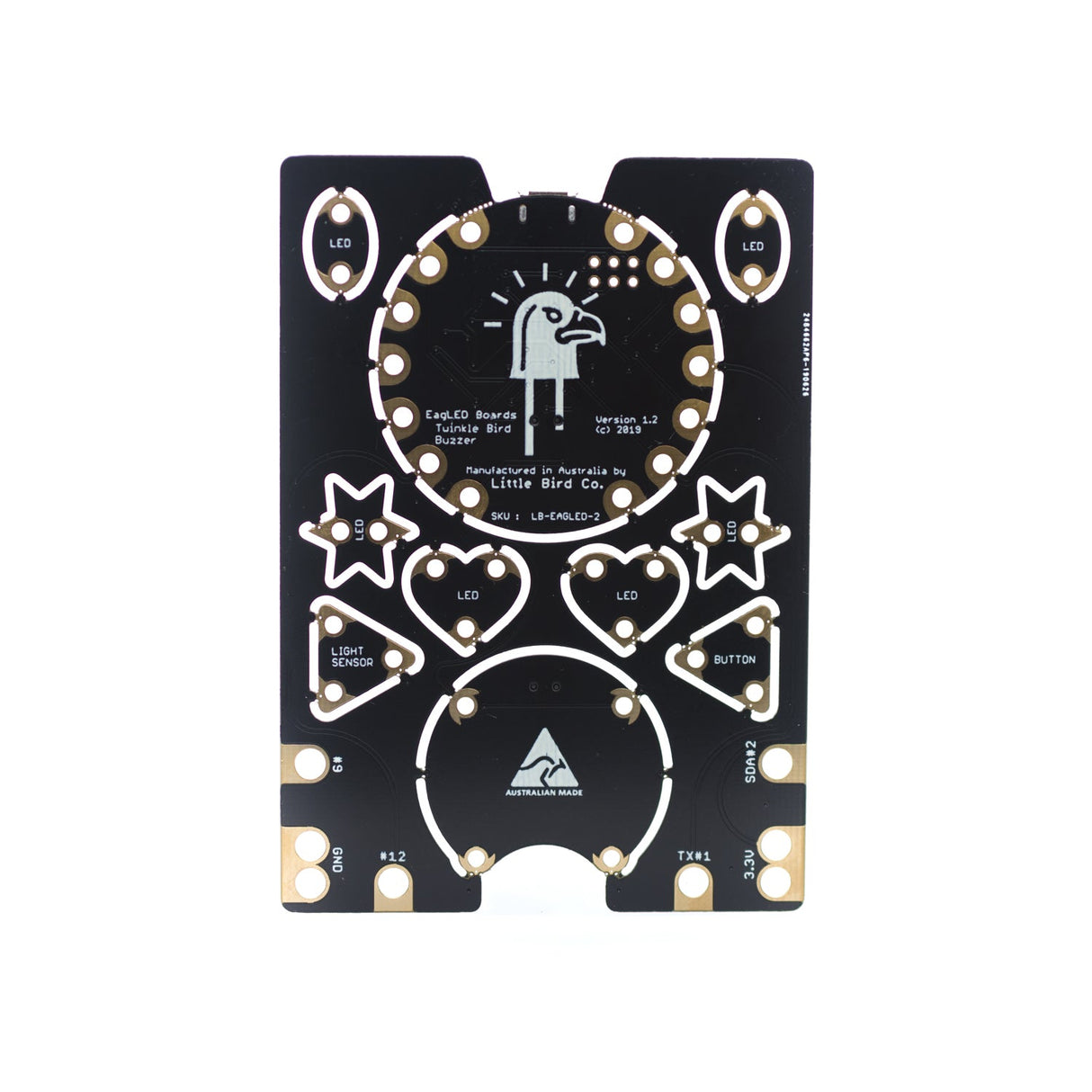

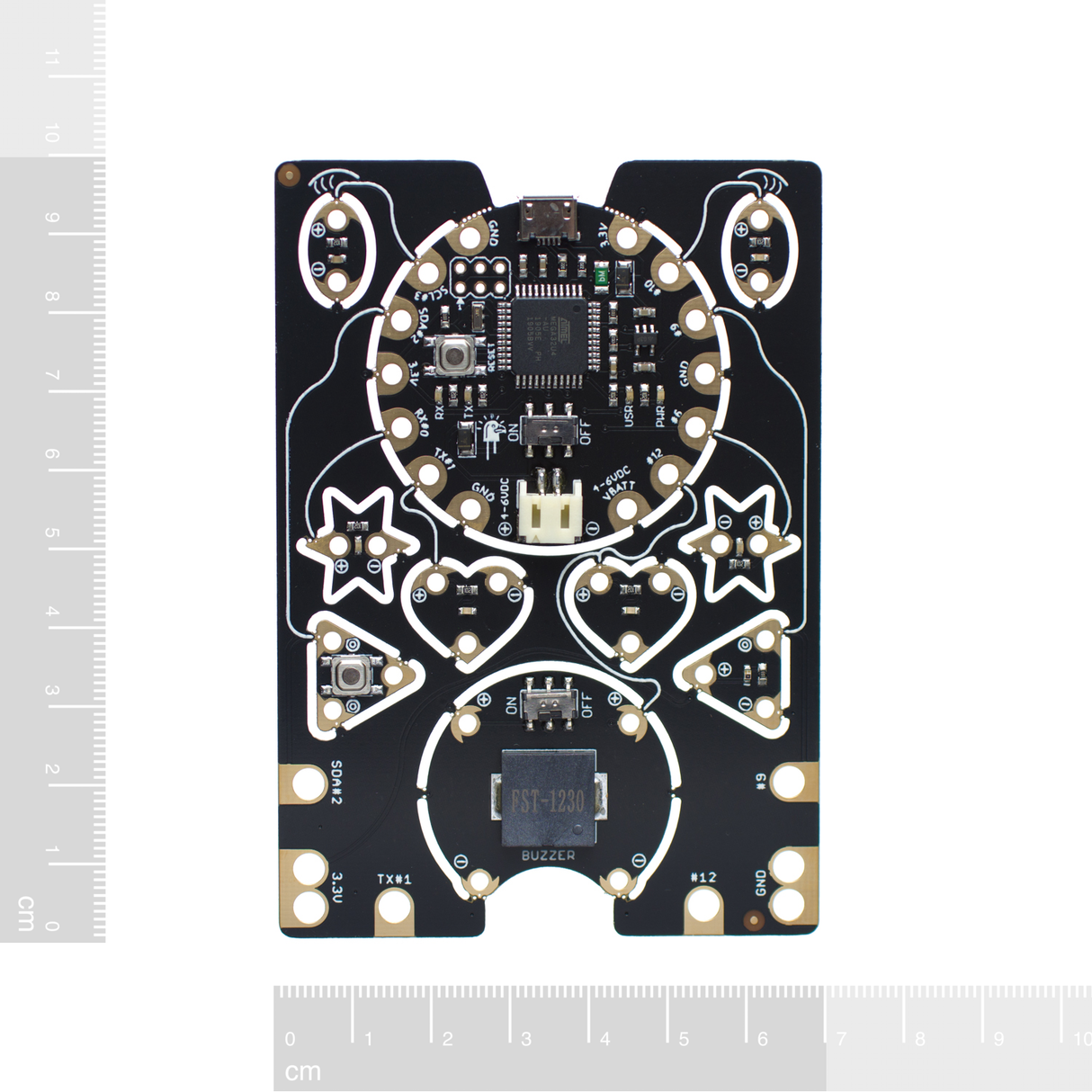

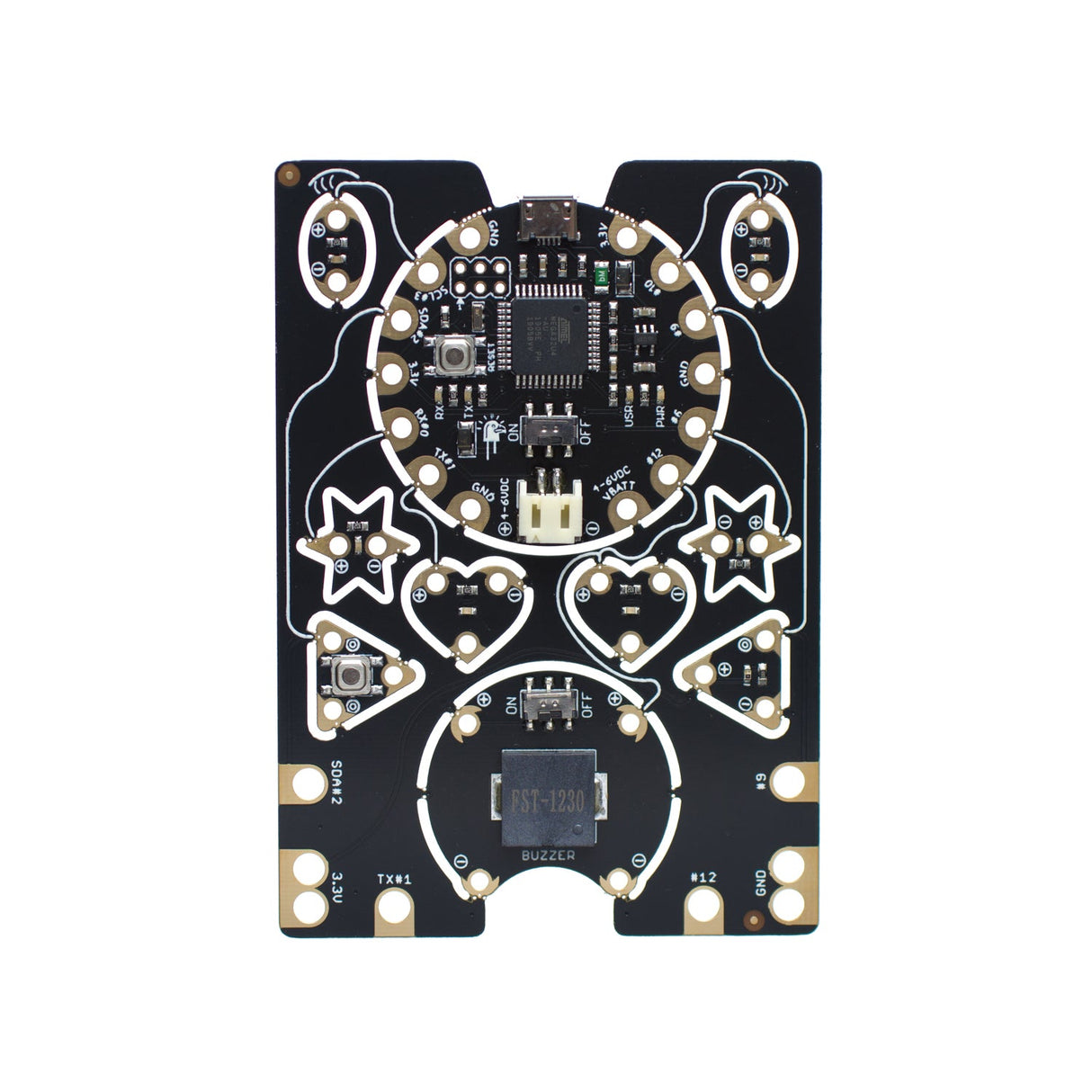

EagLED - Little Bird E-Textile Snippable Board with Buzzer

$33.35
Tax included Shipping calculated at checkout.
Essentials for EagLED - Little Bird E-Textile Snippable Board with Buzzer

Call us on 1300 240 817 between 10 AM and 4 PM on weekdays or email team@littlebird.com.au .

The Fastest Shipping

We ship faster because we built our own shipping 🤖 robot.

Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.

You can view shipping options and pricing at checkout without logging in.

For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.

We deliver across Australia, and here are the options (based on your location; view them on the cart page):

  • Standard Post: Starting at $7 (6+ business days, with tracking)
  • Express Post: Starting at $11 (2+ business days, with tracking)
  • Same Day Delivery: Available for Sydney orders.
  • Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

EagLED is Littlebird Electronics' wearables/e-textiles development kit. It is a complete Arduino compatible microcontroller that has LEDs, Light Sensor, Push Button and Buzzer built into a snippable board. It is a lower cost, fully featured alternative to the Lilypad Protosnap.

USB Support

The EagLED has built-in USB support that user can use to program and power up the board. It's fully compatible with Arduino IDE and also a Microsoft Certified device. With the built-in USB support, user can write sketch that make EagLED act like a mouse, keyboard and also MIDI musical equipment when connected to the computer.

Power Supply

EagLED is designed to be powered by multiple power supplies. 6V coin cell, USB. EagLED has an onboard 3.3V 600mA CMOS LDO REGULATOR protected by a diode plus and IDEAL diode. The USB supply is also protected by a USB fuse. When powered by a CR2032 coin cell battery, the EagLED is be able to run up to 10 hours with the default factory blinking sketch.

EagLED is fabric friendly. All the component on board are flush to the PCB and won't snag to the garments.

EagLED is easy to use and beginner friendly and destroy proof when battery is connected with a wrong polarity.

EagLED has 4 indicator LEDs, power good, TX, RX and user controlled LED.

EagLED has an onboard ICSP connector for reprogramming by advance users.

The main board of EagLED has 14 sewing tap pads for attachment and electrical connections.

EagLED also comes with 2 Eye LEDs, 2 star LEDs, 2 love heart LEDs, a push button and a light sensor that are all detachable for sewing at different places of a garment.

EagLED sewing pads are also crocodile clip friendly.

You will need a battery pack for this board. We recommend a Lithium Polymer Battery or external pack.
The EagLED is made in Sydney, Australia.

Includes:

1x EagLED E-Textiles / Wearables Development Board

Specifications:
  • Dimensions: 70mm x 100mm
  • Weight : 13.5g
  • Input Supply 1: 5V USB power
  • Input Supply 2: 6V CR2032 coin cell
  • Input Supply 3: 3.7V Lipo battery
  • Maximum Input Supply : 3VDC – 6VDC (Do not supply over 6VDC)

Resources:

A set of eighteen beginner-friendly guides available right here ..

 https://www.littlebird.com.au/a/how-to/#eagled
