Colour-coded GPIO pins that make locating that ground or power connection you need super simple!

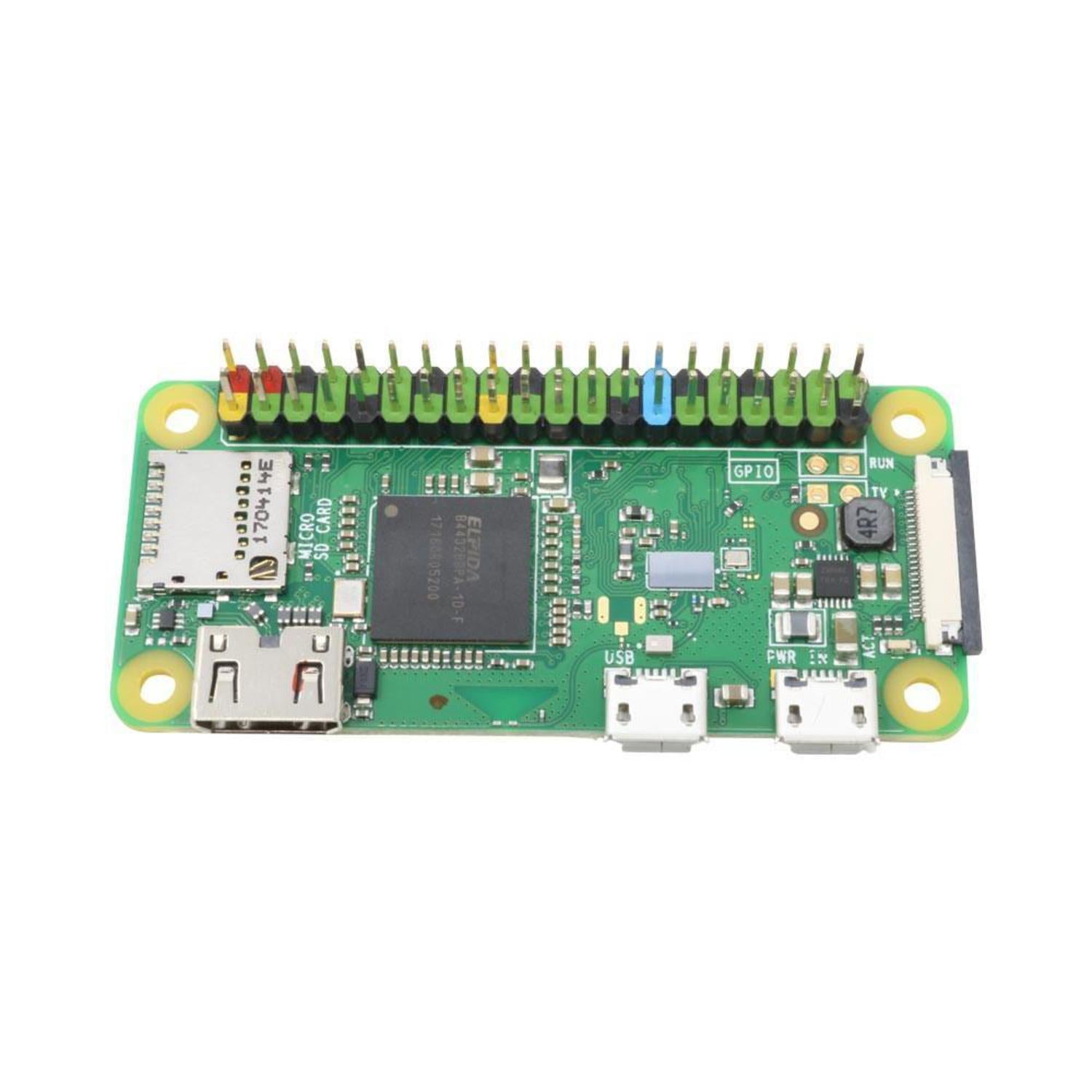

These 40-pin 2x20 male headers from our friends at The Pi Hut can be used on a Raspberry Pi Zero and are colour-coded for your prototyping convenience.
You'll never have to search for a ground pin again!
The colour coding is nice and simple:
- Red = 5V
- Yellow = 3V3
- Black = GND
- Blue = DNC (Reversed I2C)
For hard-mode try installing the header the wrong way round and throwing away your normal pin reference! ;-)
* Raspberry Pi Zero NOT included

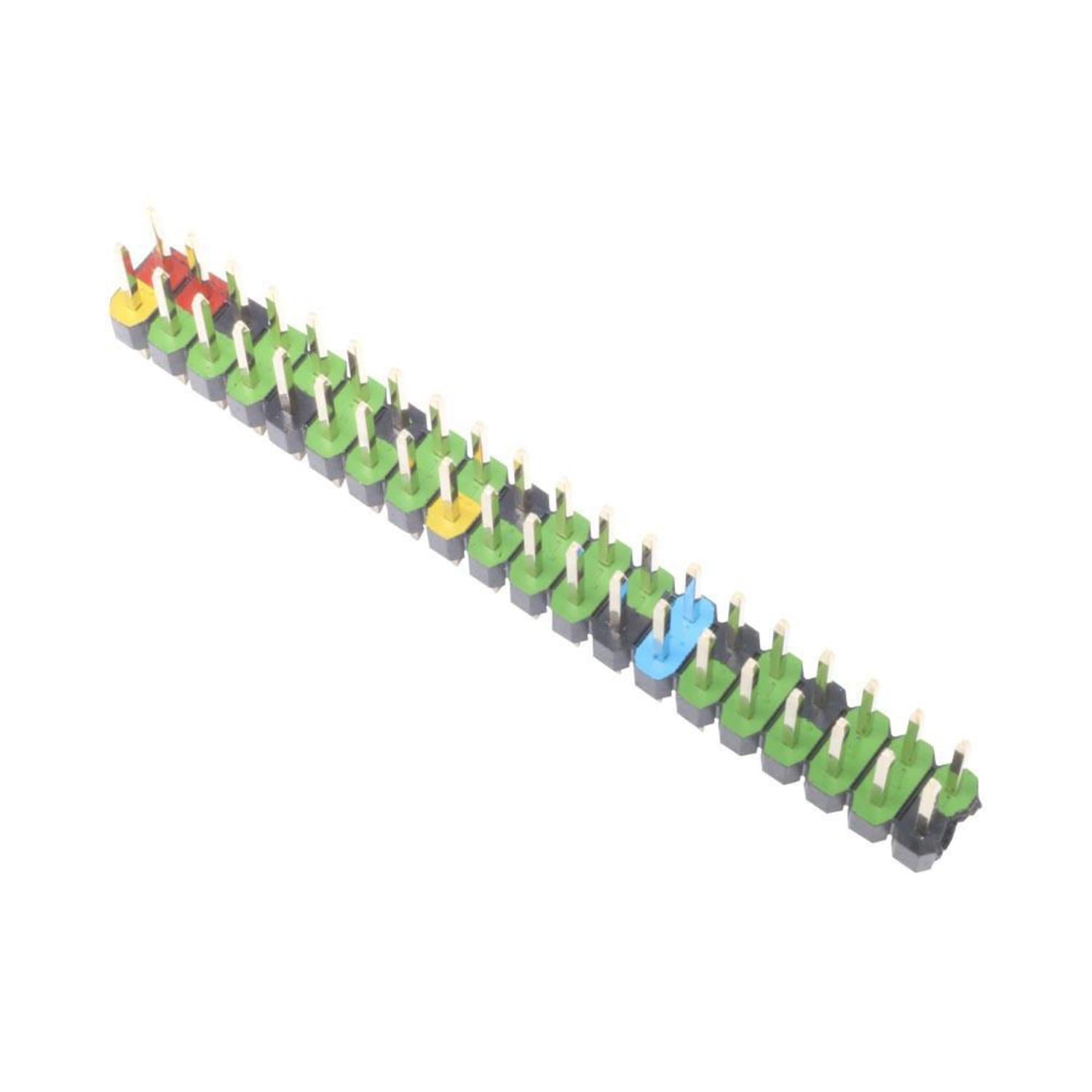

Colour-coded GPIO Header for Pi Zero
We have 131 units in our Sydney Warehouse available for immediate dispatch.
We can get a further 100 units in Australia from Pimoroni.
Raspberry Pi Model Compatibility | ||
---|---|---|
RP4 |
|
Doesn't with Raspberry Pi 4 Model B |
RP3A+ |
|
Doesn't with Raspberry Pi 3 Model A+ |
RP3B+ |
|
Doesn't with Raspberry Pi 3 Model B+ |
RP3B |
|
Doesn't with Raspberry Pi 3 Model B |
RP2B |
|
Doesn't with Raspberry Pi 2 Model B |
RP1B+ |
|
Doesn't with Raspberry Pi 1 Model B+ |
RP1A+ |
|
Doesn't with Raspberry Pi 1 Model A+ |
RP0W |
|
Works with Raspberry Pi Zero W |
RP0 |
|
Works with Raspberry Pi Zero |
RPCM3+ |
|
Doesn't with Raspberry Pi Compute Module 3+ |
