Clipper LTE 4G Breakout (SP/CE)
Clipper LTE 4G Breakout (SP/CE) - Board Only is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Fastest Shipping
The Fastest Shipping
We ship faster because we built our own shipping 🤖 robot.
Pi Australia is operated by Little Bird, and we go to great lengths to ship your orders, often within minutes.
You can view shipping options and pricing at checkout without logging in.
For orders over 500g (such as bulky items), shipping may cost more than the initial estimate.
We deliver across Australia, and here are the options (based on your location; view them on the cart page):
- Standard Post: Starting at $7 (6+ business days, with tracking)
- Express Post: Starting at $11 (2+ business days, with tracking)
- Same Day Delivery: Available for Sydney orders.
- Non-metro WA, NT, SA, and TAS: May take an additional 2+ days.

- Clipper 4G LTE Breakout
- SP/CE cable
- Antenna (108mm)
-

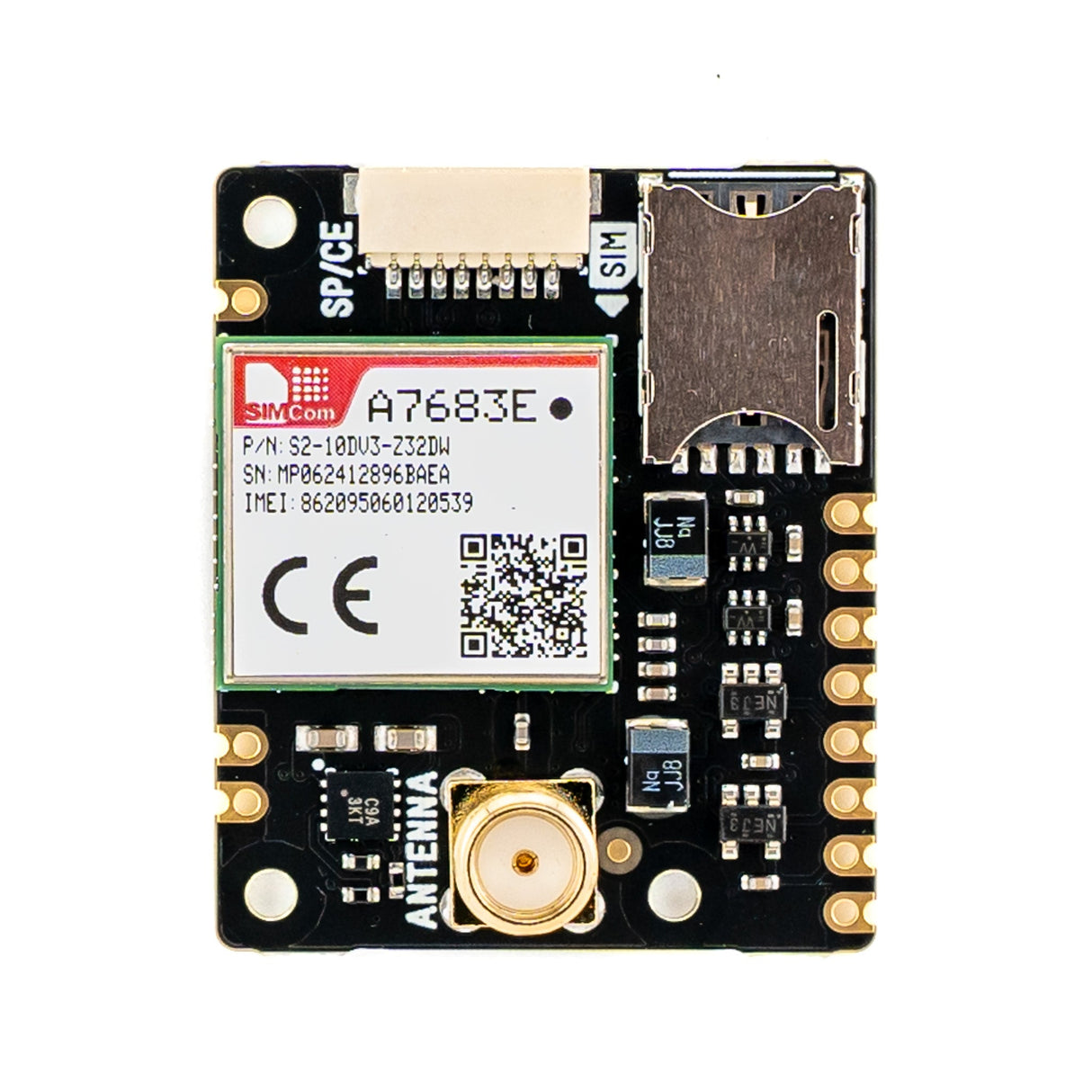

SIMCom A7683E 4G LTE module
- Frequency Bands: LTE-FDD B1/B3/B5/B7/B8/B20/B28
- Control Via AT Commands (SIMCom AT-Command Manual)
- SP/CE connector (8 pin JST-SH)
- SIM card slot
- SMA connector for attaching an antenna
- No soldering required (if you connect using SP/CE).
- Compatible with Raspberry Pi Pico / RP2040 / RP2350
- Compatible with Raspberry Pi computers
- Dimensions: 35x29x5mm (Antenna connector is 11mm tall)
B1/B3/B5/B7/B8/B20/B28
- Schematic

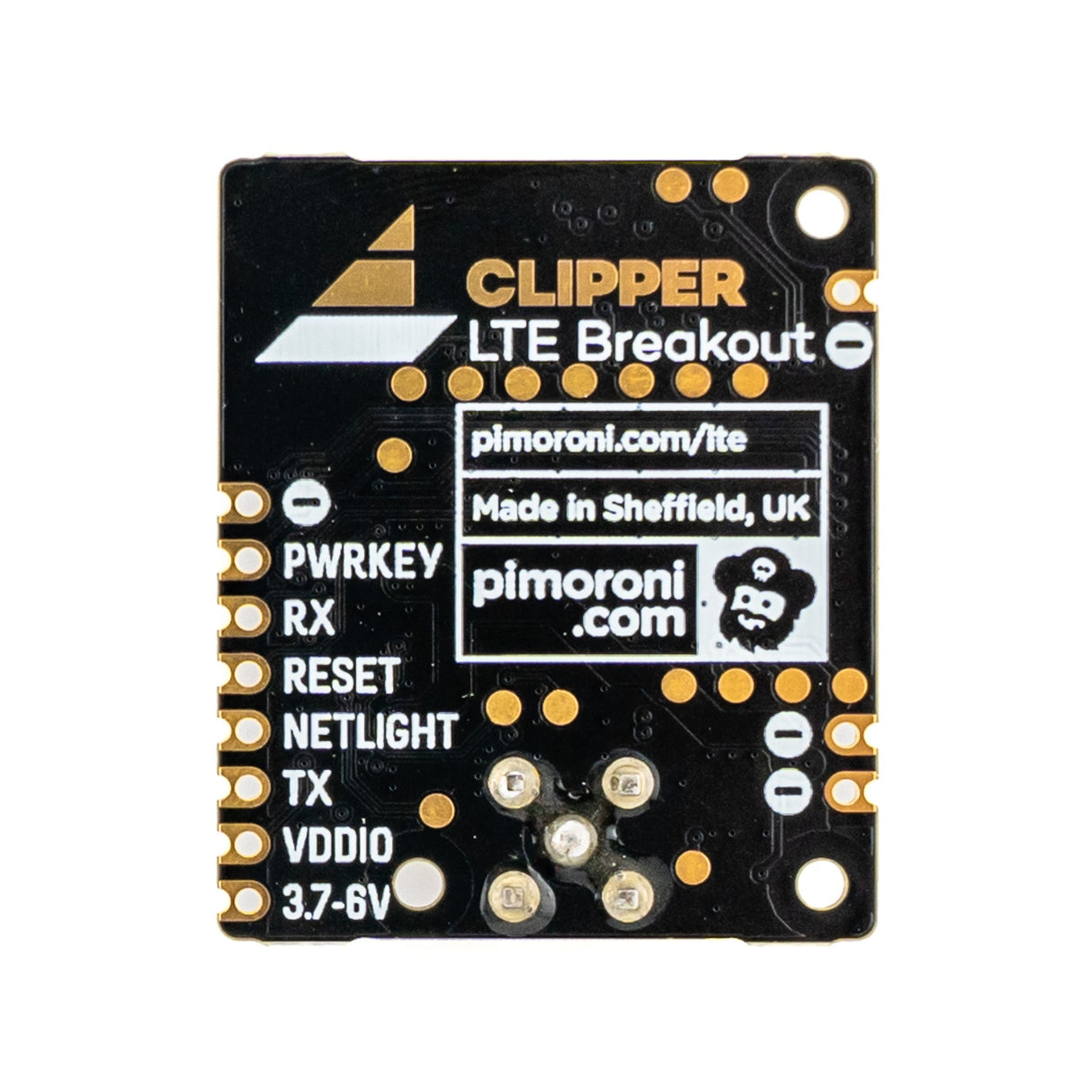

- Pin functions (these functions are available via the SP/CE connector, and as unpopulated headers on the breakout):
- GND - Ground (this is pin 1 on the SP/CE connector, nearest the SIM card holder)
- PWRKEY - Power key pin, needs to be toggled low and then high to power up the module
- RX - UART input to breakout
- RESET - Reset pin, pull high to keep breakout active
- NETLIGHT - Output from LTE module, for blinking a LED when there is a network connection. It has a max output drive of 7mA and if you wire an external LED to this pin it should have a series resistor.
- TX - UART output from the breakout
- VDDIO - IO voltage input, 3.0 - 3.6V recommended for reliable IO. Low current consumption.
- VDD - 3.7V - 6.0V power input to the breakout (scroll down for current consumption info)
- Download pirate brand MicroPython for RP2350 boards
- Download pirate brand MicroPython for RP2040 boards
- MicroPython example
- VDD current consumption info from our testing:
- Idle: 17mA
- Sleep modes: 0.12mA - 1.63mA
- Peak current consumption when transmitting: 700mA (the peak current is only reached for a brief moment, and the 440uF of capacitors on the breakout help to smooth the peaks)
- The average currents we saw when actively using the module were in the 50mA - 100mA range.
- The LTE module has quite a sensitive undervoltage circuit, so if your breakout keeps turning off randomly or when you try and do anything with it check your power supply and wiring is up to the task!
