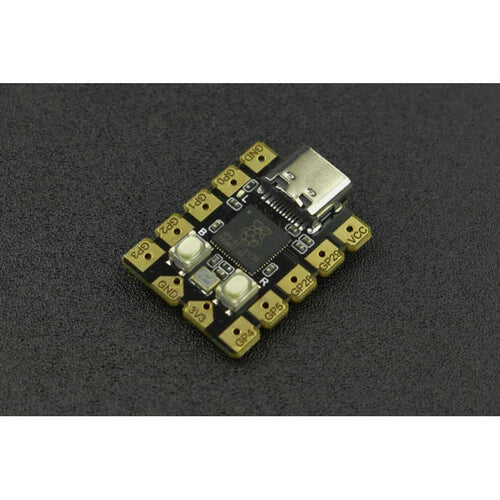

Introducing the Beetle RP2040 Mini Development Board, designed by DFRobot This board is ideal for embedded devices or projects due to its small size of 27mm x 20mm. It features a dual-core ARM Cortex-M0+ processor with up to 133MHz clock and 264KB internal RAM, as well as 8 GPIO ports that can serve as I2C, UART, SPI, digital port, analog port, etc. Plus, a large pad design makes soldering easier than ever.
The Beetle RP2040 Mini Development Board supports C++, MicroPython, and Arduino C programming, and is powered by a Raspberry Pi RP2040 microcontroller chip with 2M FLASH storage. It also has a USB TYPE-C interface and is compatible with USB 1.1 devices. Additionally, it includes a reset button, BOOT button, LED light, and temperature & humidity sensor, pressure sensor, ambient light sensor, and UV sensor.
This board is perfect for programmable light control and home appliance control, stage props control, desktop equipment, node data collecting and AI analysis, and computer USB devices. Get yours today and start building!
Specifications:
• MCU: Raspberry Pi RP2040
• Main Frequency: 133MHz
• RAM: 264K
• FLASH: 2M
• Power Supply: DC 3.3V~5V
• System Level: 3.3V
• USB Interface: TYPE-C
• GPIO: ×8
• I2C: ×2
• UART: ×2
• SPI: ×1
• Digital Port: ×8
• Analog Port: ×2
• Reset Button: ×1
• BOOT Button: ×1
• LED: ×1
• USB Device: USB 1.1
• Programming Method: C++, MicroPython, Arduino C, Mind+ graphical programming
• Soldering Pad Size: 4×3.5mm
• Pad Pitch: 2.54mm
• PCB Material: FR-4
• PCB Copper Clad Process: immersion gold
• Solder Material: environment-friendly and lead-free
• Dimension (without package): 27×20×4.91mm (at the highest point)/1.06×0.79×0.19"
The Beetle RP2040 Mini Development Board supports C++, MicroPython, and Arduino C programming, and is powered by a Raspberry Pi RP2040 microcontroller chip with 2M FLASH storage. It also has a USB TYPE-C interface and is compatible with USB 1.1 devices. Additionally, it includes a reset button, BOOT button, LED light, and temperature & humidity sensor, pressure sensor, ambient light sensor, and UV sensor.
This board is perfect for programmable light control and home appliance control, stage props control, desktop equipment, node data collecting and AI analysis, and computer USB devices. Get yours today and start building!
Specifications:
• MCU: Raspberry Pi RP2040
• Main Frequency: 133MHz
• RAM: 264K
• FLASH: 2M
• Power Supply: DC 3.3V~5V
• System Level: 3.3V
• USB Interface: TYPE-C
• GPIO: ×8
• I2C: ×2
• UART: ×2
• SPI: ×1
• Digital Port: ×8
• Analog Port: ×2
• Reset Button: ×1
• BOOT Button: ×1
• LED: ×1
• USB Device: USB 1.1
• Programming Method: C++, MicroPython, Arduino C, Mind+ graphical programming
• Soldering Pad Size: 4×3.5mm
• Pad Pitch: 2.54mm
• PCB Material: FR-4
• PCB Copper Clad Process: immersion gold
• Solder Material: environment-friendly and lead-free
• Dimension (without package): 27×20×4.91mm (at the highest point)/1.06×0.79×0.19"
