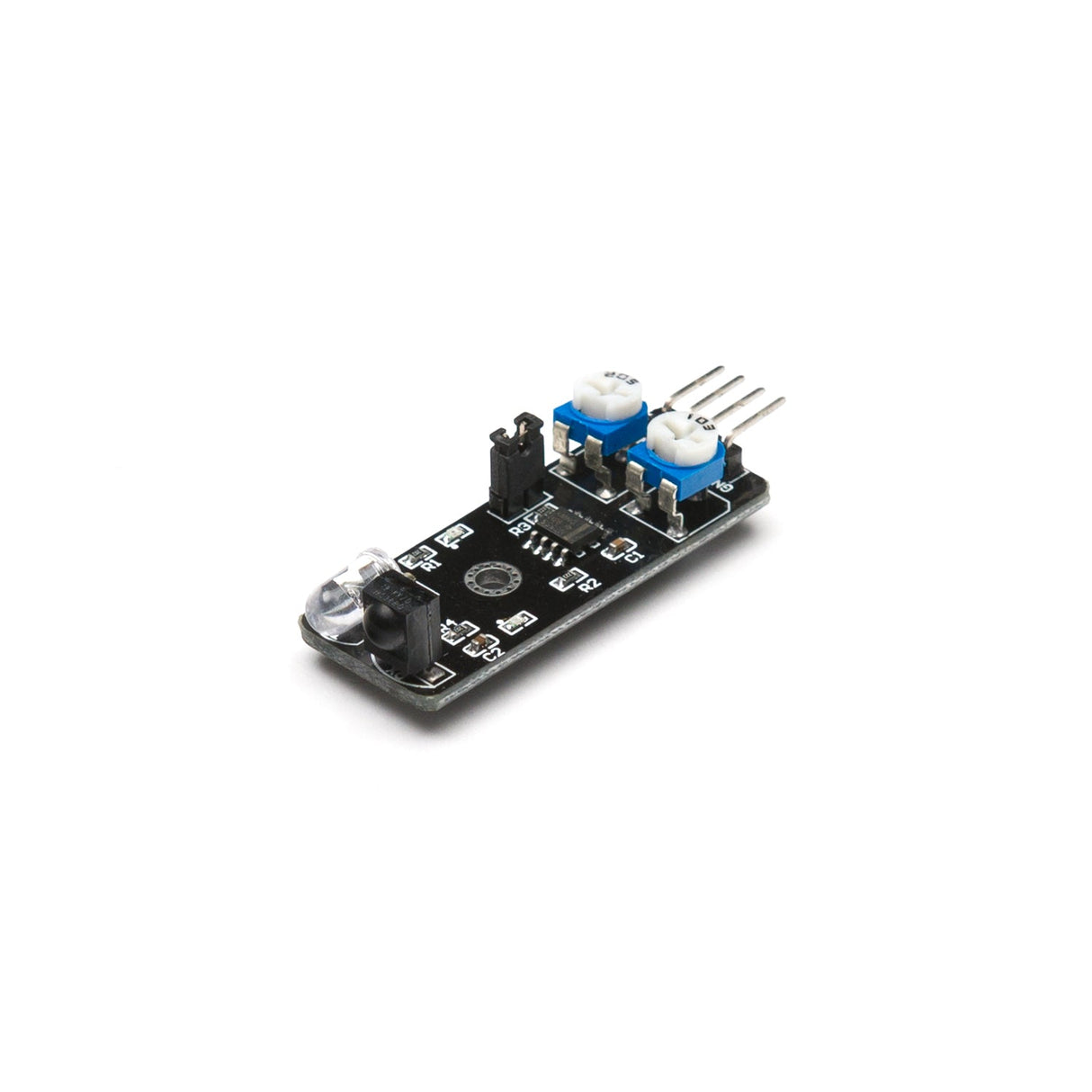

Infrared obstacle sensor is designed for adding to your robot so that it can avoid obstacles.
Specifications
- IO Interface: 4-wire interfaces (- / + / S / EN)
- Output signal: TTL level (low level there is an obstacle, no obstacle high)
- Adjustment: adjust multi-turn resistance
- Effective angle: 35 °
- Size: 28mm × 23mm
- Working voltage: DC 3.3V-5V
- Working current: ≥ 20mA
- Operating temperature: -10 ℃ - +50 ℃
- detection distance :2-40cm
Pinout
- "+" - power
- Gnd - ground
- out - signal out
- EN - Enable pin
Code
int count; void setup() { Serial.begin (9600); pinMode (9, INPUT); //Sensor output } void loop() { Serial.print ("Sensor: "); Serial.println (digitalRead(9)); //print the sensor output delay (500); //wait half a second }
