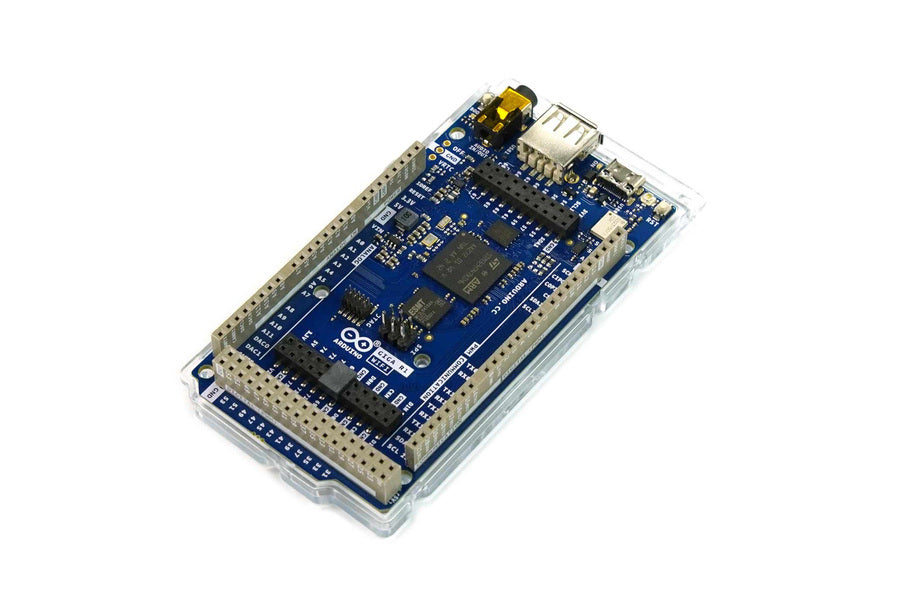

Arduino GIGA R1 WiFi Development Board

SKU: DF-DFR1056
Price
$179.20
GST included. Shipping calculated at checkout.

Got a Question?

Give us a call on 1300 240 817

Frequently Bought Together

We Accept

American Express
Apple Pay
Google Pay
Mastercard
PayPal
Shop Pay
Union Pay
Visa

Description

Note: The Arduino GIGA R1 WiFi Development Board is available for pre-order and is expected to be shipped in late September.
This Arduino GIGA R1 WiFi Development Board measures only 101 x 53mm and has the same form factor as the popular Mega and Due. Despite its small size, it offers 76 GPIO pins, which include 12 analog pins, 12 PWM pins, 4 UARTs, 3 I2C ports, 2 SPI ports, 1 FDCAN, and 1 SAI. Additionally, Wi-Fi and Bluetooth LE wireless communications are supported by an external antenna Murata 1DX, so users can quickly connect the board to the Arduino IoT Cloud and remotely monitor their project without concern about communication security.
The GIGA R1 WiFi employs dual-core 32-bit Arm MCU STM32H747XI, bringing together a Cortex-M7 at 480 MHz and a Cortex-M4 at 240 MHz. Besides, it comes with 2MB Flash and 1MB RAM, which allow users to run two programs simultaneously, for example, run micro-python in one and Arduino in the other.

Figure: Board Overview of Arduino GIGA R1 WiFi

The board features a USB-C connector used for power, programming, and an HID function that allows it to simulate mouse or keyboard when connected to a PC. And it also has a USB-A connector suitable for hosting USB sticks, other mass storage devices, and HID devices such as a mouse or keyboard. Additionally, it includes a 3.5mm input/output audio jack, JTAG connector(2x5 1.27mm), and 20Pin Arducam camera connector. The GIGA R1 WiFi can handle up to 24 volts.

Figure: Arduino GIGA R1 WiFi Pinout

Figure: Arduino GIGA R1 WiFi Block Diagram

Features
76 digital inputs/outputs (12 with PWM capability)
14 analog inputs and 2 analog outputs (DAC)
USB-C and USB Host (keyboard, mass storage) via a dedicated USB-A connector

Applications
IoT devices
Robotics
Automation
Smart homes
Industrial automation

Specification
Microcontroller: STMicro STM32H747XI Cortex-M7 @ 480 MHz + M4 @ 200 MHz MCU with 2MB dual-bank Flash memory, 1 MB RAM, Chrom-ART graphical hardware accelerator
System Memory: 8MB SDRAM
Flash: 16MB QSPI NOR flash
Radio Module: 2.4GHz WiFi 802.11b/g/n up to 65 Mbps and Bluetooth 5.1 BR/EDR/LE via Murata 1DX module
Display: 20-pin header
Camera: 20-pin Arducam camera connector
USB:
         USB Type-C port × 1, used for programming & HID
         USB 2.0 Type-A port × 1
Audio: 3.5mm audio jack
I/O: I/O pins (includes camera/display pins) × 76
         UART × 4, I2C × 3, SPI × 2
         PWM × 12
         Analog inputs × 12
         DAC × 2
         CAN bus (requires an external transceiver)
Operating Voltage: 3.3V
Current per I/O Pin: 8mA
Debugging: JTAG connector
Input Voltage: 6-24V
Dimensions: about 101×53 mm/3.98×2.09"

Projects
Project: GIGA R1 WiFi-powered wearable detects falls using a Transformer model
Introduction:Naveen Kumar set out to produce a wearable fall-detecting device that aims to increase the speed at which this occurs by utilizing a Transformer-based model rather than a more traditional recurrent neural network (RNN) model.


Documents

Shipping List
Arduino GIGA R1 WiFi Development Board × 1
