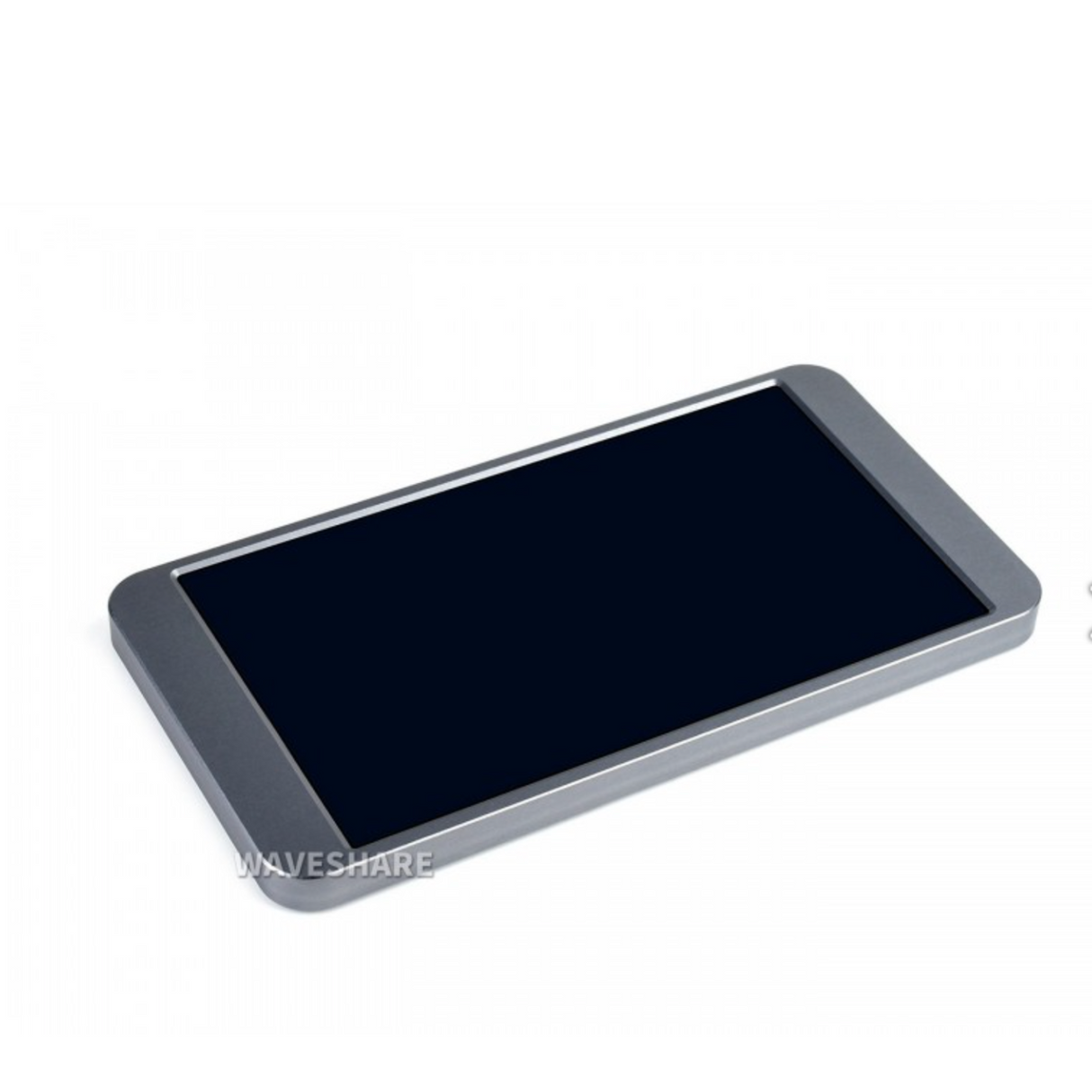

7inch Universal Portable Touch Monitor, Mini HDMI Port, 1080×1920 Full HD, IPS Screen, Fully Laminated/AF Coating Toughen Glass Panel, Various Systems & Devices Support Including Raspberry Pi, Jetson Nano, PC...
7" Touch Monitor
- Size
7"
- Resolution
1080×1920
- Display Port
Mini HDMI
- Display Panel
IPS
- Viewing Angle
170°
- Touch Type
Capacitive
- Touch Points
5-Points
- Touch Port
USB
- Touch Panel
Toughened Glass
- Touch Panel Tech
Fully Laminated/AF
- Sound
Hi-Fi Speaker
- Audio Output
3.5mm Jack
- Enclosure
CNC Process Alloy
The display orientation is portrait by default, 1080×1920 resolution (H×V). Change the software config for landscape display.

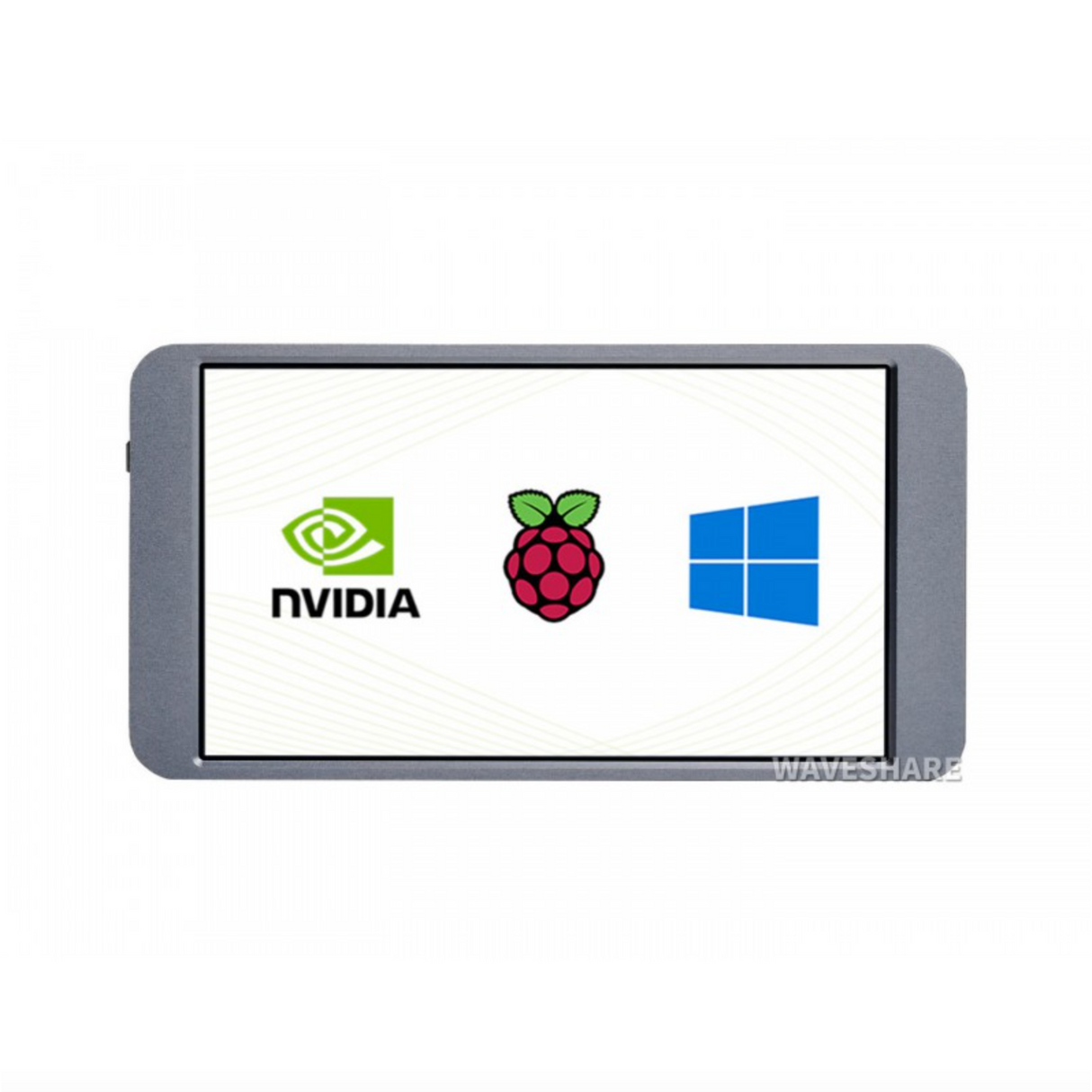

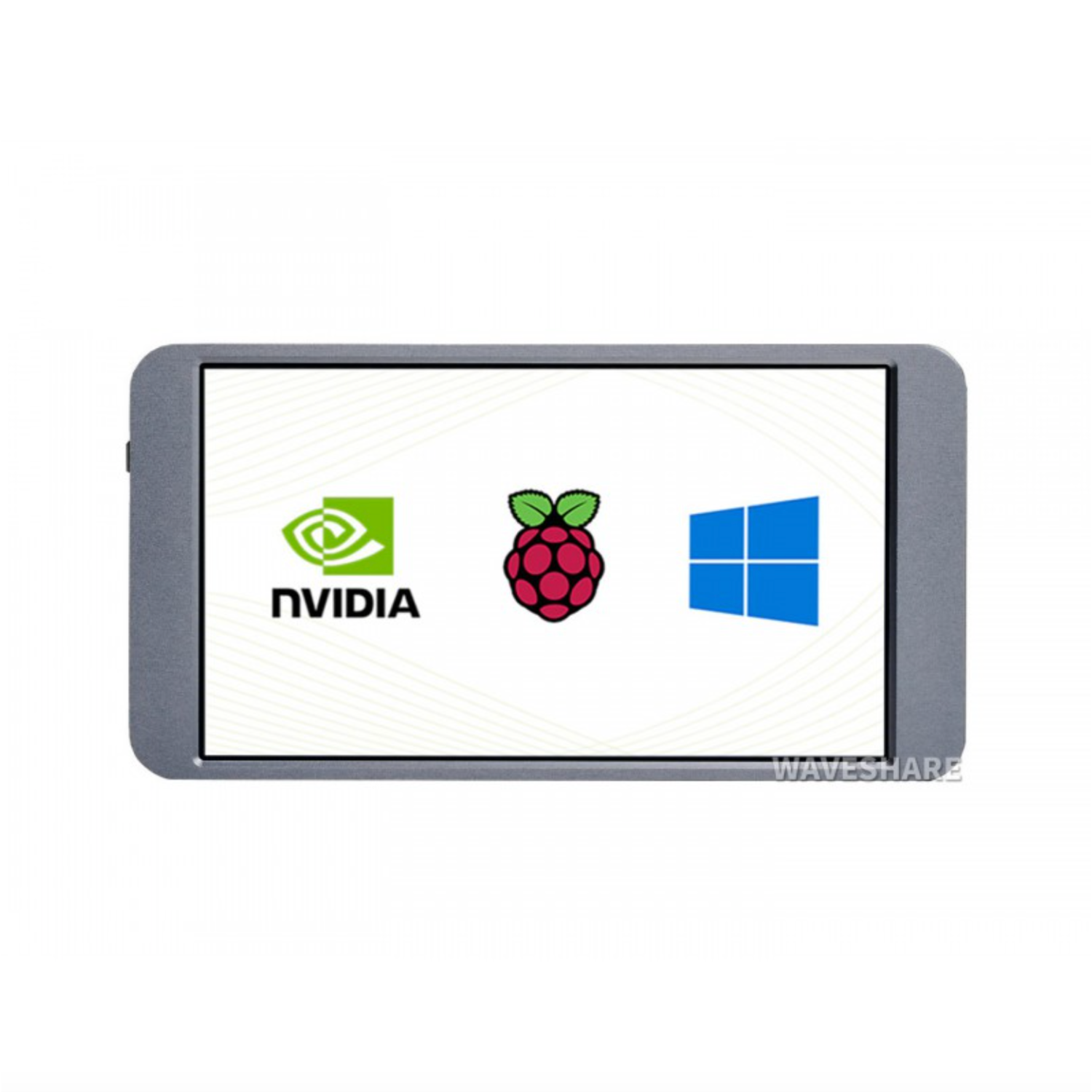

Device & System Support
Raspberry Pi
Supports Raspbian, 5-points touch, driver free
Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
Supports Retropie, driver free
Supports all versions of Raspberry Pi
Jetson Nano
Supports Ubuntu, single point touch, driver free
PC
Supports Windows 10 / 8.1 / 8 / 7, 5-points touch, driver free
Connection Examples
Working With Raspberry Pi 4
Working With Raspberry Pi 3B+
Working With Raspberry Pi Zero W
Working With AI Computer Jetson Nano
Working With Mini PC
Display
IPS Panel, Up To 70% NTSC Color Gamut, Up To 350nit Brightness
Touch Control
1) up to 5-points touch, depending on the operating system. 2) up to 6H hardness toughened glass panel. 3) fully laminated screen, better display experience; AF coating process, anti-fouling, anti-fingerprint
Audio Feature
Appearance And Dimensions
Resources & Services
Wiki: www.waveshare.com/wiki/7inch_FHD_Monitor
Product Certification
HDMI Certified
* We are an official authorized HDMI Adopter.
Over A Decade
Waveshare Grows With Display
* Waveshare has been focusing on display design for over 10 years.

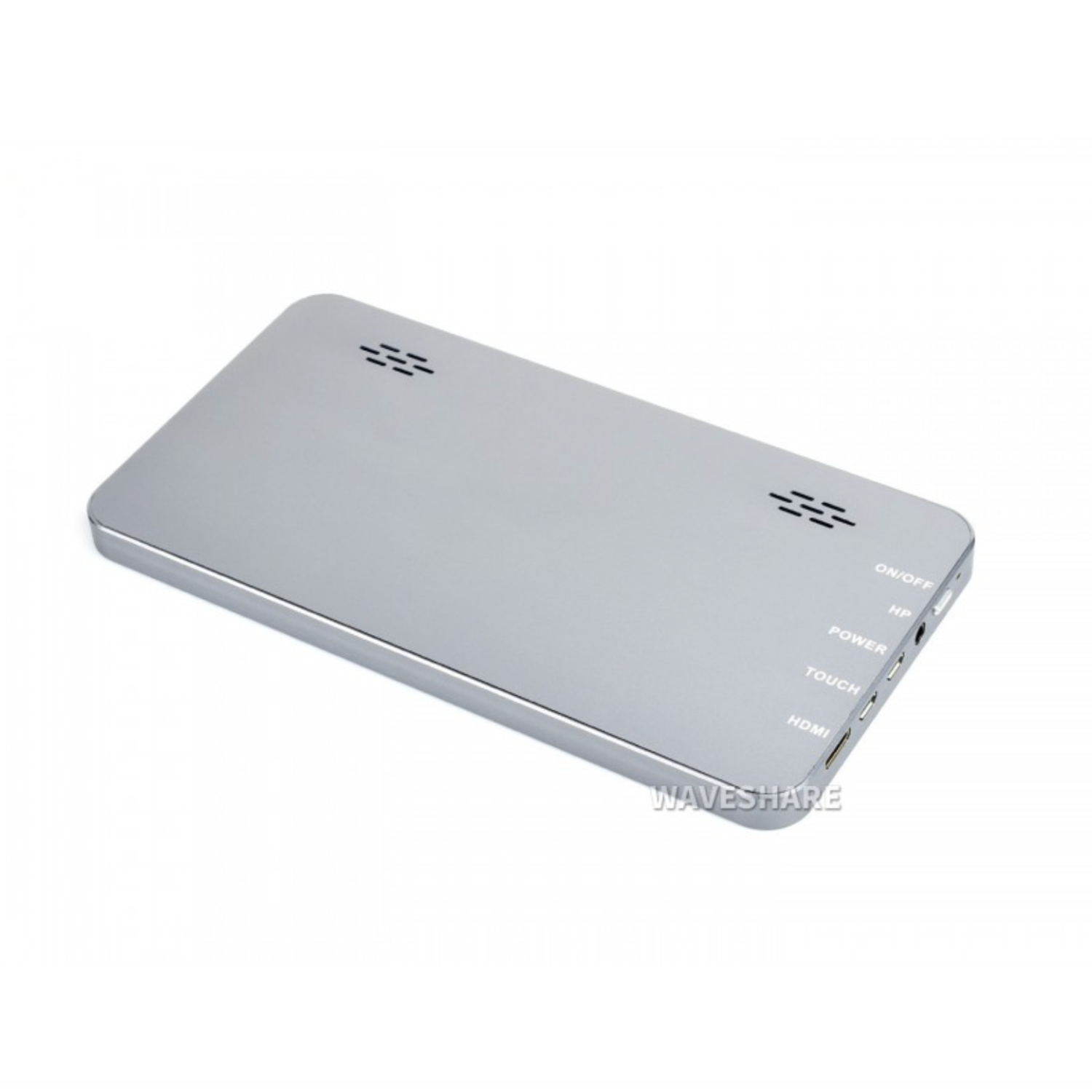

7inch Universal Portable Touch Monitor
This product has Free Domestic Shipping
We have 4 units in our Sydney Warehouse available for immediate dispatch.
Raspberry Pi Model Compatibility | ||
---|---|---|
RP4 |
|
Doesn't with Raspberry Pi 4 Model B |
RP3A+ |
|
Doesn't with Raspberry Pi 3 Model A+ |
RP3B+ |
|
Doesn't with Raspberry Pi 3 Model B+ |
RP3B |
|
Doesn't with Raspberry Pi 3 Model B |
RP2B |
|
Doesn't with Raspberry Pi 2 Model B |
RP1B+ |
|
Doesn't with Raspberry Pi 1 Model B+ |
RP1A+ |
|
Doesn't with Raspberry Pi 1 Model A+ |
RP0W |
|
Doesn't with Raspberry Pi Zero W |
RP0 |
|
Doesn't with Raspberry Pi Zero |
RPCM3+ |
|
Doesn't with Raspberry Pi Compute Module 3+ |
